The UPC-309R LEGO Industrial PC—engineered for high reliability and continuous operation in mission-critical environments. Featuring Intel® 10th Gen processors and a redundant power supply, this fanless system ensures uninterrupted performance, even in the event of a power failure.
Introduction
- Intel® Core™ i7/i5/i3 processors, compatible from Celeron® to 12th Gen Intel® Core™
- Dual Intel® I210 Gigabit Ethernet.
- I/O: USB 2.0 ×2, USB 3.0 ×4, Audio ×1, Mic ×1, RS-232 ×3, HDMI, VGA.
- Redundant-power Supply, 9–36V DC wide-range power input.
- Expansion: Dual-drive M.2 NVMe and Mini PCIe SSD
- Fanless
- TPM 2.0 hardware security support.
- CESIPC BlockCore modular design.
- CESIPC SafeCore™ power-loss protection.
- Auto power-on after power recovery.
- Industrial-grade 6061 aluminum alloy enclosure.
► Specifications
| Processor | CPU | Intel® i3-10110U Dual Core, 2.10-4.10 GHz 4M Cache, TDP 15W Intel® i5-10210U Quad Core, 1.60-4.20 GHz 4M Cache, TDP 15W Intel® i7-10510U Quad Core, 1.80-4.90 GHz 4M Cache, TDP 15W |
| Cooling System | Fanless | |
| Memory | 1x DDR4 2133Mhz SO-DIMM Sockets, up to 16GB | |
| Storage | M.2 NVME SSD + mSATA SSD | |
| I/O ports | 4xUSB3.0+2xUSB2.0 (Type-A) | |
| 6xRS232 2*RS485 optional, up to 6, support 5V/12V, DB9 | ||
| Dual Display: HDMI(3840*2160 @24Hz)+VGA(1920*1080 @60Hz) | ||
| Audio: 1x Line-out | ||
| WIFI: 802.11a/g/n, 2×2 Antenna, 2.4/5 GHz, 300 Mbps Max Speed | ||
| Network(LAN) | 2x Intel i211 10/100/1000Mbps Ethernet | |
| Power Supply | Input Voltage | 12V DC (2 Pin Phoenix Connector) , optional 9V-36V DC |
| Control SW | 1x Power SW, AT/ATX optional | |
| Redundant Power | Redundant Power Supply with Warning Light | |
| OS Support | OS Support | Microsoft Windows 7/ Windows 10/ Linux |
| Environment | Operating Temperature | 0℃～70℃ (extend temperature optional) |
| Storage Temperature | -25℃～60℃ (extend temperature optional) | |
| Mechanical | Dimensions | (W*D*H): 300x160x50mm With bracket: 337x160x53.2mm |
| Weight | N.W. 3.2KG | |
| Color | Black | |
| Material | High Strength Aluminum Alloy Front Panel | |
| Certification | CE / RoHS | |
| Custom Service | Custom Service | Custom BIOS, System Encryption, Custom LOGO |

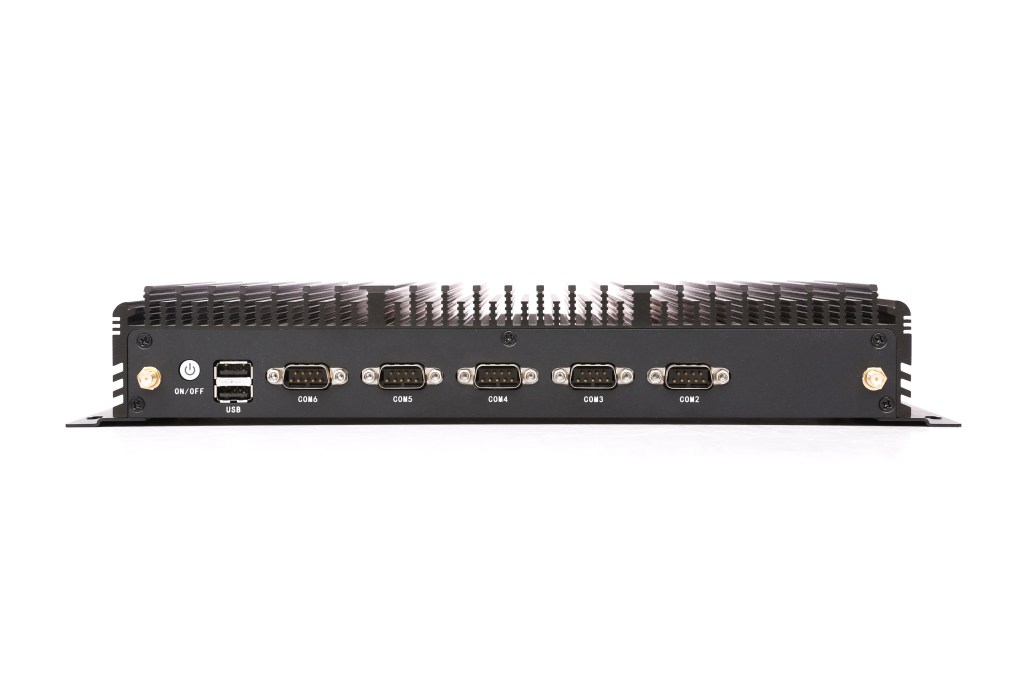

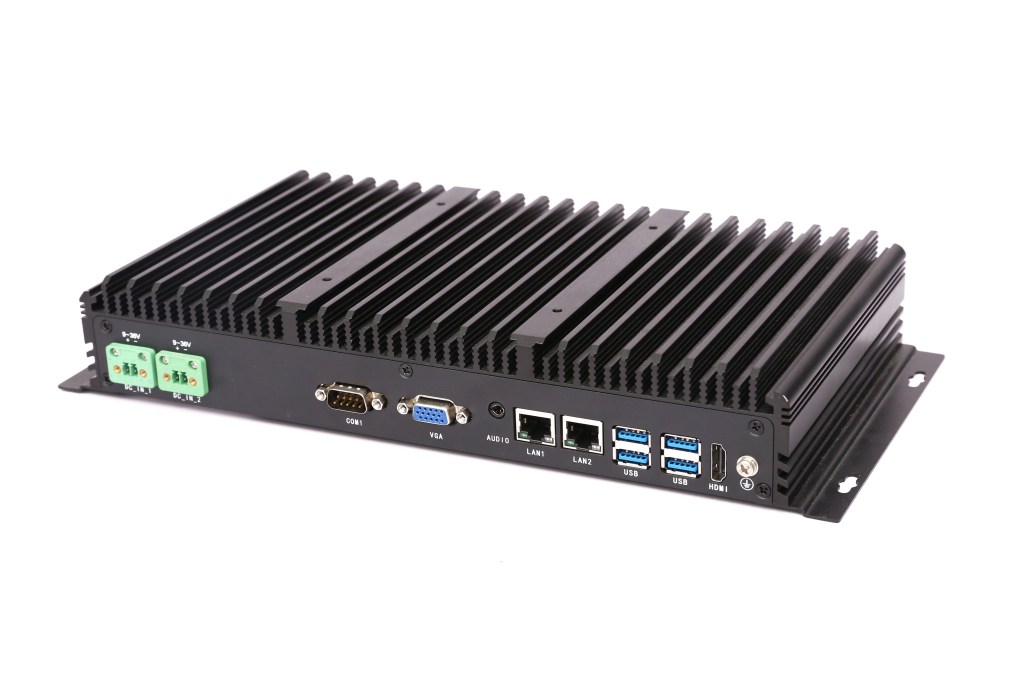

►Product images & sizes
