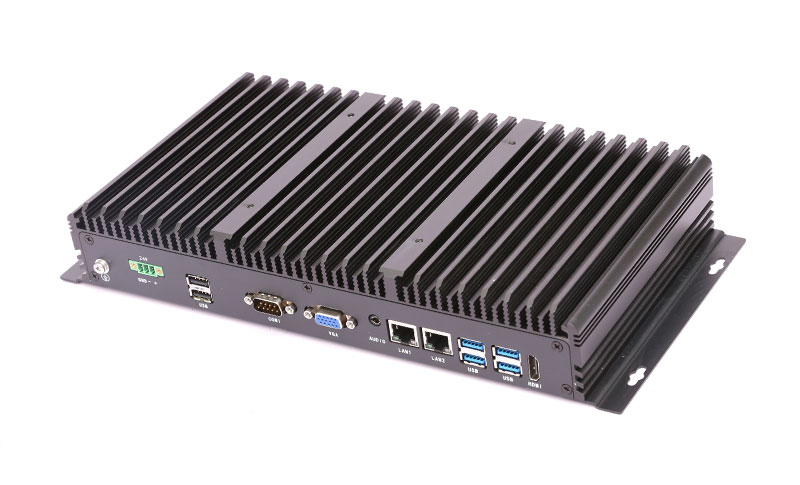

Introducing the UPC-309D Fanless Industrial PC with Intel® 10th Gen processors, designed for demanding industrial environments. Equipped with 9 USB ports, dual display outputs (HDMI & VGA), this compact, fanless system offers unparalleled performance and flexibility. Ideal for automation, machine control, and IoT applications, the UPC-309D ensures silent, reliable operation even in harsh conditions, with extensive I/O options for seamless integration. Durable and energy-efficient, it’s the perfect solution to meet the needs of modern industries.
Industrial Panel PCs are widely used as control terminals across industries, including manufacturing, food & beverage, chemical processing, pharmaceuticals, energy, transportation, logistics, automation, and smart infrastructure, enabling reliable monitoring, control, and data visualization in demanding industrial applications.
► Introduction
- Intel® Core™ i7/i5/i3 processors, compatible from Celeron® to 12th Gen Intel® Core™
- Dual Intel® I210 Gigabit Ethernet.
- I/O: USB 2.0 ×5, USB 3.0 ×4, Audio ×1, Mic ×1, RS-232 ×5, HDMI, VGA.
- 9–36V DC wide-range power input.
- Expansion: Dual-drive M.2 NVMe and Mini PCIe SSD
- Fanless
- TPM 2.0 hardware security support.
- CESIPC BlockCore modular design.
- CESIPC SafeCore™ power-loss protection.
- Auto power-on after power recovery.
- Industrial-grade 6061 aluminum alloy enclosure.
► Specifications
| Processor | CPU | Intel® i3-10110U Dual Core, 2.10-4.10 GHz 4M Cache, TDP 15WIntel® i5-10210U Quad Core, 1.70-4.40 GHz 4M Cache, TDP 15WIntel® i7-10510U Quad Core, 1.80-4.90 GHz 4M Cache, TDP 15W |
| Cooling System | Fanless | |
| Memory | 1x DDR4 2133Mhz SO-DIMM Sockets, up to 16GB | |
| Storage | 1xFull Size Mini PCIe mSATA SSD+1×2.5” SATA SSD | |
| I/O ports | 4xUSB3.0 (Type-A), 5xUSB2.0 | |
| 5xRS232 (2*RS485 optional), support 5V/12V, DB9 | ||
| Dual Display: 1xHDMI (1920*1200 @30Hz)1xVGA (1920*1200 @30Hz) | ||
| Audio: 1x Line-out | ||
| WIFI: 802.11a/g/n, 2×2 Antenna, 2.4/5 GHz, 300 Mbps Max Speed | ||
| Network(LAN) | 2x Intel i211 10/100/1000Mbps Ethernet | |
| Power Supply | Input Voltage | 12V DC (3 Pin Phoenix Connector) , optional 9V-36V DC |
| Control SW | 1x Power SW, AT/ATX optional | |
| OS Support | OS Support | Microsoft Windows 7/ Windows 8/ Windows 10/ Linux |
| Environment | Operating Temperature | 0℃～50℃ (extend temperature optional) |
| Storage Temperature | -10℃～60℃ (extend temperature optional) | |
| Mechanical | Dimensions | (W*D*H): 300x160x50mm |
| Weight | N.W. 3.2KG | |
| Color | Black | |
| Material | High Strength Aluminum Alloy Front Panel | |
| Certification | CE / UL / RoHS | |
| Custom Service | Custom Service | Custom BIOS, System Encryption, Custom LOGO |

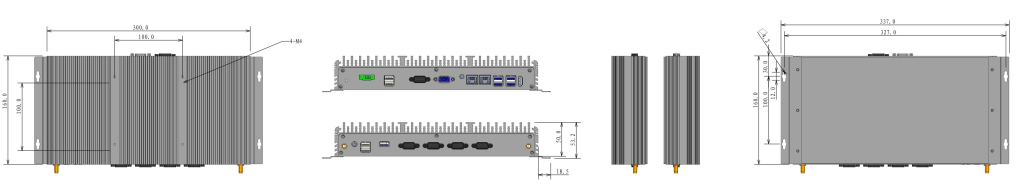

►Product images & sizes
