Industrial monitor · 12″ 1024 × 768 · capacitive touch · IP65 front · no CPU

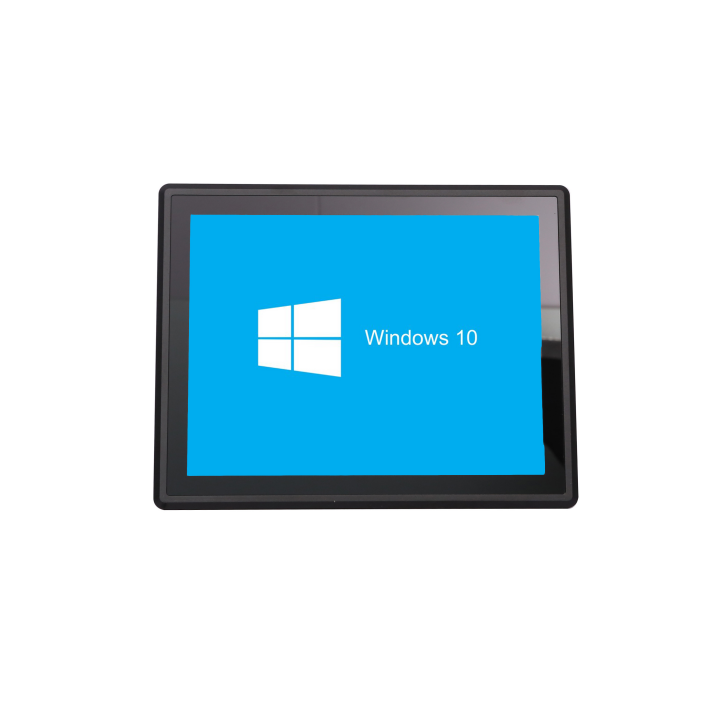

FPM-1202C 12-inch Industrial Touch Monitor for Machine Doors and Consoles
12″ 1024 × 768 · IP65 front · 2 kg
A 12-inch display with nothing to maintain inside. The FPM-1202C is a 1024 × 768 panel at 300 nits with capacitive touch over USB and VGA + HDMI inputs — it shows what your existing IPC or PLC puts out, with no CPU, memory or storage. The front is sealed to IP65 in an aluminium frame, and at 2 kg it mounts in a 274.9 × 214.2 mm cutout or on a VESA arm.
12″ 1024 × 768300 nitsVGA + HDMICapacitive touch · USBIP65 frontNo CPU
17+
Years
50+
Countries
1
MOQ unit
2–4
Weeks lead
OEM
ODM & branding
At a glance
FPM-1202C key specifications
The panel, the touchscreen, the compute, the ports and the mechanical fit — everything that decides whether this panel drops into your cutout.
Panel size
12″ 4:3
Resolution
1024 × 768
Brightness
300 nits
Touch
Capacitive, USB
Video input
VGA + HDMI
Backlight
30,000 h typical
Viewing angle
160° / 160°
Response
5 ms
Power
12V 2A (9~36V opt.)
Protection
IP65 front
Mounting
Panel / VESA 75 & 100
Weight
2 kg
Design notes
Why a monitor instead of a panel PC
Two video inputs, and no computer to maintain
The FPM-1202C is a 12-inch 1024 × 768 panel at 300 nits with VGA and HDMI inputs and capacitive touch over USB — and nothing else inside. On a machine that already runs an IPC, a PLC with a video output or a vision controller, that is the right shape: the screen goes on the door, the host stays in the cabinet, and there is no second operating system to patch, image or back up over the life of the machine.
- 12″ 1024 × 768 at 300 nits — readable at arm’s length
- VGA + HDMI inputs for the host you already have
- Capacitive touch over USB — HID, no driver pack
- No CPU, memory or storage — nothing to patch or back up
- Keeps the existing HMI and its licence where they are
A sealed aluminium front, sized for a machine door
The housing is a high-strength aluminium frame in a moulded body, finished black, with a flat front sealed to IP65 — specified for oil mist on a machining centre, coolant splash beside a grinder, and the wipe-down at shift end. The face is also shielded against electromagnetic interference, which is what you want when the monitor shares a cabinet with drives and contactors. Operating temperature is -10~50℃.
- IP65 front, oil- and EMI-resistant face
- Aluminium frame in a black moulded housing, flat bezel
- -10~50℃ operating, -20~70℃ storage
- Specified for 24/7 industrial duty, not office hours
- Wipes down with the machine at shift end
Panel cutout or VESA, at 2 kg

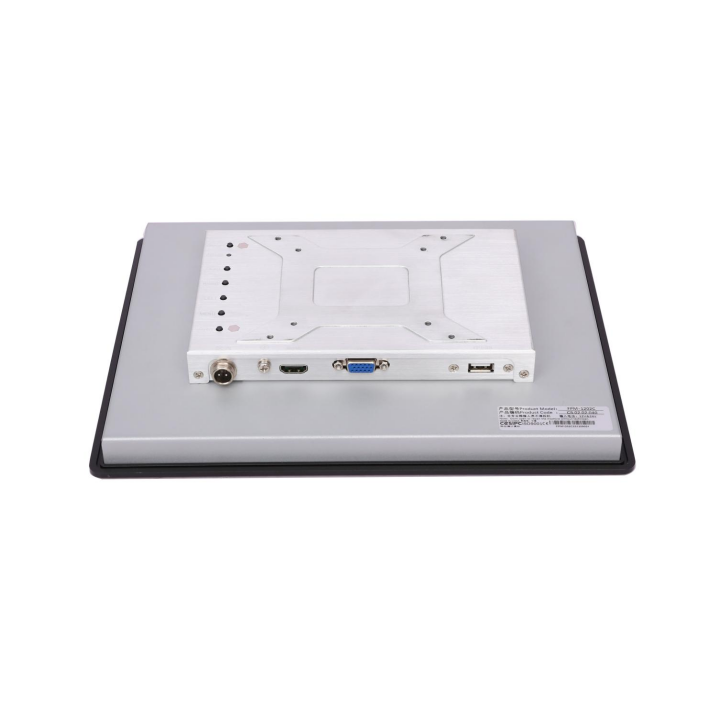

It drops into a 274.9 × 214.2 mm cutout like a panel PC, or hangs on a VESA 75 × 75 / 100 × 100 bracket — and at 2 kg it does not need a heavy arm. Power is 12V 2A through a locking 2-pin aviation connector, with a 9~36V DC version for vehicles and 24V cabinets. The box contains the power adapter, a USB touch cable and either an HDMI or a VGA cable, chosen at order so it matches the host.
- 274.9 × 214.2 mm cutout, or VESA 75 × 75 / 100 × 100
- 2 kg — light enough for a standard monitor arm
- 12V 2A locking 2-pin aviation connector (9~36V DC optional)
- HDMI or VGA cable, power adapter and USB touch cable in the box
- CE / RoHS; custom LOGO and system encryption available
Configuration
Specifications and ordering
One build, one part number. The panel, the touchscreen, the signal inputs and the cutout are fixed; the cable in the box is HDMI or VGA, chosen at order.
FPM-1202C · 12″ capacitive touch
Capacitive touch
Best forMachine doors and consoles where the 9.7-inch screen is too small for the operator to read the HMI at arm’s length, but a panel PC would duplicate a computer the machine already has.
Part number FPM-1202C — Capacitive touch version.
Panel & touch
| Panel size | 12-inch TFT LCD, flat panel screen |
| Max. resolution | 1024 × 768 |
| Brightness | 300 nits |
| Backlight | LCD backlight, 30,000 hours (typical) |
| Viewing angle | 160° / 160° (H/V) |
| Colours | 16.7M |
| Response time | 5 ms |
| Touch panel | Capacitive touch screen |
| Touch controller | USB interface |
| Front protection | Front panel IP65 |
I/O & networking
| Video input | 1× VGA + 1× HDMI |
| Touch interface | USB (touch controller) |
| Cable supplied | HDMI or VGA cable — one of the two, chosen at order |
Power
| Input | 12V 2A through a 2-pin aviation connector |
| Range option | 9~36V DC optional |
| Power adapter | Supplied with the monitor |
Environmental
| Operating temperature | -10~50℃ (14~140 °F) |
| Storage temperature | -20~70℃ (-4~158 °F) |
| Oil and EMI | Resistant front; designed for oily and electrically noisy plant rooms |
Mechanical & compliance

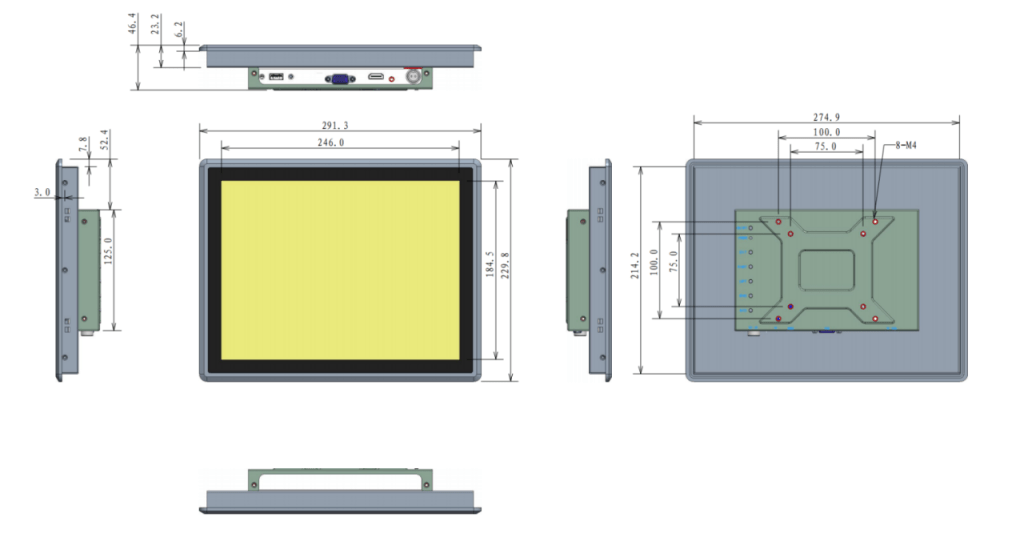

| Dimension | 291.3 (W) × 229.8 (H) × 46.5 (D) mm |
| Cutout size | 274.9 × 214.2 mm |
| Weight | 2 kg N.W. |
| Colour | Black |
| Material | High-strength aluminium frame, moulded housing |
| Mounting | Panel mount / VESA 75 × 75 and 100 × 100 mm |
| Certifications | CE / RoHS |
| Custom service | Custom LOGO · system encryption |
Ordering information
Ordering information and what is in the box
One part number, one configuration. The cable in the box is HDMI or VGA — chosen at order; the power adapter uses the 2-pin aviation connector.
| NO. | Model | Part Number | Configuration | In the box |
|---|---|---|---|---|
| 1 | FPM-1202C | FPM-1202C | Capacitive touch version | Panel · HDMI or VGA cable · power adapter · USB cable |
In the box: the monitor, a power adapter, a USB touch cable, and an HDMI or VGA cable — one of the two, chosen at order. Mounting screws and the 9~36V DC power option are quoted per project.
Downloads
FPM-1202C downloads
The full specification is available immediately. Manuals, drivers, certificates and drawings are issued with the quotation.
FPM-1202C datasheet
Panel, touch, I/O, dimensions, cutout and the ordering table (PDF).
Panel PC buying guide
How to size the display, choose the protection rating and specify the cutout.
Industrial PC FAQ
Processor, operating system, mounting and environmental questions.
Manual, drivers & certificates
User manual, driver pack, CE / FCC / BIS certificates, 2D and 3D drawings — issued per order.
FAQ
FPM-1202C frequently asked questions
Questions about the 12-inch screen against the 9.7-inch and 15-inch models, the VGA and HDMI inputs, capacitive touch over USB, the IP65 front, the cutout and VESA mounting, and what ships in the box.
What is the FPM-1202C, and how does it differ from the 9.7-inch model?
Both are industrial monitors with capacitive touch, IP65 fronts and the same VGA + HDMI inputs; the difference is the screen. The FPM-1202C is 12-inch at 1024 × 768 with a 291.3 × 229.8 × 46.5 mm housing and a 274.9 × 214.2 mm cutout, so it suits a machine door where the operator reads the HMI from a step back rather than close up.
Why not just fit a panel PC?
Because the computing is usually already on the machine. If an IPC in the cabinet, a PLC with a video output or a vision controller is producing the picture, a panel PC duplicates it — and hands you a second operating system to patch, image and back up for a decade. The monitor takes the spare output and adds nothing to maintain.
Which inputs does it accept?
One VGA and one HDMI. That covers the analogue output still found on industrial PCs and PLC HMIs, and HDMI from anything newer. The cable in the box is HDMI or VGA — one of the two, chosen at order, so the box matches your host.
How does the touch interface work?
Capacitive touch with a USB controller: it enumerates as a standard USB HID touch device on Windows and Linux, with no driver pack and no calibration routine. Where the host is a PLC with a USB port, it normally appears as a mouse.
Will the IP65 front survive coolant and swarf?
The front is a flat panel sealed to IP65 in an aluminium frame, with a face resistant to oil and to electromagnetic interference — the conditions next to a machining centre or a grinder. It is wiped down with the machine at the end of a shift, and the flat bezel leaves no groove for swarf to collect in.
What are the operating and storage temperatures?
-10~50℃ (14~140 °F) operating and -20~70℃ (-4~158 °F) storage. If your enclosure runs hotter than that during a shift, tell us the measured internal temperature and we will review the mounting clearances with you.
What are the mechanical dimensions?
The housing is 291.3 (W) × 229.8 (H) × 46.5 (D) mm, the panel cutout is 274.9 × 214.2 mm, and the monitor weighs 2 kg N.W. — light enough for a standard monitor arm, and shallow enough for a door with a busy back side.
How is it mounted and powered?
It drops into the panel cutout, or mounts on VESA 75 × 75 / 100 × 100. Power is 12V 2A through a locking 2-pin aviation connector; a 9~36V DC version is available for vehicles and 24V cabinets, and a power adapter ships in the box.
What is in the box, and what is the part number?
The part number is FPM-1202C (capacitive touch version), with the monitor, a power adapter, a USB touch cable and either an HDMI or a VGA cable. Mounting hardware and the 9~36V DC option are quoted per project.
Is it certified, and can it carry our brand?
CE and RoHS are standard. Custom LOGO and system encryption are available as ODM options; a different cable length or connector arrangement is quoted per project once we know what the enclosure needs.
Related models
Other models in the ODM range
The FPM-1202C is the 12-inch member of the FPM monitor range, between the 9.7-inch FPM-1002S and the larger widescreen models. If the station also has to compute rather than display, or needs an integrated RFID reader, the panel PC ranges cover that instead.
FPM-1002S
9.7″ 1024×768 · 300 nits
FPM-1502B-RFID
15″ RFID · 800 nits
FPM-1502K
15.6″ 1920×1080 · 300 nits
Send us the cutout, the I/O list and the environment
Tell us the panel size and the existing cutout, the networks and serial devices you have to connect, the processor tier and the environment. We will confirm the configuration, the part number, the lead time and the price — typically the same working day.
Request a quotation
Tell us what you need — we will quote your application
Pick the specification and the application below — every answer reaches us as a separate line, so one reply can confirm the exact build, lead time and price. Not sure about a field? Leave it on “advise me” and our engineers will choose for you.
