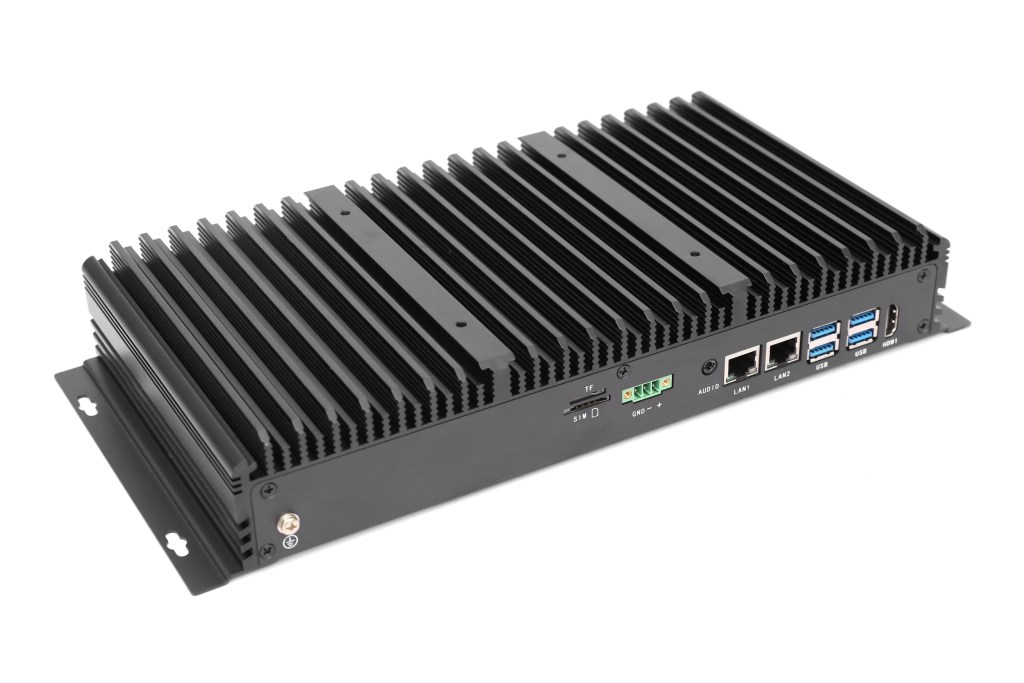

UPC-309C 4G Industrial PC

The UPC‑309C is a 4G‑enabled fanless industrial PC purpose‑built for applications requiring wireless connectivity in remote or mobile environments. Key differentiators include:

• Built‑in 4G/LTE with SIM card slot — Integrated LTE module enables high‑speed wireless communication without relying on fixed networks. Supports external antennas for weak coverage areas and optional Wi‑Fi hotspot functionality. This eliminates the need for external cellular gateways or USB dongles, reducing failure points and simplifying deployment in transportation monitoring, roadside units, and remote oil/gas sites where wired internet is unavailable.

• Fanless passive cooling — Uses a thermally engineered 6061 aluminum chassis as a passive radiator, eliminating dust intake, bearing failure, and scheduled fan replacement. Ideal for dust‑prone transportation enclosures and 24/7 unattended deployments in wayside cabinets and vehicle compartments.

• LEGO MODE (BlockCore™) modular architecture — Built on CESIPC’s BlockCore™ platform, supporting i‑Door expansion modules (CAN, 5‑port LAN, isolated serial, 5G) without custom PCB development.

• 4 COM ports (2×RS232 + 2×RS485) — Interfaces with legacy industrial sensors, PLCs, LED signs, toll collection equipment, and industrial meters. The UPC‑309C shares the same chassis and I/O layout as the EPC‑30XA and EPC‑40XA, enabling mixed‑fleet deployments with common mounting and cabling.

• Industrial‑grade reliability — Supports 0–50°C standard operating temperature (-40~70°C optional), 9–36V DC wide‑range input, and dual Intel® I210 Gigabit Ethernet for network reliability.

• SafeCore™ power‑loss protection — Prevents OS/file corruption during sudden power loss, with one‑reboot recovery. Critical for mission‑critical roadside and remote monitoring applications where site visits are costly.

Standard commercial PCs lack these industrial‑grade features and typically fail within months in 24/7 unattended or dust‑prone environments.

The UPC‑309C addresses a critical pain point in remote and mobile deployments — the need for external cellular gateways or USB dongles, which introduce additional points of failure, cabling complexity, and power management issues. Built‑in 4G with SIM card slot eliminates these risks. Key applications include:

• Smart transportation & roadside infrastructure — Connected traffic signal controllers, variable message signs (LED boards), electronic toll collection (ETC) terminals, bridge health monitoring systems, and highway information displays. The 4G connection enables real‑time status updates and remote configuration without trenching fiber or copper. Dual Intel I210 Gigabit Ethernet ports also support direct connection to local IP cameras and sensors.

• Remote monitoring & industrial IoT — Water treatment plants, oil & gas wellheads, utility substations, and pipeline monitoring stations. The UPC‑309C collects data from field sensors (via 4 COM ports) and transmits it to central SCADA or cloud platforms over 4G — eliminating the need for satellite or costly private network infrastructure.

• Vehicle telematics & fleet management — Public transit buses, logistics trucks, and service vehicles. The 4G connection provides real‑time GPS tracking, engine diagnostics, and cargo condition monitoring. The 9–36V wide‑range input tolerates vehicle voltage fluctuations, and the fanless design withstands shock and vibration in mobile installations.

• Video surveillance & security — Remote security cameras at construction sites, parking lots, and critical infrastructure. The 4G connection enables real‑time video streaming and event‑triggered alerts without fixed broadband.

• Precision agriculture — Connected tractors, irrigation controllers, and soil monitoring stations. Data collected from sensors is transmitted via 4G to farm management platforms for real‑time decision support.

• Field service & mobile workstations — Utility inspection crews, emergency response vehicles, and temporary construction site offices requiring on‑site computing with cellular backhaul. Optional Wi‑Fi hotspot functionality allows the UPC‑309C to share its 4G connection with nearby devices, simplifying temporary deployment.

The UPC‑309C supports Intel® 10th Gen Core™ processors, sharing identical mechanical chassis, I/O layout, and mounting dimensions across all SKUs — simplifying spares logistics for large‑scale deployments. Options include:

Intel Core™ i3‑10110U — 2 cores, 4 threads, 2.1–4.1GHz, 4MB cache, 15W TDP, Intel UHD Graphics 620. Entry‑level for traffic monitoring, remote data logging, and light edge processing where reliable 4G connectivity is the primary requirement.

Intel Core™ i5‑10210U — 4 cores, 8 threads, 1.6–4.2GHz, 6MB cache, 15W TDP. Balanced performance for video surveillance encoding, bridge health monitoring with multiple sensor streams, and real‑time data aggregation from connected field devices.

Intel Core™ i7‑10510U — 4 cores, 8 threads, 1.8–4.9GHz, 8MB cache, 15W TDP. High‑performance for edge AI inference (vehicle classification, anomaly detection), real‑time video analytics, and multi‑camera synchronisation in intelligent transportation systems (ITS).

Memory: 4–32GB DDR4 (standard 8GB). Storage: 1× mSATA SSD (256GB standard). Operating systems: Windows 10/11, Linux Ubuntu.

For detailed specifications, download the datasheet.

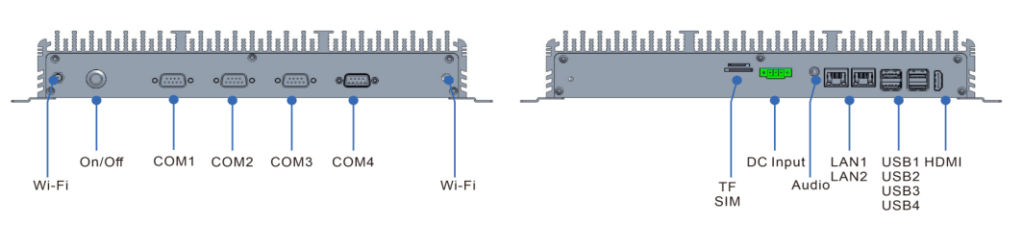

The UPC‑309C provides a balanced industrial I/O package with 4G wireless connectivity as the standout feature:

Wireless connectivity: Built‑in 4G/LTE module with SIM card slot + optional Wi‑Fi/Bluetooth (2.4G/5G, dual‑band). External antenna support improves signal reception in weak coverage areas. Some configurations can act as a Wi‑Fi hotspot, sharing the LTE connection with nearby devices — ideal for simplifying deployment in remote or temporary installations.

USB ports: 4×USB 3.0 (rear) + 2×USB 2.0 (front) = 6 total USB ports — connects cameras, storage, peripherals, and diagnostic tools. USB 3.0 supports high‑speed video capture and data offload.

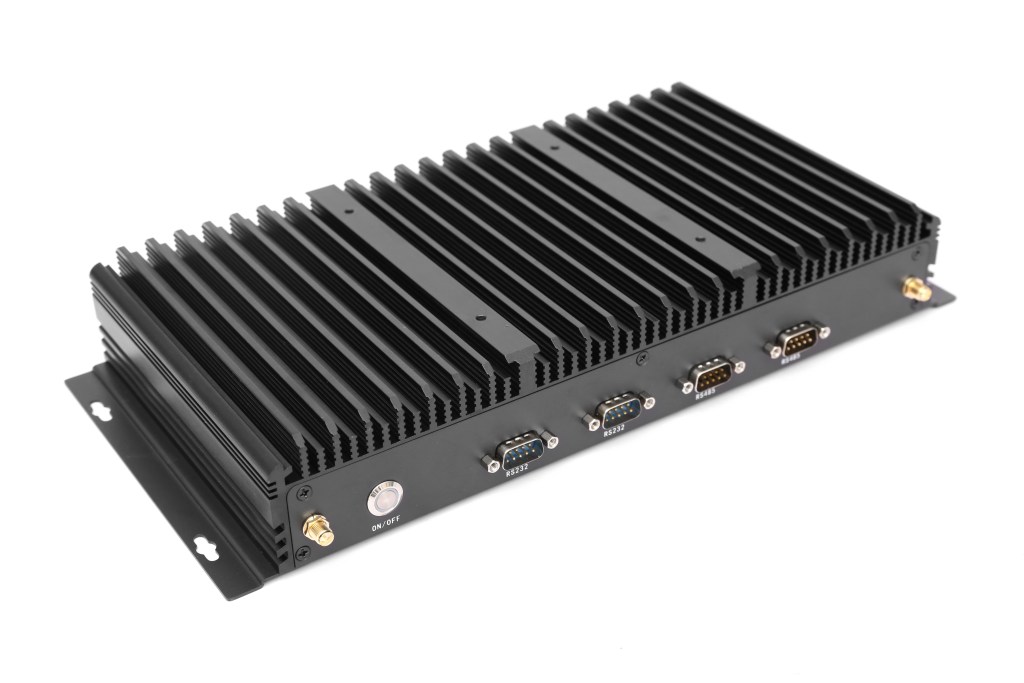

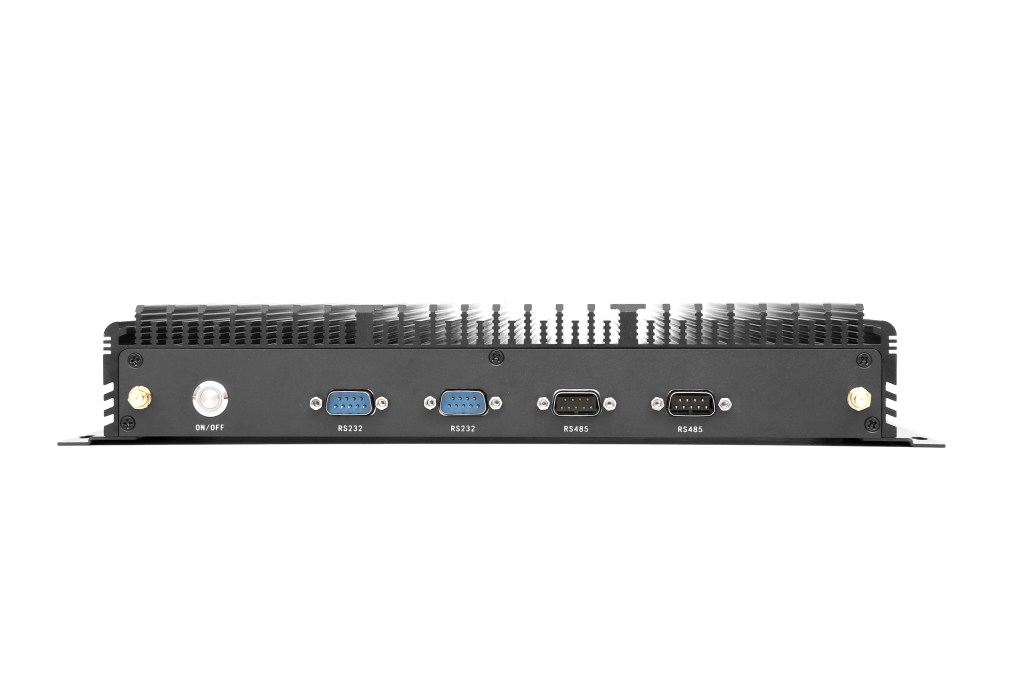

Serial ports: 4×COM ports (2×RS232 + 2×RS485 via DB9) — legacy device connectivity for traffic signal controllers, LED signs, toll collection equipment, industrial sensors, and PLCs. No USB‑to‑serial adapters required.

Display outputs: HDMI (supports 3840×2160 @ 24Hz) + VGA — dual independent displays for operator + customer screens or UI + admin display in kiosk applications.

Networking: 2× Intel® I210 Gigabit Ethernet (10/100/1000M, PTP time sync support) — separated network paths for local device connectivity (IP cameras, sensors) and secure back‑end communication.

Audio: Audio + Mic jacks — public announcement integration or voice guidance for kiosk accessibility.

Internal expansion: Dual M.2 2280 NVMe slots for high‑speed storage, M.2 2230 slot for Wi‑Fi + Bluetooth, 1× Mini PCIe socket for additional wireless or I/O expansion.

Modular I/O via i‑Door (BlockCore™): The i‑Door smart expansion slot accepts function modules — CAN bus, 5‑port LAN, isolated serial, 5G — snapped in without wiring or chassis modifications. Ideal for field‑configurable applications where I/O requirements may evolve (e.g., adding CAN bus for vehicle integration).

External storage: 1× TF card slot for local backup, data logging, or system recovery.

BlockCore™ is CESIPC’s modular computing architecture that standardises interface, structure, power, and expansion across all products. For the UPC‑309C, BlockCore™ delivers:

1. LEGO MODE modular design philosophy — Based on LEGO brick construction principles, BlockCore™ creates a modular ecosystem where compute, I/O, and function boards can be configured like building blocks. This reduces custom development cost by up to 80% through standardised module libraries.

2. Standardised I/O expansion (i‑Door) — i‑Door expansion slots accept function modules (CAN, 5‑port LAN, isolated serial, 5G, GPIO) without custom PCB development. For roadside units requiring CAN bus for traffic signal integration, simply add the module — no hardware redesign.

3. Shared ecosystem across UPC series — The UPC‑309C uses the same i‑Core Board and expansion modules as other BlockCore™ industrial PCs. Standardise spares across mixed fleets of panel PCs, embedded PCs, and remote monitoring controllers.

4. Common chassis across product families — The UPC‑309C shares identical 337×160mm footprint and 53.2mm height with EPC‑30XA/40XA models. Mixed deployments across smart highways, rail, and industrial sites can use common cabinet cutouts and mounting brackets while deploying different I/O configurations per site. All support VESA 100×100mm and wall mount.

5. Extendable product lifecycle — BlockCore™ effectively extends product lifecycle, making investment in the UPC‑309C more cost‑efficient over the long term, particularly for large‑scale transportation and remote monitoring rollouts spanning multiple years.

SafeCore™ is CESIPC’s system‑level power‑loss protection architecture built into the UPC‑309C. In remote monitoring, transportation, and industrial environments, power interruptions are common — grid fluctuations, maintenance lockout/tagout, vehicle battery disconnects, or generator switching — events that corrupt OS files and data logs if power is removed abruptly. SafeCore™ provides:

• System‑level write protection — Blocks all unauthorised changes to the system; even after power failure, user error, or malware attack, system files automatically restore after reboot. For remote roadside units, this prevents tampering and ensures rapid recovery without a site visit.

• One‑reboot recovery mechanism — System crash or file corruption? Just reboot — the system returns to a healthy working state. No technical skills needed. Field technicians can restore service in minutes without IT support.

• Zero IT support required — Anyone on site (traffic maintenance crew, utility worker, facility manager) can recover the system with a simple restart, reducing downtime and on‑call IT costs in remote locations where sending an engineer is expensive and time‑consuming.

• Safe disk writes — Prevents fragmentation or file corruption during sudden power loss, ensuring data integrity for toll transaction logs, bridge sensor records, and quality control data.

Combined with auto power‑on recovery (the system automatically restarts when power returns), SafeCore™ is standard across all UPC‑309C models and works in tandem with TPM 2.0 hardware security for encrypted authentication and data protection.

Dimensions: 337(W) × 160(D) × 53.2(H) mm — slim profile fits inside roadside cabinets, vehicle compartments, and equipment racks. Weight: 3.7 kg net.

Mounting: Wall mount / VESA mount (100×100mm) — flexible installation behind highway signage panels, inside wayside enclosures, or in equipment cabinets. The 160mm depth leaves ample room for cabling and antennas.

Enclosure: Industrial‑grade 6061 high‑strength aluminum alloy + steel chassis — corrosion‑resistant and durable for outdoor cabinet and vehicle installation.

Cooling: Fanless passive cooling — no moving parts, zero scheduled maintenance. Silent operation meets noise‑sensitive roadside and vehicle cabin requirements. The 53.2mm height provides sufficient surface area for effective passive cooling even in sealed outdoor enclosures.

Operating temperature: 0°C ~ 50°C standard; optional -40°C ~ 70°C extended grade for outdoor roadside cabinets, cold climate bridges, and extreme industrial environments.

Storage temperature: -10°C ~ 60°C.

Humidity: 10% ~ 90% RH, non‑condensing.

Power input: 9~36V DC wide‑range input with standard 12V DC — directly accepts 12V vehicle power, 24V industrial rails, or solar‑powered battery systems without additional DC‑DC conversion. Tolerates voltage fluctuations common in vehicle electrical systems (cranking voltage dips) and remote solar/battery installations.

Boot modes: AT (auto power‑on) for unattended roadside operation, or ATX (power button) for manual control. Hardware‑level auto power‑on ensures recovery after power restoration without human intervention — essential for remote sites.

Certifications: CE / FCC / BIS compliant (EN 55032 & EN 55035), factory ISO9001:2015 certified. MTBF 60,000 hours.

Key applications based on specification: Smart highway signage, electronic toll collection (ETC), bridge health monitoring, remote utility monitoring, vehicle telematics, fleet management, precision agriculture, and mining/off‑highway equipment.

The UPC‑309C is a 4G‑enabled fanless industrial PC designed for applications requiring wireless connectivity to remote sites, 4 COM ports for legacy device integration, and 10th Gen Core processing power in a compact, rugged footprint. Typical applications include:

• Smart transportation & intelligent traffic systems (ITS) — Deployed in variable message signs (LED boards), electronic toll collection (ETC) terminals, traffic signal controllers, bridge health monitoring systems, highway information displays, and smart bus platforms. The built‑in 4G enables real‑time status updates and remote configuration without trenching fiber or copper. Dual Gigabit Ethernet ports connect directly to IP cameras and local sensors. 4 COM ports interface with legacy traffic controllers, LED sign controllers, and toll collection equipment. The wide‑voltage (9–36V) and wide‑temperature options ensure reliable operation in roadside cabinets exposed to extreme weather. The UPC‑309C has been successfully deployed in transportation projects across Asia, including highway information display systems, smart bus platforms, and intelligent parking management.

• Remote monitoring & industrial IoT (IIoT) — Water treatment plants, oil and gas wellheads, utility substations, pipeline monitoring stations, and environmental monitoring systems (air quality, noise, particulate matter). 4 COM ports connect to field sensors, flow meters, and analyzers. The UPC‑309C collects data locally and transmits it to central SCADA or cloud platforms over 4G — eliminating satellite or costly private network infrastructure. The TF card slot provides local data logging for periods of connectivity loss. For multi‑COM port applications, see also our EPC‑202B with 7 COM ports.

• Vehicle telematics & fleet management — Public transit buses, logistics trucks, service vehicles, and emergency response fleets. The 4G connection provides real‑time GPS tracking, engine diagnostics (OBD‑II via serial), and cargo condition monitoring (temperature/humidity sensors via COM ports). The 9–36V wide‑range input tolerates vehicle voltage fluctuations (cranking dips to 9V, alternator surges to 36V). The fanless design and optional -40~70°C extended temperature range withstand shock, vibration, and extreme temperatures in mobile installations.

• Video surveillance & security at remote sites — Construction sites, parking lots, critical infrastructure, and border checkpoints. The 4G connection enables real‑time video streaming and event‑triggered alerts without fixed broadband. USB 3.0 ports support high‑speed video capture from multiple IP/analog cameras (via capture cards).

• Precision agriculture & farming automation — Connected tractors, irrigation controllers, soil monitoring stations, and crop health sensors. Data collected from field sensors is transmitted via 4G to farm management platforms for real‑time decision support. The fanless design and wide‑temperature tolerance suit agricultural environments exposed to dust and variable weather.

• Field service & mobile workstations — Utility inspection crews, emergency response vehicles, temporary construction site offices, and mining/off‑highway equipment. The UPC‑309C provides on‑site computing with cellular backhaul. The optional Wi‑Fi hotspot function allows the UPC‑309C to share its 4G connection with nearby tablets and laptops, simplifying deployment in temporary facilities.

For detailed application examples, see our EPC‑309C for transportation case study and 4G industrial PC overview.

Yes. CESIPC offers full OEM/ODM services for the UPC‑309C series, built around the BlockCore™ modular architecture:

• BIOS configuration and boot logo branding — For private labeling, brand consistency, and OEM turnkey solutions.

• I/O panel customisation — Alternative connector arrangements, additional COM ports, isolated digital I/O, or CAN bus via i‑Door expansion modules.

• Function board customisation — Custom i‑Function Board development for specific industrial protocols or proprietary interfaces. The LEGO MODE ecosystem enables rapid function board development, dramatically reducing customisation lead times.

• Operating system pre‑load — Windows 10/11 LTSC or Ubuntu Linux with custom drivers.

• Enclosure material options — Enhanced corrosion resistance for marine, chemical, or outdoor roadside environments.

• Private label packaging and custom SKU part numbering for integrators and reseller programs.

With in‑house SMT assembly, sheet metal fabrication, and CNC machining, CESIPC delivers custom industrial PCs with consistent quality and predictable lead times. MOQ: 1 unit sample available. Typical lead time: 2–4 weeks. Minimum order quantities vary by customisation scope. Contact our engineering team for a detailed ODM assessment.
