The CTN-102C industrial PC showcases a fanless embedded design, equipped with 12th Gen Core™ i3/i5/i7 processors, delivering superior performance. Based on CESIPC LEGO-mode, the CTN-102C, features 2x HDMI with EDID function, is ideal for airport systems, kiosks, POS, smart manufacturing, and lab automation. It supports multiple peripherals like scanners, cameras, and touchscreens, ensuring high integration and efficiency.
► Introduction
- Intel® Core™ i7/i5/i3 processors, compatible from Celeron® to 12th Gen Intel® Core
- Fanless
- Dual Intel® I210 Gigabit Ethernet.
- 2x HDMI with EDID Function
- I/O: USB 3.0 ×4, Audio ×1, Mic ×1
- 9–36V DC wide-range power input.
- Expansion: dual M.2 2280 NVMe, M.2 2230 Wi-Fi.
- TPM 2.0 hardware security support.
- CESIPC LEGO MODE modular design.
- CESIPC SafeCore™ power-loss protection.
- Auto power-on after power recovery.
- Industrial-grade 6061 aluminum alloy enclosure.
► Specifications
System Core
| CPU | Intel® Core™ 12th Processor i3-1215U 1.2~4.4GHz Intel® Core™ 12th Processor i5-1235U 1.3~4.4GHz Intel® Core™ 12th Processor i7-1255U 1.7~4.7GHz |
| Memory | 8~32GB DDR5 |
| Storage | 1 x mSATA SSD |
| Cooling | Fan-less |
| OS | Windows 10/11/ Linux Ubuntu |
I/O Ports
| USB3.0 | 4×USB3.0 |
| Display | 2×HDMI Dual Display |
| Audio | 1×Audio |
| Ethernet | 2×10M/100M/1000M Intel I210 LAN |
Wireless Communication
| Wireless Network | 4G Full Network Compatibility （Optional） |
| Wi-Fi | Wi-Fi/ Bluetooth |
Power Supply
| DC Input | 1×3-pin Pluggable Terminal Block for 12V DC, 9-36V optional |
| Booting | AT / ATX |
Environmental
| Operating Temperature | 0~50℃ (-40~70℃ Optional) |
| Storage Temperature | -10~60℃ |
| Humidity | 10%~90% , non-condensing |
Mechanical
| Dimension | 229.0 (W) × 160.0 (D) × 67 (H) mm |
| Weight | 1.5 KG |
| Material | High-Strength Aluminum Alloy |
| Mounting | Wall-mount/VESA Mount |
Certifications & Services
| Certs | CE / FCC / BIS, according to EN 55032 & EN 55035 |
| ODM | BIOS / Boot on LOGO / OEM |

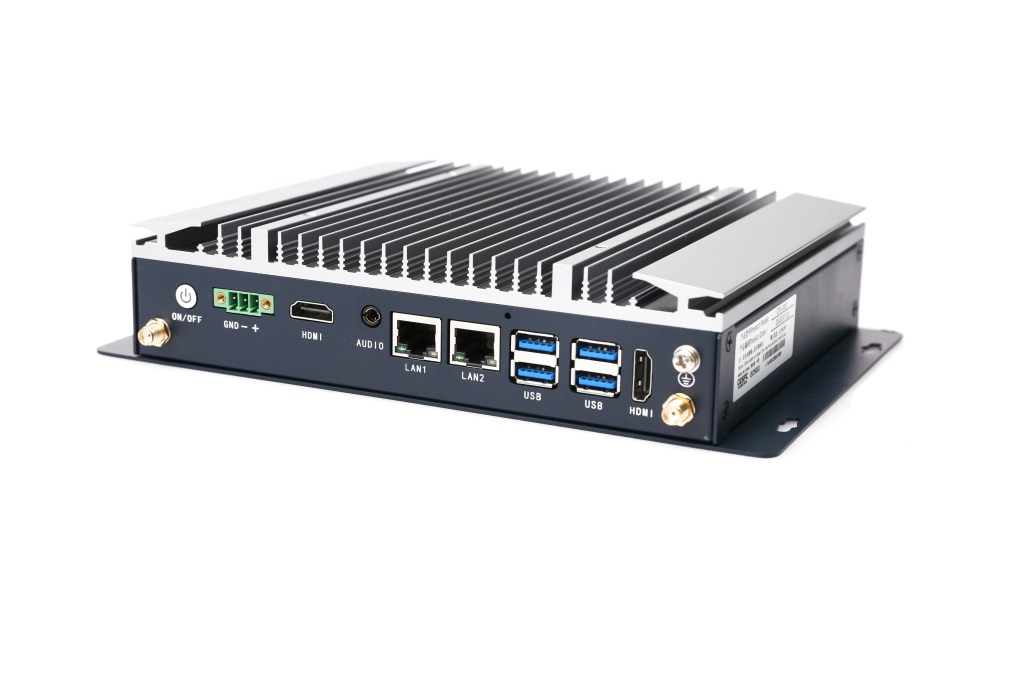

► Product Pictures

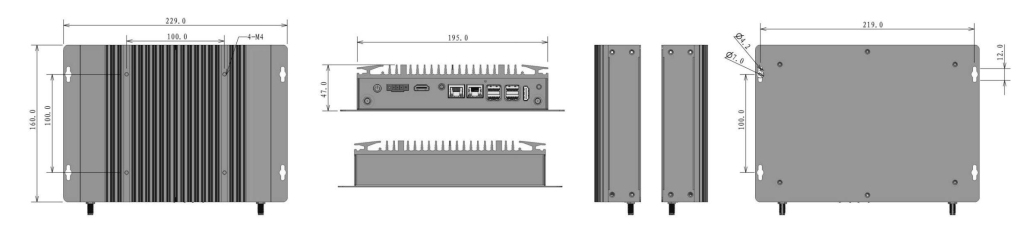

►Dimensions

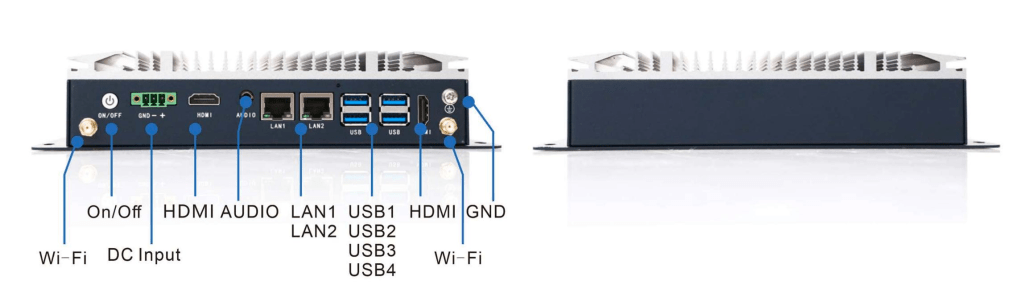

►I/O
►Product Selection
| NO. | Model | Product Part Number | Describe Infomation | Standard Memory | Standard Storage |
| 1 | CTN-102C | C10.03.04.001 | Intel® Core™ i3-1215U Processor | 8GB | mSATA SSD 256GB |
| 2 | CTN-102C | C10.03.04.002 | Intel® Core™ i5-1235U Processor | 8GB | mSATA SSD 256GB |
| 3 | CTN-102C | C10.03.04.004 | Intel® Core™ i7-1255U Processor | 8GB | mSATA SSD 256GB |
