BlockCore™ Modular Motherboard Architecture — Building Multiple Industrial Computer Form Factors

BlockCore™ is CESIPC’s modular motherboard combination concept, enabling flexible, scalable industrial computer configurations through interchangeable functional modules.
It allows system architects to rapidly build, customize, and evolve industrial PCs from a common hardware platform.

方案A-1

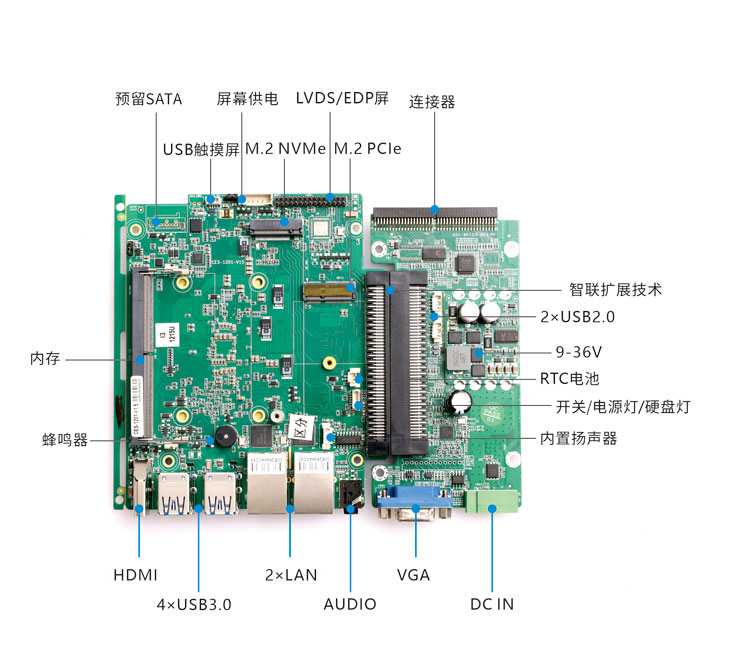

CES-1201 + EXB-D2138 — Solution A-1
CES-1201 + EXB-D2138
Interfaces：4×3.0 / 2×LAN / AUDIO / HDMI+VGA (9~36V DC optional)

方案A-2
CES-1201 + EXB-D2138 + COB-D21C6

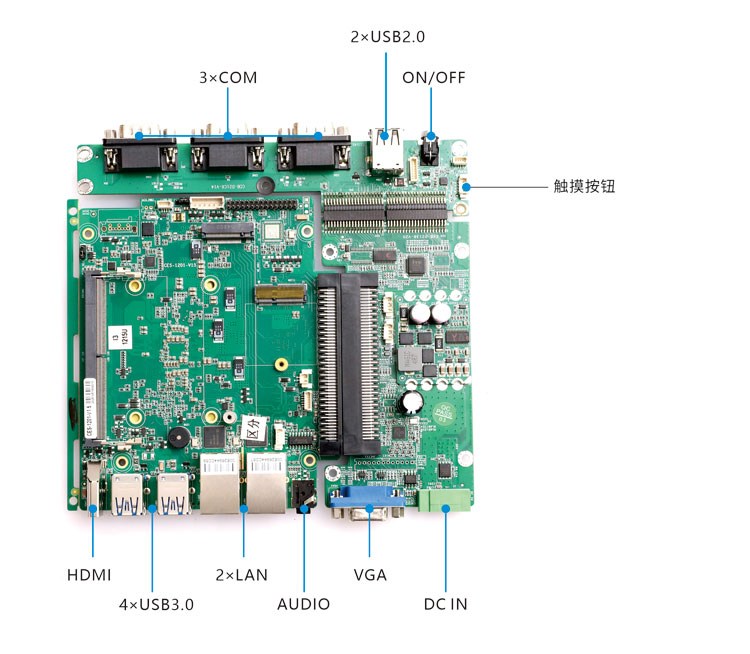

标准接口：4×3.0 / 2×LAN / AUDIO / HDMI+VGA / 2×USB 2.0 / 3×COM （宽压可选） — Solution A-2
CES-1201 + EXB-D2138 + COB-D21C6
Interfaces：4×3.0 / 2×USB 2.0 / 2×LAN / AUDIO / HDMI+VGA / 3×COM (9~36V DC optional)

方案A-3
CES-1201 + EXB-D2138 + COB-D2212

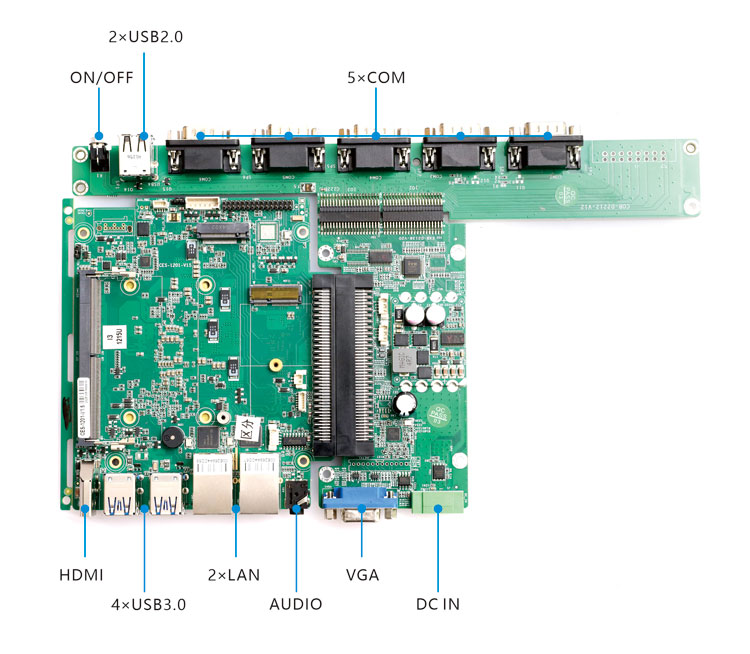

标准接口：4×3.0 / 2×LAN / AUDIO / HDMI+VGA / 2×USB 2.0 / 6×COM （宽压可选） — Solution A-3
CES-1201 + EXB-D2138 + COB-D2212
Interfaces：4×3.0 / 2×USB 2.0 / 2×LAN / AUDIO / HDMI+VGA / 6×COM (9~36V DC optional)

方案B-1
CES-1201 + EXB-D2351 — Solution B-1
CES-1201 + EXB-D2351
Interfaces：4×3.0 / 2×LAN / AUDIO / HDMI+VGA / 2×M.2 NVMe

方案B-2
CES-1201 + EXB-D2351 + COB-D21C6

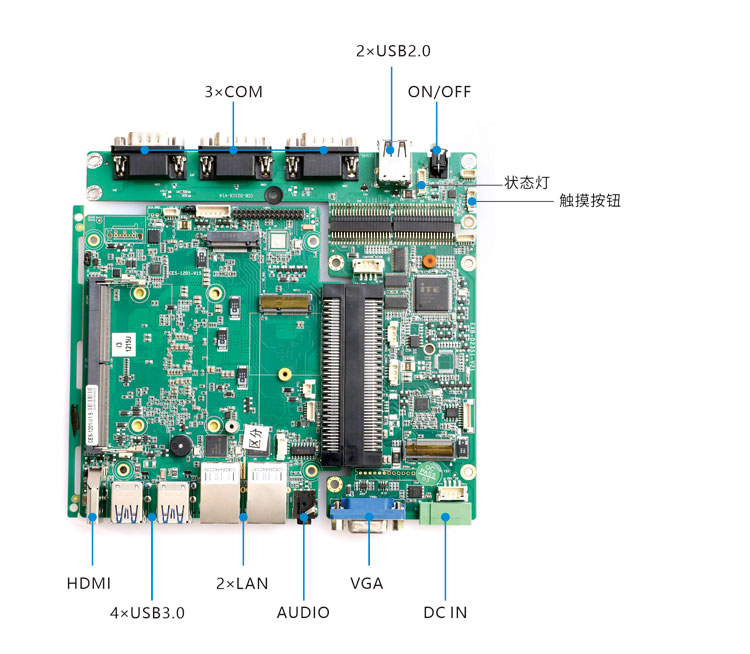

标准接口：4×3.0 / 2×LAN / AUDIO / HDMI+VGA / 2×USB 2.0 / 3×COM / 2×M.2 NVMe — Solution B-2
CES-1201 + EXB-D2351 + COB-D21C6
Interfaces：4×3.0 / 2×USB 2.0 / 2×LAN / AUDIO / HDMI+VGA / 3×COM / 2×M.2 NVMe

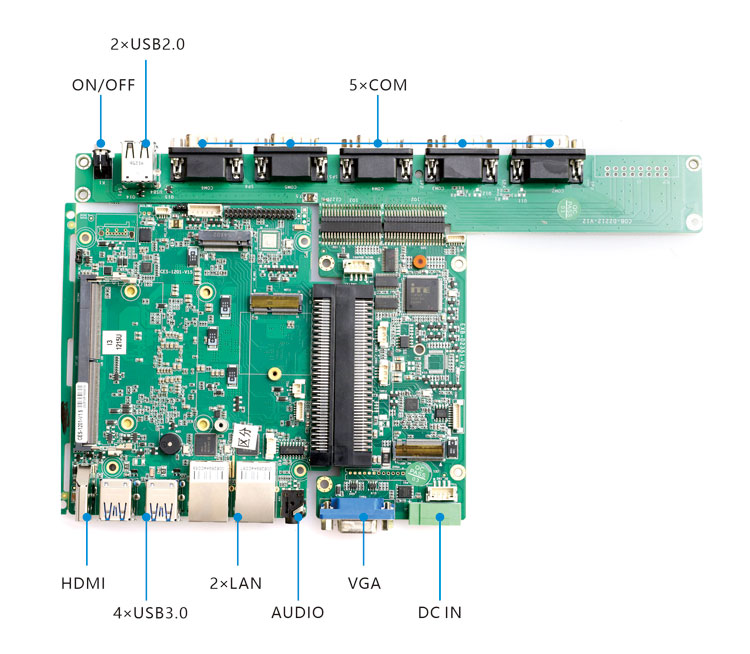

方案B-3
CES-1201 + EXB-D2351 + COB-D2212
标准接口：4×3.0 / 2×LAN / AUDIO / HDMI+VGA / 2×USB 2.0 / 5×COM / 2×M.2 NVMe — Solution B-3
CES-1201 + EXB-D2351 + COB-D2212
Interfaces：4×3.0 / 2×USB 2.0 / 2×LAN / AUDIO / HDMI+VGA / 5×COM / 2×M.2 NVMe

方案C-1

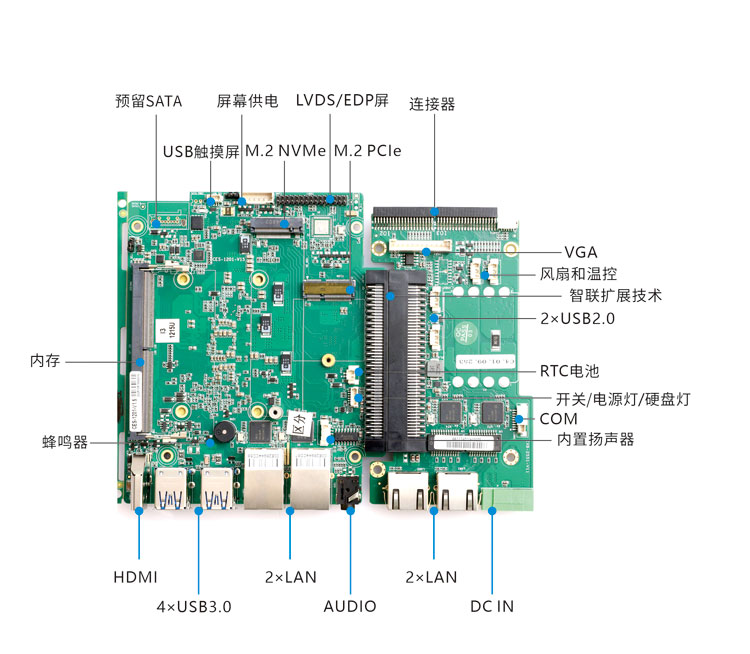

CES-1201 + EXB-D2551 — Solution C-1
CES-1201 + EXB-D2551
Interfaces：4×3.0 / 4×LAN / AUDIO / HDMI (9~36V DC optional)

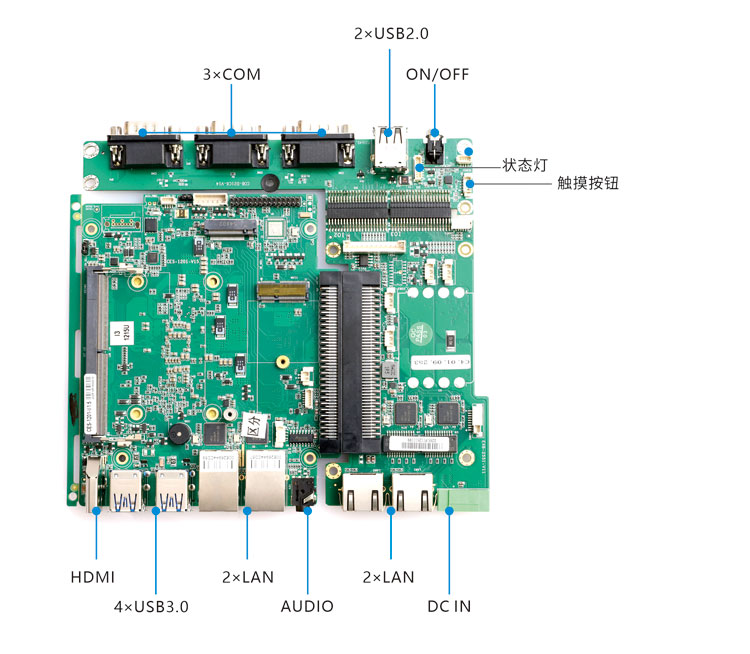

方案C-2
CES-1201 + EXB-D2551 + COB-D21C6
标准接口：4×3.0 / 4×LAN / AUDIO / HDMI / 2×USB 2.0 / 3×COM （宽压可选） — Solution C-2
CES-1201 + EXB-D2551 + COB-D21C6
Interfaces：4×3.0 / 2×USB 2.0 / 4×LAN / AUDIO / HDMI / 3×COM (9~36V DC optional)

方案C-3
CES-1201 + EXB-D2551 + COB-D2212
标准接口：4×3.0 / 4×LAN / AUDIO / HDMI / 2×USB 2.0 / 5×COM （宽压可选） — Solution C-3
CES-1201 + EXB-D2551 + COB-D2212
Interfaces：4×3.0 / 2×USB 2.0 / 4×LAN / AUDIO / HDMI/ 5×COM (9~36V DC optional)

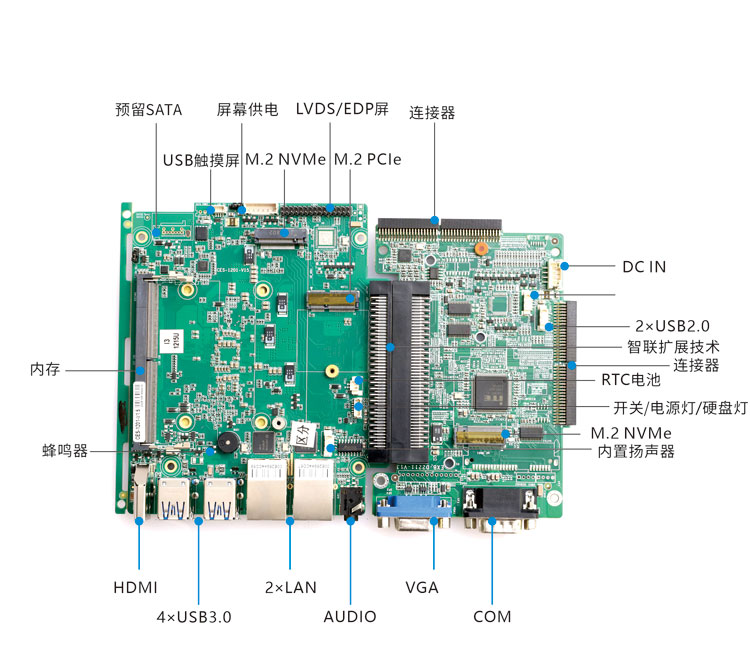

方案D-1
CES-1201 + EXB-D2211 — Solution D-1
CES-1201 + EXB-D2211
Interfaces：4×3.0 / 2×LAN / AUDIO / HDMI+VGA / COM / 2×M.2 NVMe

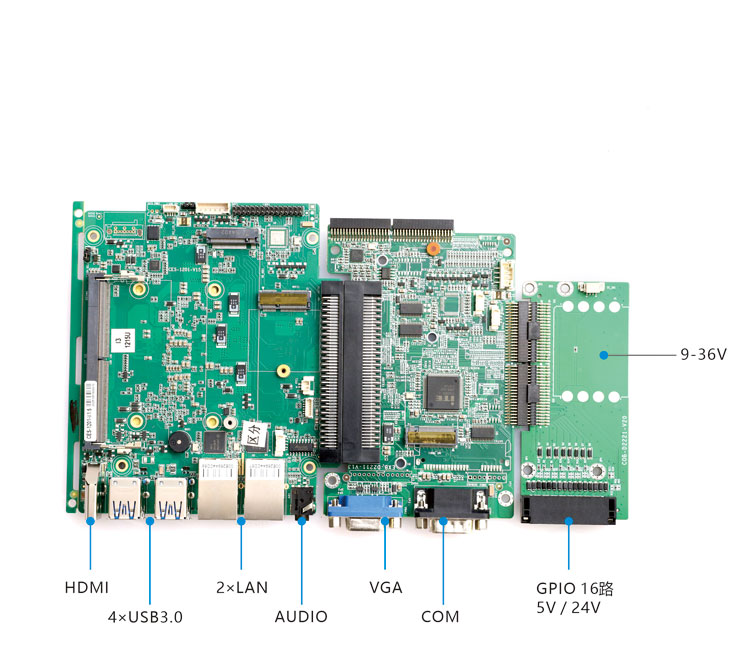

方案D-2
CES-1201 + EXB-D2211 + COB-D2221
标准接口：4×3.0 / 2×LAN / AUDIO / HDMI+VGA / COM / GPIO / 2×M.2 NVMe — Solution D-2
CES-1201 + EXB-D2211 + COB-D2221
Interfaces：4×3.0 / 2×LAN / AUDIO / HDMI+VGA / COM / GPIO / 2×M.2 NVMe (9~36V DC optional)

方案D-3
CES-1201 + EXB-D2211 + COB-D2221 + COB-D2212
标准接口：4×3.0 / 2×USB 2.0 / 2×LAN / AUDIO / HDMI+VGA / 4×COM / GPIO / 2×M.2 NVMe （宽压可选） — Solution D-3
CES-1201 + EXB-D2211 + COB-D2221 + COB-D2212
Interfaces：4×3.0 / 2×USB 2.0 / 2×LAN / AUDIO / HDMI+VGA / 4×COM / GPIO / 2×M.2 NVMe (9~36V DC optional)

方案D-4
CES-1201 + EXB-D2211 + COB-D2212
标准接口：4×3.0 / 2×USB 2.0 / 2×LAN / AUDIO / HDMI+VGA / 4×COM / 2×M.2 NVMe — Solution D-4
CES-1201 + EXB-D2211 + COB-D2212
Interfaces：4×3.0 / 2×USB 2.0 / 2×LAN / AUDIO / HDMI+VGA / 4×COM / 2×M.2 NVMe

方案D-5
CES-1201 + EXB-D2211 + COB-D21C6

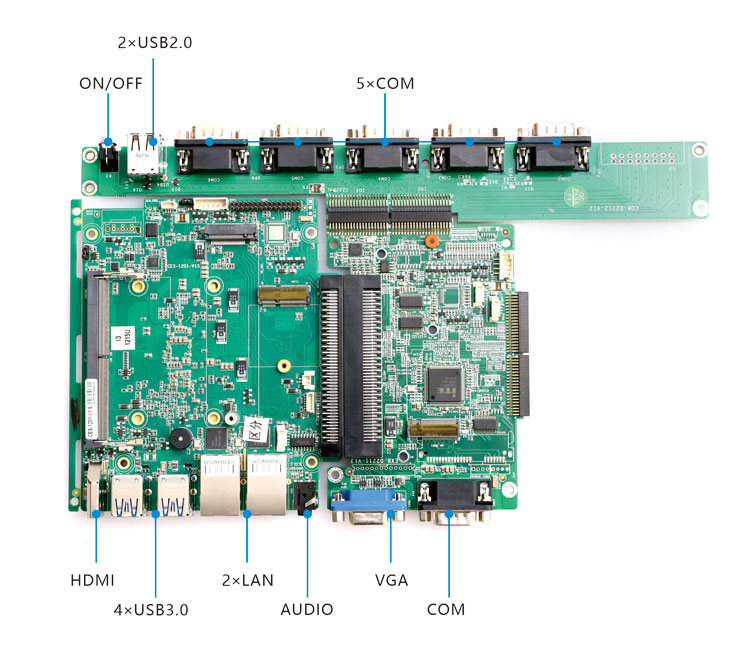

标准接口：4×3.0 / 2×USB 2.0 / 2×LAN / AUDIO / HDMI+VGA / 5×COM / 2×M.2 NVMe — Solution D-5
CES-1201 + EXB-D2211 + COB-D21C6
Interfaces：4×3.0 / 2×USB 2.0 / 2×LAN / AUDIO / HDMI+VGA / 6×COM / 2×M.2 NVMe

方案D-6

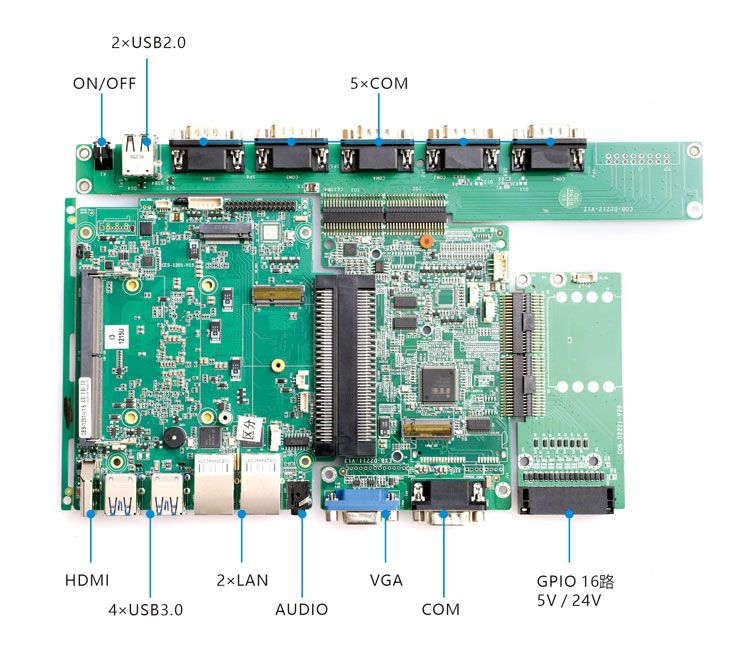

CES-1201 + EXB-D2211 + COB-D2221 + COB-D2212
标准接口：4×3.0 / 2×USB 2.0 / 2×LAN / AUDIO / HDMI+VGA / 5×COM / GPIO / 2×M.2 NVMe （宽压可选） — Solution D-6
CES-1201 + EXB-D2211 + COB-D2221 + COB-D2212
Interfaces：4×3.0 / 2×USB 2.0 / 2×LAN / AUDIO / HDMI+VGA / 6×COM / GPIO / 2×M.2 NVMe (9~36V DC optional)

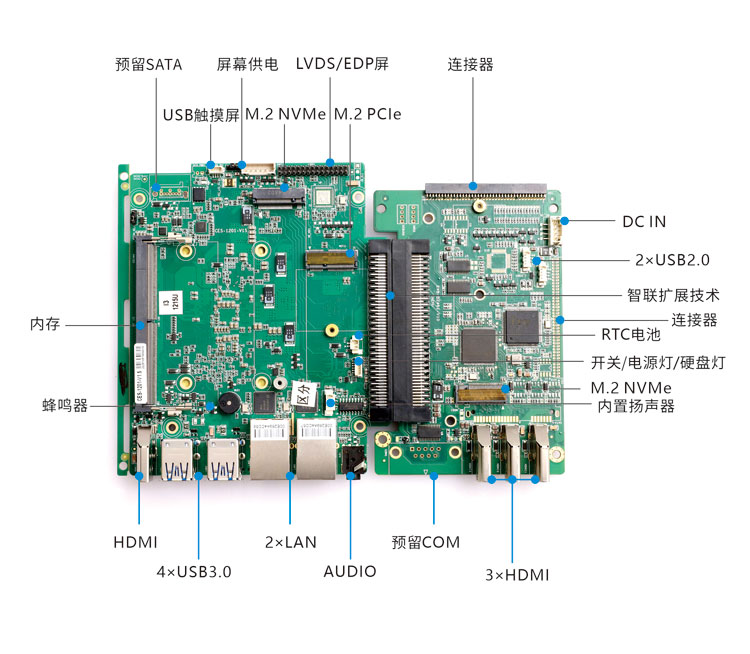

方案E-1
CES-1201 + EXB-D2461 — Solution E-1
CES-1201 + EXB-D2461
Interfaces：4×3.0 / 2×LAN / AUDIO / 4×HDMI / 2×M.2 NVMe

方案E-2

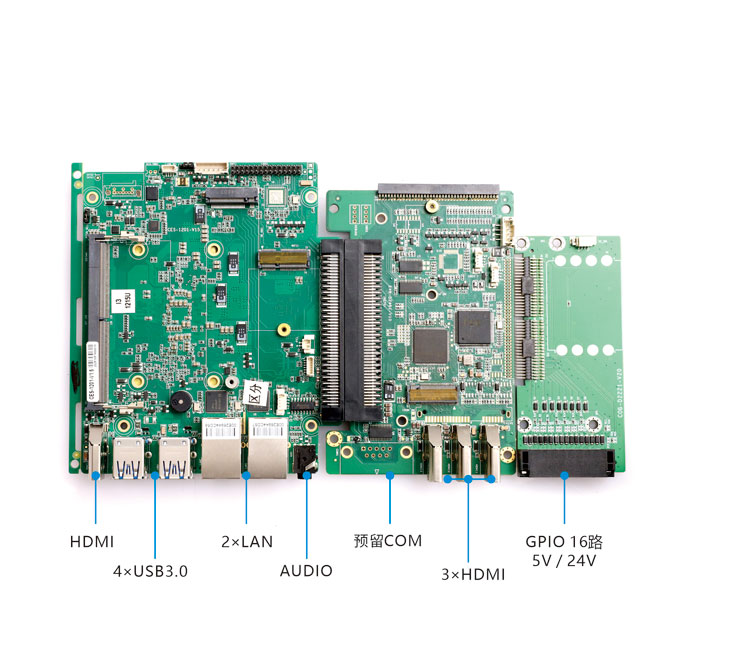

CES-1201 + EXB-D2461 + COB-D2212 — Solution E-2
CES-1201 + EXB-D2461 + COB-D2212
Interfaces：4×3.0 / 2×LAN / AUDIO / 4×HDMI / GPIO / 2×M.2 NVMe

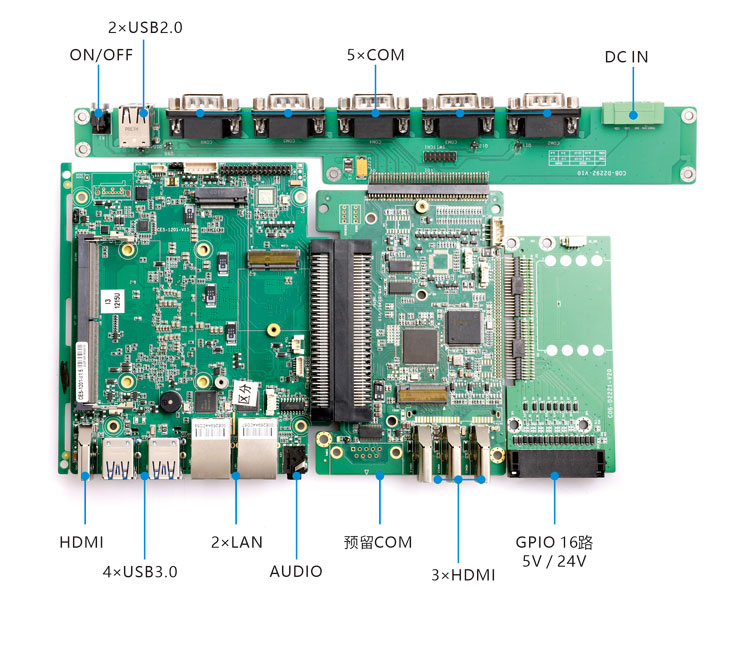

方案E-3 (此方案测试中）
CES-1201 + EXB-D2461 + COB-D2212 + COB-D2292 — Solution E-3 (Testing in progress)
CES-1201 + EXB-D2461 + COB-D2212 + COB-D2292
Interfaces：4×3.0 / 2×2.0 / 2×LAN / AUDIO / 4×HDMI / GPIO / 5×COM / 2×M.2 NVMe
