AI Computing Industrial PC Series
Research and Development Design Based on NVIDIA Core Boards
CESIPC AI Edge Computing Terminal is an intelligent terminal device that uses the NVIDIA Jetson series core modules, combined with advanced embedded computing system technology. Its features include compact size, high performance, low power consumption, and exceptional stability.

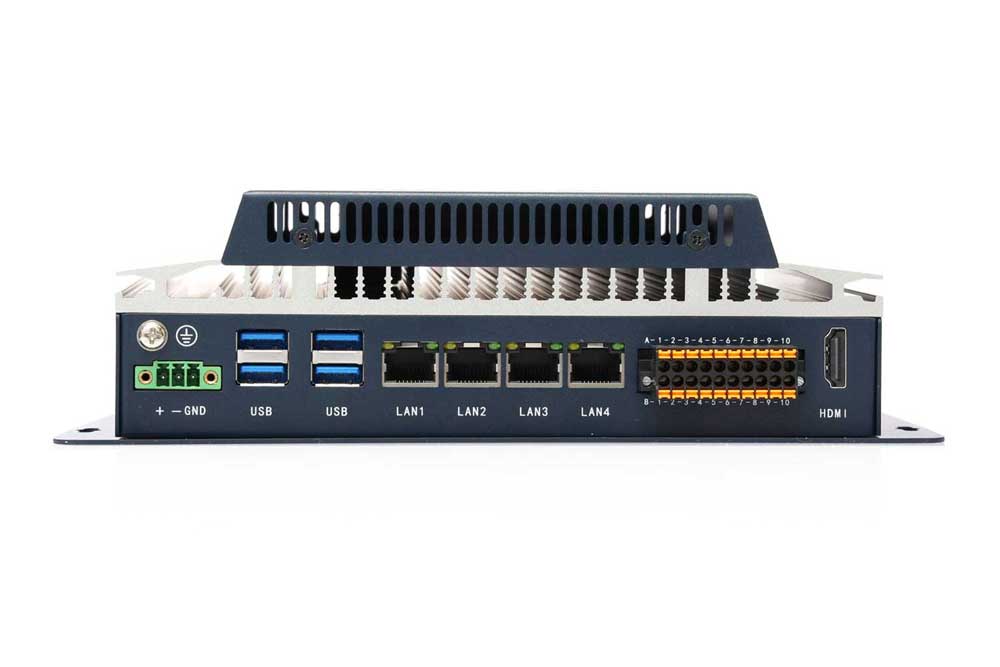

8 Core Arm Cortex-A78AE
Max 2.0 GHz
1024xCUDA Core + 32xTensor Core
157 TOPS
I/O：HDMI / 4*USB / 4*LAN/ 2COM / GPIO /CAN
8 Core Arm Cortex-A78AE
Max 1.7 GHz
1024xCUDA Core + 32xTensor Core
67 TOPS
I/O：HDMI / 4*USB / 4*LAN/ 2COM / GPIO /CAN

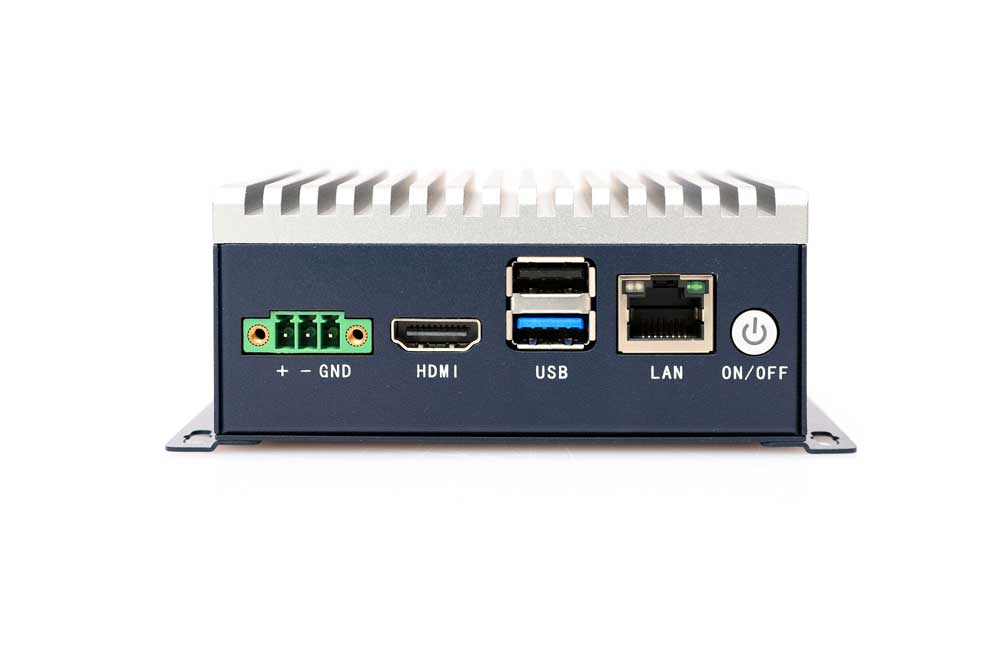

4 Core Arm Cortex-A57 MPCore
Max 1.43 GHz
128 Core NVIDIA Maxwell™ GPU
472 GFLOPS
I/O：HDMI /2*USB / 1*LAN
34 TOPs (INT8)
67 TOPs (INT8)
117 TOPs (INT8)
157 TOPs (INT8)
275 TOPs (INT8)（Under Trial）
| Model | Jetson Orin NX Series | Jetson Orin Nano Series | ||
| Jetson Orin NX 16GB | Jetson Orin NX 8GB | Jetson Orin Nano 8GB | Jetson Orin Nano 4GB | |
| AI Computing | 157 TOPS | 117 TOPS | 67 TOPS | 34 TOPS |
| GPU | Equipped with 32 Tensor Cores and 1024 CUDA Cores, NVIDIA Ampere Architecture GPU | Equipped with 32 Tensor Cores and 1024 CUDA Cores, NVIDIA Ampere Architecture GPU | Equipped with 32 Tensor Cores and 1024 CUDA Cores, NVIDIA Ampere Architecture GPU | Equipped with 16 Tensor Cores and 512 CUDA Cores, NVIDIA Ampere Architecture GPU |
| GPU Frequency | 1173MHz | 1173MHz | 1020MHz | 1020MHz |
| CPU | 8-Core Arm® Cortex®-A78AE v8.2 64-bit CPU | 6-Core Arm® Cortex® A78AE v8.2 64-bit CPU | 6-Core Arm® Cortex® A78AE v8.2 64-bit CPU | 6-Core Arm® Cortex® A78AE v8.2 64-bit CPU |
| 2MB L2 + 4MB L3 | 1.5MB L2 + 4MB L3 | 1.5MB L2 + 4MB L3 | / | |
| CPU Frequency | 2 GHz | 2 GHz | 1.7 GHz | 1.7 GHz |
| DL | / | 1x NVDLA v2 | / | |
| DLA Frequency | / | 1.23 GHz | / | |
| VRAM | 16GB 128-bit LPDDR5 | 8GB 128-bit LPDDR5 | 8GB 128-bit LPDDR5 | 4GB 64-bit LPDDR5 |
| 102.4GB/s | 102.4GB/s | 102 GB/s | 51 GB/s | |
| SSD | NVMe | NVMe | ||
High Performance: Equipped with NVIDIA Jetson series core modules, providing users with exceptional computing power to support various complex artificial intelligence applications.
Low Power Consumption: Utilizes advanced energy-saving design to effectively reduce power consumption, extend usage time, and provide users with long-lasting, stable service.
Compact and Portable: Small in size and easy to carry, suitable for various scenarios such as smart homes, industrial automation, and more.
Stable and Reliable: Subjected to rigorous quality control and stability testing to ensure stable operation and meet user requirements.
AI Computing Applications
CESIPC AI Terminal Products bring smart technology closer to everyday life, offering users a convenient and efficient artificial intelligence experience.
