The EPC-S1522C LEGO Panel PC is powered by CESIPC’s proprietary BlockCore technology. It offers four Gigabit LAN ports, equipped with an Intel® 12th Gen. Core i3/i5/i7 processor, and a built-in 3800mAh lithium battery, delivering superior performance.
Introduction
- Intel® Core™ i7/i5/i3 processors, compatible from Celeron® to 12th Gen Intel® Core™
- 15inch TFT LCD,10-point capacitive touch/ resistive touch
- IP65 front, 6H hardness.
- Fanless.
- Four Intel® I210 Gigabit Ethernet.
- I/O: USB 2.0 ×2, USB 3.0 ×4, Audio ×1, Mic ×1, RS-232 ×3/ RS-232 ×6, HDMI, VGA.
- 9–36V DC wide-range power input.
- Expansion: dual M.2 2280 NVMe, M.2 2230 Wi-Fi.
- Intelligent Thermal Control System, and a Built-in 3800mAh Lithium Battery.
- TPM 2.0 hardware security support.
- CESIPC BlockCore modular design.
- CESIPC SafeCore™ power-loss protection.
- Auto power-on after power recovery.
- Industrial-grade 6061 aluminum alloy enclosure.
► Specifications
System Core
| CPU | Intel® Core™ 12th Processor i3-1215U 1.2~4.4GHz Intel® Core™ 12th Processor i5-1235U 1.3~4.4GHz Intel® Core™ 12th Processor i7-1255U 1.7~4.7GHz |
| Memory | 8~32GB DDR5 |
| Storage | 2 x M.2 SSD |
| Cooling | Fan-less |
| OS | Windows 10/11/ Linux Ubuntu |
I/O Ports
| USB2.0 | 2×USB2.0 |
| USB3.0 | 4×USB3.0 |
| COM | 4×RS232+2×RS485 DB9 |
| Display | 1×HDMI+1×VGA Dual Display |
| Audio | 1×Audio |
| Expansion | 1×M.2 PCIe Socket |
| Ethernet | 4×10M/100M/1000M Intel I210 LAN |
LCD Display
| Panel Size | 15inch |
| Max. Resolution | 1280×1024 4:3 |
| Luminance(cd/㎡) | 350cd/㎡ |
| Contrast | 450:1 |
| Backlight | More than 50000H |
Panel Screen
| Touch Panel | Multi-touch Projected Capacitive Touch Screen |
| Transmittance | 85% |
| Controller | USB |
Wireless Communication
| Wireless Network | 4G Full Network Compatibility （Optional） |
| Wi-Fi | Wi-Fi/ Bluetooth |
Power Supply
| DC Input | 1×3-pin Pluggable Terminal Block for 12V DC, 9-36V optional |
| Booting | AT / ATX |
Environmental
| Integrated Battery | 3800mAh Lithium Battery |
| Operating Temperature | 0~50℃ (-40~70℃ Optional) |
| Storage Temperature | -10~60℃ |
| Humidity | 10%~90% , non-condensing |
Mechanical
| Dimension | 359.9 (W)× 283.9(D)×75.1(H)mm |
| Cutout Size | 342.4×269.4mm |
| Weight | 4.78 KG |
| Material | High-Strength Aluminum Alloy |
| Mounting | Wall-mount/VESA Mount |
Certifications & Services
| Certs | CE / FCC / BIS, according to EN 55032 & EN 55035 |
| ODM | BIOS / Boot on LOGO / OEM |

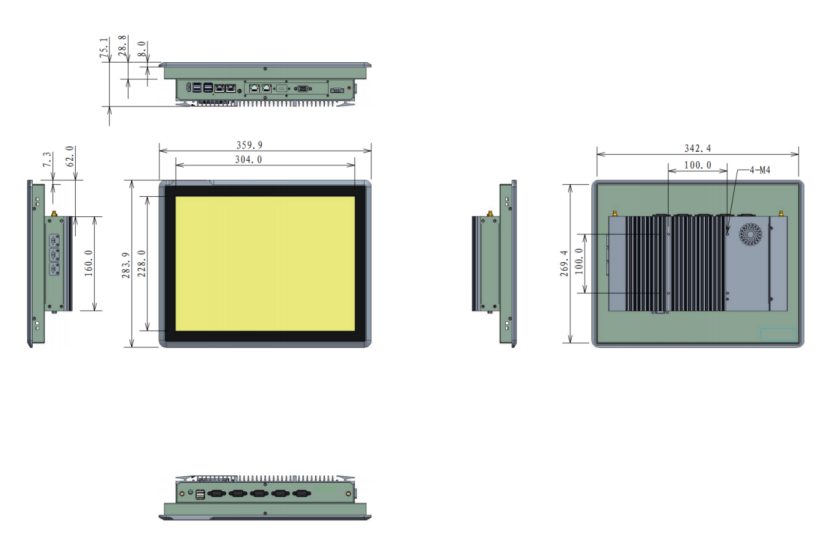

►Product Dimensions

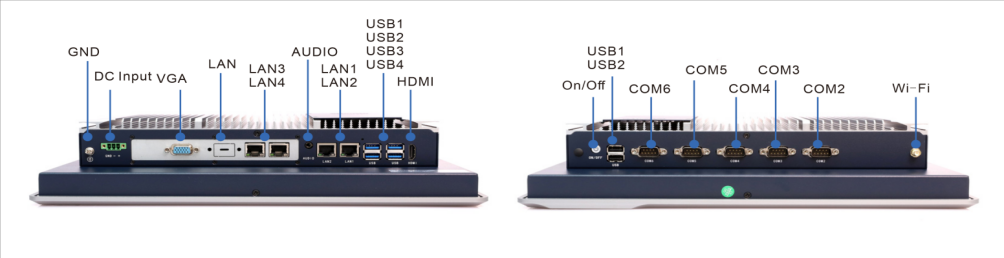

► I/O
EPC‑S1522C Series — 4xLAN BlockCore™ Panel PC with Battery FAQ
15‑inch 4:3 industrial panel PC with 4 Gigabit LAN ports and built‑in 3800mAh battery — 12th Gen Core, DDR5, 6 COM ports, BlockCore™ modularity, and SafeCore™ protection.
What makes the EPC‑S1522C unique?+
The EPC‑S1522C is a 15‑inch 4:3 industrial panel PC with 4 dedicated Gigabit LAN ports and a built‑in 3800mAh lithium battery, purpose‑built for applications requiring multi‑network isolation, uninterrupted operation during power interruptions, and high‑throughput data acquisition. Standard industrial panel PCs typically offer only 1–2 Ethernet ports and lack integrated battery backup, forcing users to add external switches and UPS units that introduce additional failure points and cabling complexity.
Key differentiators include:
• 4×Intel® I210 Gigabit Ethernet ports — Industry‑leading network density for connecting to multiple industrial networks, IP cameras, PLCs, and SCADA systems simultaneously. The Intel I210 chipset provides reliable industrial‑grade performance with PTP time sync support.
• Built‑in 3800mAh lithium battery — Integrated battery backup ensures graceful shutdown and data protection during unexpected power loss. Critical for unattended kiosks, mobile carts, and remote monitoring stations where power interruptions are common.
• Intel® 12th Gen Core™ processors — i3‑1215U / i5‑1235U / i7‑1255U with DDR5 memory (8–32GB), delivering superior performance for edge AI, real‑time analytics, and multi‑stream data processing.
• 6×COM ports (4×RS232 + 2×RS485) — High serial density for connecting legacy PLCs, sensors, torque tools, and industrial meters alongside the 4 Ethernet networks.
• 15‑inch 4:3 TFT LCD (1280×1024) — More vertical workspace than 16:9 widescreen alternatives, ideal for text‑dense SCADA interfaces, machine parameters, and quality checklists.
• Dual M.2 2280 NVMe storage — High‑speed storage for OS and data separation, plus M.2 2230 for Wi‑Fi/Bluetooth and Mini PCIe for 4G/5G expansion.
• BlockCore™ modular architecture — Built on CESIPC’s BlockCore™ platform, supporting i‑Door expansion modules without custom PCB development.
• SafeCore™ power‑loss protection — Prevents OS/file corruption during sudden power loss with one‑reboot recovery, critical for unattended and mission‑critical installations.
Standard commercial panel PCs lack these industrial‑grade features — particularly the 4 dedicated LAN ports and integrated battery — and would require external switches, UPS units, and adapters, increasing installation cost, cabinet space, and failure points.
What is the advantage of the built‑in 3800mAh battery?+
The built‑in 3800mAh lithium battery provides significant advantages for industrial, kiosk, and mobile applications:
• Graceful shutdown during power loss — When mains power is interrupted, the battery allows the system to perform a controlled shutdown, preventing OS corruption and data loss. This is critical for unattended kiosks and remote monitoring stations where power outages are unpredictable.
• Uninterrupted operation for short power gaps — The 3800mAh battery provides sufficient runtime to bridge brief power interruptions (typically 5–15 minutes depending on load), keeping the system operational during generator startup or grid switching.
• Mobile cart and field deployments — For applications on mobile workstations, service carts, and temporary field installations, the battery enables true portability without requiring a constant mains connection.
• Eliminates external UPS — The integrated battery removes the need for external UPS units, saving cabinet space, reducing cabling complexity, and eliminating the maintenance overhead of external UPS batteries.
• Data integrity for critical logs — In industrial automation and quality inspection applications, the battery ensures that production logs, inspection records, and network traffic data are safely written to storage before shutdown.
What is the advantage of 4 Gigabit LAN ports for industrial applications?+
The 4×Intel® I210 Gigabit Ethernet ports provide significant advantages for industrial automation, video surveillance, and multi‑network deployments:
• Network isolation & security — Dedicate separate Ethernet ports to different networks: one for plant‑wide SCADA, one for machine control (Profinet/EtherCAT), one for IP cameras, and one for IT/cloud uplink. This eliminates the security risks of flat networks without requiring managed switches or VLAN configuration.
• Redundant connectivity — Deploy two ports in link‑aggregation (LACP) for failover protection while the remaining ports serve other network segments. If one network path fails, the system maintains connectivity automatically.
• High‑throughput data acquisition — Multiple cameras, PLCs, and sensors can stream data simultaneously without bandwidth contention. Each port provides dedicated 1Gbps bandwidth, ensuring consistent performance for real‑time applications.
• Simplified cabling and reduced cost — Four Ethernet ports are terminated directly at the panel PC, eliminating external network switches or USB‑to‑Ethernet adapters that add cost, power requirements, and failure points. The Intel I210 chipset is optimised for industrial environments with PTP (Precision Time Protocol) support for synchronised data acquisition.
• Multi‑vendor equipment integration — Connect to PLCs from different manufacturers (Siemens, Allen‑Bradley, Mitsubishi) each on their own subnet, while maintaining a separate management network for remote diagnostics and updates.
Why choose the 15‑inch 4:3 display over widescreen alternatives?+
The EPC‑S1522C features a 15‑inch 4:3 TFT LCD with 1280×1024 (SXGA) resolution, 350 cd/m² brightness, 450:1 contrast ratio, and 50,000 hours LED backlight life. Standard touch is 10‑point projected capacitive; resistive touch is available for gloved environments.
Why 4:3 matters for industrial applications:
• More vertical workspace — The 4:3 aspect ratio provides significantly more vertical screen space than 16:9 widescreen of the same diagonal. For SCADA and HMI applications, this means viewing machine parameters, alarm lists, and production data without scrolling — operators see critical information at a glance.
• Legacy SCADA/HMI compatibility — Many industrial SCADA systems and machine HMIs were designed for 4:3 or 5:4 displays. The 1280×1024 resolution provides native compatibility without scaling artifacts or letterboxing, ensuring crisp text and accurate touch targeting.
• Operator readability at typical viewing distances — The 15‑inch size is optimised for viewing at 0.5–1 metre (arm’s length), the typical distance for a seated or standing operator at an industrial workstation. Text and touch targets are large enough for comfortable interaction without the operator needing to lean forward.
• Panel‑mount compatibility — The cutout dimensions (342.4×269.4mm) match standard 15‑inch industrial panel cutouts, simplifying retrofit projects where existing displays need replacement without cabinet modification.
What processors and performance options are available?+
The EPC‑S1522C supports Intel® 12th Gen Core™ processors exclusively, sharing identical mechanical chassis, I/O layout, and mounting dimensions across all SKUs — simplifying spares logistics for large‑scale deployments. Options include:
Intel Core™ i3‑1215U — 6 cores (2P + 4E), 1.2–4.4GHz, 10W TDP. Memory: 8–32GB DDR5. Entry‑level for SCADA display terminals, data logging, and basic HMI applications with 4 network connections.
Intel Core™ i5‑1235U — 10 cores (2P + 8E), 1.3–4.4GHz, 12W TDP. Memory: 8–32GB DDR5. Balanced performance for video surveillance encoding, real‑time data acquisition from multiple networks, and industrial edge processing.
Intel Core™ i7‑1255U — 10 cores (2P + 8E), 1.7–4.7GHz, 15W TDP. Memory: 8–32GB DDR5. High‑performance for edge AI inference, multi‑camera video analytics, and real‑time machine control with 4 separate network interfaces.
Memory: 8–32GB DDR5 (standard 8GB). Storage: 2×M.2 SSD — dual‑drive architecture for OS and data separation. Operating systems: Windows 10/11, Linux Ubuntu.
For detailed specifications, download the datasheet.
What I/O ports and expansion capabilities does the EPC‑S1522C offer?+
The EPC‑S1522C provides a comprehensive industrial I/O package with exceptional network density and integrated battery backup:
Networking: 4×Intel® I210 Gigabit Ethernet (10/100/1000M) — four dedicated LAN ports for network isolation, redundancy, and multi‑device connectivity. Intel I210 chipset provides industrial‑grade reliability with PTP time sync support.
Serial ports: 6×COM ports (4×RS232 + 2×RS485 via DB9) — industry‑leading serial density for connecting legacy PLCs, industrial sensors, torque tools, and serial printers.
USB ports: 2×USB 2.0 + 4×USB 3.0 = 6 total USB ports — connects vision cameras, barcode scanners, touchscreen calibration tools, and diagnostic equipment.
Display outputs: HDMI + VGA — dual independent displays for operator + supervisor screens or HMI + diagnostic view.
Audio: Audio + Mic jacks — public announcement integration or voice guidance for operator instructions.
Power & battery: 9–36V DC wide‑range input + built‑in 3800mAh lithium battery — uninterrupted operation during power interruptions and true portability for mobile applications.
Internal expansion: Dual M.2 2280 NVMe slots for high‑speed storage, M.2 2230 slot for Wi‑Fi + Bluetooth, 1× Mini PCIe socket for wireless modules (4G/5G/GPIO expansion).
Wireless (optional): 4G Full Network Compatibility + Wi‑Fi/Bluetooth — remote monitoring and connectivity for distributed sites.
Modular I/O via BlockCore™: The BlockCore™ platform supports additional expansion modules (i‑Door) for CAN, 5‑port LAN, isolated serial, and 5G without custom PCB development.
What is BlockCore™ modular architecture, and how does it benefit my deployment?+
BlockCore™ is CESIPC’s modular computing architecture that standardises interface, structure, power, and expansion across all products. For the EPC‑S1522C, BlockCore™ delivers:
1. Standardised I/O expansion (i‑Door) — i‑Door expansion slots accept function modules (CAN, 5‑port LAN, isolated serial, 5G, GPIO) without custom PCB development. For applications requiring CAN bus for robot integration or 5G for remote site connectivity, simply add the module — no hardware redesign.
2. LEGO MODE design philosophy — Based on modular construction principles, BlockCore™ creates an ecosystem where compute, I/O, and function boards can be configured like building blocks. This reduces custom development cost by up to 80% through standardised module libraries.
3. Shared ecosystem across product families — The EPC‑S1522C uses the same expansion modules as other BlockCore™ industrial PCs. Standardise spares across mixed fleets of panel PCs, embedded PCs, and network gateways.
4. Future‑proof upgrades — The BlockCore™ architecture allows future processor upgrades within the EPC‑S series without changing the I/O layout, 4 LAN ports, battery integration, or mounting dimensions.
5. Extendable product lifecycle — BlockCore™ effectively extends product lifecycle, making investment in the EPC‑S1522C more cost‑efficient over the long term, particularly for large‑scale industrial automation rollouts spanning multiple years.
What protection does SafeCore™ provide for industrial deployments?+
SafeCore™ is CESIPC’s system‑level power‑loss protection architecture built into the EPC‑S1522C. In industrial automation and critical infrastructure environments, power interruptions are common — emergency stops, maintenance lockout/tagout, or voltage dips from welding robots and servo drives — events that can corrupt OS files and production logs if power is removed abruptly. SafeCore™ provides:
• System‑level write protection — Blocks all unauthorised changes to the system; even after power failure, user error, or malware attack, system files automatically restore after reboot. On the production line, this prevents data corruption that could halt production for hours while IT rebuilds a workstation.
• One‑reboot recovery mechanism — System crash or file corruption? Just reboot — the system returns to a healthy working state. No technical skills needed. Line supervisors or maintenance technicians can restore service in minutes without waiting for IT support.
• Zero IT support required — Anyone on the production floor can recover the system with a simple restart, reducing downtime and on‑call IT costs.
• Safe disk writes — Prevents fragmentation or file corruption during sudden power loss, ensuring data integrity for production logs, quality inspection records, and network traffic logs.
Combined with auto power‑on recovery (the system automatically restarts when power returns) and the built‑in 3800mAh battery (enables graceful shutdown during extended outages), SafeCore™ ensures continuous data protection even in the most challenging power environments. SafeCore™ is standard across all EPC‑S1522C models and works in tandem with TPM 2.0 hardware security for encrypted authentication and data protection.
What are the mechanical specifications, mounting options, and environmental ratings?+
Dimensions: 359.9(W) × 283.9(D) × 75.1(H) mm — 15‑inch 4:3 form factor fits standard industrial panel cutouts.
Cutout dimensions: 342.4 × 269.4 mm — standard industrial panel cutout for easy retrofit compatibility.
Weight: 4.78 kg — robust construction for industrial environments, including the integrated battery.
Mounting: Wall mount / VESA mount — flexible installation on articulated arms, machine frames, or flush integration into control panels.
Enclosure: Industrial‑grade 6061 high‑strength aluminum alloy chassis — corrosion‑resistant and durable for 24/7 operation. Front panel IP65‑rated for dust and splash resistance.
Display: 15‑inch 4:3 TFT LCD, 1280×1024 resolution, 350 cd/m² brightness, 450:1 contrast ratio, 50,000 hours LED backlight life. Touch: 10‑point projected capacitive (standard) or optional resistive for gloved operation.
Cooling: Fanless passive cooling — no moving parts, zero scheduled maintenance. Silent operation suits noise‑sensitive control room and office environments.
Integrated Battery: 3800mAh lithium battery — provides graceful shutdown and uninterrupted operation during power interruptions.
Operating temperature: 0°C ~ 50°C standard; optional -40°C ~ 70°C extended grade for cold storage, outdoor enclosures, and extreme environments.
Storage temperature: -10°C ~ 60°C.
Humidity: 10% ~ 90% RH, non‑condensing.
Power input: 9~36V DC wide‑range input — directly accepts 24V industrial power rails without additional DC‑DC conversion. Boot modes: AT (auto power‑on) for unattended operation, or ATX (power button) for manual control.
Certifications: CE, FCC, BIS compliant (EN 55032 & EN 55035), factory ISO9001:2015 certified. MTBF 60,000 hours.
What are typical applications for the EPC‑S1522C with 4 LAN ports and battery?+
The EPC‑S1522C is a 15‑inch industrial panel PC designed for applications requiring 4 dedicated Gigabit Ethernet ports, integrated battery backup, 6 COM ports, and 12th Gen Core processing power in a compact, rugged footprint. Typical applications include:
• Mobile medical carts & healthcare workstations — Deployed in hospitals and clinics for mobile workstations. The built‑in battery enables true portability between patient rooms without finding power outlets. 4 LAN ports connect to hospital network, medical devices, and diagnostic equipment simultaneously. The 15‑inch 4:3 display provides a clear view of patient records and medical imaging.
• Unattended kiosks & self‑service terminals — Deployed in retail, hospitality, and public spaces for self‑checkout, information kiosks, and ticketing terminals. The built‑in battery ensures graceful shutdown during power interruptions, preventing data corruption and customer dissatisfaction. 4 LAN ports provide network isolation for public Wi‑Fi, back‑end systems, and management networks.
• Multi‑camera video surveillance & security — Deployed in manufacturing facilities, warehouses, and critical infrastructure for real‑time video monitoring. The 4 LAN ports connect to multiple IP cameras, NVRs, and security networks simultaneously. The built‑in battery ensures surveillance continues during short power interruptions — critical for security applications.
• Industrial automation & multi‑network SCADA — Deployed as a central HMI/SCADA node in automotive, electronics, and heavy manufacturing plants. The 4 LAN ports provide separated networks for machine control (Profinet/EtherCAT), plant‑wide SCADA, IP camera surveillance, and IT/cloud uplink. 6 COM ports connect to legacy PLCs, torque tools, and industrial sensors. The built‑in battery protects production logs during power interruptions.
• Edge AI & machine vision with multi‑camera input — Deployed at the edge for real‑time defect detection, quality inspection, and predictive maintenance. The 4 LAN ports connect to multiple GigE Vision cameras, providing dedicated bandwidth for each camera stream. The built‑in battery ensures AI models complete inference cycles even during brief power dips.
• Intelligent transportation & roadside ITS — Deployed in roadside cabinets for traffic monitoring, automatic license plate recognition (ALPR), and toll collection. The 4 LAN ports connect to traffic cameras, vehicle detectors, communication networks, and management systems. The 9–36V wide‑range input, built‑in battery, and optional -40°C ~ 70°C extended temperature support outdoor deployment in harsh environments.
For detailed application examples, see our 4‑LAN industrial PC with battery application guide and mobile medical cart PC overview.
Can CESIPC provide OEM/ODM customisation for the EPC‑S1522C?+
Yes. CESIPC offers full OEM/ODM services for the EPC‑S1522C panel PC series, built around the BlockCore™ modular architecture:
• BIOS configuration and boot logo branding — For private labeling, brand consistency, and OEM turnkey solutions.
• I/O panel customisation — Alternative connector arrangements, additional COM ports, isolated digital I/O, or CAN bus via i‑Door expansion modules.
• LAN port configuration — Factory pre‑configuration of network settings, VLAN assignments, and port‑specific routing for turnkey deployment.
• Battery management customisation — Factory configuration of battery charge/discharge profiles, low‑battery warning thresholds, and shutdown behaviour for specific application requirements.
• Function board customisation — Custom i‑Function Board development for specific industrial protocols or proprietary interfaces. The LEGO MODE ecosystem enables rapid function board development, dramatically reducing customisation lead times.
• Operating system pre‑load — Windows 10/11 LTSC or Ubuntu Linux with custom drivers, pre‑configured network stacks, and pre‑installed runtime environments.
• Enclosure material options — Enhanced corrosion resistance for marine, chemical, or outdoor roadside environments.
• Private label packaging and custom SKU part numbering for integrators and reseller programs.
With in‑house SMT assembly, sheet metal fabrication, and CNC machining, CESIPC delivers custom industrial panel PCs with consistent quality and predictable lead times. MOQ: 1 unit sample available. Typical lead time: 2–4 weeks. Minimum order quantities vary by customisation scope. Contact our engineering team for a detailed ODM assessment.
