The EPC-S17X2A is a 17-inch fanless industrial Panel PC series designed for SCADA control stations, multi-parameter HMI terminals, and supervisory automation applications. Available in 9 configurations spanning Intel® Celeron J1900/J6412 through 10th and 12th Gen Core i3/i5/i7, it integrates a 1280×1024 capacitive touch display, IP65 front panel, 6× serial interfaces (4× RS-232 + 2× RS-485), dual Intel® I210 Gigabit LAN, and 9–36V DC wide-range input into a 6061 aluminium alloy chassis weighing 5.2kg. The panel cutout size is 374.6×312.6mm. Built on CESIPC’s BlockCore™ modular architecture with SafeCore™ power-loss protection and TPM 2.0 hardware security, the EPC-S17X2A operates from 0°C to 50°C (extended -40°C to 70°C optional), making it the largest-screen option in the EPC-S series for applications requiring broad process visibility on a single display.
Industrial Panel PCs are widely used as HMIs and control terminals across industries, including manufacturing, food & beverage, chemical processing, pharmaceuticals, energy, transportation, logistics, automation, and smart infrastructure, enabling reliable monitoring, control, and data visualisation in demanding industrial applications.
Introduction
- Intel® Core™ i7/i5/i3 processors, compatible from Celeron® to 12th Gen Intel® Core™
- 17-inch 4:3 TFT LCD, 1024 × 768 (SXGA).
- 10-point capacitive touch, IP65 front, 6H hardness.
- Dual Intel® I210 Gigabit Ethernet.
- I/O: USB 2.0 ×2, USB 3.0 ×4, Audio ×1, Mic ×1, RS-232 ×6, HDMI, VGA.
- 9–36V DC wide-range power input.
- Expansion: dual M.2 2280 NVMe, M.2 2230 Wi-Fi.
- TPM 2.0 hardware security support.
- CESIPC BlockCore™ modular design.
- CESIPC SafeCore™ power-loss protection.
- Auto power-on after power recovery.
- Industrial-grade 6061 aluminum alloy enclosure.
► Application
CESIPC Customer On-Site Application Images. Reproduction Or Use For Other Purposes Is Strictly Prohibited.
► Specifications
System Core
| CPU | Intel® Celeron® Processor J1900 2.0~2.42GHz Intel® Celeron® Processor J6412 2.0~2.6GHz |
| Intel® Core™ 10th Processor i3-10110U 2.1~4.1GHz Intel® Core™ 10th Processor i5-10210U 1.6~4.2GHz Intel® Core™ 10th Processor i7-10710U 1.1~4.7GHz | |
| Intel® Core™ 12th Processor i3-1215U 1.2~4.4GHz Intel® Core™ 12th Processor i5-1235U 1.3~4.4GHz Intel® Core™ 12th Processor i5-1240P 1.7~4.4GHz Intel® Core™ 12th Processor i7-1255U 1.7~4.7GHz | |
| Memory | 4~8GB DDR3L /4~32GB DDR4 / 4~32GB DDR5 |
| Storage | 1 x mSATA SSD |
| Cooling | Fan-less |
| OS | Windows 10/11/ Linux Ubuntu |
I/O Ports
| USB2.0 | 5×USB2.0/ 2×USB2.0 |
| USB3.0 | 1×USB3.0/ 4×USB3.0 |
| COM | 4×RS232+2×RS485 DB9 |
| Display | 1×HDMI+1×VGA Dual Display |
| Audio | 1×Audio |
| Expansion | 1×Mini PCIe Socket |
| Ethernet | 2×10M/100M/1000M Intel I210 LAN |
LCD Display
| Panel Size | 17inch |
| Max. Resolution | 1280×1024 4:3 |
| Luminance(cd/㎡) | 350cd/㎡ |
| Contrast | 450:1 |
| Backlight | More than 50000H |
Panel Screen
| Touch Panel | Multi-touch Projected Capacitive Touch Screen |
| Transmittance | 85% |
| Controller | USB |
Wireless Communication
| Wireless Networking | 4G Full Network Compatibility （Optional） |
| Wi-Fi | Wi-Fi/ Bluetooth |
Power Supply
| DC Input | 1×3-pin Pluggable Terminal Block for 12V DC, 9-36V optional |
| Booting | AT / ATX |
Mechanical
| Dimension | 397.0(W)×321.0(D)×75.1(H)mm |
| Cutout Dimensions | 374.6×312.6mm |
| Weight | 5.2KG |
| Material | High-Strength Aluminum Alloy |
| Mounting | Wall-mount/VESA Mount |
Environmental
| Operating Temperature | 0~50℃ (-40~70℃Optional) |
| Storage Temperature | -10~60℃ |
| Protection | Front Panel IP65 |
Certifications & Services
| Certs | CE / FCC / BIS, according to EN 55032 & EN 55035 |
| ODM | BIOS / Boot on LOGO / OEM |
►Product Dimensions

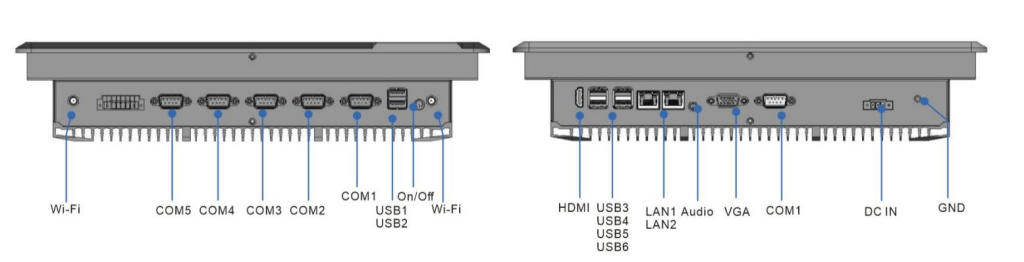

► I/O
►Product Selection
| NO. | Model | Product Part Number | Describe Infomation | Standard Memory | Standard Storage |
| 1 | EPC-S1762A | C11.03.01.001 | Intel® Celeron® Processor J1900 Processor | 4GB | mSATA SSD 128GB |
| 2 | EPC-S1772A | C11.03.05.001 | Intel® Celeron® Processor J6412 Processor | 8GB | mSATA SSD 256GB |
| 3 | EPC-S1792A | C11.03.03.001 | Intel® Core™ i3-10110U Processor | 8GB | mSATA SSD 256GB |
| 4 | EPC-S1792A | C11.03.03.002 | Intel® Core™ i5-10210U Processor | 8GB | mSATA SSD 256GB |
| 5 | EPC-S1792A | C11.03.03.003 | Intel® Core™ i7-10710U Processor | 8GB | mSATA SSD 256GB |
| 6 | EPC-S1722A | C11.03.04.001 | Intel® Core™ i3-1215U Processor | 8GB | mSATA SSD 256GB |
| 7 | EPC-S1722A | C11.03.04.002 | Intel® Core™ i5-1235U Processor | 8GB | mSATA SSD 256GB |
| 8 | EPC-S1722A | C11.03.04.003 | Intel® Core™ i5-1240P Processor | 8GB | mSATA SSD 256GB |
| 9 | EPC-S1722A | C11.03.04.004 | Intel® Core™ i7-1255U Processor | 8GB | mSATA SSD 256GB |
►Machine Quality Control
Why Memory Testing Is Critical Before Shipping Industrial PCs
Would you like to know how to choose the right industrial PC, including factors such as display size, mounting method, and front-panel waterproof rating? These considerations are especially important in hygiene-critical industries such as food & beverage and chemical processing, where frequent cleaning and disinfectants can gradually corrode aluminum front panels.
To meet these requirements, our solutions include not only stainless steel enclosures but also anti-corrosion surface treatments for aluminum front panels. In many cases, success or failure depends on attention to detail. Our team is well aware of these potential pitfalls and understands which aspects require special attention. We are committed to helping you select the most suitable Panel PC for your application.
►FAQ
Q: What is the EPC-S17X2A series used for?
A: The EPC-S17X2A is a 17-inch fanless industrial Panel PC series used for SCADA supervisory control stations, multi-parameter process monitoring terminals, energy management dashboards, CNC multi-axis control interfaces, and large-format HMI displays in manufacturing, power generation, and water treatment facilities. Its 1280×1024 resolution provides more screen real estate than 15-inch models, allowing operators to monitor more process variables simultaneously on a single display.
Q: What is the panel cutout size for the EPC-S17X2A?
A: The panel cutout size for embedded installation is 374.6 × 312.6 mm. Overall unit dimensions are 397.0 × 321.0 × 75.1 mm, and the unit weighs 5.2 kg. Wall-mount and VESA mount options are also supported.
Q: How does the 17-inch EPC-S17X2A compare to the 15-inch EPC-S15X2A?
A: Both series share the same processor options, IP65 front panel, BlockCore™ architecture, SafeCore™ protection, and 9–36V DC power input. The key differences are display size and resolution: the EPC-S17X2A offers a 17-inch, 1280×1024 display (more pixels, more screen area) versus the EPC-S15X2A’s 15-inch, 1024×768. The 17-inch model is recommended when operators need to display complex process schematics, multi-loop PID dashboards, or multi-window SCADA screens. The 15-inch model is better suited for space-constrained cabinets or single-loop HMI applications.
Q: How many serial ports does the EPC-S17X2A have?
A: The EPC-S17X2A includes 4× RS-232 and 2× RS-485 serial ports via DB9 connectors — six serial interfaces in total. This matches the EPC-S15X2A serial port count and supports simultaneous connections to multiple PLCs, weighing systems, barcode readers, and RS-485 bus devices. Additional COM ports can be added via BlockCore™ expansion cards.
Q: What is the display resolution of the EPC-S17X2A?
A: The EPC-S17X2A uses a 17-inch 4:3 TFT LCD panel with 1280×1024 resolution (SXGA), 350 cd/m² brightness, and 450:1 contrast ratio. This higher resolution compared to the 10-inch and 12-inch EPC-S series models (1024×768) makes the 17-inch model better suited for SCADA screens, process flow diagrams, and applications requiring fine-detail display of multiple parameters.
Q: What power supply does the EPC-S17X2A require?
A: The EPC-S17X2A accepts 9–36V DC wide-range input via a 3-pin pluggable terminal block, compatible with standard 12V and 24V industrial DC power rails. AT and ATX boot modes are supported. SafeCore™ protects data integrity during unexpected power loss.
