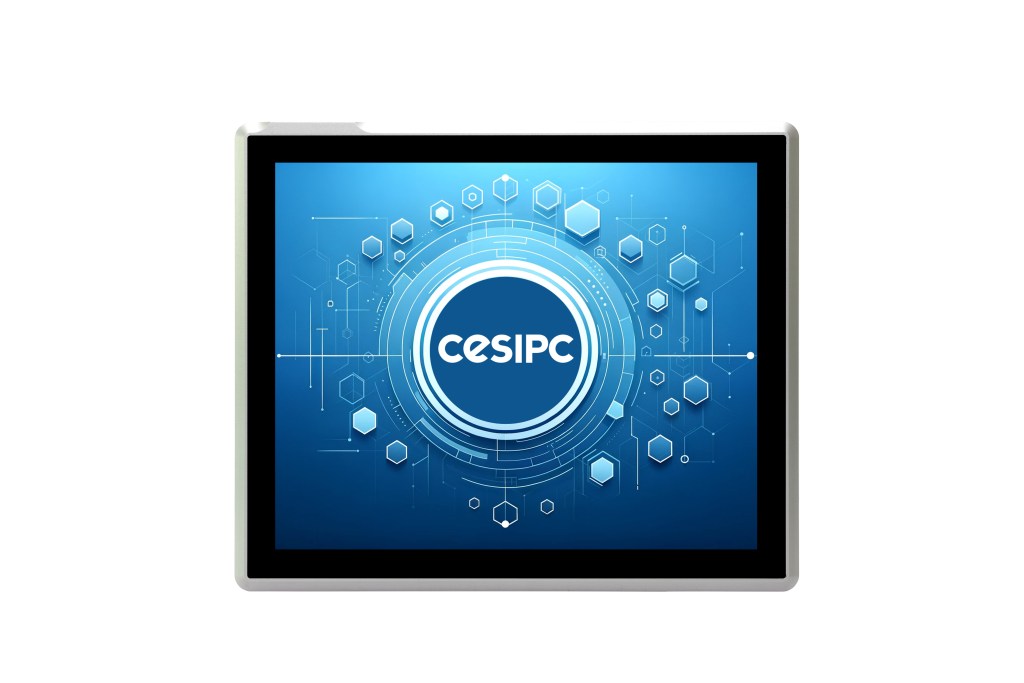

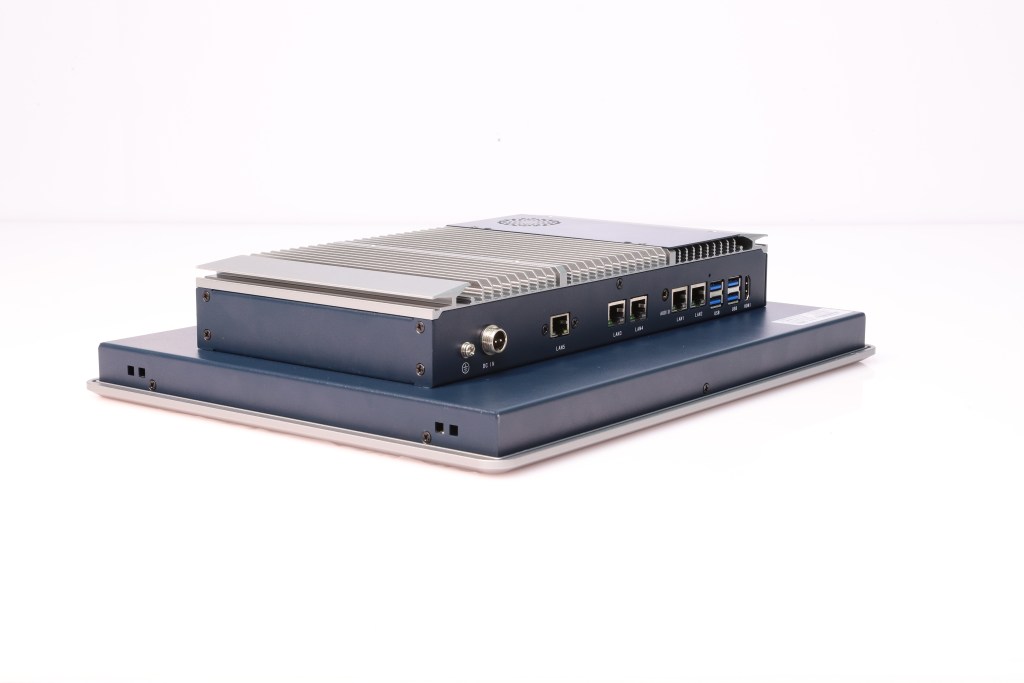

It is a 15-inch 4:3 industrial panel PC with five Intel I210 Gigabit LAN ports and an intelligent thermal control system. The five ports let a single panel keep the machine network, the plant network, a camera or instrument subnet, the link to the next cell and a service connection separate — work that normally needs a box PC and a managed switch inside the cabinet.

Five separate segments. Port 1 to the machine or PLC network, port 2 to the plant and MES side, port 3 to a vision camera or instrument subnet, port 4 to the neighbouring cell or line controller, and port 5 for commissioning, remote support or a redundant path. Each keeps its own address range and firewall rules. The panel replaces the switch rather than adding to it, which matters when the cabinet is already full.

It runs passively fanless under normal conditions — that is the default state, and it is why there is no filter to clean. When processor load or cabinet temperature approaches the thermal threshold, the intelligent thermal control system starts fan assist automatically, and the fan is hot-swappable: it can be replaced in the field without opening the enclosure or returning the panel to the factory.

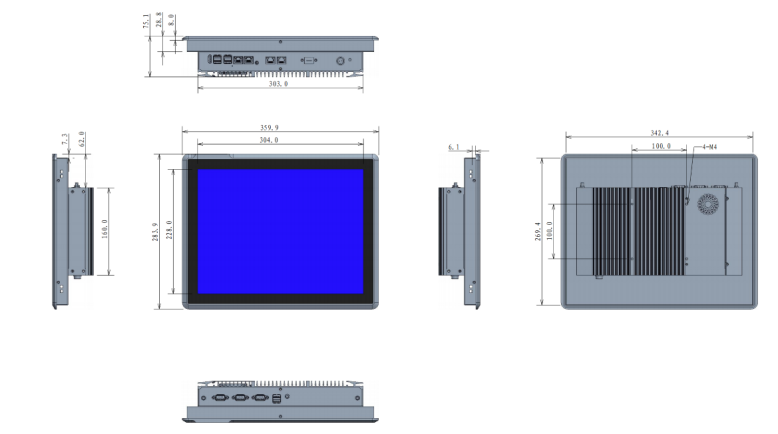

Because the cutout already exists and the format suits the application. 1280 × 1024 at 4:3 is the long-standing 15-inch industrial standard, so the panel drops into an existing opening — 342.4 × 269.4 mm cutout, 359.9 × 283.9 × 75.1 mm overall. The squarer screen also gives more vertical space to alarm lists, trend pages and recipe grids than a 16:9 panel of the same diagonal.

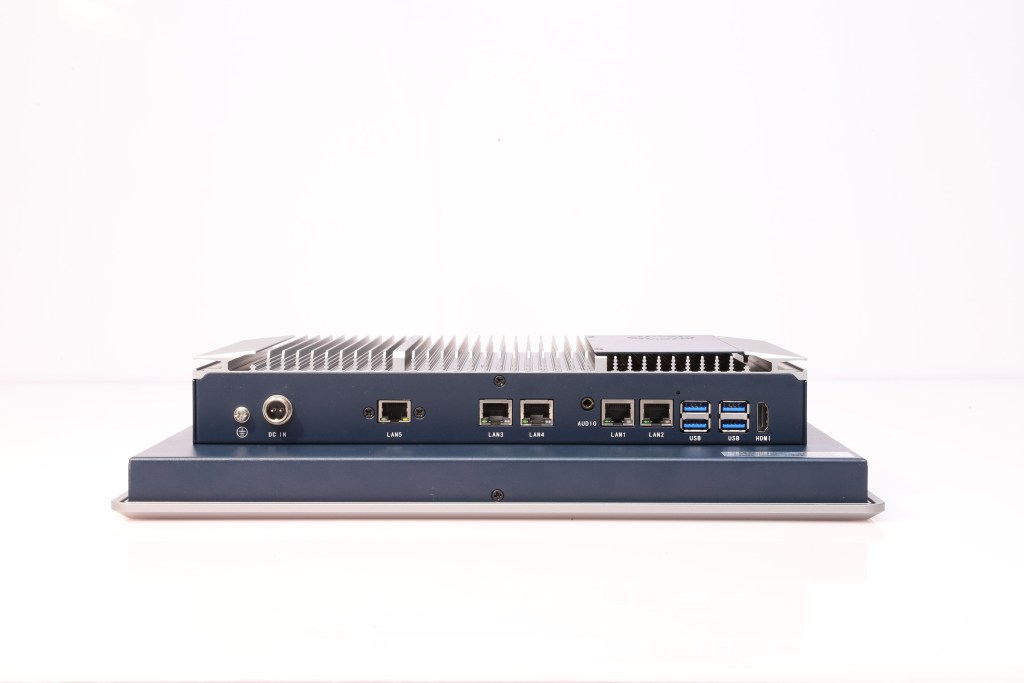

3× RS232 on DB9 for instruments, scales and legacy controllers, 2× USB 2.0 and 4× USB 3.0 for scanners, keyboards, cameras and dongles, one HDMI output and audio. A Mini PCIe socket is left free for 4G, Wi-Fi/Bluetooth or a fieldbus card, and the panel supports the 12th Gen Core platform with DDR5 memory and a 1× mSATA SSD.

12V DC on a 3-pin pluggable terminal block, with 9–36V DC optional and startup selectable between AT and ATX. Operating temperature is 0–50 ℃ as standard with −40–70 ℃ available; storage is −10–60 ℃ and humidity 10%–90% non-condensing. It mounts in the panel cutout, on a wall bracket or on a VESA plate, at 7 kg with the display.

CE, FCC and BIS according to EN 55032 and EN 55035, with ODM support for custom BIOS, boot-on-LOGO and OEM branding. Because it is a BlockCore™ platform, the same panel can be configured with a different CPU tier, a different serial or network combination, 4G or Wi-Fi, and the coating or touch type the application needs.

On lines that have outgrown a single network: vision-assisted inspection stations where the cameras need their own subnet, production cells with a cell controller and a link to the next cell, energy and utility cabinets with a separate meter network, and retrofit projects where the cabinet cannot take another switch but the panel opening already exists.
