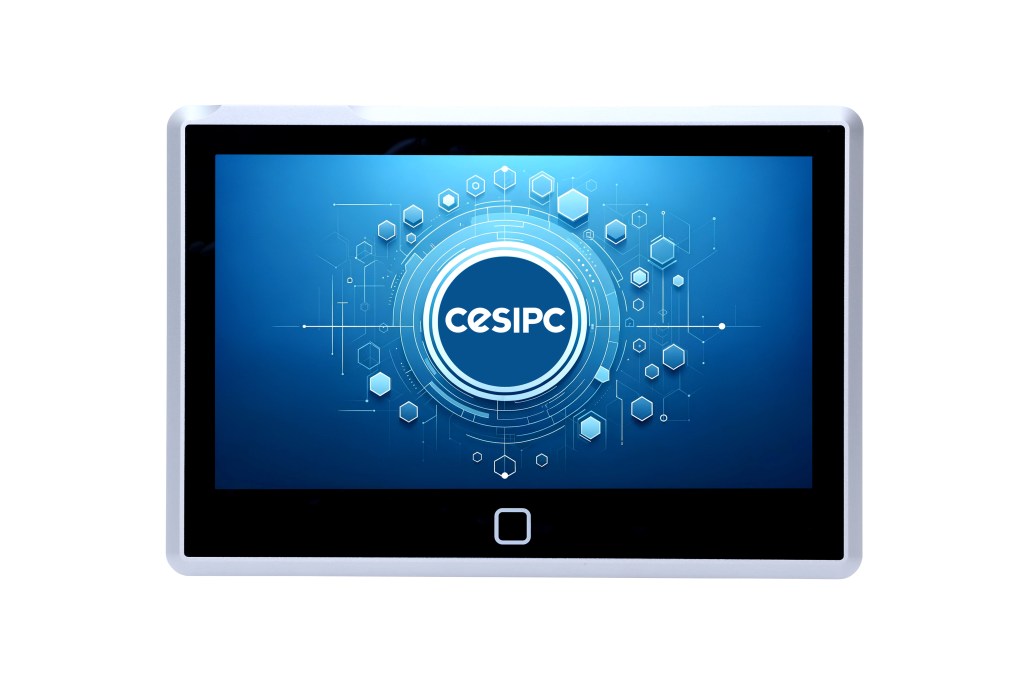

This EPC-W1322B is a 13.3inch industrial panel PC powered by 12th Gen Intel® Core™ i3/i5/i7 processors, delivering superior performance for demanding tasks and offering versatile configuration options. Based on CESIPC’s proprietary BlockCore technology, the EPC-W1322B capacitive touch power switch is located below the screen—mechanical-free, waterproof, and dustproof—designed specifically for tough environments. The EPC-W1322B is ideal for automotive parts industry applications.
Introduction
- Intel® Core™ i7/i5/i3 processors, compatible from Celeron® to 12th Gen Intel® Core™
- 13.3inch TFT LCD,10-point capacitive touch/ resistive touch
- IP65 front, 6H hardness.
- Front Bezel Integrated, Power-on Only,Capacitive Smart Power Button
- Fanless
- Dual Intel® I210 Gigabit Ethernet.

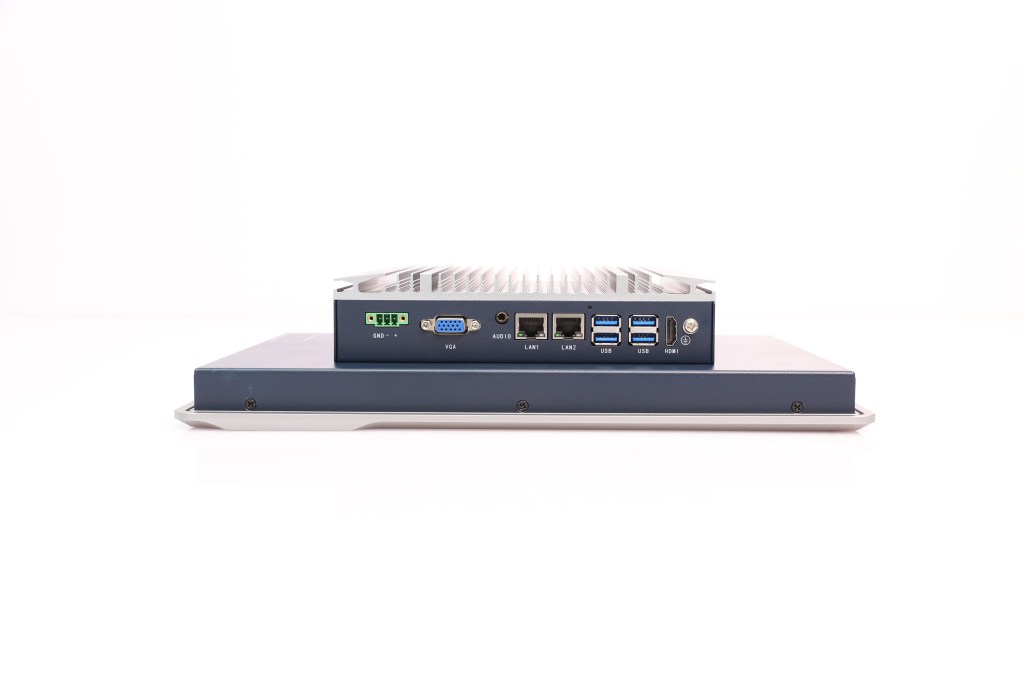

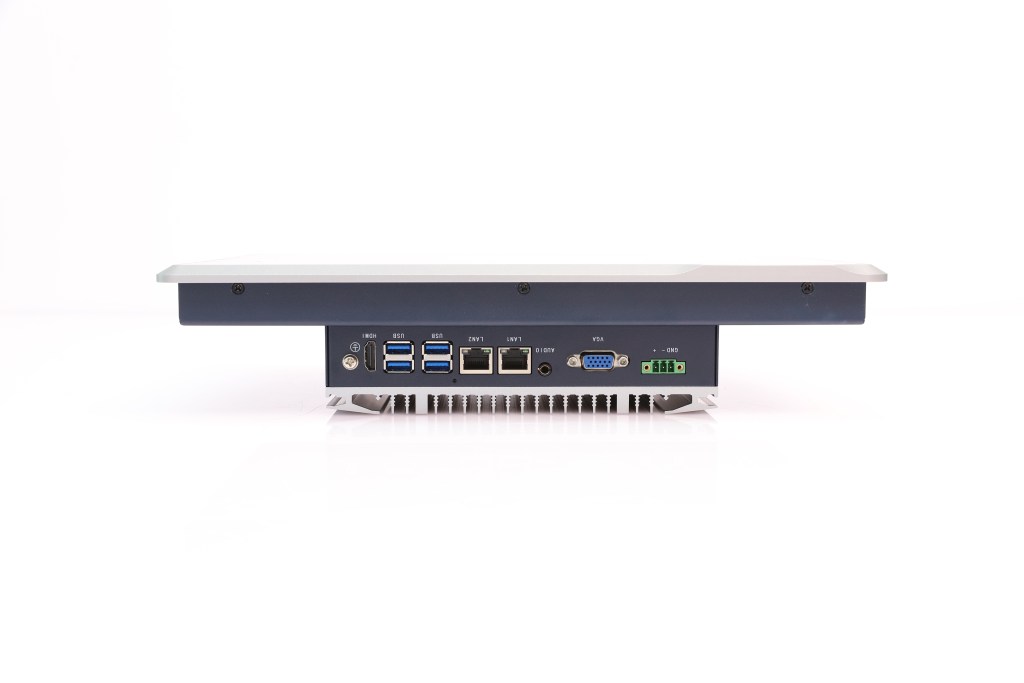

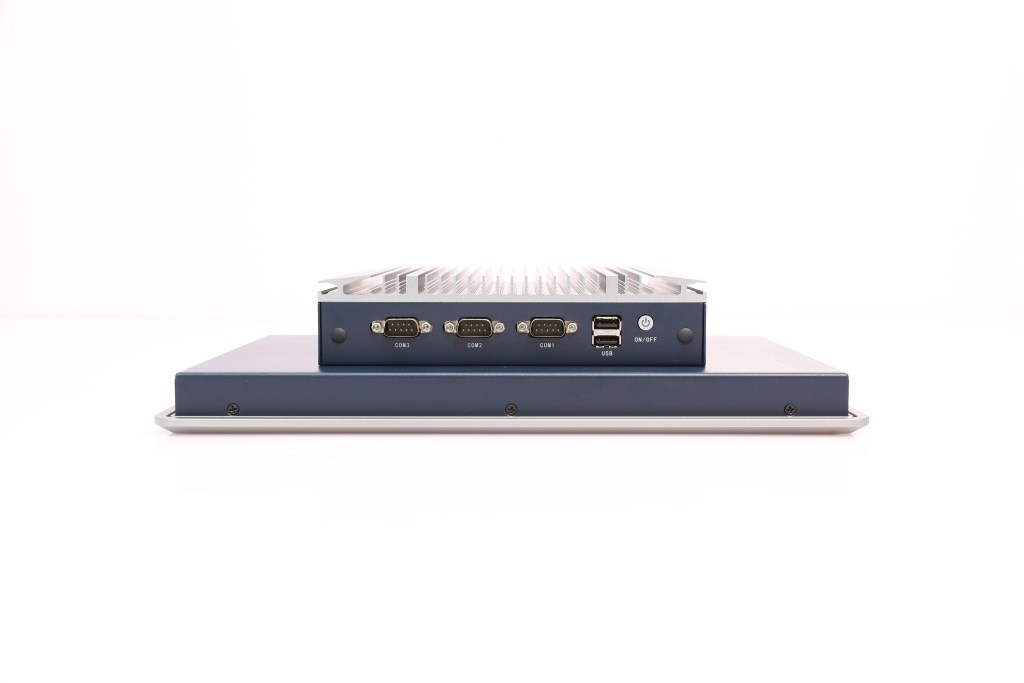

- I/O: USB 2.0 ×2, USB 3.0 ×4, Audio ×1, Mic ×1, RS-232 ×3, HDMI, VGA.
- 9–36V DC wide-range power input.
- Expansion: dual M.2 2280 NVMe, M.2 2230 Wi-Fi.
- TPM 2.0 hardware security support.
- CESIPC BlockCore modular design.
- CESIPC SafeCore™ power-loss protection.
- Auto power-on after power recovery.
- Industrial-grade 6061 aluminum alloy enclosure.
► System Core
| CPU | Celeron J1900 | Celeron J6412 | I3-10110U | I5-10210U | I7-10510U | i3-1215U | i5-1235U | i7-1250U |
| Cores | 4 | 4 | 2 | 4 | 4 | 2-6 | 2-10 | 2-10 |
| Threads | 4 | 4 | 4 | 8 | 8 | 4-8 | 4-12 | 4-12 |
| Frequency | 2.0-2.4 | 2.0-2.8 | 2.1-4.1 | 1.9-4.2 | 1.8-4.9 | 1.2-4.4 | 1.3-4.4 | 1.0-4.7 |
| Cache | 2MB | 4MB | 4MB | 6MB | 8MB | 10MB | 12MB | 12MB |
| TDP | 10W | 10W | 15W | 15W | 15W | 15W | 15W | 15W |
| Graphics | HD | UHD 600 | UHD | UHD 620 | UHD 620 | UHD 730 | Iris Xe | Iris Xe |
| Memory | 4-8GB DDR3L | 4-16GB DDR4 | 4-32GB DDR4 | 8-32GB DDR5 | ||||
| Storage | 1 x mSATA | 1 x mSATA SSD + 1 x M.2 SSD | ||||||
► I/O Ports
| CPU | Celeron J1900 | Celeron J6412 | I3-10110U | I5-10210U | I7-10510U | i3-1215U | i5-1235U | i7-1250U |
| USB 2.0 | 5 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| USB 3.0 | 1 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| RS232 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| RS485 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| VGA | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| HDMI | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Ethernet | 2 x Intel I210 | 2 x Intel I210 | 2 x Intel I210 | 2 x Intel I210 | 2 x Intel I210 | 2 x Intel I210 | 2 x Intel I210 | 2 x Intel I210 |
| Audio | 3.5mm TRRS | 3.5mm TRRS | 3.5mm TRRS | 3.5mm TRRS | 3.5mm TRRS | 3.5mm TRRS | 3.5mm TRRS | 3.5mm TRRS |
► DC Input
| DC Input | 1 × 3-pin Pluggable Terminal Block for 12V DC9-36V DC Optional |
| Booting | AT / ATX |
►Wireless Communication
| Wi-Fi | Intel N6235 300Mbps, 802.11a/b/g/n 2.4G / 5G |
| Wireless Network | 4G LTE Full Netcom Module (optional) |
► Environmental
| Operating Temperature | 0~50℃ (-40~70℃ Optional) |
| Storage Temperature | -10~60℃ |
| Humidity | 10%~90% , Non-condensing |
► OS
| Windows | Windows 10 / Windows 11 |
| Linux | Ubuntu 12.04 / 14.04 / 16.04 / 20.04 |
► Certs & Services
| Product | CE / FCC / BISAccording to EN 55032 & EN 55035 |
| Factory | ISO9001: 2015 |
| ODM | BIOS / Boot on LOGO / OEM |
| MTBF | 60,000 Hours |
►Touch Panel
| Touch Way | Projected Capacitive Touch (Resistive Touch by Project) |
| Touch Points | 1 – 10 Touch Points |
| Capacitive Smart Power Button | Front bezel integrated, power-on only; shutdown disabled to prevent accidental operation |
► LCD Panel
| Size | 13.3 inch TFT Panel |
| Resolution | 1920×1080 / 16:9 |
| Brightness | 300 nits |
| Contrast | 500 : 1 |
| Protection | Front Panel IP65 |
EPC‑W1392B Series — Touch Power Panel PC FAQ
13.3-inch fanless industrial panel PC with capacitive smart power button — 10th Gen Core, IP65 front panel, BlockCore™ modularity, and SafeCore™ protection.
What makes the EPC‑W1392B Touch Power Panel PC unique?+
The EPC‑W1392B is a 13.3-inch fanless industrial panel PC distinguished by its capacitive touch power button — a mechanical‑free, waterproof, and dustproof smart switch located below the screen.
Key differentiators include:
• Capacitive Smart Power Button — Eliminates mechanical wear and ingress risk from traditional push‑buttons. The flush‑mounted sensor activates with a light touch, remains fully sealed behind the IP65 front panel, and is rated for millions of actuations without physical degradation. This is the standout feature of the “Touch Power” series, specifically engineered for automotive parts assembly and other harsh industrial environments.
• 13.3-inch 5:4 TFT LCD — 1280×1024 resolution provides more vertical workspace than 16:9 widescreen alternatives, making it ideal for text‑dense operator interfaces, machine parameters, and quality checklists — particularly beneficial for assembly line instruction viewing.
• Fanless passive cooling — Uses a thermally engineered 6061/6063 aluminum alloy chassis as a passive radiator, eliminating dust intake, bearing failure, and scheduled fan replacement. Ideal for dust‑prone automotive assembly environments.
• BlockCore™ modular architecture — Built on CESIPC’s BlockCore™ platform, supporting i‑Door expansion modules (CAN, 5‑port LAN, isolated serial, 5G) without custom PCB development.
• SafeCore™ power‑loss protection — Prevents OS/file corruption during sudden power loss, with one‑reboot recovery. Critical for continuous production lines where unplanned downtime directly impacts throughput.
• Automotive‑focused design — The EPC‑W1392B is specifically positioned for automotive parts industry applications, where the combination of IP65 protection, capacitive power button, and industrial reliability meets the demands of assembly line workstations subject to metal dust, oil mist, and regular wipe‑down cleaning.
Standard commercial panel PCs and industrial HMI terminals lack these purpose‑built features — particularly the integrated capacitive power switch — and typically fail within months in harsh assembly environments.
What is the capacitive touch power button and why does it matter for industrial applications?+
The capacitive touch power button is a mechanical‑free smart switch located below the display, seamlessly integrated into the sealed IP65 front panel.
Key advantages over traditional power buttons:
• No mechanical wear — Traditional push‑buttons degrade over time due to spring fatigue, contact oxidation, or ingress contamination. The capacitive sensor has no moving parts and is rated for millions of actuations without degradation.
• Fully sealed IP65 protection — The flush‑mounted sensor is sealed behind the front panel, leaving no crevices where dust, oil mist, or cleaning fluids can enter. This maintains the panel’s IP65 integrity and prevents ingress‑related failures common in automotive assembly and food processing environments.
• Easy wipe‑down cleaning — The smooth, flat surface allows operators to sanitise the panel without catching on protruding buttons — essential for facilities requiring regular cleaning protocols.
• Power‑on only operation — The capacitive button supports power‑on only (single function), preventing unintended shutdowns that could interrupt production. System power‑off is managed through OS or remote commands, reducing accidental downtime from operator error.
• Gloved operation compatible — The capacitive sensor detects touch through standard industrial gloves (nitrile, latex, cotton), eliminating the need to remove gloves for basic system access — a practical advantage on the assembly floor.
This design is particularly valuable in automotive parts assembly lines, machine tool stations, and any industrial workstation subject to dust, oil mist, frequent cleaning, or where operator safety is paramount. It pairs effectively with the EPC‑W1392B’s programmable front‑panel function keys for customised workflow shortcuts.
What processors and performance options are available?+
The EPC‑W1392B supports Intel® 10th Gen Core™ processors, sharing identical mechanical chassis, I/O layout, and mounting dimensions across all SKUs — simplifying spares logistics for automotive assembly lines. Options include:
Intel Core™ i3‑10110U — 2 cores, 4 threads, 2.1–4.1GHz, 4MB cache, 15W TDP, Intel UHD Graphics. Entry‑level for basic HMI and data logging in automotive sub‑assembly workstations.
Intel Core™ i5‑10210U — 4 cores, 8 threads, 1.6–4.2GHz, 6MB cache, 15W TDP. Balanced performance for line‑side SCADA, real‑time torque data logging, and quality inspection workstations.
Intel Core™ i7‑10510U — 4 cores, 8 threads, 1.8–4.9GHz, 8MB cache, 15W TDP. High‑performance for machine vision, edge AI inference (defect detection), and multi‑camera synchronisation in automated inspection cells.
Memory: 4–32GB DDR4 (standard 8GB). Storage: 1× mSATA SSD + 1× M.2 SSD (dual‑drive architecture). Operating systems: Windows 10/11, Ubuntu Linux 16.04–22.04.
For detailed specifications, download the datasheet.
What I/O ports and expansion capabilities does the EPC‑W1392B offer?+
The EPC‑W1392B provides a comprehensive industrial I/O package in a compact 13.3-inch form factor:
USB ports: 4×USB 3.0 + 2×USB 2.0 = 6 total USB ports — connects vision cameras, barcode scanners, touchscreen calibration tools, and diagnostic equipment.
Serial ports: 2×RS232 + 1×RS485 via DB9 — interfaces with torque drivers, PLCs, industrial sensors, and legacy automation equipment.
Display outputs: HDMI + VGA — supports dual independent displays for operator + supervisor screens or HMI + diagnostic view.
Networking: 2× Intel® I210 Gigabit Ethernet (10/100/1000M, PTP time sync support) — separated network paths for machine control and plant-wide SCADA communication.
Audio: 3.5mm TRRS audio jack — public announcement integration or voice guidance for operator instructions.
Front panel programmable function keys — Customisable buttons for one‑touch operations (start/stop, pass/fail, next step, quality inspection). No touchscreen navigation required for frequent commands — reduces operator error and speeds up cycle times.
Reset switch: 1× hardware reset switch — emergency recovery without opening the enclosure.
Internal expansion: 1× M.2 2280 NVMe slot, 1× Mini PCIe socket for wireless modules (4G/5G/Wi‑Fi/GPIO expansion). Optional dual‑band 2.4G/5G Wi‑Fi and LTE full‑network modules.
Modular I/O via i‑Door (BlockCore™): The i‑Door smart expansion slot accepts function modules — CAN bus, 5‑port LAN, isolated serial, 5G — snapped in without wiring or chassis modifications. Ideal for field‑configurable automotive assembly stations where I/O requirements vary by cell.
What is the 13.3-inch 5:4 display advantage over widescreen alternatives?+
The EPC‑W1392B features a 13.3-inch 5:4 TFT LCD with 1280×1024 (SXGA) resolution, 300 cd/m² brightness, 500:1 contrast ratio, and 50,000 hours LED backlight life. Standard touch is 10‑point projective capacitive; resistive touch is optional for gloved environments.
Why 5:4 matters for automotive assembly workstations:
• More vertical workspace — The 5:4 aspect ratio (1280×1024) provides significantly more vertical screen space than 16:9 widescreen of the same diagonal. For automotive assembly, this means viewing torque specifications, work instructions, and quality checklists without scrolling — operators see the complete instruction set at a glance, reducing errors and improving cycle time.
• Legacy SCADA/HMI compatibility — Many automotive plant SCADA systems and machine HMIs were designed for 5:4 or 4:3 displays. The 1280×1024 resolution provides native compatibility without scaling artifacts or letterboxing, ensuring crisp text and accurate touch targeting.
• Operator readability at typical viewing distances — The 13.3-inch size is optimised for viewing at 0.5–1 metre (arm’s length), the typical distance for a seated or standing operator at an assembly workstation. Text and touch targets are large enough for comfortable interaction without the operator needing to lean forward, while the compact 345.2×233.6mm footprint fits easily into existing workbench layouts.
• Panel‑mount compatibility — The cutout dimensions (325.1×213.5mm) match standard 13.3-inch industrial panel cutouts, simplifying retrofit projects where existing displays need replacement without cabinet modification.
Touch options: Standard 10‑point projected capacitive (P‑CAP) for multi‑touch gesture support; optional 5‑wire resistive touch for thick‑glove operation in welding or heavy assembly cells.
What is BlockCore™ modular architecture, and how does it benefit my deployment?+
BlockCore™ is CESIPC’s modular computing architecture that standardises interface, structure, power, and expansion across all products. For the EPC‑W1392B, BlockCore™ delivers:
1. LEGO MODE design philosophy — Based on modular construction principles, BlockCore™ creates an ecosystem where compute, I/O, and function boards can be configured like building blocks. This reduces custom development cost by up to 80% through standardised module libraries.
2. Standardised I/O expansion (i‑Door) — i‑Door expansion slots accept function modules (CAN, 5‑port LAN, isolated serial, 5G, GPIO) without custom PCB development. For automotive lines requiring CAN bus for robot integration, simply add the module — no hardware redesign.
3. Shared ecosystem across product families — The EPC‑W1392B uses the same i‑Core Board and expansion modules as other BlockCore™ industrial PCs. Standardise spares across mixed fleets of panel PCs, embedded PCs, and station controllers.
4. Future‑proof upgrades — Upgrade from i3 to i7 by swapping only the compute board. The enclosure, capacitive power button, I/O connectors, programmable keys, and mounting dimensions remain unchanged — no re‑certification required. This is especially valuable for automotive plants where production lines run for 5–10 years and compute requirements may increase over time.
5. Extendable product lifecycle — BlockCore™ effectively extends product lifecycle, making investment in the EPC‑W1392B more cost‑efficient over the long term, particularly for large‑scale automotive line rollouts spanning multiple model years.
What protection does SafeCore™ provide for automotive assembly line deployments?+
SafeCore™ is CESIPC’s system‑level power‑loss protection architecture built into the EPC‑W1392B. In automotive assembly and industrial environments, power interruptions are common — emergency stops for maintenance, lockout/tagout procedures, or voltage dips from welding robots and servo drives — events that can corrupt OS files and production logs if power is removed abruptly. SafeCore™ provides:
• System‑level write protection — Blocks all unauthorised changes to the system; even after power failure, user error, or malware attack, system files automatically restore after reboot. On the assembly line, this prevents data corruption that could halt production for hours while IT rebuilds a workstation.
• One‑reboot recovery mechanism — System crash or file corruption? Just reboot — the system returns to a healthy working state. No technical skills needed. Line supervisors or maintenance technicians can restore service in minutes without waiting for IT support.
• Zero IT support required — Anyone on the production floor can recover the system with a simple restart, reducing downtime and on‑call IT costs. On a three‑shift automotive line, this translates to measurable OEE improvements.
• Safe disk writes — Prevents fragmentation or file corruption during sudden power loss, ensuring data integrity for torque traceability logs, quality inspection records, and production line counters.
Combined with auto power‑on recovery (the system automatically restarts when power returns) and 9–36V DC wide‑range input (tolerates voltage fluctuations from welding equipment), SafeCore™ ensures continuous operation even on electrically noisy factory floors. SafeCore™ is standard across all EPC‑W1392B models and works in tandem with TPM 2.0 hardware security for encrypted authentication and data protection.
What are the mechanical specifications, mounting options, and environmental ratings?+
Dimensions: 345.2(W) × 233.6(H) × 74.6(D) mm — compact footprint fits into standard automotive assembly workbenches and control cabinets. Weight: 3.0 kg net.
Cutout dimensions: 325.1 × 213.5 mm — standard industrial panel cutout for retrofit compatibility.
Mounting: Wall mount / VESA mount (standard) — flexible installation on articulated arms, machine frames, or flush integration into control cabinets. The 74.6mm depth leaves ample room for cabling behind the panel.
Enclosure: Industrial‑grade 6063/6061 high‑strength aluminum alloy chassis (aluminium extrusion profile + sheet metal construction) — corrosion‑resistant and durable for 24/7 operation. Front panel IP65‑rated for dust and splash resistance.
Cooling: Fanless passive cooling — no moving parts, zero scheduled maintenance. Silent operation meets noise‑sensitive assembly environment requirements. The aluminum extrusion acts as a passive radiator, effectively dissipating heat from 15W TDP processors.
Operating temperature: -10°C ~ 60°C standard; optional -40°C ~ 80°C extended grade for cold storage, outdoor automotive test tracks, and extreme environments.
Storage temperature: -20°C ~ 70°C (optional -40°C ~ 80°C).
Humidity: 10% ~ 90% RH, non‑condensing.
Power input: 9~36V DC wide‑range input with standard 12V DC — directly accepts 24V industrial power rails without additional DC‑DC conversion. Tolerates voltage fluctuations common when welding robots, conveyors, and servo drives switch loads on the same rail. Boot modes: AT (auto power‑on) for unattended operation, or ATX (power button) for manual control.
Certifications: CE, FCC, BIS compliant (EN 55032 & EN 55035, EN IEC 61000-3-2), factory ISO9001:2015 certified. MTBF 60,000 hours.
Key applications based on specification: Automotive parts assembly, machine tool HMI, quality inspection stations, production line traceability terminals, and industrial edge computing nodes.
What are typical applications for the EPC‑W1392B?+
The EPC‑W1392B is a 13.3-inch fanless industrial panel PC designed for applications requiring capacitive touch power control, automotive‑grade reliability, 5:4 display format, and 10th Gen Core processing power in a compact, rugged footprint. Typical applications include:
• Automotive parts assembly workstations — The primary target application. Deployed on assembly lines for torque tool control, work order verification, quality inspection, and production traceability. The capacitive power button eliminates mechanical failure points in high‑usage stations. The 13.3-inch 5:4 display displays torque specifications, assembly diagrams, and quality checklists without scrolling. Front programmable keys enable one‑touch pass/fail or next‑step commands, reducing cycle time.
• Machine tool HMI & CNC control — The IP65 front panel withstands coolant splash and metal chips. Capacitive power button provides clean, crevice‑free front surface that resists contamination. 5:4 display matches traditional CNC HMI aspect ratios, displaying tool paths, spindle loads, and part programs without reformatting.
• Quality inspection stations (in‑line & end‑of‑line) — Deployed at gauging stations, vision inspection cells, and final audit points. 6 USB ports connect cameras, barcode scanners, and label printers. 2×Gigabit Ethernet provides separated networks for vision system data and plant‑wide quality management system uploads. 5:4 display shows measurement data, pass/fail results, and defect images simultaneously.
• Production line traceability & MES terminals — Station terminals for operator login, work order verification, real‑time data entry, and parts tracking. The capacitive power button prevents accidental shutdowns that would break traceability chains. SafeCore™ protects production logs during power interruptions. BlockCore™ modular expansion supports additional I/O or serial ports for connecting legacy barcode readers and PLCs.
• Industrial edge computing & data aggregation — Deployed at the edge for real‑time data aggregation from multiple assembly stations, predictive maintenance analytics, and secure cloud connectivity. The 9–36V wide‑range input and -40°C to 80°C extended temperature option enable deployment in automotive paint shops and test cells where ambient temperatures vary widely.
For detailed application examples, see our automotive assembly PC application guide and edge computing panel PC overview.
Can CESIPC provide OEM/ODM customisation for the EPC‑W1392B?+
Yes. CESIPC offers full OEM/ODM services for the EPC‑W1392B series, built around the BlockCore™ modular architecture:
• BIOS configuration and boot logo branding — For private labeling, brand consistency, and OEM turnkey solutions.
• I/O panel customisation — Alternative connector arrangements, additional COM ports, isolated digital I/O, or CAN bus via i‑Door expansion modules.
• Programmable key function pre‑configuration — Pre‑loaded custom key mappings for specific automotive assembly workflows (e.g., pass/fail, torque tool start, part scan accept/reject).
• Function board customisation — Custom i‑Function Board development for specific industrial protocols or proprietary interfaces. The LEGO MODE ecosystem enables rapid function board development, dramatically reducing customisation lead times.
• Operating system pre‑load — Windows 10/11 LTSC or Ubuntu Linux with custom drivers and pre‑installed runtime environments.
• Enclosure material options — Enhanced corrosion resistance for chemical exposure in battery assembly or paint shop environments.
• Private label packaging and custom SKU part numbering for integrators and reseller programs.
With in‑house SMT assembly, sheet metal fabrication, and CNC machining, CESIPC delivers custom industrial panel PCs with consistent quality and predictable lead times. MOQ: 1 unit sample available. Typical lead time: 2–4 weeks. Minimum order quantities vary by customisation scope. Contact our engineering team for a detailed ODM assessment.
