The EPC-W2122B LEGO Panel PC is powered by CESIPC’s proprietary BlockCore technology. It offers 8DI &8DO, equipped with Intel® 12th Gen. core i3/i5/i7 processor, delivering superior performance.
Introduction
- Intel® Core™ i7/i5/i3 processors, compatible from Celeron® to 12th Gen Intel® Core™
- 21.5inch TFT LCD,10-point capacitive touch/ resistive touch
- IP65 front, 6H hardness.
- Fanless.
- Dual Intel® I210 Gigabit Ethernet.
- 8DI &8DO with 5V / 24V DC Output
- I/O: USB 2.0 ×2, USB 3.0 ×4, Audio ×1, Mic ×1, RS-232 ×5, HDMI, VGA.
- 9–36V DC wide-range power input.
- Expansion: dual M.2 2280 NVMe, M.2 2230 Wi-Fi.
- TPM 2.0 hardware security support.
- CESIPC BlockCore modular design.
- CESIPC SafeCore™ power-loss protection.
- Auto power-on after power recovery.
- Industrial-grade 6061 aluminum alloy enclosure.
► Specifications
System Core
| CPU | Intel® Core™ 12th Processor i3-1215U 1.2~4.4GHz Intel® Core™ 12th Processor i5-1235U 1.3~4.4GHz Intel® Core™ 12th Processor i7-1255U 1.7~4.7GHz |
| Memory | 8~32GB DDR5 |
| Storage | 1 x mSATA SSD |
| Cooling | Fan-less |
| OS | Windows 10/11/ Linux Ubuntu |
I/O Ports
| USB2.0 | 2×USB2.0 |
| USB3.0 | 4×USB3.0 |
| COM | 3×RS232+2×RS485 DB9 |
| Display | 1×HDMI+1×VGA Dual Display |
| Audio | 1×Audio |
| Ethernet | 2×10M/100M/1000M Intel I210 LAN |
| GPIO | 8×8 Digital I/O（ 24V / 12V / 5V configurable） |
LCD Display
| Panel Size | 21.5 inch |
| Max. Resolution | 1920×1080 16:9 |
| Luminance(cd/㎡) | 350cd/㎡ |
| Contrast | 450:1 |
| Backlight | More than 50000H |
Panel Screen
| Touch Panel | Multi-touch Projected Capacitive Touch Screen |
| Transmittance | 85% |
| Controller | USB |
Wireless Communication
| Wireless Network | 4G Full Network Compatibility （Optional） |
| Wi-Fi | Wi-Fi/ Bluetooth |
Power Supply
| DC Input | 1×3-pin Pluggable Terminal Block for 12V DC, 9-36V optional |
| Booting | AT / ATX |
Environmental
| Operating Temperature | 0~50℃ (-40~70℃ Optional) |
| Storage Temperature | -10~60℃ |
| Humidity | 10%~90% , non-condensing |
Mechanical
| Dimension | 534.6(W)×326.1(D)×75.1(H)mm |
| Cutout Size | 516.6×308.1mm |
| Weight | 6.66 KG |
| Material | High-Strength Aluminum Alloy |
| Mounting | Wall-mount/VESA Mount |
Certifications & Services
| Certs | CE / FCC / BIS, according to EN 55032 & EN 55035 |
| ODM | BIOS / Boot on LOGO / OEM |

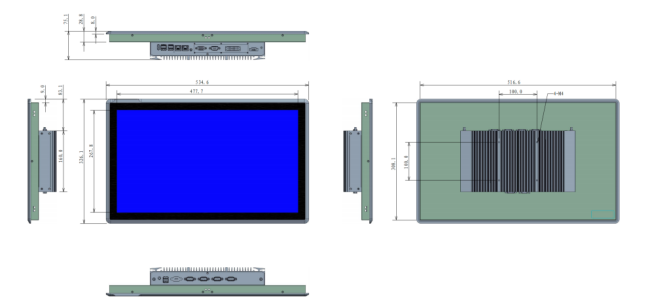

►Product Dimensions

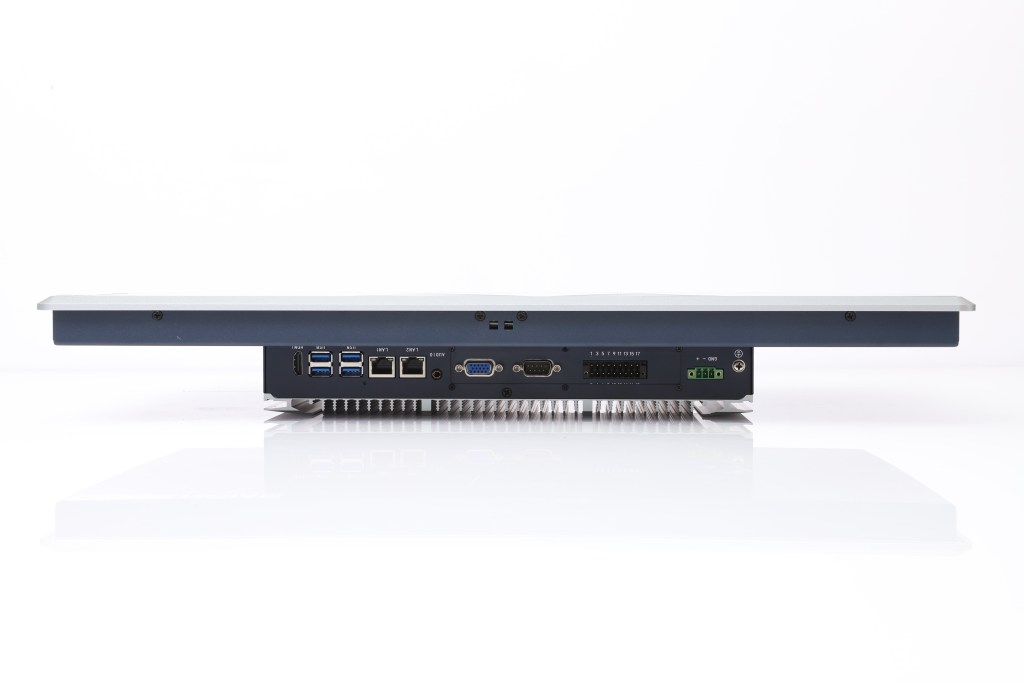

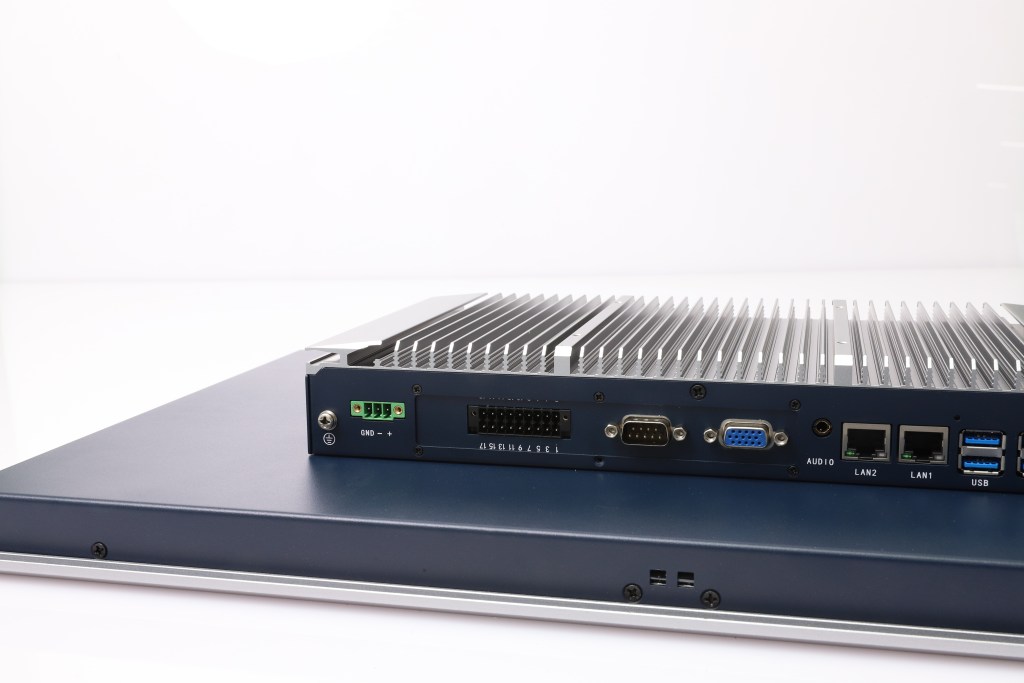

►Product Show
EPC‑W2122B Series — BlockCore™ Panel PC with GPIO FAQ
21.5‑inch industrial panel PC with 8DI/8DO configurable GPIO — 12th Gen Core, DDR5, 5 COM ports, BlockCore™ modularity, and SafeCore™ protection.
What makes the EPC‑W2122B unique?+
The EPC‑W2122B is a 21.5‑inch industrial panel PC with integrated 8DI/8DO configurable GPIO, purpose‑built for applications requiring direct digital I/O control without external PLCs or I/O modules. Standard industrial panel PCs lack built‑in GPIO, forcing users to add external I/O modules that increase cost, cabinet space, and failure points.
Key differentiators include:
• 8×Digital Inputs + 8×Digital Outputs (configurable 24V/12V/5V) — Integrated GPIO for direct connection to sensors, switches, relays, and actuators. Eliminates the need for separate PLC or I/O modules in many industrial automation applications.
• Intel® 12th Gen Core™ processors — i3‑1215U / i5‑1235U / i7‑1255U with DDR5 memory (8–32GB), delivering superior performance for edge AI, real‑time analytics, and multi‑stream data processing.
• 5×COM ports (3×RS232 + 2×RS485) — High serial density for connecting legacy PLCs, sensors, and industrial meters alongside the GPIO.
• 21.5‑inch 16:9 Full HD display — 1920×1080 resolution with 350 cd/m² brightness, 10‑point projected capacitive touch, and IP65 front panel protection.
• BlockCore™ modular architecture — Built on CESIPC’s BlockCore™ platform, supporting i‑Door expansion modules without custom PCB development.
• SafeCore™ power‑loss protection — Prevents OS/file corruption during sudden power loss with one‑reboot recovery, critical for unattended and mission‑critical installations.
Standard commercial panel PCs lack these industrial‑grade features — particularly the integrated 8DI/8DO GPIO — and would require external I/O modules, increasing installation cost, cabinet space, and failure points.
What is the advantage of integrated 8DI/8DO GPIO for industrial applications?+
The 8×Digital Inputs and 8×Digital Outputs provide significant advantages for industrial automation, machine control, and monitoring applications.
Key advantages:
• Eliminates external PLC/I/O modules — For many industrial applications, the integrated GPIO replaces the need for separate PLCs or distributed I/O modules, reducing system cost, cabinet space, and installation time.
• Configurable voltage levels (24V/12V/5V) — The GPIO supports multiple voltage levels, making it compatible with a wide range of industrial sensors, switches, and actuators without level shifters. 24V is standard for industrial sensors; 12V for automotive/transportation; 5V for TTL‑level logic.
• Direct sensor and actuator connection — Connect limit switches, proximity sensors, push buttons, and photoelectric sensors directly to the DI inputs. Control relays, solenoids, indicator lights, and small actuators via the DO outputs.
• Machine status monitoring — Monitor machine run/stop states, fault conditions, and alarm contacts directly through the digital inputs, eliminating the need for external monitoring hardware.
• Reduced latency — Direct GPIO on the panel PC provides lower latency than USB‑ or Ethernet‑connected I/O modules, critical for real‑time machine control applications.
Why choose the 21.5‑inch widescreen display?+
The EPC‑W2122B features a 21.5‑inch 16:9 TFT LCD with 1920×1080 Full HD resolution, 350 cd/m² brightness, 450:1 contrast ratio, and 50,000 hours LED backlight life. Standard touch is 10‑point projected capacitive; resistive touch is available for gloved environments.
Why 16:9 widescreen matters for industrial applications:
• Native SCADA/HMI compatibility — Modern SCADA platforms (Ignition, WinCC Unified, FactoryTalk View SE) are natively designed for widescreen formats. The 21.5‑inch 1080p resolution provides the ideal canvas for dashboards, process diagrams, and trend displays.
• Multi‑parameter visualization — The large widescreen display allows operators to view machine parameters, alarm lists, production dashboards, and GPIO status simultaneously without switching screens.
• Operator readability at typical viewing distances — The 21.5‑inch size is optimised for viewing at 0.5–1.5 metres (arm’s length to workstation distance), the typical range for a seated or standing operator at an industrial workstation.
• Panel‑mount compatibility — The cutout dimensions (516.6×308.1mm) match standard 21.5‑inch industrial panel cutouts, simplifying retrofit projects where existing displays need replacement without cabinet modification.
What processors and performance options are available?+
The EPC‑W2122B supports Intel® 12th Gen Core™ processors exclusively, sharing identical mechanical chassis, I/O layout, and mounting dimensions across all SKUs — simplifying spares logistics for large‑scale deployments. Options include:
Intel Core™ i3‑1215U — 6 cores (2P + 4E), 1.2–4.4GHz, 10W TDP. Memory: 8–32GB DDR5. Entry‑level for SCADA display terminals, data logging, and basic HMI applications with GPIO control.
Intel Core™ i5‑1235U — 10 cores (2P + 8E), 1.3–4.4GHz, 12W TDP. Memory: 8–32GB DDR5. Balanced performance for machine monitoring, real‑time data acquisition, and industrial edge processing with GPIO integration.
Intel Core™ i7‑1255U — 10 cores (2P + 8E), 1.7–4.7GHz, 15W TDP. Memory: 8–32GB DDR5. High‑performance for edge AI inference, machine vision, and real‑time machine control with GPIO and 5 network interfaces.
Memory: 8–32GB DDR5 (standard 8GB). Storage: 1×mSATA SSD (256GB standard). Operating systems: Windows 10/11, Linux Ubuntu.
For detailed specifications, download the datasheet.
What I/O ports and expansion capabilities does the EPC‑W2122B offer?+
The EPC‑W2122B provides a comprehensive industrial I/O package with integrated GPIO and exceptional connectivity:
GPIO: 8×Digital Inputs + 8×Digital Outputs (configurable 24V/12V/5V) — direct connection to sensors, switches, relays, and actuators. Eliminates external I/O modules.
Serial ports: 5×COM ports (3×RS232 + 2×RS485 via DB9) — industry‑leading serial density for connecting legacy PLCs, industrial sensors, torque tools, and serial printers.
USB ports: 2×USB 2.0 + 4×USB 3.0 = 6 total USB ports — connects vision cameras, barcode scanners, touchscreen calibration tools, and diagnostic equipment.
Networking: 2×Intel® I210 Gigabit Ethernet (10/100/1000M) — dual network interfaces for separating control network traffic from management/SCADA traffic, or for network redundancy.
Display outputs: HDMI + VGA — dual independent displays for operator + supervisor screens or HMI + diagnostic view.
Audio: Audio + Mic jacks — public announcement integration or voice guidance for operator instructions.
Internal expansion: Dual M.2 2280 NVMe slots for high‑speed storage, M.2 2230 slot for Wi‑Fi + Bluetooth, Mini PCIe socket for wireless modules (4G/5G/GPIO expansion).
Wireless (optional): 4G Full Network Compatibility + Wi‑Fi/Bluetooth — remote monitoring and connectivity for distributed sites.
Modular I/O via BlockCore™: The BlockCore™ platform supports additional expansion modules (i‑Door) for CAN, 5‑port LAN, isolated serial, and 5G without custom PCB development.
What is BlockCore™ modular architecture, and how does it benefit my deployment?+
BlockCore™ is CESIPC’s modular computing architecture that standardises interface, structure, power, and expansion across all products. For the EPC‑W2122B, BlockCore™ delivers:
1. Standardised I/O expansion (i‑Door) — i‑Door expansion slots accept function modules (CAN, 5‑port LAN, isolated serial, 5G, GPIO) without custom PCB development. For applications requiring CAN bus for robot integration or 5G for remote site connectivity, simply add the module — no hardware redesign.
2. LEGO MODE design philosophy — Based on modular construction principles, BlockCore™ creates an ecosystem where compute, I/O, and function boards can be configured like building blocks. This reduces custom development cost by up to 80% through standardised module libraries.
3. Shared ecosystem across product families — The EPC‑W2122B uses the same expansion modules as other BlockCore™ industrial PCs. Standardise spares across mixed fleets of panel PCs, embedded PCs, and network gateways.
4. Future‑proof upgrades — The BlockCore™ architecture allows future processor upgrades within the EPC‑W series without changing the I/O layout, GPIO, or mounting dimensions.
5. Extendable product lifecycle — BlockCore™ effectively extends product lifecycle, making investment in the EPC‑W2122B more cost‑efficient over the long term, particularly for large‑scale industrial automation rollouts spanning multiple years.
What protection does SafeCore™ provide for industrial deployments?+
SafeCore™ is CESIPC’s system‑level power‑loss protection architecture built into the EPC‑W2122B. In industrial automation and critical infrastructure environments, power interruptions are common — emergency stops, maintenance lockout/tagout, or voltage dips from welding robots and servo drives — events that can corrupt OS files and production logs if power is removed abruptly. SafeCore™ provides:
• System‑level write protection — Blocks all unauthorised changes to the system; even after power failure, user error, or malware attack, system files automatically restore after reboot. On the production line, this prevents data corruption that could halt production for hours while IT rebuilds a workstation.
• One‑reboot recovery mechanism — System crash or file corruption? Just reboot — the system returns to a healthy working state. No technical skills needed. Line supervisors or maintenance technicians can restore service in minutes without waiting for IT support.
• Zero IT support required — Anyone on the production floor can recover the system with a simple restart, reducing downtime and on‑call IT costs.
• Safe disk writes — Prevents fragmentation or file corruption during sudden power loss, ensuring data integrity for production logs, quality inspection records, and GPIO control states.
Combined with auto power‑on recovery (the system automatically restarts when power returns) and 9–36V DC wide‑range input (tolerates voltage fluctuations from industrial equipment), SafeCore™ ensures continuous operation even on electrically noisy factory floors. SafeCore™ is standard across all EPC‑W2122B models and works in tandem with TPM 2.0 hardware security for encrypted authentication and data protection.
What are the mechanical specifications, mounting options, and environmental ratings?+
Dimensions: 534.6(W) × 326.1(D) × 75.1(H) mm — 21.5‑inch 16:9 form factor fits standard industrial panel cutouts.
Cutout dimensions: 516.6 × 308.1 mm — standard industrial panel cutout for easy retrofit compatibility.
Weight: 6.66 kg — robust construction for industrial environments.
Mounting: Wall mount / VESA mount — flexible installation on articulated arms, machine frames, or flush integration into control panels.
Enclosure: Industrial‑grade 6061 high‑strength aluminum alloy chassis — corrosion‑resistant and durable for 24/7 operation. Front panel IP65‑rated for dust and splash resistance with 6H surface hardness.
Display: 21.5‑inch 16:9 TFT LCD, 1920×1080 Full HD resolution, 350 cd/m² brightness, 450:1 contrast ratio, 50,000 hours LED backlight life. Touch: 10‑point projected capacitive (standard) or optional resistive for gloved operation.
Cooling: Fanless passive cooling — no moving parts, zero scheduled maintenance. Silent operation suits noise‑sensitive control room and office environments.
Operating temperature: 0°C ~ 50°C standard; optional -40°C ~ 70°C extended grade for cold storage, outdoor enclosures, and extreme environments.
Storage temperature: -10°C ~ 60°C.
Humidity: 10% ~ 90% RH, non‑condensing.
Power input: 9~36V DC wide‑range input — directly accepts 24V industrial power rails without additional DC‑DC conversion. Boot modes: AT (auto power‑on) for unattended operation, or ATX (power button) for manual control.
Certifications: CE, FCC, BIS compliant (EN 55032 & EN 55035), factory ISO9001:2015 certified. MTBF 60,000 hours.
What are typical applications for the EPC‑W2122B with GPIO?+
The EPC‑W2122B is a 21.5‑inch industrial panel PC designed for applications requiring integrated 8DI/8DO GPIO, 5 COM ports, and 12th Gen Core processing power in a compact, rugged footprint. Typical applications include:
• Machine automation & control — Deployed as a central HMI/control terminal on packaging machines, assembly lines, and CNC equipment. The 8DI/8DO GPIO connects directly to limit switches, push buttons, proximity sensors, relays, and indicator lights — eliminating the need for a separate PLC. The 21.5‑inch Full HD display shows machine parameters, alarm lists, and production dashboards. 5 COM ports connect to legacy serial devices and sensors.
• Production line monitoring & quality control — Deployed at quality inspection stations and production line monitoring points. The GPIO monitors machine run/stop states, fault conditions, and alarm contacts. Operators log quality checks and production data via the touchscreen. The 12th Gen Core i7 platform handles real‑time data processing and edge AI inference for defect detection.
• Automated testing & measurement — Deployed in test stands and measurement stations. The GPIO controls test fixtures, solenoids, and indicator lights. Digital inputs monitor pass/fail status from sensors and measurement devices. The 5 COM ports connect to measurement instruments, barcode scanners, and label printers.
• Building automation & facility management — Deployed as a building management terminal in commercial buildings, hospitals, and data centres. The GPIO monitors door contacts, occupancy sensors, and alarm contacts. Digital outputs control lighting, HVAC actuators, and warning beacons. The 21.5‑inch 16:9 display shows floor plans, equipment status, and energy consumption data.
• Edge AI & machine vision with GPIO integration — Deployed at the edge for real‑time defect detection, quality inspection, and predictive maintenance. The GPIO triggers cameras, controls lighting, and signals pass/fail results. The 12th Gen Core i7 platform with Intel Iris Xe Graphics handles AI inference models directly on the device.
For detailed application examples, see our GPIO panel PC for machine control guide and GPIO‑enabled panel PC overview.
Can CESIPC provide OEM/ODM customisation for the EPC‑W2122B?+
Yes. CESIPC offers full OEM/ODM services for the EPC‑W2122B panel PC series, built around the BlockCore™ modular architecture:
• BIOS configuration and boot logo branding — For private labeling, brand consistency, and OEM turnkey solutions.
• I/O panel customisation — Alternative connector arrangements, additional COM ports, isolated digital I/O, or CAN bus via BlockCore™ expansion modules.
• GPIO voltage configuration — Factory pre‑configuration of GPIO voltage levels (24V/12V/5V) and default I/O states for specific machine control applications.
• Function board customisation — Custom i‑Function Board development for specific industrial protocols or proprietary interfaces. The LEGO MODE ecosystem enables rapid function board development, dramatically reducing customisation lead times.
• Operating system pre‑load — Windows 10/11 LTSC or Ubuntu Linux with custom drivers, pre‑configured GPIO libraries, and pre‑installed runtime environments.
• Enclosure material options — Enhanced corrosion resistance for marine, chemical, or outdoor roadside environments.
• Private label packaging and custom SKU part numbering for integrators and reseller programs.
With in‑house SMT assembly, sheet metal fabrication, and CNC machining, CESIPC delivers custom industrial panel PCs with consistent quality and predictable lead times. MOQ: 1 unit sample available. Typical lead time: 2–4 weeks. Minimum order quantities vary by customisation scope. Contact our engineering team for a detailed ODM assessment.
