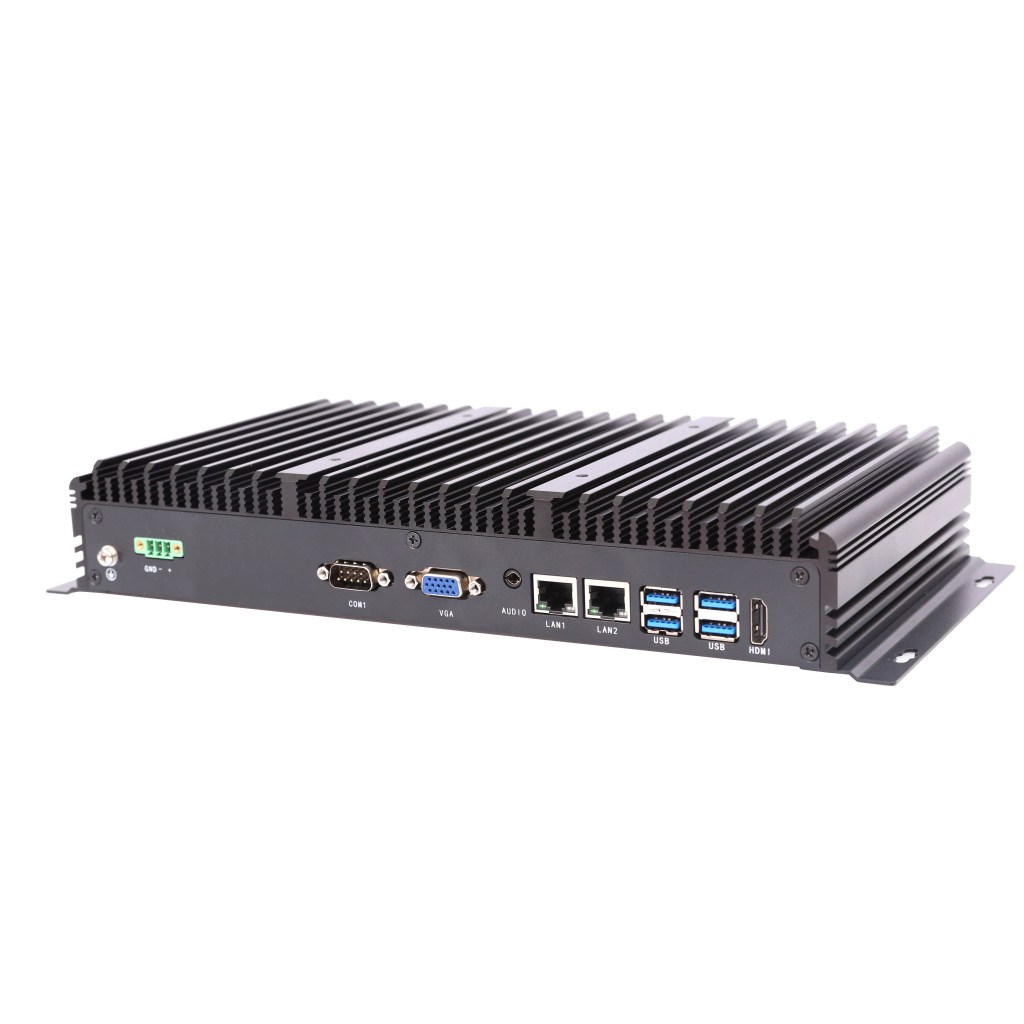

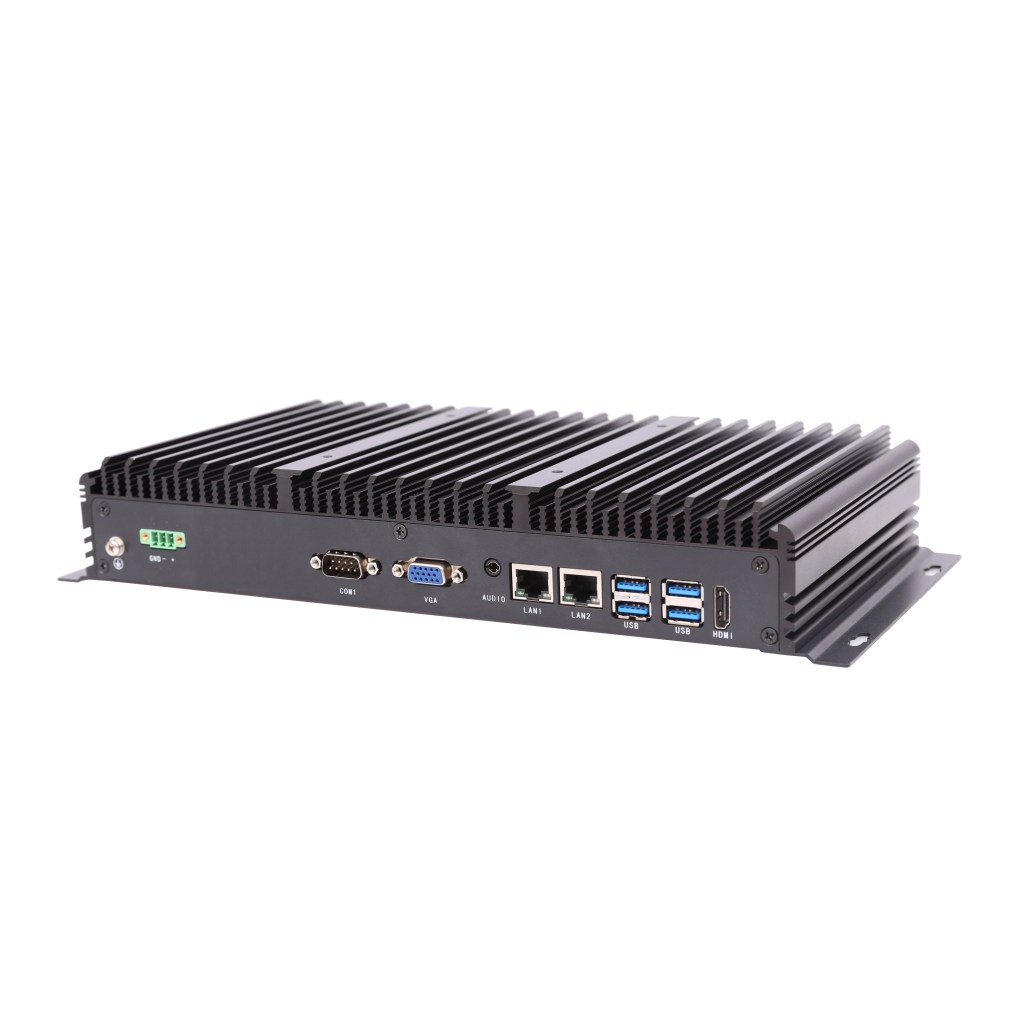

A fanless industrial computer with 6 COM ports and 6 USB ports – UPC-309A
Product Features
- Processor: Intel® 10th Generation Core™i3/i5/i7
- Processors Memory:4GB-16GB DDR4
- Hard disk: mSATA 128GB SSD, optional256GB,512GB,etc
- I/O interfaces:2xLAN,4xUSB 3.0,2xUSB 2.0,6xCOM
- Power input:DC 12V 5A
- Working temperature:0-50°C,optional wide temperature -40°C-70°C
- Operating system: Supports Windows 7/10 and Linux
- Size:300mmx160mmx50mm
- Product application: Production Line MES System, Intelligent Logistics, Robot Control, Equipment Monitoring And Maintenance, Energy Management And Monitoring, Environmental Monitoring And Control, Security Systems
Product Introduction
UPC-309A is an industrial PC equipped with an Intel® 10th Gen. Core I3/I5/I7 processor. Meeting the demands of harsh environments, the fanless design makes the UPC-309A extra reliable for applications in the machine building industry. In addition, the dual GbE LAN, 6 x serial ports, 6 x USB ports, make device connection and integration easy.
Product Specifications
| CPU | Intel® i3-10110U Dual Core, 2.10-4.10 GHz 4M Cache, TDP 15W Intel® i5-10310U Quad Core, 1.70-4.40 GHz 4M Cache, TDP 15W Intel® i7-10510U Quad Core, 1.80-4.90 GHz 4M Cache, TDP 15W |
| Cooling System | Fanless |
| Memory | 1x DDR4 2133Mhz SO-DIMM Sockets, up to 16GB |
| Storage | 1xFull Size Mini PCIe mSATA SSD+1×2.5” SATA SSD |

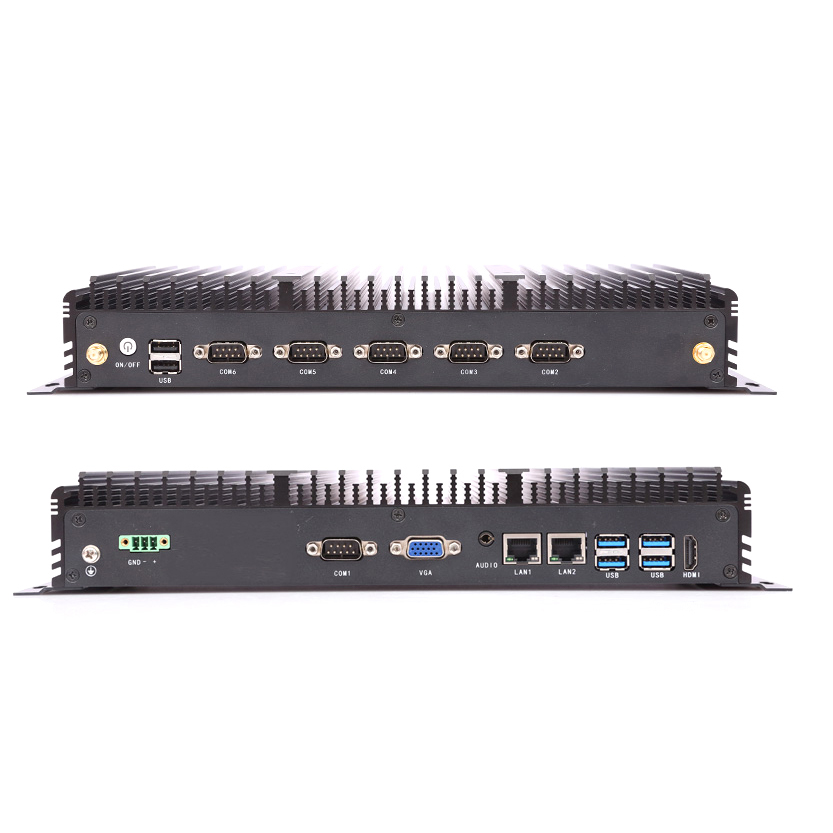

| I/O ports | 6xUSB3.0 (Type-A), max 6 6xRS232 (2*RS485 optional), up to 6, support 5V/12V, DB9 Dual Display: 1xHDMI (1920*1200 @30Hz) 1xVGA (1920*1200 @30Hz) Audio: 1x Line-out WIFI: 802.11a/g/n, 2×2 Antenna, 2.4/5 GHz, 300 Mbps Max Speed |
| Network(LAN) | 2x Intel i211 10/100/1000Mbps Ethernet |
| Input Voltage | 12V DC (3 Pin Phoenix Connector) , optional 9V-36V DC |
| Control SW | 1x Power SW, AT/ATX optional |
| OS Support | Microsoft Windows 7/ Windows 8/ Windows 10/ Linux |
| Operating Temperature | 0℃～50℃ (extend temperature optional) |
| Storage Temperature | -10℃～60℃ (extend temperature optional) |

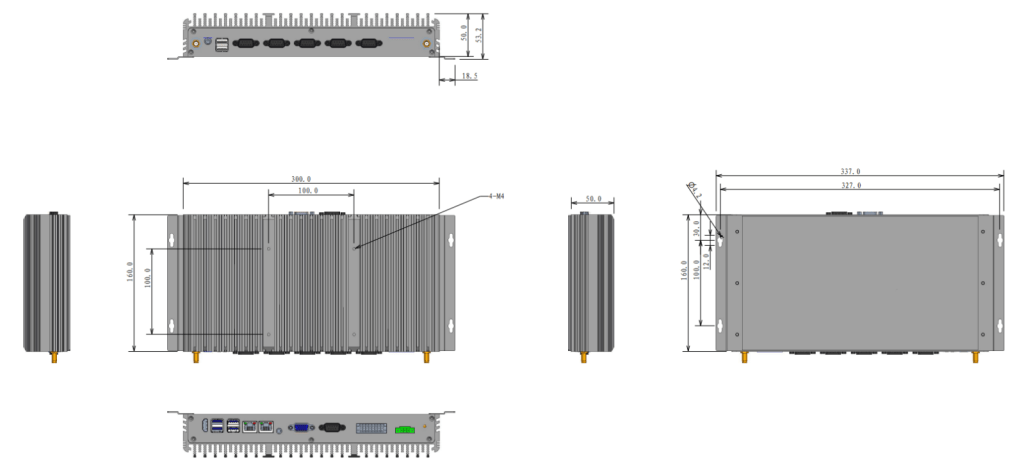

| Dimensions | (W*D*H): 300x160x50mm |
| Weight | N.W. 3.18KG |
| Color | Black |
| Material | High Strength Aluminum Alloy Front Panel |
| Certification | CE / UL / RoHS |
| Custom Service | Custom BIOS, System Encryption, Custom LOGO |
