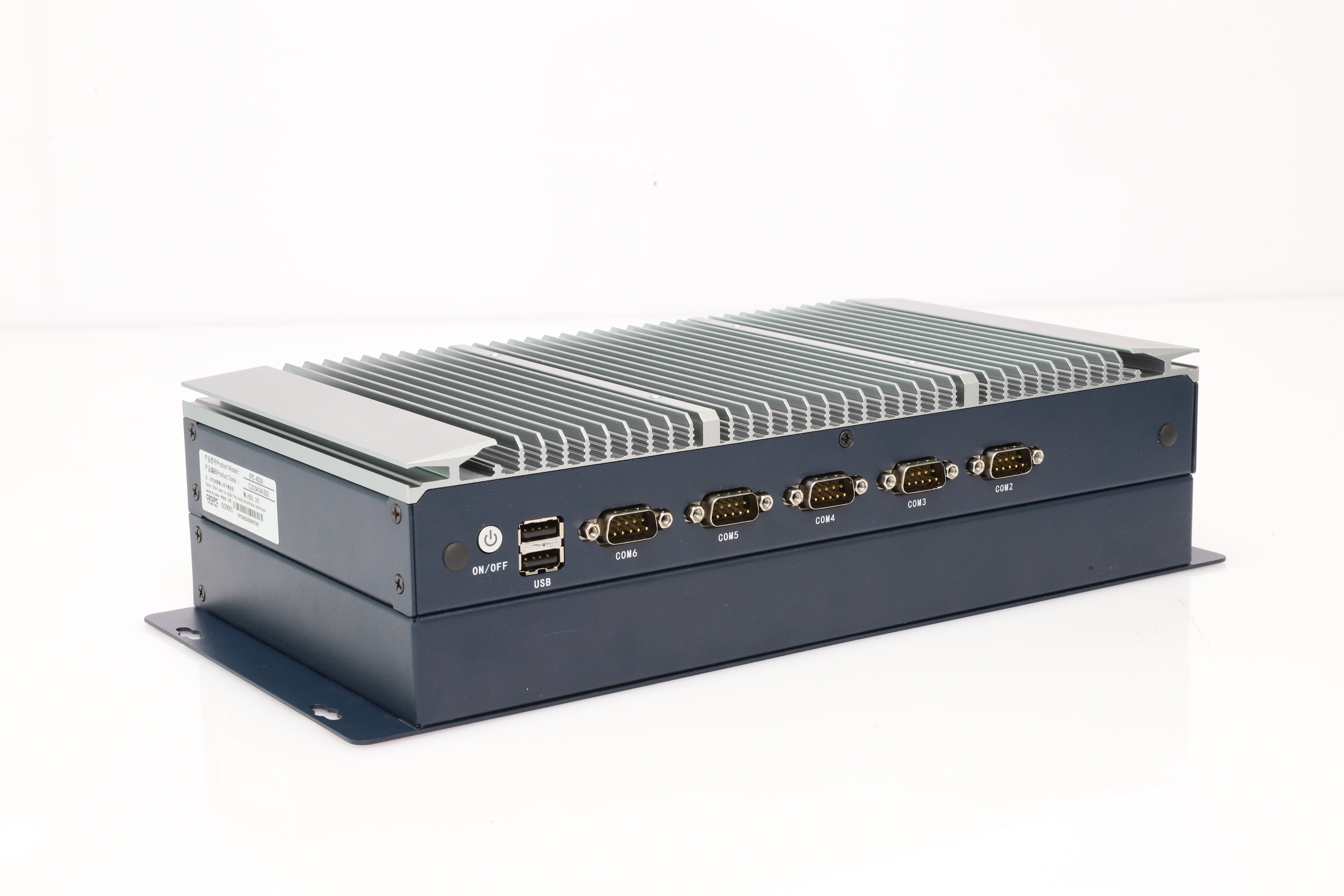

The EPC-40XA series industrial PC exemplifies fanless embedded design with CESIPC’s BlockCore technology. It offers flexible configurations, featuring Celeron or advanced 10th/12th Gen Intel® Core™ i3/i5/i7 processors for exceptional performance. It provides robust functionality and high protection standards, making it ideal for demanding industrial environments.
Introduction
- Intel® Core™ i7/i5/i3 processors, compatible from Celeron® to 12th Gen Intel® Core™
- Dual Intel® I210 Gigabit Ethernet.
- I/O: USB 2.0 ×2, USB 3.0 ×4, Audio ×1, Mic ×1, RS-232 ×6, HDMI, VGA.
- 9–36V DC wide-range power input.
- Expansion: dual M.2 2280 NVMe, M.2 2230 Wi-Fi.
- TPM 2.0 hardware security support.
- CESIPC BlockCore modular design.
- CESIPC SafeCore™ power-loss protection.
- Auto power-on after power recovery.
- Industrial-grade 6061 aluminum alloy enclosure.
► Specifications
System Core
| CPU | Intel® Celeron® Processor J1900 2.0~2.42GHz Intel® Celeron® Processor J6412 2.0~2.6GHz |
| Intel® Core™ 10th Processor i3-10110U 2.1~4.1GHz Intel® Core™ 10th Processor i5-10210U 1.6~4.2GHz Intel® Core™ 10th Processor i7-10710U 1.1~4.7GHz | |
| Intel® Core™ 12th Processor i3-1215U 1.2~4.4GHz Intel® Core™ 12th Processor i5-1235U 1.3~4.4GHz Intel® Core™ 12th Processor i5-1240P 1.7~4.4GHz Intel® Core™ 12th Processor i7-1255U 1.7~4.7GHz | |
| Memory | 4~8GB DDR3L /4~32GB DDR4 / 4~32GB DDR5 |
| Storage | 1 x mSATA SSD |
| Cooling | Fan-less |
| OS | Windows 10/11/ Linux Ubuntu |
I/O Ports
| USB2.0 | 5×USB2.0/ 2×USB2.0 |
| USB3.0 | 1×USB3.0/ 4×USB3.0 |
| COM | 4×RS232+2×RS485 DB9 |
| Display | 1×HDMI+1×VGA Dual Display |
| Audio | 1×Audio |
| Expansion | 1×Mini PCIe Socket |
| Ethernet | 2×10M/100M/1000M Intel I210 LAN |
Wireless Communication
| Wireless Network | 4G Full Network Compatibility （Optional） |
| Wi-Fi | Wi-Fi/ Bluetooth |
Power Supply
| DC Input | 1×3-pin Pluggable Terminal Block for 12V DC, 9-36V optional |
| Booting | AT / ATX |
Environmental
| Operating Temperature | 0~50℃ (-40~70℃ Optional) |
| Storage Temperature | -10~60℃ |
| Humidity | 10%~90% , non-condensing |
Mechanical
| Dimension | 337.0 (W) × 160.0 (D) × 79.5 (H) mm |
| Weight | 4KG |
| Material | High-Strength Aluminum Alloy |
| Mounting | Wall-mount/VESA Mount |
Certifications & Services
| Certs | CE / FCC / BIS, according to EN 55032 & EN 55035 |
| ODM | BIOS / Boot on LOGO / OEM |

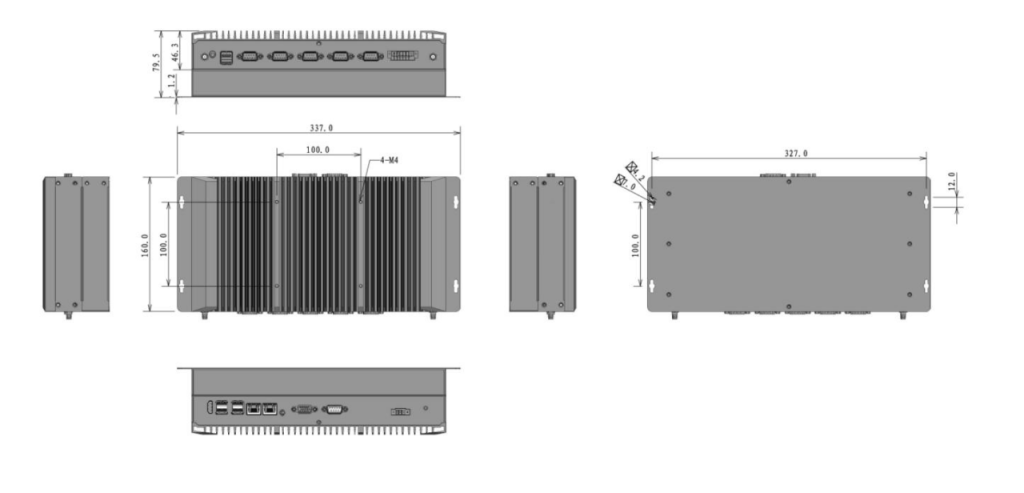

►Product images & sizes

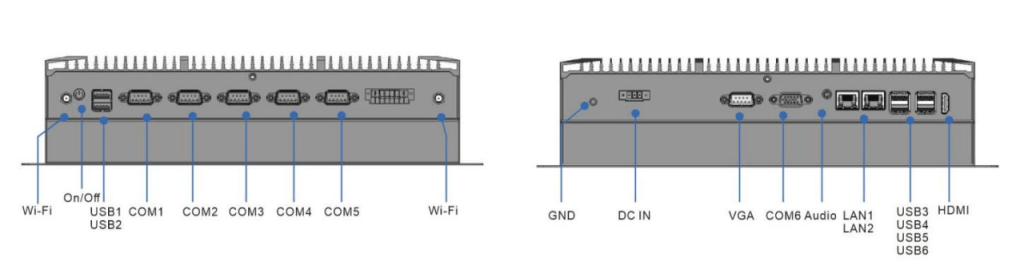

► I/O
►Product Selection
| NO. | Model | Product Part Number | Describe Infomation | Standard Memory | Standard Storage |
| 1 | EPC-406A | C10.03.01.001 | Intel® Celeron® Processor J1900 Processor | 4GB | mSATA SSD 128GB |
| 2 | EPC-407A | C10.03.04.001 | Intel® Celeron® Processor J6412 Processor | 8GB | mSATA SSD 256GB |
| 3 | EPC-409A | C10.03.03.001 | Intel® Core™ i3-10110U Processor | 8GB | mSATA SSD 256GB |
| 4 | EPC-409A | C10.03.03.002 | Intel® Core™ i5-10210U Processor | 8GB | mSATA SSD 256GB |
| 5 | EPC-409A | C10.03.03.003 | Intel® Core™ i7-10710U Processor | 8GB | mSATA SSD 256GB |
| 6 | EPC-402A | C10.03.04.001 | Intel® Core™ i3-1215U Processor | 8GB | mSATA SSD 256GB |
| 7 | EPC-402A | C10.03.04.002 | Intel® Core™ i5-1235U Processor | 8GB | mSATA SSD 256GB |
| 8 | EPC-402A | C10.03.04.003 | Intel® Core™ i5-1240P Processor | 8GB | mSATA SSD 256GB |
| 9 | EPC-402A | C10.03.04.004 | Intel® Core™ i7-1255U Processor | 8GB | mSATA SSD 256GB |
