EPC-W13X2A Industrial Panel PC features IP65-rated protection, fanless design, multiple industrial interfaces, and low-power Intel® CPUs, integrating an industrial-grade display and embedded computing system into a single, compact unit. Designed for continuous operation in harsh environments, it offers resistance to dust, moisture, vibration, and temperature extremes.
Industrial Panel PCs are widely used as HMIs and control terminals across industries, including manufacturing, food & beverage, chemical processing, pharmaceuticals, energy, transportation, logistics, automation, and smart infrastructure, enabling reliable monitoring, control, and data visualisation in demanding industrial applications.
Introduction
- Intel® Core™ i7/i5/i3 processors, compatible from Celeron® to 12th Gen Intel® Core™
- 13.3-inch 16:9 TFT LCD, 1920 × 1080 (SXGA).
- 10-point capacitive touch, IP65 front, 6H hardness.
- Dual Intel® I210 Gigabit Ethernet.
- I/O: USB 2.0 ×2, USB 3.0 ×4, Audio ×1, Mic ×1, RS-232 ×3, HDMI, VGA.
- 9–36V DC wide-range power input.
- Expansion: dual M.2 2280 NVMe, M.2 2230 Wi-Fi.
- TPM 2.0 hardware security support.
- CESIPC BlockCore modular design.
- CESIPC SafeCore™ power-loss protection.
- Auto power-on after power recovery.
- Industrial-grade 6061 aluminum alloy enclosure.
► Application
CESIPC Customer On-Site Application Images. Reproduction Or Use For Other Purposes Is Strictly Prohibited.
► Specifications
System Core
| CPU | Intel® Celeron® Processor J1900 2.0~2.42GHz Intel® Celeron® Processor J6412 2.0~2.6GHz |
| Intel® Core™ 10th Processor i3-10110U 2.1~4.1GHz Intel® Core™ 10th Processor i5-10210U 1.6~4.2GHz Intel® Core™ 10th Processor i7-10710U 1.1~4.7GHz | |
| Intel® Core™ 12th Processor i3-1215U 1.2~4.4GHz Intel® Core™ 12th Processor i5-1235U 1.3~4.4GHz Intel® Core™ 12th Processor i5-1240P 1.7~4.4GHz Intel® Core™ 12th Processor i7-1255U 1.7~4.7GHz | |
| Memory | 4~8GB DDR3L /4~32GB DDR4 / 4~32GB DDR5 |
| Storage | SSD |
| Cooling | Fan-less |
| OS | Windows 10/11/ Linux Ubuntu |
I/O Ports
| USB2.0 | 5×USB2.0/ 2×USB2.0 |
| USB3.0 | 1×USB3.0/ 4×USB3.0 |
| COM | 2×RS232+1×RS485 DB9 |
| Display | 1×HDMI+1×VGA Dual Display |
| Audio | 1×Audio |
| Expansion | 1×Mini PCIe Socket |
| Ethernet | 2×10M/100M/1000M Intel I210 LAN |
LCD Display
| Panel Size | 13.3inch |
| Max. Resolution | 1920×1080 16:9 |
| Luminance(cd/㎡) | 350cd/㎡ |
| Contrast | 450:1 |
| Backlight | More than 50000H |
Panel Screen
| Touch Panel | Multi-touch Projected Capacitive Touch Screen |
| Transmittance | 85% |
| Controller | USB |
Wireless Communication
| Wireless Networking | 4G Full Network Compatibility （Optional） |
| Wi-Fi | Wi-Fi/ Bluetooth |
Power Supply
| DC Input | 1×3-pin Pluggable Terminal Block for 12V DC, 9-36V optional |
| Booting | AT / ATX |
Mechanical
| Dimension | 345.2(W)×215.6(D)×74.6(H)mm |
| Cutout Dimensions | 325.1×195.5mm |
| Weight | 4.1KG |
| Material | High-Strength Aluminum Alloy |
| Mounting | Wall-mount/VESA Mount |
Environmental
| Operating Temperature | 0~50℃ (-40~70℃Optional) |
| Storage Temperature | -10~60℃ |
| Protection | Front Panel IP65 |
Certifications & Services
| Certs | CE / FCC / BIS, according to EN 55032 & EN 55035 |
| ODM | BIOS / Boot on LOGO / OEM |

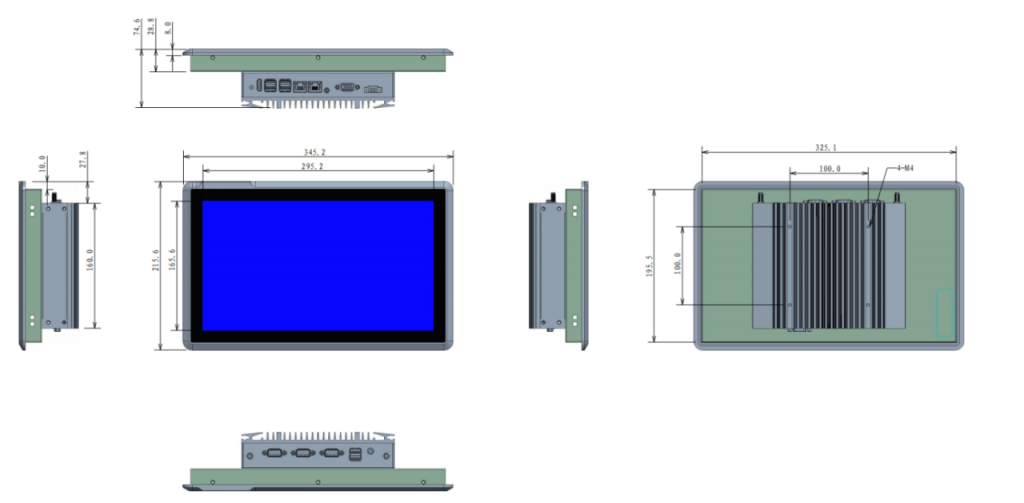

►Product images & sizes

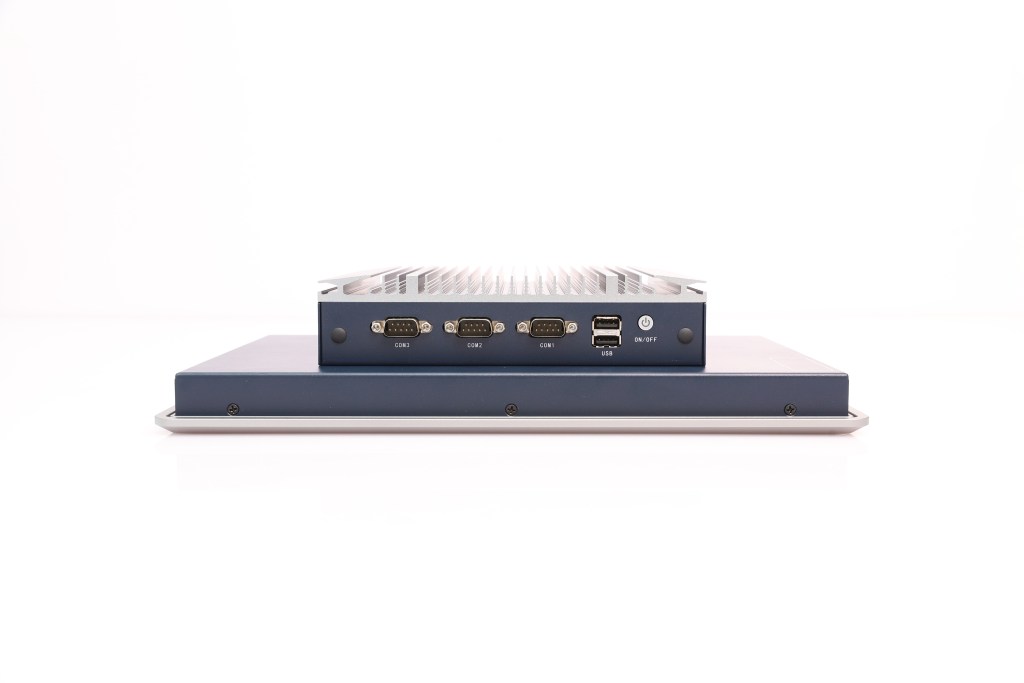

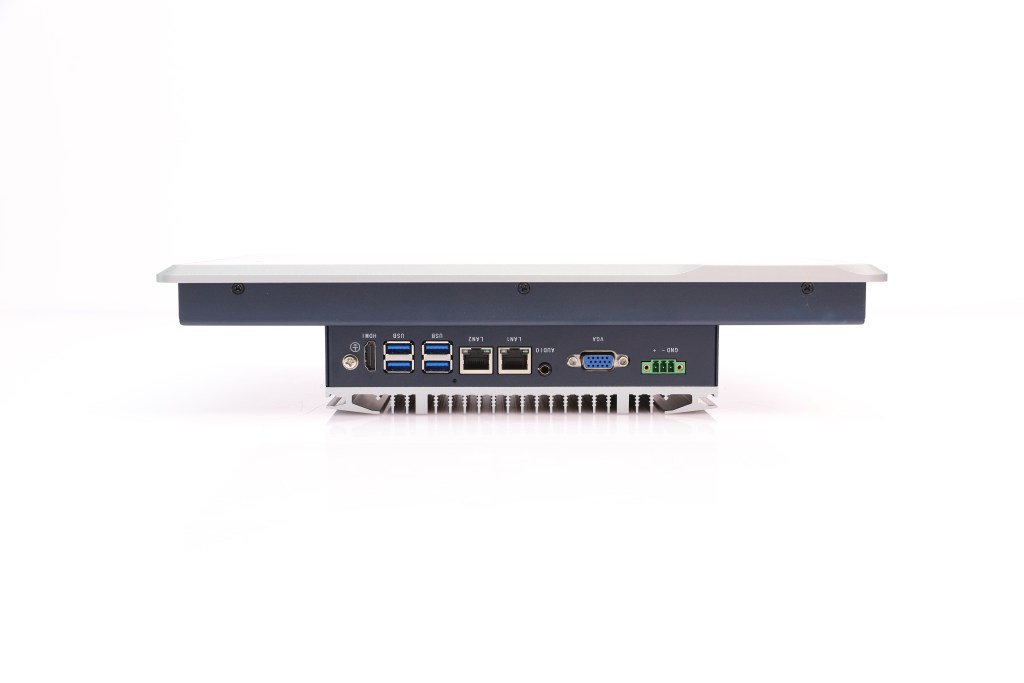

► I/O
►Embedded Panel PC Product Selection
| NO. | Model | Product Part Number | Describe Infomation | Standard Memory | Standard Storage |
| 1 | EPC-W1362A | C11.01.01.001 | Intel® Celeron® Processor J1900 Processor | 4GB | mSATA SSD 128GB |
| 2 | EPC-W1372A | C11.01.05.001 | Intel® Celeron® Processor J6412 Processor | 8GB | mSATA SSD 256GB |
| 3 | EPC-W1392A | C11.01.03.001 | Intel® Core™ i3-10110U Processor | 8GB | mSATA SSD 256GB |
| 4 | EPC-W1392A | C11.01.03.002 | Intel® Core™ i5-10210U Processor | 8GB | mSATA SSD 256GB |
| 5 | EPC-W1392A | C11.01.03.003 | Intel® Core™ i7-10710U Processor | 8GB | mSATA SSD 256GB |
| 6 | EPC-W1322A | C11.01.04.001 | Intel® Core™ i3-1215U Processor | 8GB | mSATA SSD 256GB |
| 7 | EPC-W1322A | C11.01.04.002 | Intel® Core™ i5-1235U Processor | 8GB | mSATA SSD 256GB |
| 8 | EPC-W1322A | C11.01.04.003 | Intel® Core™ i5-1240P Processor | 8GB | mSATA SSD 256GB |
| 9 | EPC-W1322A | C11.01.04.004 | Intel® Core™ i7-1255U Processor | 8GB | mSATA SSD 256GB |
Would you like to know how to choose the right industrial PC, including factors such as display size, mounting method, and front-panel waterproof rating? These considerations are especially important in hygiene-critical industries such as food & beverage and chemical processing, where frequent cleaning and disinfectants can gradually corrode aluminum front panels.
To meet these requirements, our solutions include not only stainless steel enclosures but also anti-corrosion surface treatments for aluminum front panels. In many cases, success or failure depends on attention to detail. Our team is well aware of these potential pitfalls and understands which aspects require special attention. We are committed to helping you select the most suitable Panel PC for your application.
Technical FAQ for EPC-W13X2A
The 13.3-inch Industrial Panel PC provides an ideal balance between visibility and compact installation. Its Full HD 1920×1080 widescreen format delivers sharp visualization for modern HMI dashboards, machine monitoring, and industrial control interfaces while fitting control cabinets where larger panel PCs would waste space.
The EPC-W13X2A features a fanless aluminum enclosure, front-panel IP65 waterproof protection, dual Intel® I210 Gigabit LAN, multiple USB and COM ports, and 9–36V wide voltage input. These industrial-grade features ensure reliable 24/7 operation in factory automation, smart manufacturing, and edge computing applications.
The system supports scalable performance options ranging from Intel® Celeron J1900 and J6412 for low-power control tasks, up to 10th Gen and 12th Gen Intel® Core™ i3/i5/i7 processors for demanding industrial workloads such as machine vision, industrial AI gateways, and high-speed data acquisition.
CESIPC’s proprietary BlockCore™ modular architecture separates the compute core from the display system. This allows CPU upgrades without changing the panel structure or mounting dimensions. The same platform architecture is shared across our 15.6-inch series and 21.5-inch industrial panel PCs, simplifying standardization across production lines.
Yes. The system supports optional 4G LTE full-network connectivity and Wi-Fi expansion via M.2 slots, making it ideal for remote monitoring, smart logistics terminals, outdoor automation stations, and IIoT edge deployment where wired Ethernet is unavailable.
CESIPC SafeCore™ technology protects the operating system against unexpected power failure and file corruption. Combined with automatic power-on recovery, it ensures continuous uptime for mission-critical industrial applications where reboot reliability is essential.
Yes. CESIPC supports OEM/ODM customization, including BIOS branding, boot logo, interface modification, touch options, wireless modules, and enclosure customization. This makes the EPC-W13X2A suitable for equipment manufacturers building branded industrial automation solutions.
