EPC-W15X2A Industrial Panel PC features IP65-rated protection, fanless design, multiple industrial interfaces, and low-power Intel® CPUs, integrating an industrial-grade display and embedded computing system into a single, compact unit. Designed for continuous operation in harsh environments, it offers resistance to dust, moisture, vibration, and temperature extremes.
Industrial Panel PCs are widely used as HMIs and control terminals across industries, including manufacturing, food & beverage, chemical processing, pharmaceuticals, energy, transportation, logistics, automation, and smart infrastructure, enabling reliable monitoring, control, and data visualisation in demanding industrial applications.
Introduction
- Intel® Core™ i7/i5/i3 processors, compatible from Celeron® to 12th Gen Intel® Core™
- 15.6-inch 16:9 TFT LCD, 1920 × 1080 (SXGA).
- 10-point capacitive touch, IP65 front, 6H hardness.
- Dual Intel® I210 Gigabit Ethernet.
- I/O: USB 2.0 ×2, USB 3.0 ×4, Audio ×1, Mic ×1, RS-232 ×6, HDMI, VGA.
- 9–36V DC wide-range power input.
- Expansion: dual M.2 2280 NVMe, M.2 2230 Wi-Fi.
- TPM 2.0 hardware security support.
- CESIPC BlockCore modular design.
- CESIPC SafeCore™ power-loss protection.
- Auto power-on after power recovery.
- Industrial-grade 6061 aluminum alloy enclosure.
► Application
CESIPC Customer On-Site Application Images. Reproduction Or Use For Other Purposes Is Strictly Prohibited.
► Specifications
System Core
| CPU | Intel® Celeron® Processor J1900 2.0~2.42GHz Intel® Celeron® Processor J6412 2.0~2.6GHz |
| Intel® Core™ 10th Processor i3-10110U 2.1~4.1GHz Intel® Core™ 10th Processor i5-10210U 1.6~4.2GHz Intel® Core™ 10th Processor i7-10710U 1.1~4.7GHz | |
| Intel® Core™ 12th Processor i3-1215U 1.2~4.4GHz Intel® Core™ 12th Processor i5-1235U 1.3~4.4GHz Intel® Core™ 12th Processor i5-1240P 1.7~4.4GHz Intel® Core™ 12th Processor i7-1255U 1.7~4.7GHz | |
| Memory | 4~8GB DDR3L /4~32GB DDR4 / 8~32GB DDR5 |
| Storage | M.2 SSD |
| Cooling | Fan-less |
| OS | Windows 10/11/ Linux Ubuntu |
I/O Ports
| USB2.0 | 5×USB2.0/ 2×USB2.0 |
| USB3.0 | 1×USB3.0/ 4×USB3.0 |
| COM | 4×RS232+2×RS485 DB9 |
| Display | 1×HDMI+1×VGA Dual Display |
| Audio | 1×Audio |
| Expansion | 1×Mini PCIe Socket |
| Ethernet | 2×10M/100M/1000M Intel I210 LAN |
LCD Display
| Panel Size | 15.6inch |
| Max. Resolution | 1920×1080 16:9 |
| Luminance(cd/㎡) | 350cd/㎡ |
| Contrast | 450:1 |
| Backlight | More than 50000H |
Panel Screen
| Touch Panel | Multi-touch Projected Capacitive Touch Screen |
| Transmittance | 85% |
| Controller | USB |
Wireless Communication
| Wireless Networking | 4G Full Network Compatibility （Optional） |
| Wi-Fi | Wi-Fi/ Bluetooth |
Power Supply
| DC Input | 1×3-pin Pluggable Terminal Block for 12V DC, 9-36V optional |
| Booting | AT / ATX |
Mechanical
| Dimension | 404.2(W)×253.5(D)×75.1(H)mm |
| Cutout Dimensions | 388.0×237.3mm |
| Weight | 6.1KG |
| Material | High-Strength Aluminum Alloy |
| Mounting | Wall-mount/VESA Mount |
Environmental
| Operating Temperature | 0~50℃ (-40~70℃Optional) |
| Storage Temperature | -10~60℃ |
| Protection | Front Panel IP65 |
Certifications & Services
| Certs | CE / FCC / BIS, according to EN 55032 & EN 55035 |
| ODM | BIOS / Boot on LOGO / OEM |

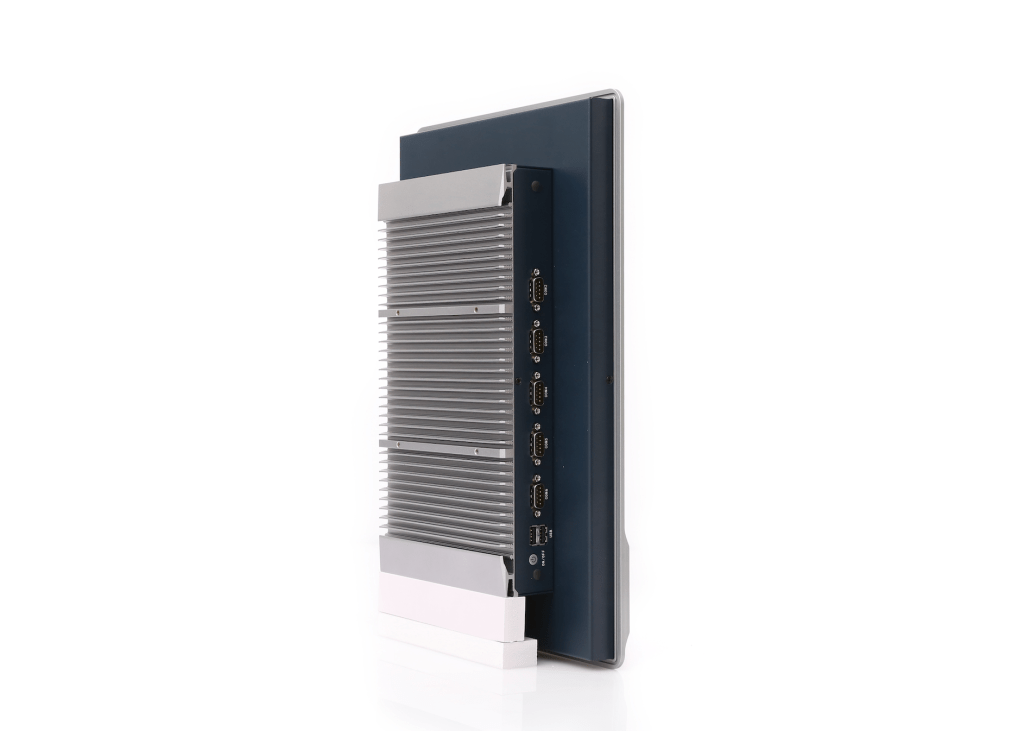

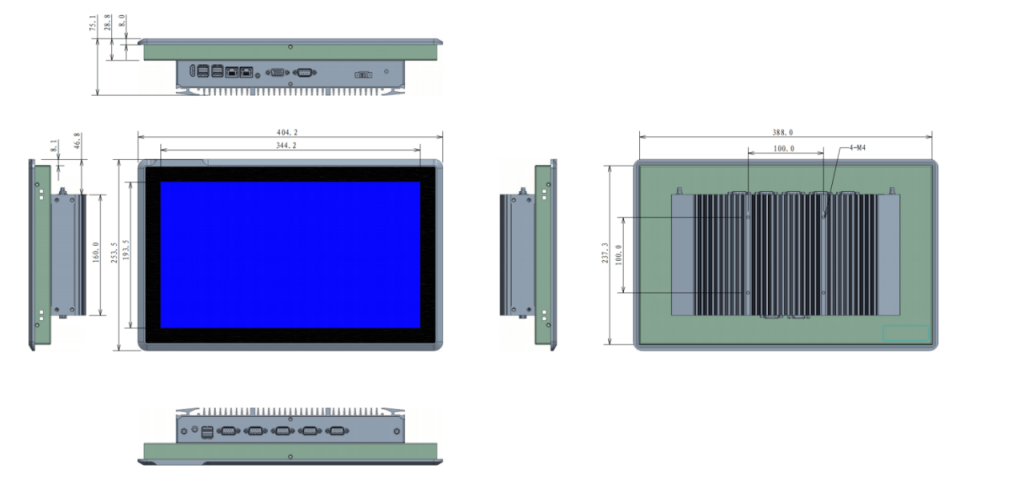

►Product images & sizes

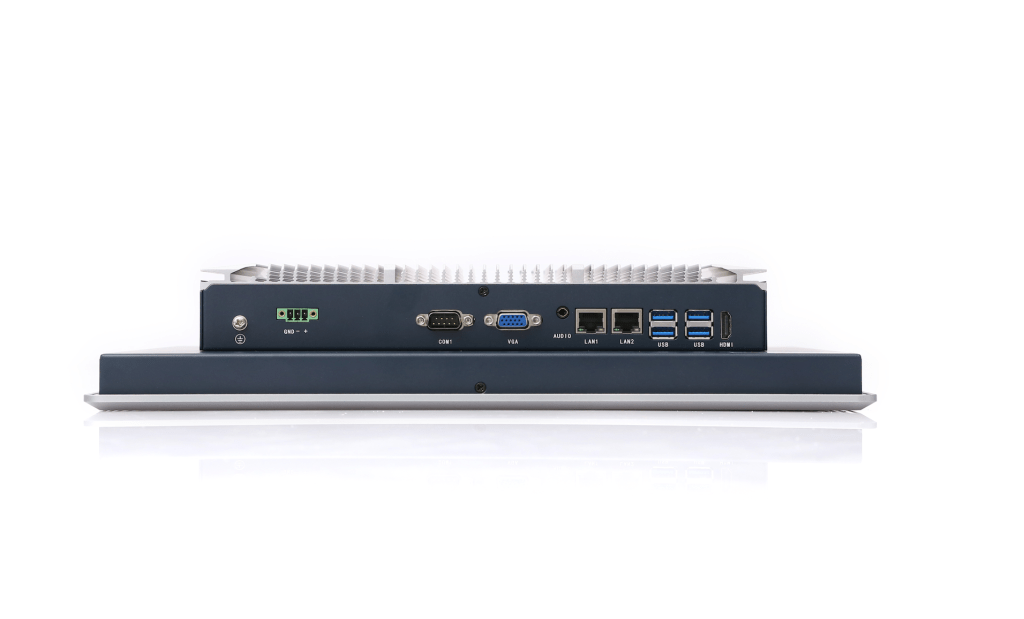

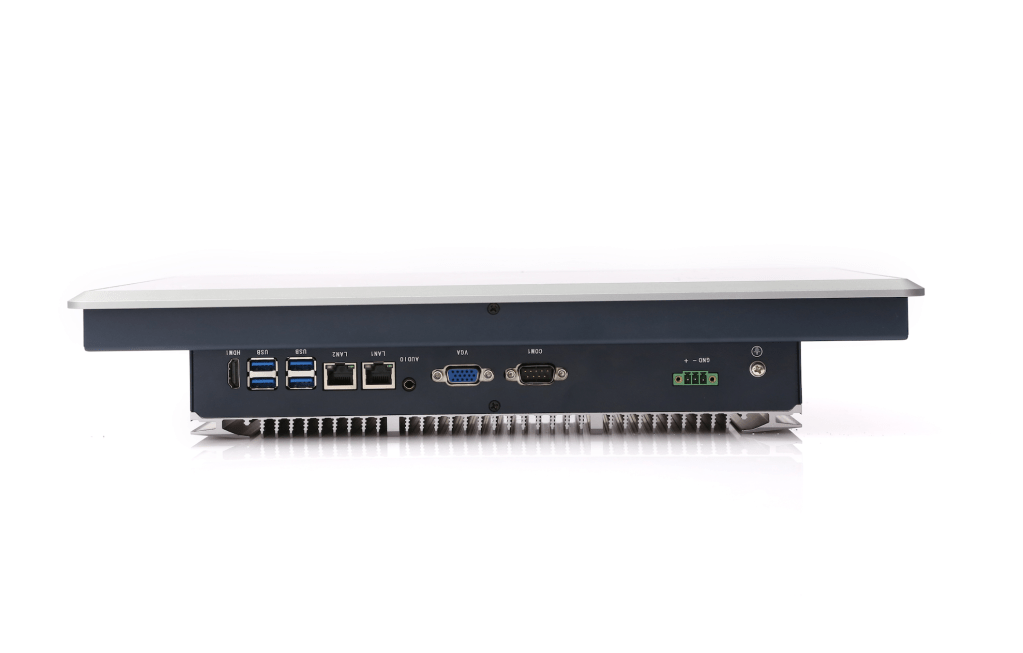

► I/O
►Embedded Panel PC Product Selection
| NO. | Model | Product Part Number | Describe Infomation | Standard Memory | Standard Storage |
| 1 | EPC-W1562A | C11.01.01.001 | Intel® Celeron® Processor J1900 Processor | 4GB | mSATA SSD 128GB |
| 2 | EPC-W1572A | C11.01.05.001 | Intel® Celeron® Processor J6412 Processor | 8GB | mSATA SSD 256GB |
| 3 | EPC-W1592A | C11.01.03.001 | Intel® Core™ i3-10110U Processor | 8GB | mSATA SSD 256GB |
| 4 | EPC-W1592A | C11.01.03.002 | Intel® Core™ i5-10210U Processor | 8GB | mSATA SSD 256GB |
| 5 | EPC-W1592A | C11.01.03.003 | Intel® Core™ i7-10710U Processor | 8GB | mSATA SSD 256GB |
| 6 | EPC-W1522A | C11.01.04.001 | Intel® Core™ i3-1215U Processor | 16GB | mSATA SSD 256GB |
| 7 | EPC-W1522A | C11.01.04.002 | Intel® Core™ i5-1235U Processor | 16GB | mSATA SSD 256GB |
| 8 | EPC-W1522A | C11.01.04.003 | Intel® Core™ i5-1240P Processor | 16GB | mSATA SSD 256GB |
| 9 | EPC-W1522A | C11.01.04.004 | Intel® Core™ i7-1255U Processor | 16GB | mSATA SSD 256GB |
►Project Video
Would you like to know how to choose the right industrial PC, including factors such as display size, mounting method, and front-panel waterproof rating? These considerations are especially important in hygiene-critical industries such as food & beverage and chemical processing, where frequent cleaning and disinfectants can gradually corrode aluminum front panels.
To meet these requirements, our solutions include not only stainless steel enclosures but also anti-corrosion surface treatments for aluminum front panels. In many cases, success or failure depends on attention to detail. Our team is well aware of these potential pitfalls and understands which aspects require special attention. We are committed to helping you select the most suitable Panel PC for your application.
Technical FAQ for EPC-W15X2A — 15.6″ Industrial Panel PC
Common questions about the 15.6-inch model and the BlockCore™ platform.
Why choose a 15.6-inch Industrial Panel PC for HMI and SCADA?+
The 15.6-inch Industrial Panel PC provides an ideal balance between screen real estate and compact footprint. Its Full HD 1920×1080 widescreen format delivers sharp visualization for modern HMI dashboards, machine monitoring, and SCADA interfaces while fitting into standard control cabinets where larger 18.5-inch or 19-inch panel PCs would waste space. For tighter spaces, see our 13.3-inch industrial panel PC series.
What makes the EPC-W15X2A suitable for industrial automation?+
The EPC-W15X2A features a fanless aluminum enclosure, front-panel IP65 waterproof protection, dual Intel® I210 Gigabit LAN, 6×COM ports (4×RS232 + 2×RS485), multiple USB ports (2×USB 2.0 + 4×USB 3.0), and 9–36V wide voltage input with SafeCore™ power-loss protection. These industrial-grade features ensure reliable 24/7 operation in factory automation, smart manufacturing, food processing, and edge computing applications.
What processors are available for the EPC-W15X2A?+
The system supports scalable performance options ranging from Intel® Celeron J1900 and J6412 for low-power control tasks, up to 10th Gen and 12th Gen Intel® Core™ i3/i5/i7 processors for demanding industrial workloads such as machine vision, industrial AI gateways, and high-speed data acquisition. All share the same enclosure, I/O layout, and mounting dimensions — thanks to BlockCore™ modular design.
How does BlockCore™ improve lifecycle flexibility and upgrades?+
CESIPC’s proprietary BlockCore™ modular architecture separates the compute core from the display system. This allows CPU upgrades without changing the panel structure or mounting dimensions. Upgrading from a Celeron J1900 to a 12th Gen Core i7 requires only swapping the compute board — the enclosure, touchscreen, I/O expansion, and mounting remain identical. The same platform architecture is shared across our 18.5-inch and 21.5-inch industrial panel PC series, simplifying standardization across production lines.
Does EPC-W15X2A support wireless communication (4G/Wi-Fi)?+
Yes. The system supports optional 4G LTE full-network connectivity and Wi-Fi/Bluetooth via M.2 2230 expansion slots. This makes it ideal for remote monitoring, smart logistics terminals, outdoor automation stations, and IIoT edge deployments where wired Ethernet is unavailable. The dual M.2 2280 NVMe slots also allow high-speed storage expansion.
What protection does SafeCore™ provide, and why does it matter?+
SafeCore™ is CESIPC’s power-loss protection technology. It guards the operating system against file corruption during sudden power failure. Combined with auto power-on recovery (when power returns), it ensures continuous uptime for mission-critical automation systems — such as pharmaceutical cleanrooms or chemical batch control — where unexpected downtime can cause product loss or safety risks.
What is the IP65 rating, and is this model suitable for washdown environments?+
The front panel is IP65-rated — fully dust-tight and protected against low-pressure water jets. This makes the EPC-W15X2A suitable for factory floors, machine tools, and food packaging areas that are cleaned with gentle hose-downs. For high-pressure, high-temperature washdown environments (e.g., meat processing or dairy), you would need an IP69K-rated stainless steel panel PC like our WPC/IP69K series.
What mounting options and operating temperatures are available?+
The EPC-W15X2A supports wall-mount and VESA mount (75×75 / 100×100). Standard operating temperature is 0~50°C, with an optional wide-temperature range of -40~70°C for cold storage or outdoor applications. Cutout dimensions: 388.0×237.3mm; overall dimensions: 404.2(W)×253.5(H)×75.1(D)mm; weight: 6.1kg.
Can CESIPC provide OEM/ODM customization (BIOS, logo, I/O)?+
Yes. CESIPC offers full OEM/ODM services including: BIOS configuration and boot logo branding, I/O panel customization (e.g., additional COM ports or isolation), private label packaging, and even anti-corrosion surface treatment for aluminum panels. Minimum order quantities and lead times vary by scope. Contact our engineering team for a detailed ODM assessment.
How does the EPC-W15X2A compare with the 13.3-inch or 18.5-inch models?+
All three share the same BlockCore™ compute platform, I/O, and processor options. The differences are purely physical: 15.6-inch offers the most popular balance of viewable area and cabinet fit. 13.3-inch is more compact (345.2×215.6mm, 4.1kg) for space-constrained installations. 18.5-inch provides the largest viewable area (471.6×291.9mm, 8.1kg) for central monitoring stations. Choose based on your viewing distance, panel cutout size, and operator preference.
