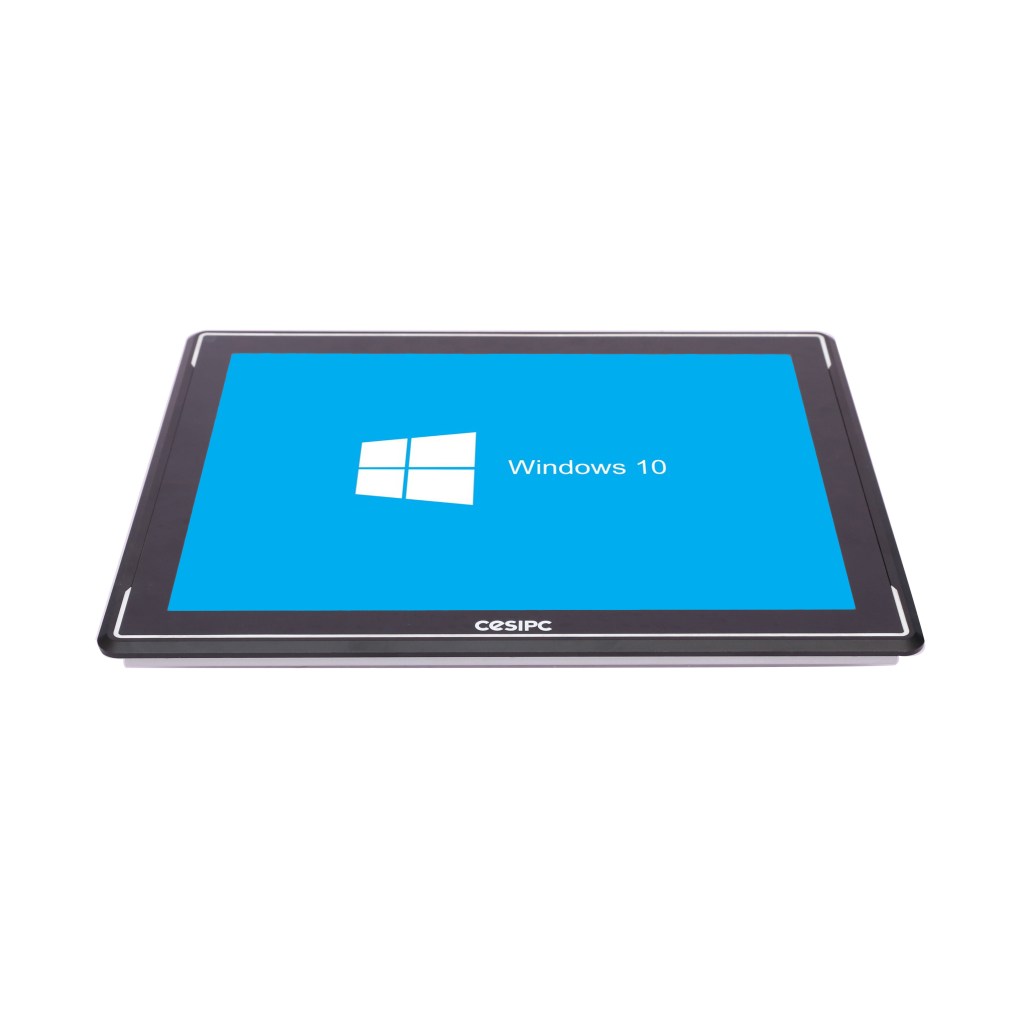

The FPM-1502K is a 15-inch industrial touch monitor featuring a high-brightness TFT LCD screen with resistive or capacitive touch options. Designed for harsh environments, it offers IP65-rated protection, making it dustproof and waterproof. Its rugged metal housing and wide-temperature design ensure reliable operation in extreme conditions. Ideal for HMI, SCADA, PLC control, industrial automation, and smart manufacturing, the FPM-1502K supports panel and embedded mounting, providing a versatile and durable industrial display solution.
► Introduction
★ 15.6-inch capacitive touch screen design
★ Rich IO ports: 1xUSB+1×HDMI+1×VGA
★Certification: CE / RoHS/ BIS
★ Specification Download
► Specifications
| LCD Display | Display Type: | 15.6inch TFT LCD Panel( LCD Backlight) |
| Max. Resolution: | 1920×1080 | |
| Luminance(cd/㎡) | 300 nits | |
| Backlight Lifetime | 30,000hrs (typical) | |
| View Angle(H°/V°) | 160/160 | |
| Features | Signal Input | VGA+ HDMI |
| Colors | 16.7M | |
| Response Time | 5ms | |
| Touchscreen | Touch Type | Capacitive Touch Screen |
| Controller | USB interface | |
| Environment | Operating Temperature | -10℃～50℃(14~ 140 °F) |
| Storage Temperature | -20℃～70℃(-4 ~ 158 °F) | |
| Front Panel Protection | IP65 compliant | |
| Mechanical | Dimensions | 396.5×246.0×47.7mm Cutout Size 379.5×229.0mm |
| Weight | N.W. 4KG | |
| Color | Black | |
| Material | Aluminum | |
| Mount Way | Mount Way | Panel Mount / VESA Mount (75x75mm & 100x100mm) |
| Input Voltage | Input Voltage | 12V 2A（optional 9V-36V DC） |
| Certification | Certification | CE / RoHS |
| Custom Service | Custom Service | Custom BIOS, System Encryption, Custom LOGO |

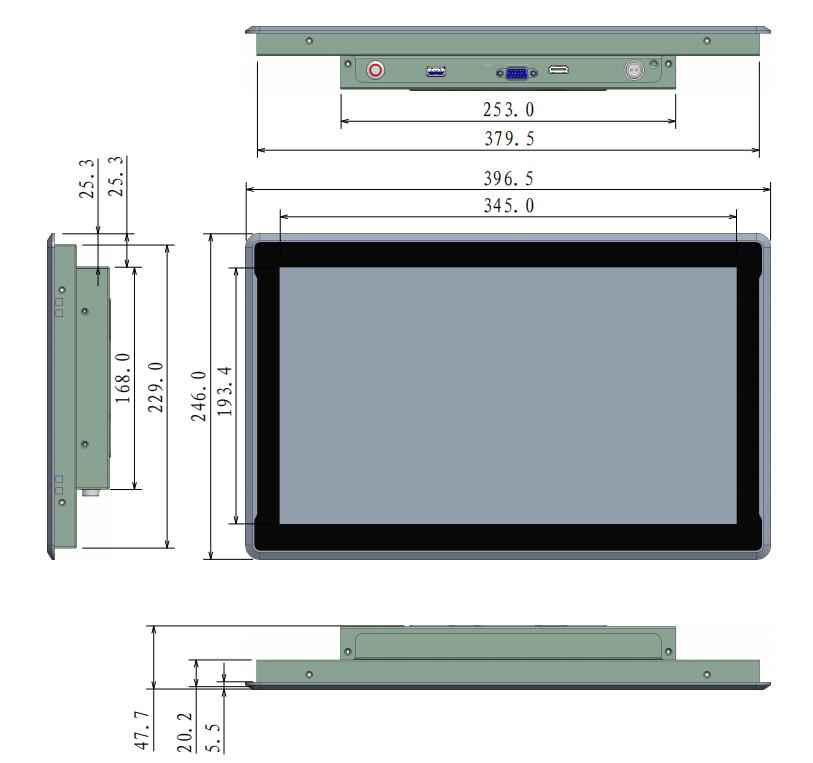

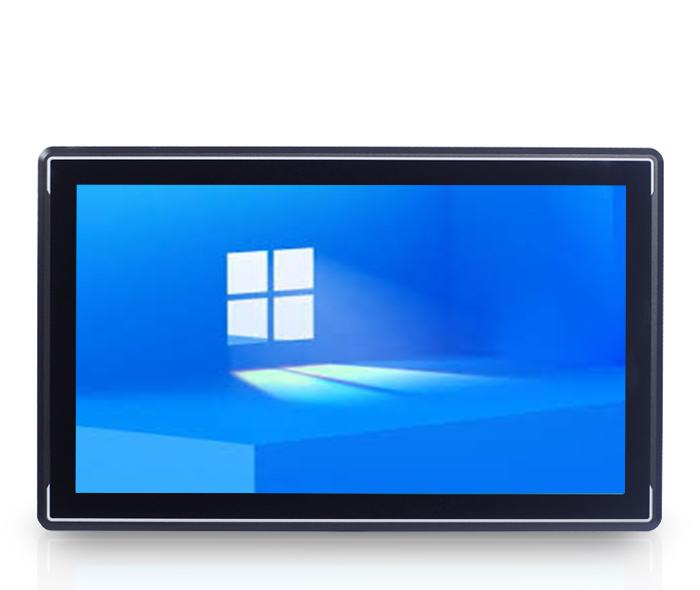

►Product images & sizes
