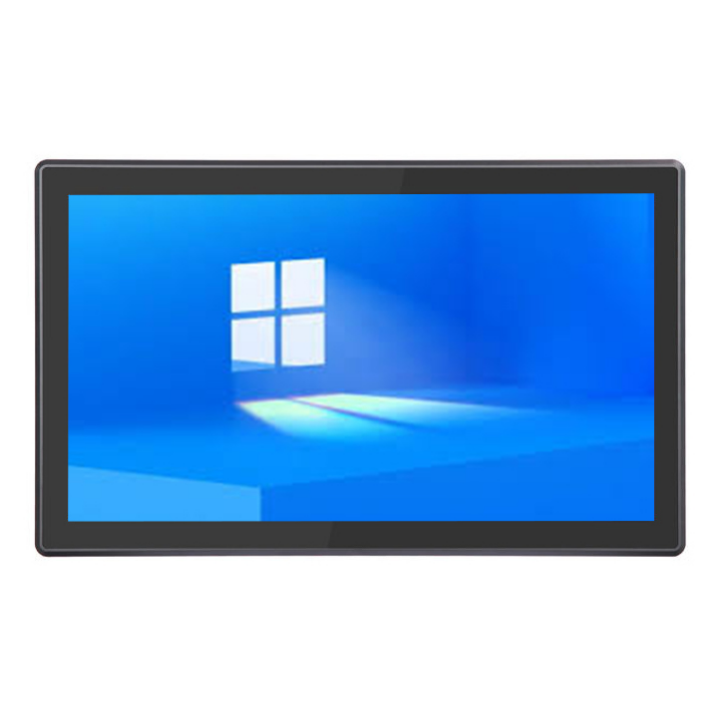

The FPM-1702K is a 17.3-inch industrial touch screen monitor designed for HMI, SCADA, PLC control, and factory automation environments. It features a 1920×1080 TFT LCD panel with capacitive touch, IP65 front panel protection, and an aluminium alloy chassis rated from -10°C to 50°C.
The monitor accepts 9–36V DC wide-range input, making it directly compatible with standard industrial 12V and 24V power rails without an external adapter. It supports panel mount and VESA mount (75×75mm and 100×100mm), and connects via VGA and HDMI. Custom services including BIOS configuration, system encryption, and OEM branding are available through CESIPC’s ODM programme.
► Introduction
★ 17.3-inch capacitive touch screen design

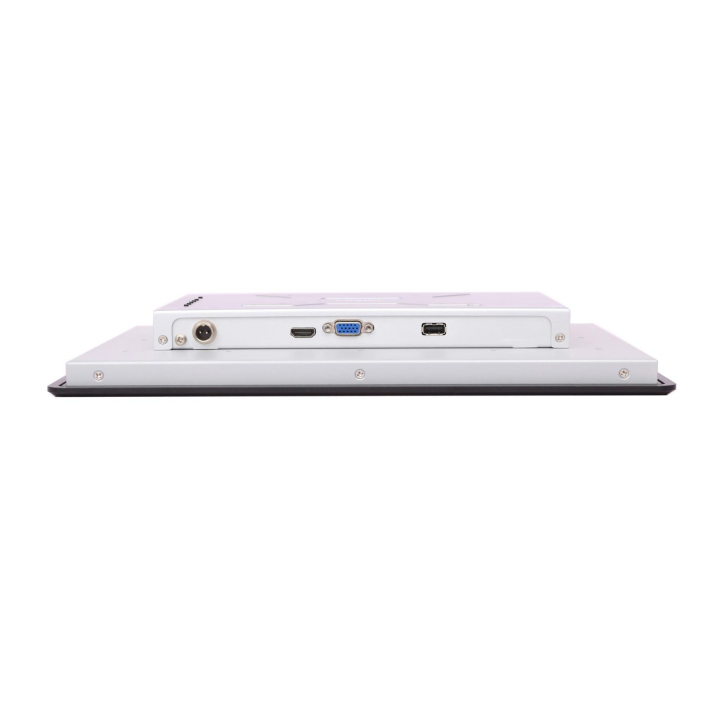

★ Rich IO ports: 1xUSB+1×HDMI+1×VGA
★Certification: CE / RoHS/ BIS
★ Specification Download
► Specifications
| LCD Display | Display Type: | 17.3inch TFT LCD Panel( LCD Backlight) |
| Max. Resolution: | 1920×1080 | |
| Luminance(cd/㎡) | 300 nits | |
| Backlight Lifetime | 30,000hrs (typical) | |
| View Angle(H°/V°) | 160/160 | |
| Features | Signal Input | VGA+ HDMI |
| Colors | 16.7M | |
| Response Time | 5ms | |
| Touchscreen | Touch Type | Capacitive Touch Screen |
| Controller | USB interface | |
| Environment | Operating Temperature | -10℃～50℃(14~ 140 °F) |
| Storage Temperature | -20℃～70℃(-4 ~ 158 °F) | |
| Front Panel Protection | IP65 compliant | |
| Mechanical | Dimensions | 437.0×270.0×44.5mmCutout Size 420.0×253.0mm |
| Weight | N.W. 4KG | |
| Color | Black | |
| Material | Aluminum | |
| Mount Way | Mount Way | Panel Mount / VESA Mount (75x75mm & 100x100mm) |
| Input Voltage | Input Voltage | 12V 2A（optional 9V-36V DC） |
| Certification | Certification | CE / RoHS |
| Custom Service | Custom Service | Custom BIOS, System Encryption, Custom LOGO |

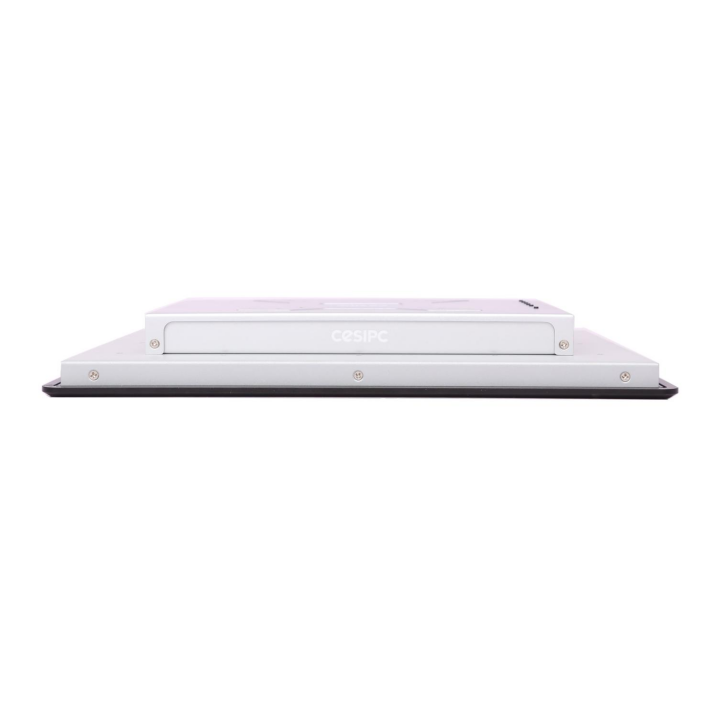

►Product images & sizes
► FAQ
Q: What is the FPM-1702K industrial touch monitor used for?
A: The FPM-1702K is a 17.3-inch industrial touch screen monitor used for HMI terminals, SCADA control rooms, PLC operator interfaces, factory automation displays, and machine control panels. Its IP65 front panel, wide operating temperature range (-10°C to 50°C), and panel mount option make it suitable for direct integration into control cabinet doors and machine enclosures.
Q: What power supply does the FPM-1702K require?
A: The FPM-1702K operates on a standard 12V DC input (2A). An optional 9–36V DC wide-range input is available, allowing direct connection to industrial 12V or 24V power rails without an external power adapter. This makes it compatible with standard control cabinet DC power distributions.
Q: What is the panel cutout size for embedding the FPM-1702K?
A: The panel cutout size for embedded installation is 420.0 × 253.0 mm. The overall monitor dimensions are 437.0 × 270.0 × 44.5 mm. VESA mounting is also supported with 75×75mm and 100×100mm hole patterns.
Q: Does the FPM-1702K support glove-touch or stylus input?
A: The FPM-1702K uses a capacitive touch screen. Standard capacitive touch requires bare finger contact or a capacitive stylus. For applications requiring gloved operation, CESIPC offers resistive touch or enhanced capacitive touch options through its custom ODM service — contact the sales team to discuss your specific requirements.
Q: What video inputs does the FPM-1702K support?
A: The FPM-1702K supports VGA and HDMI signal inputs. HDMI carries both video and audio signals. The display outputs up to 1920×1080 Full HD resolution with a 5ms response time, suitable for real-time process monitoring and machine vision display applications.
Q: Can the FPM-1702K be customised with a company logo or specific BIOS settings?
A: Yes. CESIPC offers custom services including BIOS configuration, system encryption, and OEM branding (custom boot logo) through its ODM programme. These options are available for volume orders — contact CESIPC sales for minimum order quantities and lead times.
