The EPC-S19X2A is a high-performance 19-inch fanless industrial Panel PC series designed for expansive SCADA visualization and complex HMI control. Built on CESIPC’s BlockCore™ modular architecture, it supports 9 configurations ranging from Intel® Celeron® J1900/J6412 to 12th Gen Core™ i7-1255U. Featuring a 1280×1024 SXGA 10-point capacitive touch display and IP65-rated front panel, the EPC-S19X2A integrates SafeCore™ power-loss protection and dual Intel® I210 LAN to ensure 24/7 reliability in demanding manufacturing, energy, and smart infrastructure environments.
Industrial Panel PCs are widely used as HMIs and control terminals across industries, including manufacturing, food & beverage, chemical processing, pharmaceuticals, energy, transportation, logistics, automation, and smart infrastructure, enabling reliable monitoring, control, and data visualisation in demanding industrial applications.
Introduction
- Intel® Core™ i7/i5/i3 processors, compatible from Celeron® to 12th Gen Intel® Core™
- 19-inch 4:3 TFT LCD, 1024 × 768 (SXGA).
- 10-point capacitive touch, IP65 front, 6H hardness.
- Dual Intel® I210 Gigabit Ethernet.
- I/O: USB 2.0 ×2, USB 3.0 ×4, Audio ×1, Mic ×1, RS-232 ×6, HDMI, VGA.
- 9–36V DC wide-range power input.
- Expansion: dual M.2 2280 NVMe, M.2 2230 Wi-Fi.
- TPM 2.0 hardware security support.
- CESIPC BlockCore modular design.
- CESIPC SafeCore™ power-loss protection.
- Auto power-on after power recovery.
- Industrial-grade 6061 aluminum alloy enclosure.
► Application
CESIPC Customer On-Site Application Images. Reproduction Or Use For Other Purposes Is Strictly Prohibited.
► Specifications
System Core
| CPU | Intel® Celeron® Processor J1900 2.0~2.42GHz Intel® Celeron® Processor J6412 2.0~2.6GHz |
| Intel® Core™ 10th Processor i3-10110U 2.1~4.1GHz Intel® Core™ 10th Processor i5-10210U 1.6~4.2GHz Intel® Core™ 10th Processor i7-10710U 1.1~4.7GHz | |
| Intel® Core™ 12th Processor i3-1215U 1.2~4.4GHz Intel® Core™ 12th Processor i5-1235U 1.3~4.4GHz Intel® Core™ 12th Processor i5-1240P 1.7~4.4GHz Intel® Core™ 12th Processor i7-1255U 1.7~4.7GHz | |
| Memory | 4~8GB DDR3L /4~32GB DDR4 / 4~32GB DDR5 |
| Storage | 1 x mSATA SSD |
| Cooling | Fan-less |
| OS | Windows 10/11/ Linux Ubuntu |
I/O Ports
| USB2.0 | 5×USB2.0/ 2×USB2.0 |
| USB3.0 | 1×USB3.0/ 4×USB3.0 |
| COM | 4×RS232+2×RS485 DB9 |
| Display | 1×HDMI+1×VGA Dual Display |
| Audio | 1×Audio |
| Expansion | 1×Mini PCIe Socket |
| Ethernet | 2×10M/100M/1000M Intel I210 LAN |
LCD Display
| Panel Size | 19inch |
| Max. Resolution | 1280×1024 4:3 |
| Luminance(cd/㎡) | 350cd/㎡ |
| Contrast | 450:1 |
| Backlight | More than 50000H |
Panel Screen
| Touch Panel | Multi-touch Projected Capacitive Touch Screen |
| Transmittance | 85% |
| Controller | USB |
Wireless Communication
| Wireless Networking | 4G Full Network Compatibility （Optional） |
| Wi-Fi | Wi-Fi/ Bluetooth |
Power Supply
| DC Input | 1×3-pin Pluggable Terminal Block for 12V DC, 9-36V optional |
| Booting | AT / ATX |
Mechanical
| Dimension | 443.0(W)×368.0(D)×75.1(H)mm |
| Cutout Dimensions | 411.9×342.9mm |
| Weight | 4.2KG |
| Material | High-Strength Aluminum Alloy |
| Mounting | Wall-mount/VESA Mount |
Environmental
| Operating Temperature | 0~50℃ (-40~70℃Optional) |
| Storage Temperature | -10~60℃ |
| Protection | Front Panel IP65 |
Certifications & Services
| Certs | CE / FCC / BIS, according to EN 55032 & EN 55035 |
| ODM | BIOS / Boot on LOGO / OEM |

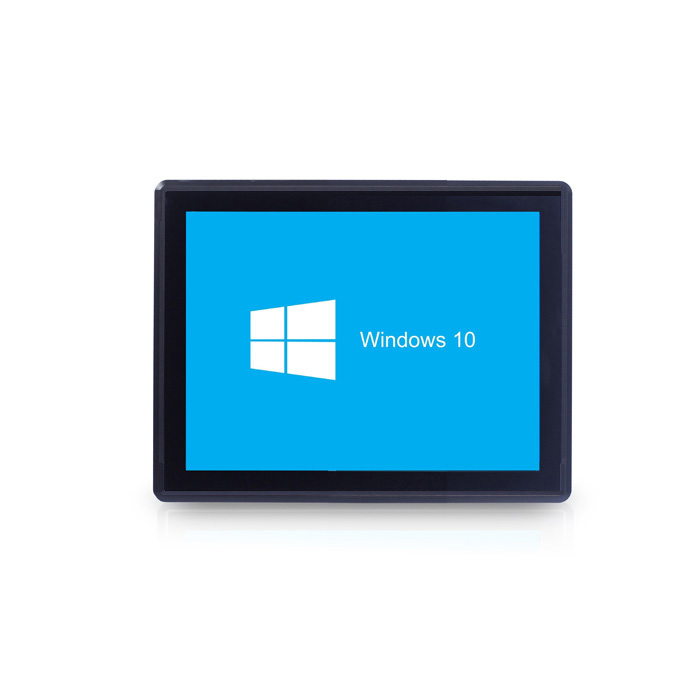

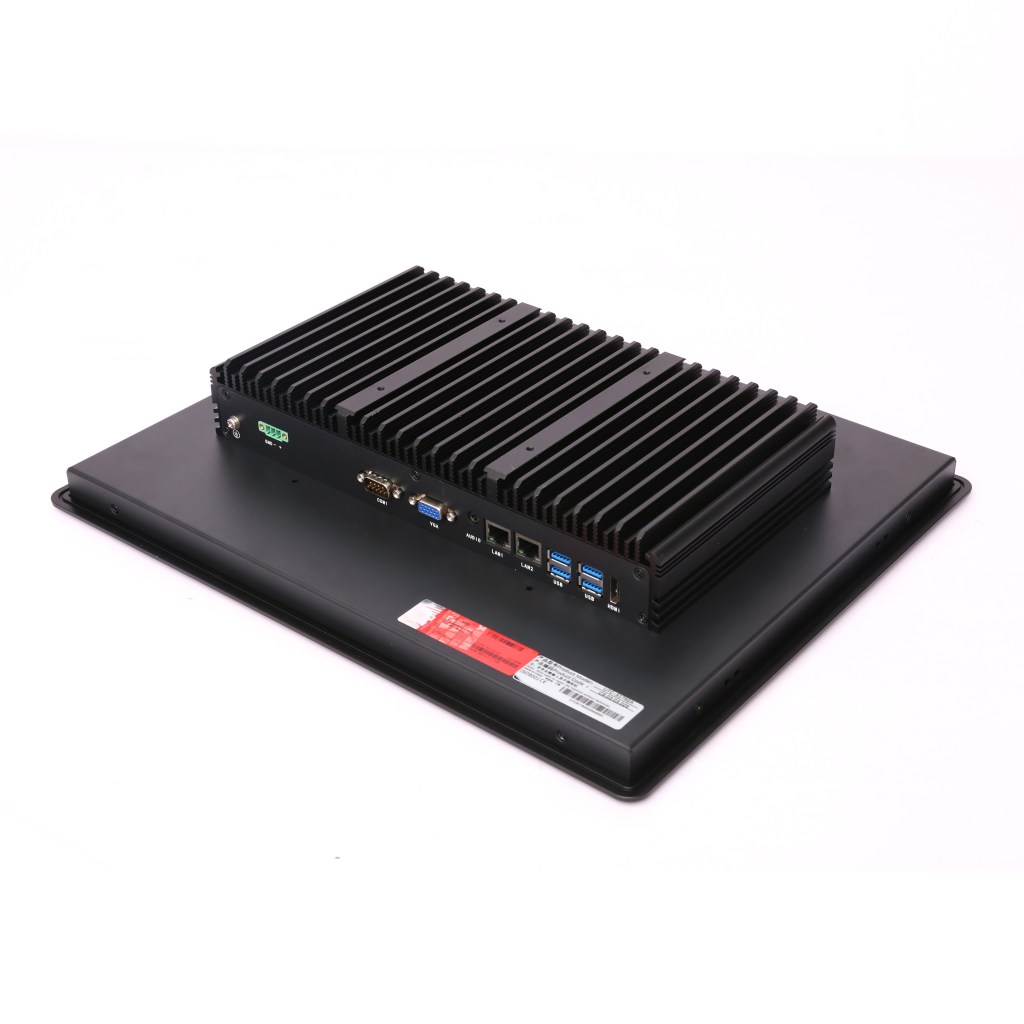

►Product images & sizes

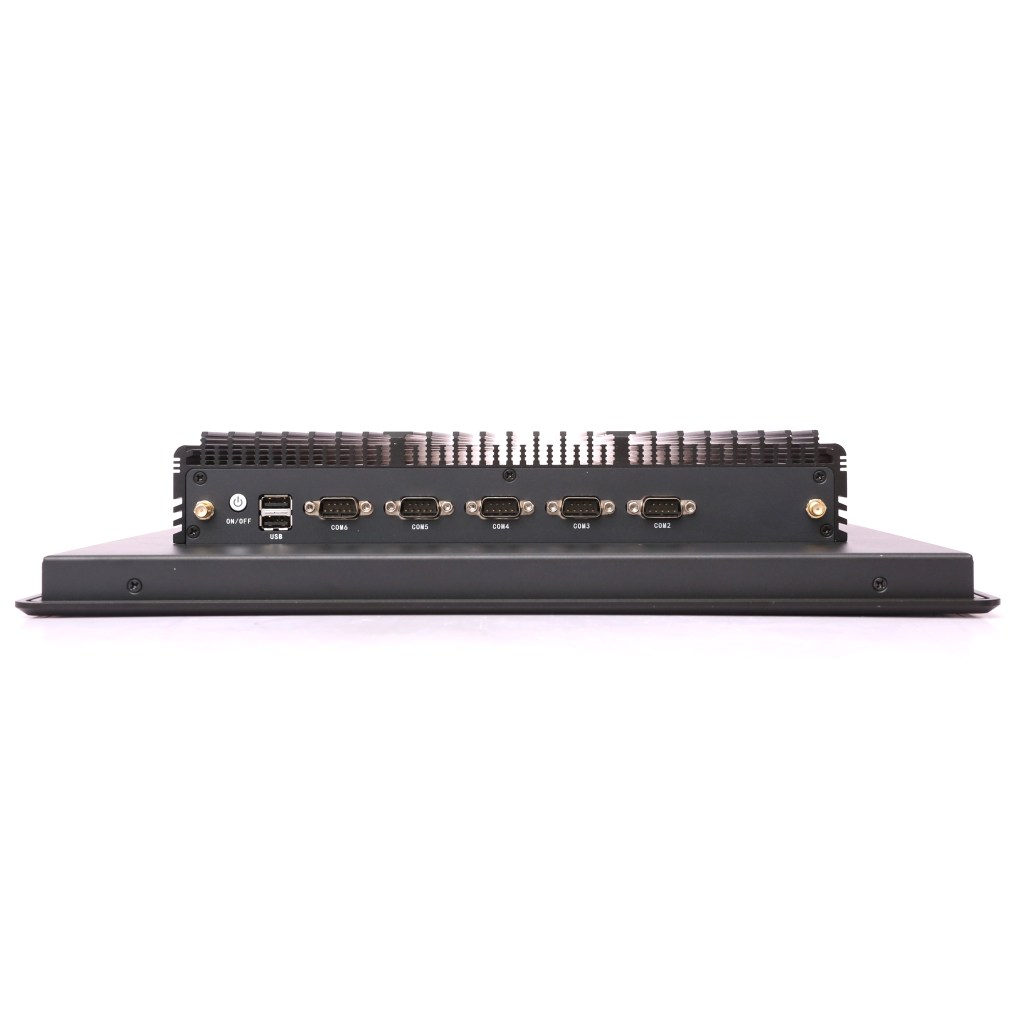

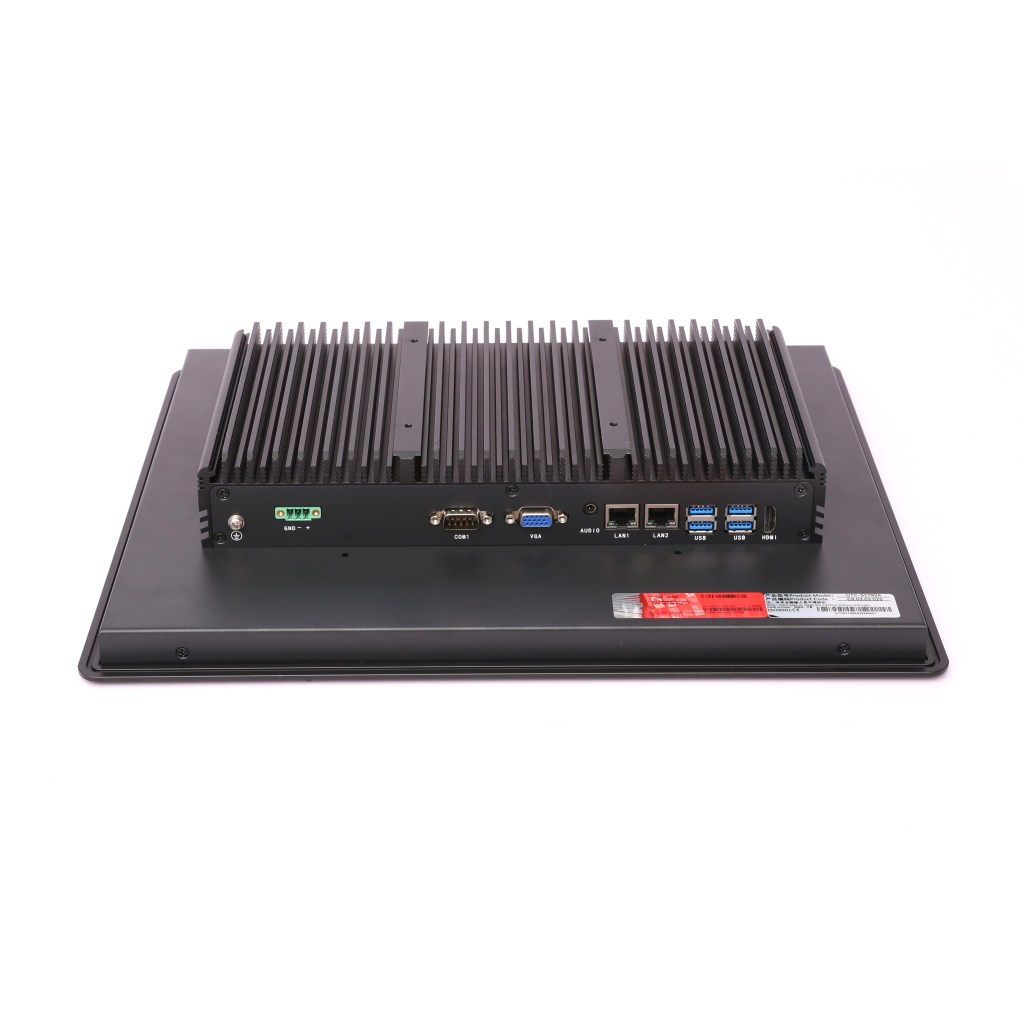

► I/O
►Product Selection
| NO. | Model | Product Part Number | Describe Infomation | Standard Memory | Standard Storage |
| 1 | EPC-S1962A | C11.03.01.001 | Intel® Celeron® Processor J1900 Processor | 4GB | mSATA SSD 128GB |
| 2 | EPC-S1972A | C11.03.05.001 | Intel® Celeron® Processor J6412 Processor | 8GB | mSATA SSD 256GB |
| 3 | EPC-S1992A | C11.03.03.001 | Intel® Core™ i3-10110U Processor | 8GB | mSATA SSD 256GB |
| 4 | EPC-S1992A | C11.03.03.002 | Intel® Core™ i5-10210U Processor | 8GB | mSATA SSD 256GB |
| 5 | EPC-S1992A | C11.03.03.003 | Intel® Core™ i7-10710U Processor | 8GB | mSATA SSD 256GB |
| 6 | EPC-S1922A | C11.03.04.001 | Intel® Core™ i3-1215U Processor | 8GB | mSATA SSD 256GB |
| 7 | EPC-S1922A | C11.03.04.002 | Intel® Core™ i5-1235U Processor | 8GB | mSATA SSD 256GB |
| 8 | EPC-S1922A | C11.03.04.003 | Intel® Core™ i5-1240P Processor | 8GB | mSATA SSD 256GB |
| 9 | EPC-S1922A | C11.03.04.004 | Intel® Core™ i7-1255U Processor | 8GB | mSATA SSD 256GB |
►Machine Quality Control
Why Memory Testing Is Critical Before Shipping Industrial PCs
Would you like to know how to choose the right industrial PC, including factors such as display size, mounting method, and front-panel waterproof rating? These considerations are especially important in hygiene-critical industries such as food & beverage and chemical processing, where frequent cleaning and disinfectants can gradually corrode aluminum front panels.
To meet these requirements, our solutions include not only stainless steel enclosures but also anti-corrosion surface treatments for aluminum front panels. In many cases, success or failure depends on attention to detail. Our team is well aware of these potential pitfalls and understands which aspects require special attention. We are committed to helping you select the most suitable Panel PC for your application.
Technical FAQ for EPC-S19X2A
The 19-inch display provides a traditional 4:3 aspect ratio, which is the gold standard for SCADA software interfaces. It offers more vertical space for complex HMI (Human-Machine Interface) diagrams compared to widescreen monitors. If your control cabinet has limited space, you may also consider our 15-inch industrial HMI models for a more compact footprint.

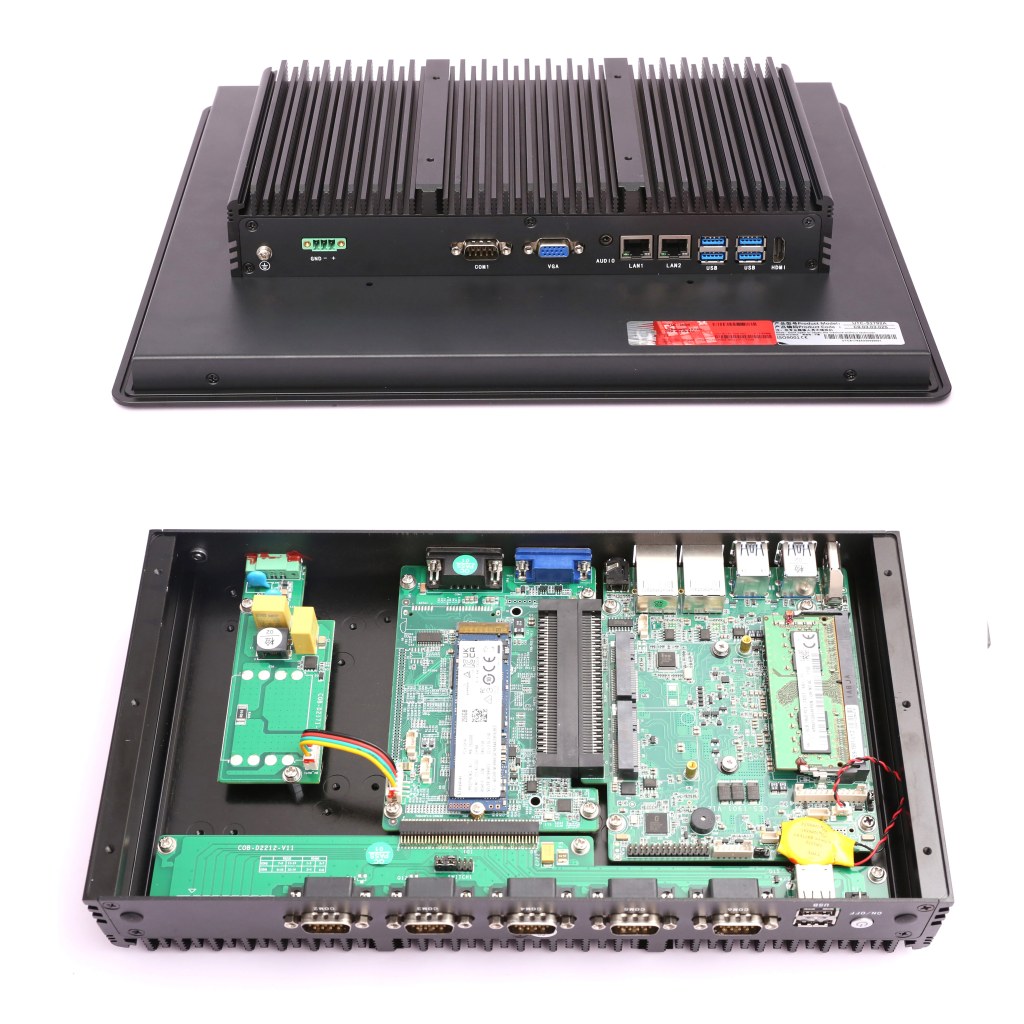

Our proprietary BlockCore™ modular design separates the computing engine from the display. This allows users to upgrade from a Celeron to a high-performance 12th Gen Core i7 without changing the entire Industrial Panel PC unit. This modularity is consistent across our entire range, including the 17-inch modular series, ensuring hardware platform uniformity for your factory.
The IP65 rating ensures the front bezel is completely dust-tight and protected against water jets. This makes the EPC-S19X2A reliable for wash-down environments in food processing or outdoor-exposed Industrial Panel PC applications where hygiene and durability are critical.
Yes, it supports a 9-36V DC wide-range input. Additionally, it features SafeCore™ technology, which provides power-loss protection to prevent OS corruption—a vital feature for mission-critical automation systems where 24/7 uptime is mandatory.
