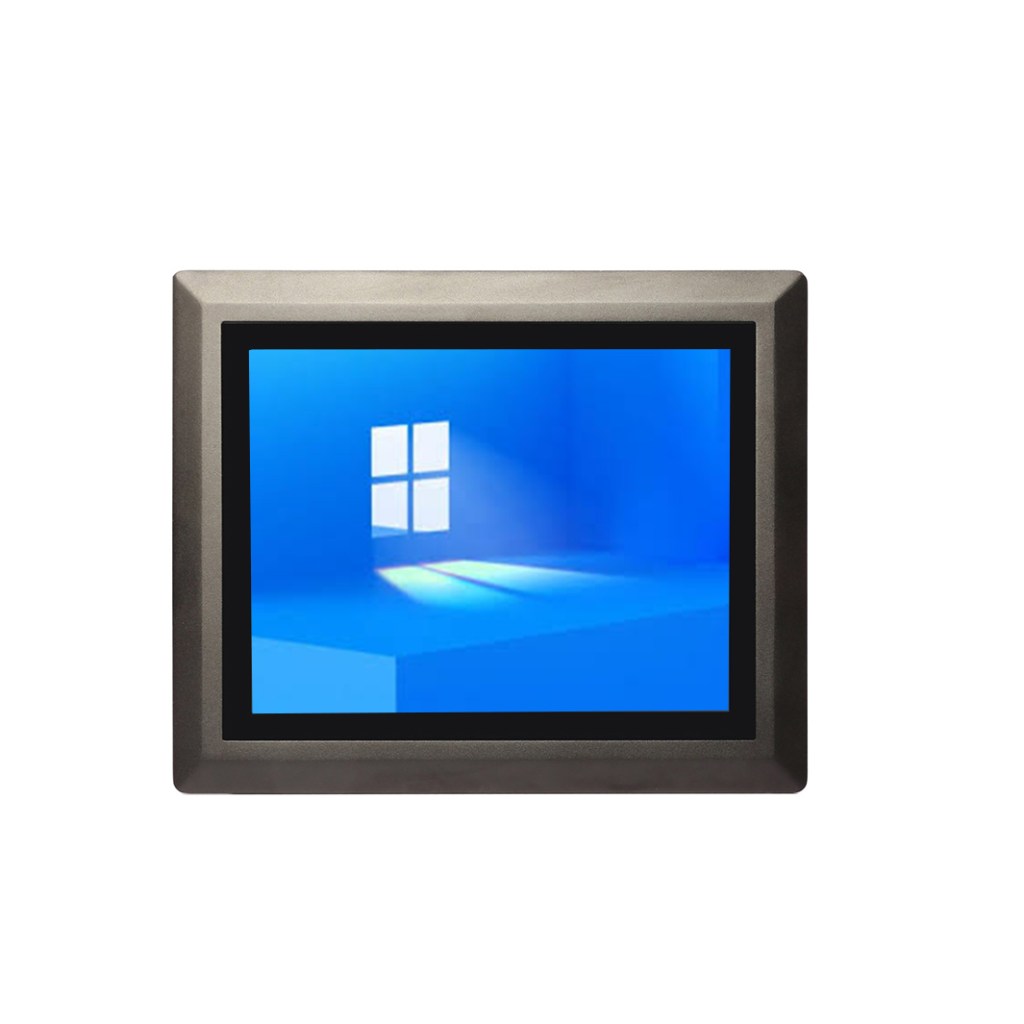

10-Inch Fanless GEN. 10 Industrial Panel PC UTC-S1092A
Product Features
- Aluminum die-casting chassis, fanless design
- Wireless Design
- 10 inch LED TFT LCD, capacitive touch
- Intel 10th Gen. Core I3/I5/I7 CPU
- 3*COM, 2*LAN, 2*USB2.0, 4*USB3.0
- AT & ATX Model
- Front Panel IP65 Level
- Download Specification PFD
Product Introduction
UTC-S1092A is an intelligent, fanless panel PC, 10″ Panel PC equipped with an Intel® 10th Gen CPU. Meeting the demands of harsh environments, in addition, the dual GbE LAN, 3 x serial ports, 6 x USB ports, make device connection and integration easy.
Product Specifications
| CPU | Intel® i3-10110U Dual Core, 2.10-4.10 GHz 4M Cache, TDP 15W Intel® i5-10210U Quad Core, 1.60-4.20 GHz 4M Cache, TDP 15W Intel® i7-10510U Quad Core, 1.80-4.90 GHz 4M Cache, TDP 15W |
| Cooling System | Fanless |
| Memory | 1x DDR4 2133Mhz SO-DIMM Sockets, up to 16GB |
| Storage | mSATA SSD Full Size+SATS 2.5″SSD |

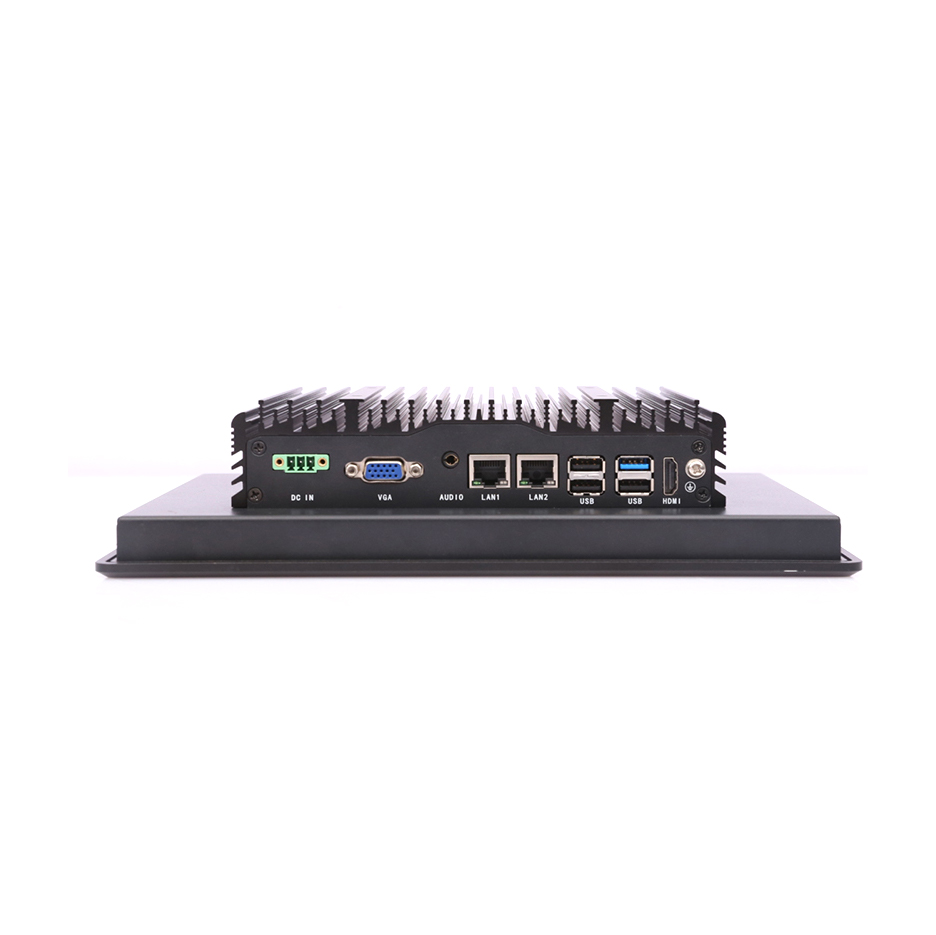

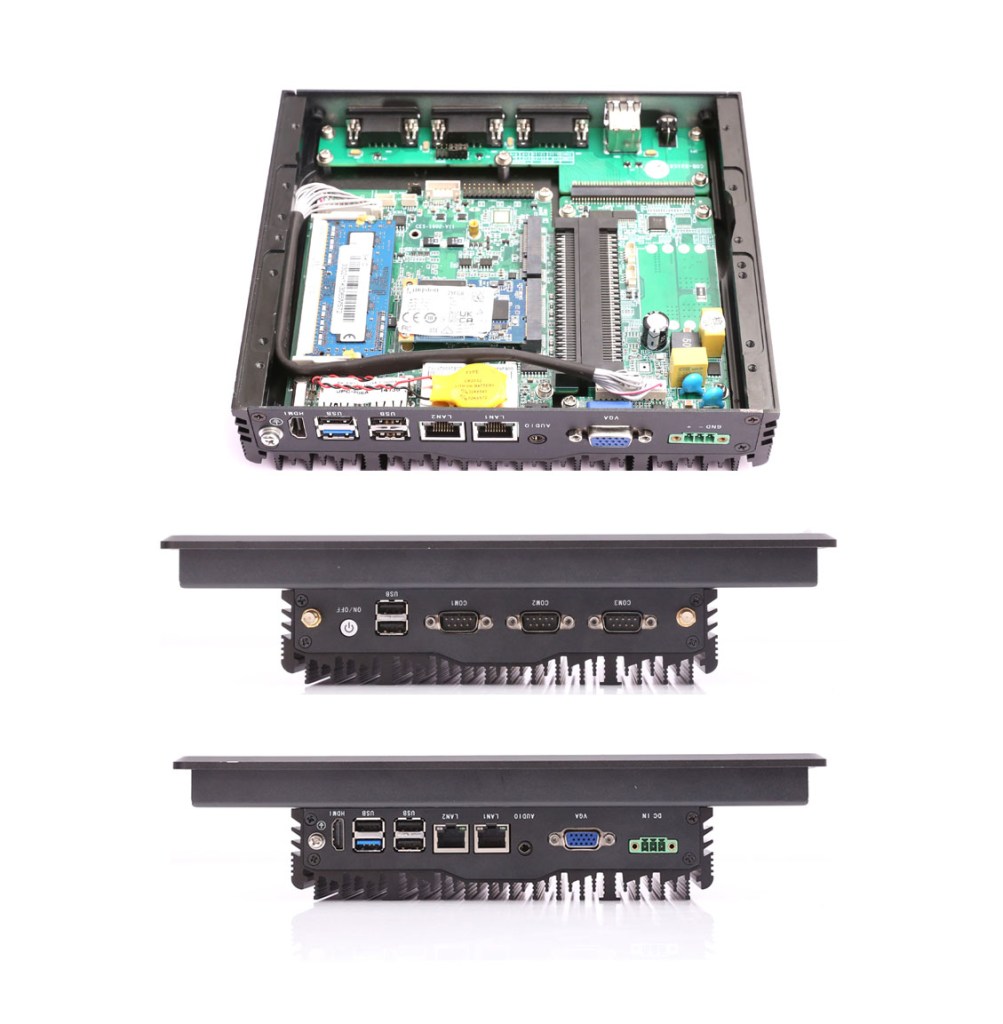

| I/O ports | 4xUSB3.0+2xUSB2.0, Type-A |
| COM: 3xRS232, DB9, 2*RS485/RS422 optional | |
| Dual Display: 1xHDMI (1920*1200 @30Hz)1xVGA (1920*1200 @30Hz) | |
| Audio: 1×Mic-in, 1x Line-out | |
| Wi-Fi: 802.11a/g/n, 2×2 Antenna, 2.4/5 GHz, 300 Mbps Max Speed | |
| Network(LAN) | 2x 10/100/1000Mbps Ethernet |
| Input Voltage | 12V DC(3 Pin Phoenix Connector), optional 9V-36V DC |
| Control SW/LED | Power Button, AT & ATX Model |
| Display Type: | 10 inch TFT LED Panel( LED Backlight) |
| Max. Resolution: | 1024×768 / 4:3 |
| Luminance(cd/㎡) | 300nits |
| Touch Type | Capacitive Touch |
| OS Support | Microsoft Windows 7/ Windows 10/Windows 11/ Linux |
| Operating Temperature | 0℃～50℃(14~ 140 °F)(extend temperature optional) |
| Storage Temperature | -10℃～60℃(-4 ~ 158 °F) |
| Front Panel Protection | IP65 compliant |
| Dimensions | (W*H*D): 252.8x200x64.8mm cutout size: 241.5*186mm |
| Weight | 2.6 KG (N.W.) |
| Color | Black |
| Material | Aluminum |
| Certification | CE / RoHS |
| Custom Service | Custom BIOS, System Encryption, Custom LOGO |

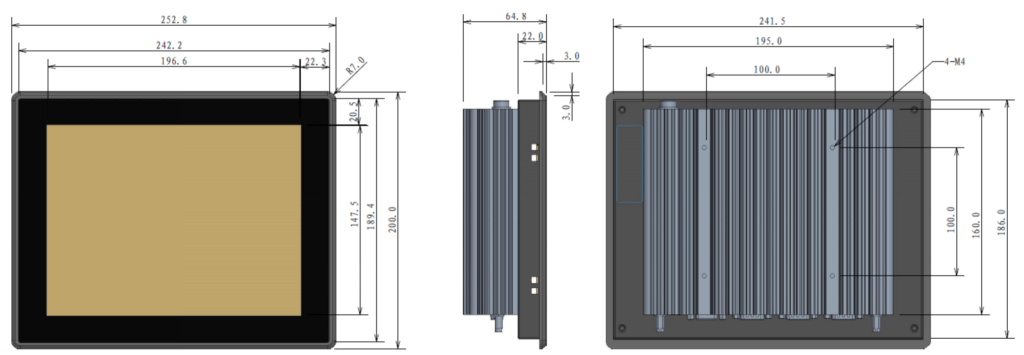

Product Dimensional Diagram
UTC-S1092A Video Introduction
For More Details, Please Feel Free To Contact Us.
