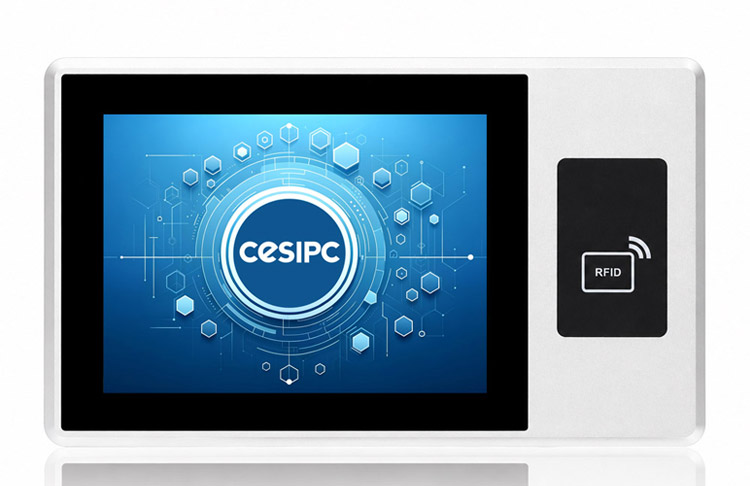

UTC-S1062C RFID Panel PC

The UTC-S1062C integrates RFID reader and HMI into a single device, eliminating external readers, USB cables, and power adapters — significantly reducing system complexity and installation time. Key benefits include: ✓ Fewer failure points — No external cables to disconnect or fray in harsh environments; ✓ Cleaner installation — Single cutout, no separate reader mounting; ✓ Reduced BOM complexity — One SKU covers both display and identification; ✓ Lower maintenance costs — No separate driver updates or reader firmware management. This is particularly valuable for multi-workstation deployments (e.g., 50+ assembly stations), where per-unit savings in installation and wiring effort directly reduce project timelines.

The UTC-S1062C’s integrated RFID reader operates at 13.56 MHz and supports both IC (MIFARE®) and ID (EM) cards, with card type selectable according to project requirements. Specific features include: Reading distance: 0–60mm typical; Communication interfaces: RS232 serial (for direct PLC/controller integration) and USB HID (plug-and-play, driver-free); Operating voltage: 3.3V–5V, standard 5V. For higher-security applications requiring multi-factor authentication (e.g., pharmaceutical cleanrooms), CESIPC offers models with integrated fingerprint or face recognition alongside RFID. For multi-role environments with different operator permissions (e.g., supervisor vs. production line worker), the 13.56 MHz reader paired with AES-128 encrypted cards ensures secure role-based access.

Both interfaces are supported and share the same reading distance (0–60mm), but they serve different system architectures: RS232 serial is ideal for legacy PLC or microcontroller integration (e.g., direct connection to a Siemens S7-1200 via RS232 port) — no operating system or drivers required, the application reads tag data directly from the serial buffer. USB HID is recommended for Windows/Linux application integration — the RFID reader appears as a standard USB keyboard (HID), and scanned card data is typed into the focused application field without any driver installation. Selection guide: Use RS232 when connecting to PLCs or embedded controllers; use USB HID when integrating with Windows HMI/SCADA software (e.g., Inductive Automation, WinCC). For MES integrations, many factories use the USB HID approach, which lets operators tap their badge and have the ID automatically populate into a production tracking field — no software development required.

The UTC-S1062C serves as an HMI + identification workstation for MES-driven production lines. Common applications include: • Operator authentication & access control — Login via RFID badge before operating machinery, with role-based permission levels (e.g., operator, supervisor, maintenance); • Work order verification — Scan work order ID at the start of a batch to ensure correct process parameters and materials; • Production traceability & compliance — Record operator ID, timestamp, and process steps for quality management and regulatory compliance in food/pharmaceutical production; • Garment & discrete manufacturing — Identify workpieces via attached RFID tags at each workstation to track progress through assembly lines; • MES data collection points — Deployed at key stations (e.g., incoming inspection, assembly, QC, packing) to capture operator identity and job data directly into MES for real-time production tracking and OEE calculation. For the garment industry, the EPC-S15-RFID (15-inch variant) is specifically designed as a sewing machine RFID workstation with flush-mount installation designed to fit on existing sewing machine tables.

The system supports scalable performance across multiple platforms, all sharing the same 10-inch enclosure and I/O layout — thanks to BlockCore™ modular design. Options include: Celeron J1900 (4 cores, 2.0–2.42GHz, 10W TDP) — entry-level, ideal for basic HMI and RFID data capture; Celeron J6412 (4 cores, 2.0–2.8GHz, 10W TDP) — improved efficiency for light SCADA workloads; 10th Gen Core i3/i5/i7 (2–4 cores, up to 4.9GHz, 15W) — balanced performance for data logging and moderate visualization; 12th Gen Core i3/i5/i7 (up to 10 cores, up to 4.7GHz, 15W) — high-performance for machine vision, edge AI, and real-time analytics. Memory ranges from 4GB DDR3L (J1900) to 32GB DDR5 (12th Gen). This consistent physical platform means you can standardize the 10-inch RFID workstation across your factory while deploying different compute power per station — no enclosure retooling required.

CESIPC’s BlockCore™ modular architecture separates the compute engine from the RFID-enabled display assembly, delivering three advantages for RFID workstation deployments. 1. Future-proof CPU upgrades: Upgrading from a Celeron J1900 to a 12th Gen Core i7 requires only swapping the compute board — the RFID reader, 10-inch touchscreen, sealed connectors, and panel-mount cutout remain unchanged, preserving your workstation mechanical design and installation labor. 2. Simplified spare parts: A single i-Core Board SKU works across standard (non-RFID) and RFID panel PCs — reducing inventory overhead. 3. Platform standardization: The same BlockCore compute board used in your standard W-series HMI terminals also powers the UTC-S1062C RFID workstation, enabling you to standardize compute spares across mixed deployments — RFID and non-RFID stations alike.

SafeCore™ is CESIPC’s power-loss protection technology. In RFID workstation environments, facilities often perform emergency shutdowns for shift changes or maintenance lockout/tagout procedures — events that can corrupt OS files if power is removed abruptly. SafeCore™ guards the operating system against file corruption during sudden power failure, preventing data loss and long-term OS degradation. Combined with auto power-on recovery (when power returns), it ensures the RFID workstation resumes normal operation after each shift without manual intervention — critical for production traceability logs, operator authentication records, and real-time MES data feeds. This feature is standard across all UTC-S1062C models and does not require additional configuration.

The front panel is IP65-rated (fully dust-tight and protected against low-pressure water jets), and the RFID reader is integrated behind the sealed front panel, meaning the reader itself is IP65-protected — not exposed to dust or moisture. This is a critical advantage over external USB RFID readers, which typically have no ingress protection and would fail in washdown environments. The UTC-S1062C is suitable for factory floors, machine tools, food packaging areas, and general manufacturing workstations cleaned with gentle hose-downs or regular wipe-downs. For high-pressure, high-temperature washdown environments (e.g., meat processing or dairy), CESIPC offers IP69K-rated stainless steel panel PCs with optional RFID integration — contact our engineering team for details.

The UTC-S1062C supports wall-mount and VESA mount (75×75) for flexible installation options, with standard panel-mount cutout integration for control cabinet flush mounting. Cutout dimensions: 237.5(W) × 161.4(D) mm; overall dimensions: 258.3(W) × 182.2(H) × 72.8(D) mm; weight: 3.0kg. Standard I/O includes: USB 2.0 ×2, USB 3.0 ×4, RS232 ×2, RS485 ×1, HDMI ×1, VGA ×1, dual Intel I210 Gigabit Ethernet, Audio ×1, Mic ×1. Expansion: Dual M.2 NVMe slots and Mini PCIe for SSD or wireless module (Wi-Fi/BT/4G LTE). All I/O connectors feature sealed designs that maintain IP65 integrity of the front panel when properly installed. The 10-inch 4:3 aspect ratio (1024×768 resolution) provides more vertical workspace than widescreen alternatives — ideal for displaying operator instructions, work order details, and checklists alongside the RFID authentication interface.

The UTC-S1062C features a 10-inch 4:3 TFT LCD with 1024×768 (XGA) resolution and 10-point capacitive touch. The 4:3 aspect ratio provides more vertical screen space than widescreen alternatives of the same diagonal — a critical advantage for RFID workstations. Typical use cases include: Work order verification forms — view operator instructions, material lists, and quality checklists without scrolling; Operator dashboard — display shift schedule, training status, and certification expiration alongside RFID authentication status; Production tracking — show batch number, target quantity, and current progress in a single viewport. The 10-inch size is also space-optimized for existing workstation layouts — fitting flush into control panels or mounting alongside existing machinery without consuming valuable work surface. Brightness is 300 nits with 500:1 contrast ratio for clear visibility under typical factory lighting.

Yes. CESIPC offers full OEM/ODM services for RFID-integrated panel PCs, including: • BIOS configuration and boot logo branding — for private labeling and consistent OEM branding; • I/O panel customization — alternative port arrangements or sealed M12 connectors for high-vibration environments; • RFID reader firmware customization — specific card encoding formats or data output protocols; • Additional authentication modules — fingerprint, face recognition, or keypad integration alongside RFID; • Private label packaging and custom SKU part numbering for reseller programs. With in-house SMT assembly and sheet metal fabrication, CESIPC delivers custom RFID workstations with consistent quality and predictable lead times. Minimum order quantities vary by customization scope. Contact our engineering team for a detailed ODM assessment.

The UTC-S1062C supports Windows 10/11 and Linux Ubuntu (12.04, 14.04, 16.04, 20.04). Certifications include CE, FCC, and BIS according to EN 55032 & EN 55035. The factory is ISO9001:2015 certified, and the product has an MTBF (Mean Time Between Failures) of 60,000 hours, ensuring long-term reliability for 24/7 production environments. The UTC-S1062C also includes TPM 2.0 hardware security support for secure authentication key storage — an important feature for facilities that need to store operator credentials or encryption keys locally at the workstation.
