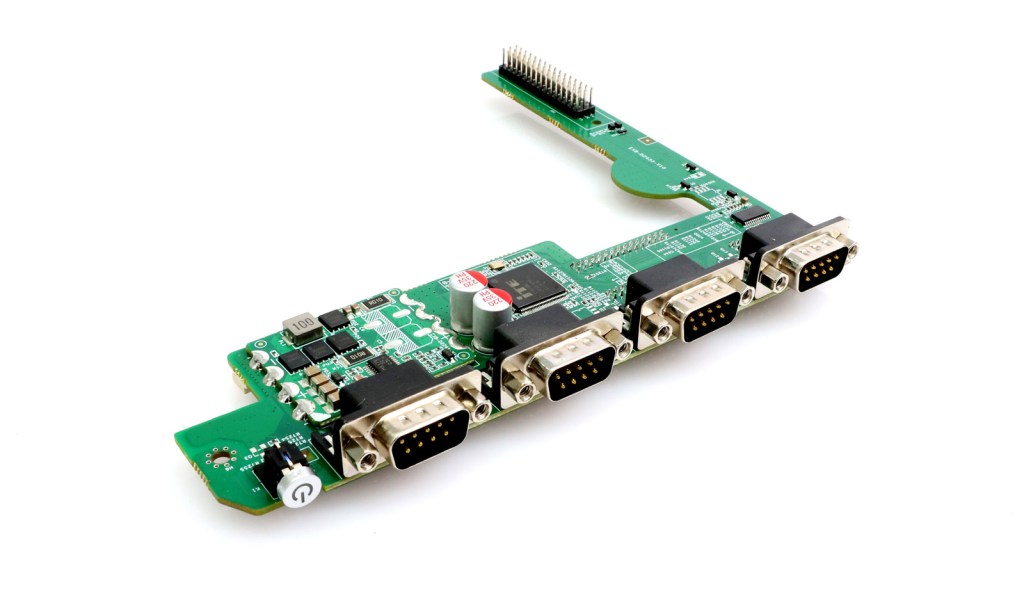

EXB-D2433 i-Connect Board COM

The EXB-D2433 expansion board features a modular design and provides four COM ports supporting RS-485/422 communication. It offers stable data transmission and flexible connectivity, making it ideal for use in industrial automation, energy management, transportation control, and smart manufacturing systems. With reliable performance and strong anti-interference capability, the EXB-D2371 ensures efficient communication in industrial monitoring, equipment networking, and embedded control applications.

Parameter	Description
Input Interface	4 serial ports, DB9 interface
Profile	L200
Reserved functions	LVDS2,LVDS1,USB1,USB3,INVT1,INVT2
COB matching	COB-D21C7-V10
Power Supply	5V DC from Motherboard Pin
Power Consumption	< 1W (typical)
Operating Temperature	-10°C to +60°C
Storage Temperature	-20°C to +70°C
Dimensions	164 x 140.5mm
Mounting Method	Screw Holes

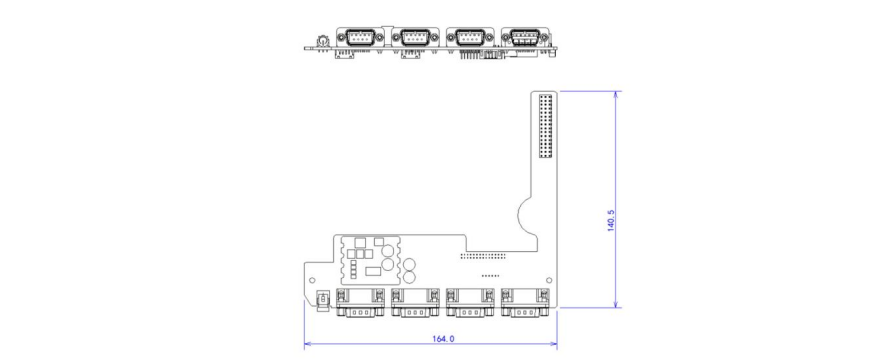

Dimensions

IPC with EXB-D2433
