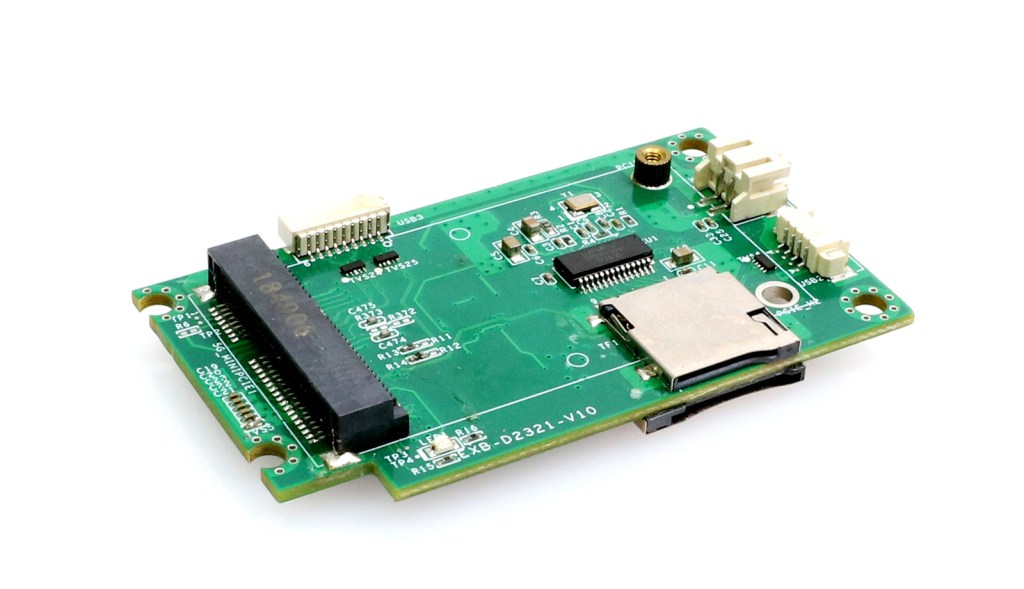

The EXB-2321 is a communication expansion board designed with BlockCore modular architecture. It supports 4G/5G full-network wireless modules and includes SIM card and TF card slots, enabling high-speed wireless communication and local data storage. The module is suitable for a wide range of industrial applications, meeting the needs of IoT, edge computing, and mobile communication systems.
★ Modular Design — BlockCore for flexible multi-scenario use
★ TF card function 4G/5G
★ Specification Download
| Parameter | Description |
| Input Interface | TF card interface，SIM card interface |
| Profile | L300 |
| Reserved functions | 1xUSB2.0, 1xUSB3.0,1x Power |
| Power Supply | 5V DC from Motherboard Pin |
| Power Consumption | < 1W (typical) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 70 x 40mm |
| Mounting Method | Screw Holes |

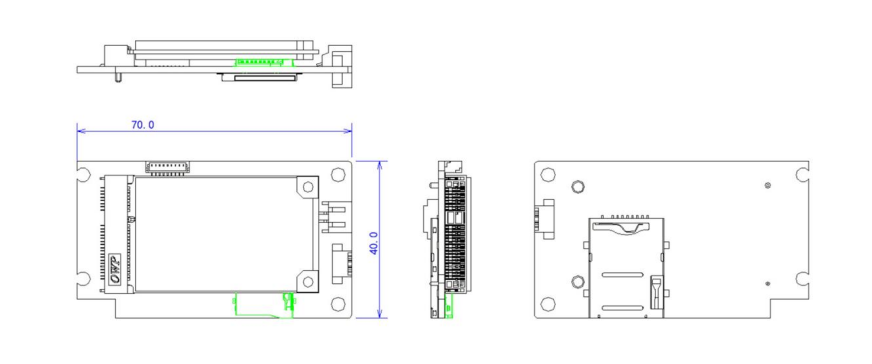

Dimensions

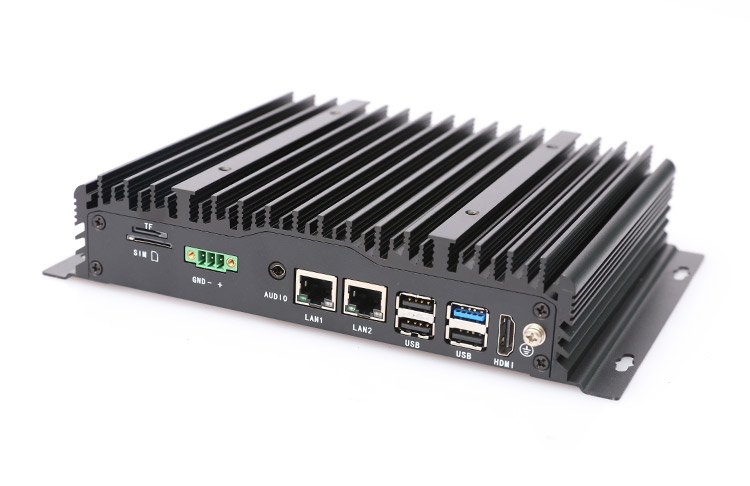

IPC with EXB-2321

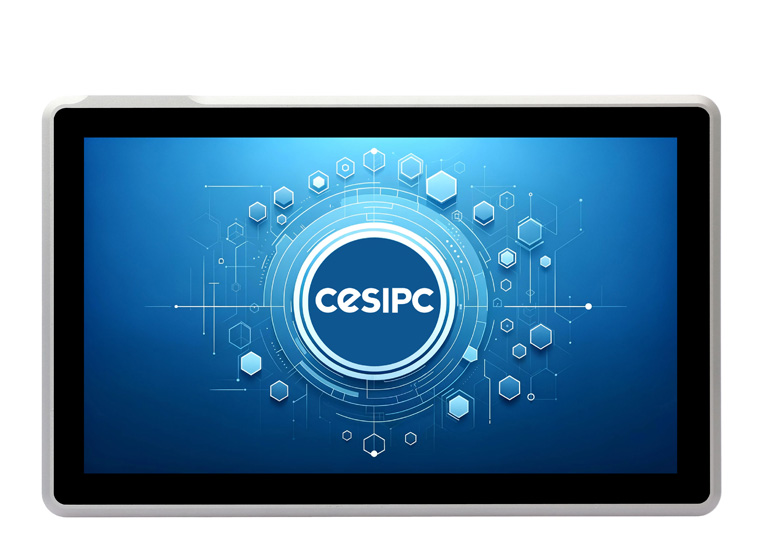

15.6-inch Panel PC
12th Gen Intel® Core™ Processor
TF SIM Card Slot
10th Gen Intel® Core™ Processor
Sim/TF Card
