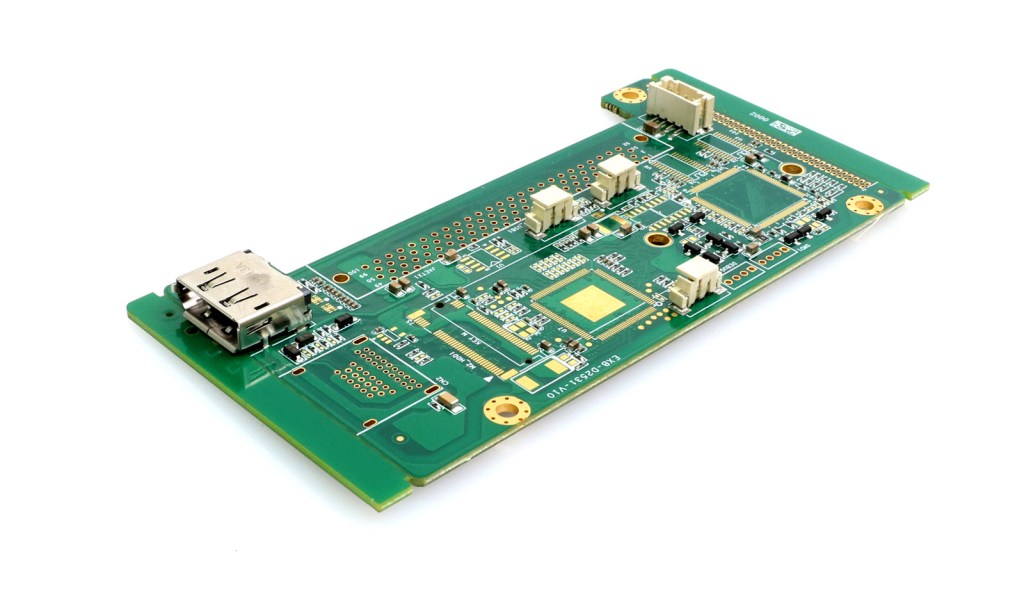

The EXB-D2531 expansion board features a modular design that supports DisplayPort signal conversion to dual DP outputs and one HDMI output. It enables flexible multi-display configurations with stable signal transmission and high-definition output, making it ideal for industrial display systems, embedded computing, and multimedia applications.
★ Modular Design — BlockCore for flexible multi-scenario use
★ HDMI Version: HDMI 1.4
★ Specification Download
| Parameter | Description |
| Input Interface | HDMI |
| EDID Mode | Fixed |
| Supported Resolutions | 640×480 ~ 1920×1080@60Hz / 3840×2160@30Hz |
| HPD (Hot Plug Detect) | Supported |
| Power Supply | 5V DC from Motherboard Pin |
| Power Consumption | < 1W (typical) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 117 x 63mm |
| Mounting Method | Screw Holes |
| Compatible Motherboards | CES-1201, CES-1902 |
EXB-D2531 Dimensions
