Intel® J4125 processor industrial PC UPC-207DA
Product Features
- Processor: Intel® Celeron J4125 Processors
- Memory:4GB-8GB DDR3L
- Hard disk: mSATA 128GB SSD, optional 256GB,512GB,etc
- I/O interfaces:2xLAN,4xUSB,3xCOM Power input:DC 12V 5A
- Working temperature:0-50°C, optional wide temperature -40°C-70°C
- Operating system: Supports Windows 7/10 and Linux
- Size:195mmx160mmx46mm
- Product application: Production Line MES System, Intelligent Logistics,
- Robot Control, Equipment Monitoring And Maintenance, Energy Management And Monitoring, Environmental Monitoring And Control, Security Systems
Product Introduction
CTN-207DA is a compact dimension industrial computer with an Intel® J4125 processor, dual GbE LAN, 3 x COM ports, 4 x USB ports, 1x M.2 bay. DC 24V power input, wide operating temperature, economic and reliable, it will be fit for IOT terminal and manufacture application.
Product Introduction
| CPU | Intel Celeron J4125, 2.0~2.7GHz, 4cores, 4threads, 4M cache, 14nm,TDP 10W |
| Cooling System | Fanless |
| Memory | Single Socket, 4GB-8GB DDR4 |
| Storage | M.2 SSD Full Size, with HDD_LED Lamp |

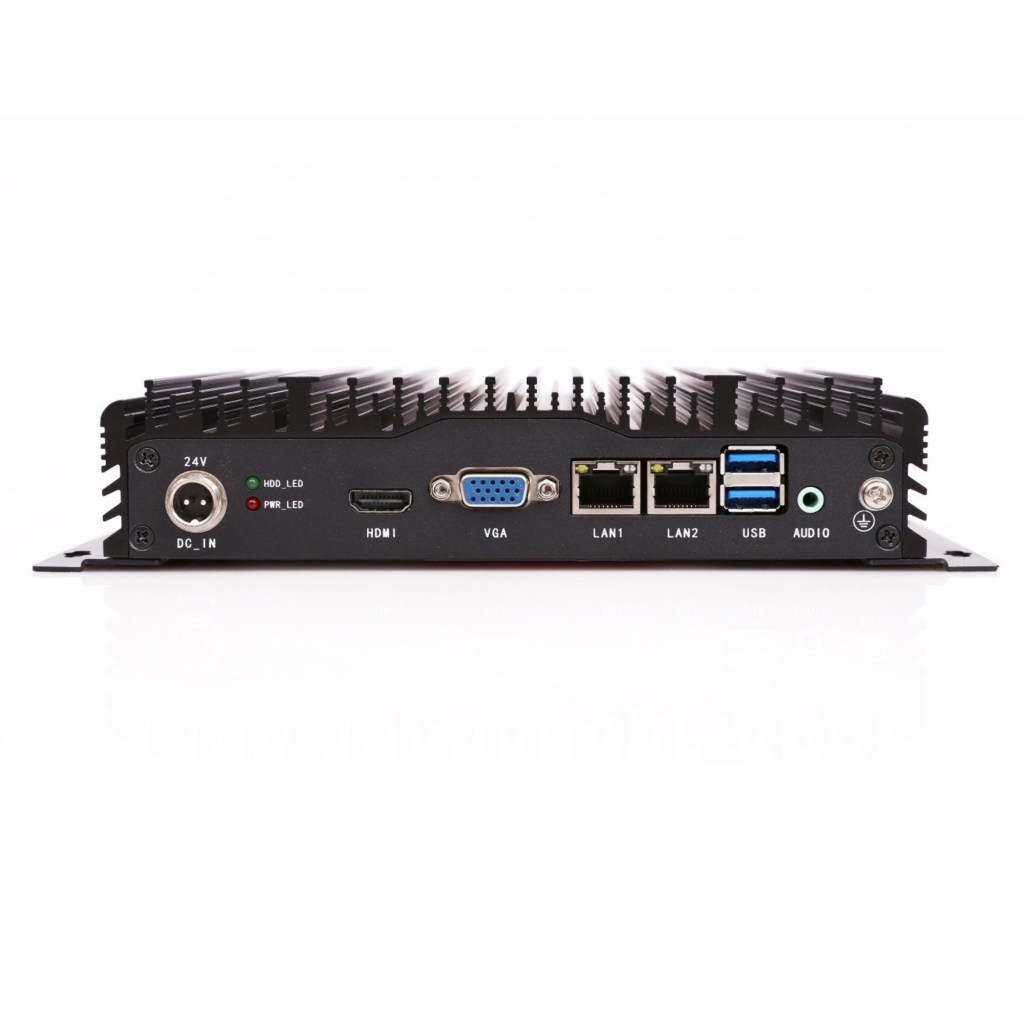

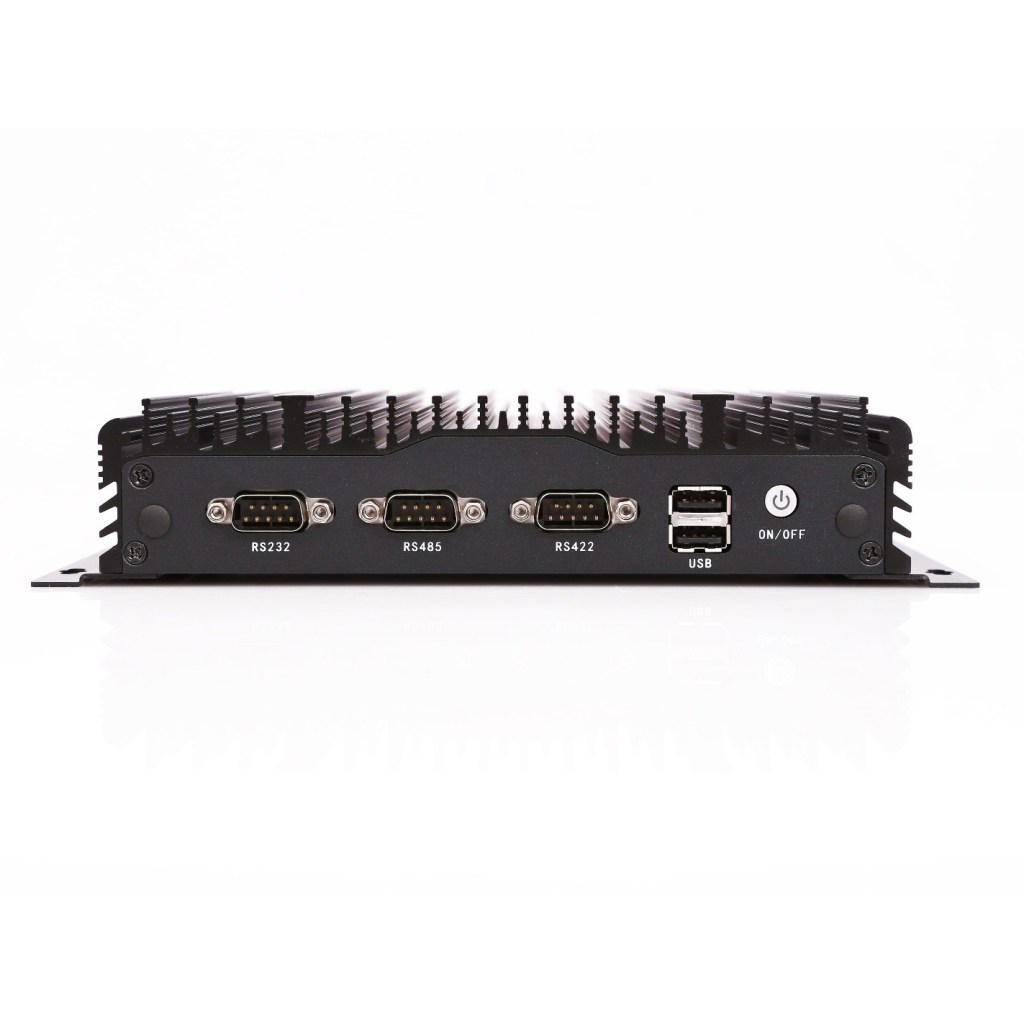

| I/O ports | 2xUSB2.0+2xUSB3.0, Type-A 1xRS232, DB9 Type 1xRS485, DB9 Type 1xRS422, DB9 Type Dual Display: 1xHDMI (19201200 @30Hz) 1xVGA (19201200 @30Hz) Audio: 1xMic-in, 1x Line-out WIFI: 802.11a/g/n, 2×2 Antenna optional Network(LAN)：2x Realtek RTL8111H 100/1000Mbps Ethernet |
Input Voltage | 24V DC (2 Pin Phoenix Connector) , with PWR_LED Lamp |
| Control SW | 1xPower SW (Rear), AT/ATX optional |
| OS Support | Windows 7, Windows 8.1, Windows 10, Linux Ubuntu |
| Operating Temperature | 0℃～50℃ (extend temperature optional) |
| Storage Temperature | -10℃～60℃ (extend temperature optional) |
| Dimensions | (W*D*H): 195*158*42.8mm With Bracket: 229*158*46mm |
| Weight(G.W.) | N.W. 1.7KG |
| Color | Black |
| Material | High Strength Aluminum Alloy |
| Certification | CE / UL / RoHS |
Product Dimensional Diagram
