WPC-S10-G 10-inch 4:3 IP69K Stainless Steel Panel PC

Unlike our standard EPC‑W or EPC‑S aluminum‑housing IP65 panel PCs (built for factory floors and moderate washdown), the 10‑inch G‑Series is engineered for daily, intensive hygienic cleaning. It features a fully welded SUS304 stainless steel enclosure with a CNC‑machined unibody bezel, achieving total IP69K + IP67 + IK07 protection — the highest ingress and impact ratings for washdown environments. The all‑stainless construction resists corrosion from aggressive cleaning agents and withstands high‑pressure (80–100 bar), high‑temperature (up to 80°C) steam and chemical washdowns at close range. This makes the G‑Series the required solution for food processing, pharmaceutical cleanrooms, central kitchens, and any hygiene‑critical area where daily sanitation protocols mandate complete waterproofing and easy decontamination.

IP69K is the highest ingress‑protection rating for washdown equipment. It guarantees complete dust‑tightness and resistance to high‑temperature (80°C ±5°C), high‑pressure (80–100 bar) water jets delivered from a distance as close as 100–150 mm. Facilities that require daily steam or chemical sanitization — such as meat, seafood and dairy processing plants — mandate IP69K for all equipment in the washdown zone. IP67 adds protection against temporary immersion (up to 1 meter for 30 minutes), providing extra margin against flooding, hose‑down pooling and deep cleaning cycles. IK07 indicates mechanical impact resistance (2J impact energy, equivalent to a 1.7 kg mass dropped from 120 mm), protecting the unit from accidental bumps, dropped tools and high‑traffic collisions in busy production areas. Together, these three certifications ensure the device survives the harshest hygienic environments — from daily chemical washdown bays to cold storage rooms — without enclosure degradation or internal contamination.

The G‑Series 10‑inch IP69K panel PC is designed for industries where equipment must endure daily high‑pressure, high‑temperature washdown with caustic chemicals or steam. Primary applications include:

• Food & Beverage Processing — Meat, poultry, seafood, dairy, bakery and ready‑to‑eat lines where raw proteins and sugars require rigorous sanitation multiple times per shift. The 10‑inch size is ideal for individual workstations, portioning equipment and packaging machines.
• Central Kitchens & Commissaries — High‑volume food preparation facilities that undergo daily deep cleaning with hot water and chemical sanitizers. The compact 10‑inch form factor fits easily on mixing stations, cooking kettles and assembly lines.
• Pharmaceutical & Biotech Cleanrooms — Tablet coating lines, filling suites, aseptic processing areas and sterile compounding rooms where disinfectant fogging and wipe‑down are routine.
• Chemical & Cosmetics Manufacturing — Mixing vessels, filling lines and packaging equipment exposed to corrosive solvents, acids and frequent washdown cycles.
• Medical Device & Laboratory Environments — Cleanroom assembly stations and testing equipment requiring frequent sanitization with IPA or bleach solutions.
For general factory automation and light splash zones, our EPC‑W aluminium‑housing IP65 series offers a more cost‑effective alternative.

The G‑Series is engineered from the ground up for GMP/HACCP‑ready sanitation compliance:

• Full SUS304 stainless steel enclosure with CNC‑machined unibody bezel and welded chassis — No crevices, seams, sharp edges, hollow cavities or bacterial harborage points. The completely welded design prevents moisture ingress through joints.
• Smooth, non‑porous surfaces — All exterior surfaces are polished to resist particle entrapment and allow easy wipe‑down with disinfectants, bleach solutions or steam.
• Anti‑condensation airflow valve — A specialized breather valve equalizes internal pressure during rapid temperature shifts (e.g., moving from cold storage to washdown bay), preventing internal fogging and condensation while maintaining full IP69K sealing integrity.

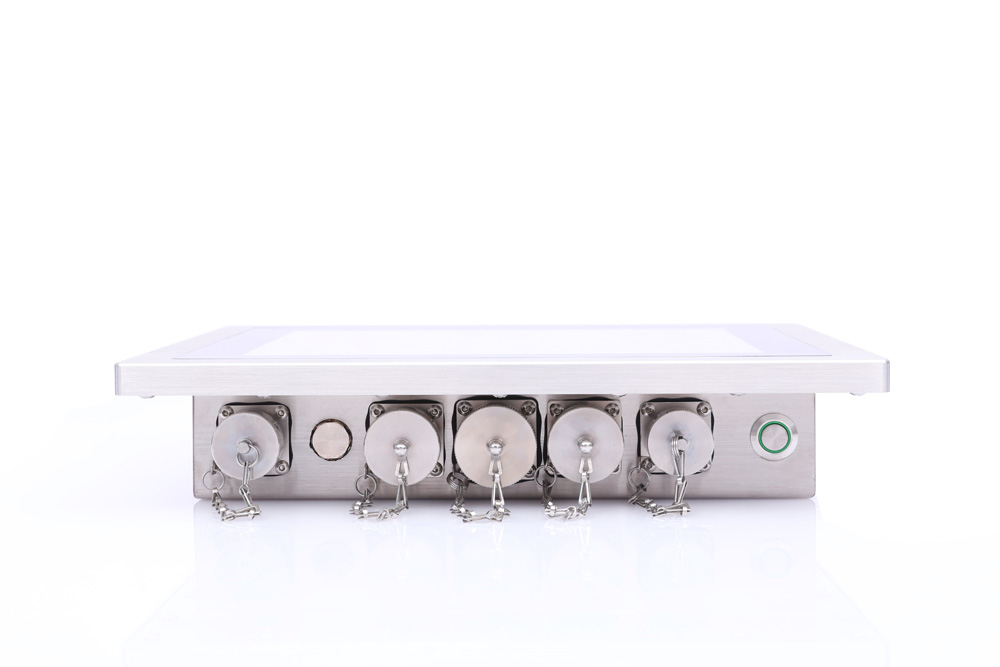

• IP69K‑rated sealed aviation connectors — All I/O ports (USB, LAN, RS232, DC power) use rugged aviation‑style connectors that withstand direct high‑pressure spray without ingress. No standard unsealed ports are exposed.
• Fanless hygienic thermal structure — Eliminates airflow pathways that draw in dust, moisture and bacteria. Heat is conducted through the stainless steel chassis to external cooling fins, keeping the internal sealed environment completely contaminant‑free.
• Resistant to corrosion from cleaning agents — SUS304 (and optional SUS316) withstands repeated exposure to chlorine‑based disinfectants, quaternary ammonia, peracetic acid and other harsh sanitizers used in food and pharmaceutical cleaning protocols.

The 10‑inch G‑Series supports scalable performance across Intel platforms, all sharing the same stainless steel enclosure, sealed I/O and panel‑mount dimensions:

• Celeron J1900 / J6412 — Quad‑core, 10W TDP, entry‑level for basic HMI and data‑logging tasks in clean‑area workstations.
• 10th Gen Core i3‑10110U / i5‑10210U / i7‑10510U — 2–4 cores, 15W TDP, balanced performance for medium‑load SCADA and batch reporting.
• 12th Gen Core i3‑1215U / i5‑1235U / i7‑1255U — Hybrid architecture (Performance + Efficiency cores), 15W TDP, high‑performance for machine vision inspection, edge AI and real‑time analytics on the washdown floor.

Memory ranges from 4GB DDR3L (J1900) to 32GB DDR5 (12th Gen). Storage: 1× mSATA SSD (Celeron) or 1× M.2 NVMe (Core).

Touchscreen options: Standard resistive 5‑wire touch (glove‑compatible, immune to water droplets) or optional projected capacitive (P‑CAP) touch (multi‑touch, higher optical clarity). Both options are fully sealed behind the IP69K front panel and survive direct washdown exposure.

For detailed model‑level specifications, download the datasheet.

CESIPC’s BlockCore™ modular architecture separates the compute engine (i‑Core Board) from the stainless steel display assembly — delivering two critical advantages for hygienic washdown environments:

1. Upgradability without re‑certification: Upgrading from a Celeron J1900 to a 12th Gen Core i7 requires only swapping the compute board. The IP69K stainless steel enclosure, sealed I/O connectors, touchscreen, anti‑condensation valve and panel‑mount cutout all remain unchanged — preserving your costly IP69K, sanitary and washdown certifications.
2. Simplified spare parts & maintenance: A single i‑Core Board SKU works across G‑Series stainless steel models and standard EPC‑W aluminium panel PCs. Field service teams can replace the compute module in minutes without breaking the IP69K seal or compromising hygienic integrity. The LEGO MODE™ modular I/O expansion also allows additional ports (e.g., extra serial, isolated digital I/O) to be added without altering the sealed enclosure.

SafeCore™ is CESIPC’s system‑level power‑loss protection architecture. In washdown and food processing facilities, plants often perform emergency shutdowns for cleaning cycles, lockout/tagout procedures or unexpected power fluctuations from high‑pressure washdown equipment — events that can corrupt OS files and batch logs if power is removed abruptly. SafeCore™ combines independent power logic, firmware co‑operation and software‑level data protection to guard the OS against file corruption during sudden power failure, ensuring safe disk writes and preventing fragmentation or data loss. Combined with auto power‑on recovery (the system automatically restarts when power returns), it guarantees the washdown workstation resumes normal operation after each cleaning shift without manual intervention. This is mission‑critical for production traceability logs, HACCP temperature records, operator authentication, and real‑time quality data feeds in regulated food and pharmaceutical environments. SafeCore™ is standard across all G‑Series models and requires no additional configuration.

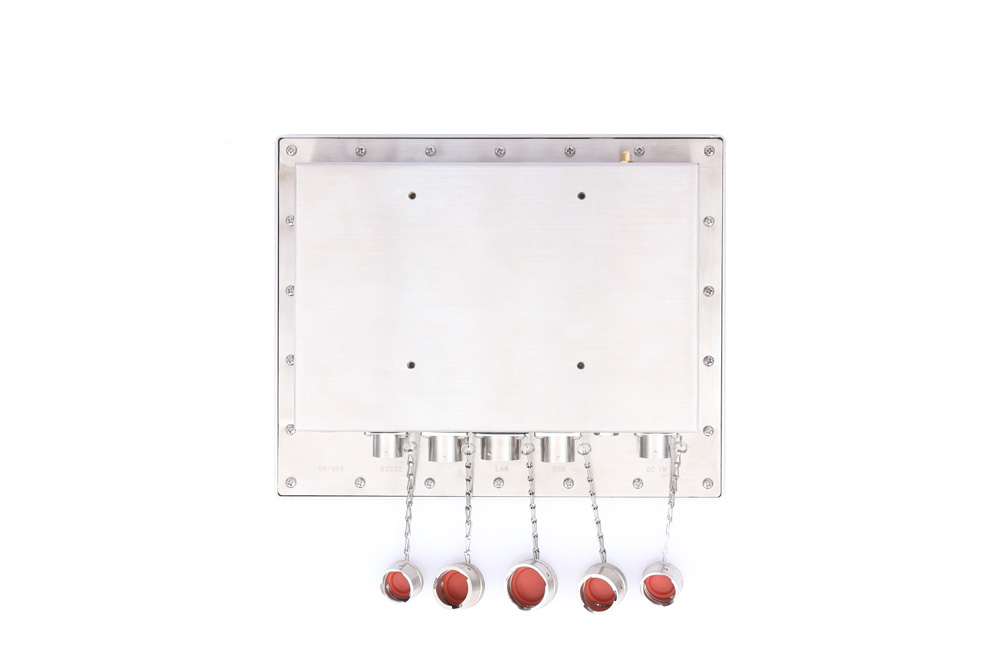

The 10‑inch G‑Series supports VESA mounting (75×75mm) for flexible installation on stands, articulated arms or machine frames, with standard panel‑mount options available for flush integration into stainless steel control cabinets.

Mechanical dimensions: Overall 278(W) × 225.4(H) × 57.8(D) mm. Weight: 4.0 kg net. Materials: Rugged SUS304 stainless steel casing (SUS316 optional for higher corrosion resistance).

Sealed I/O ports (aviation connectors): 2× USB 2.0 Type‑A, 1× Gigabit LAN (RJ45 aviation), 2× RS232 (optional RS485/422), 1× 4‑pin DC input (9–36V wide‑range). All connectors survive direct high‑pressure spray without ingress.

Wireless: Optional Intel N6235 Wi‑Fi (802.11a/b/g/n, 2.4G/5G, 300Mbps) and 4G LTE module.

Environmental: Operating temperature -10°C to 60°C (extended range optional). Storage: -20°C to 70°C. Humidity: 5%–95% RH, non‑condensing. Full IP69K + IP67 protection certified. CE/FCC compliant (EN 55032 & EN 55035). Factory ISO9001:2015 certified. MTBF 60,000 hours.

Yes — the G‑Series offers both resistive and optional projected capacitive (P‑CAP) touch technologies, each optimized for washdown environments:

Resistive 5‑wire touch (standard): Activated by pressure, not electrical conductivity — works reliably with wet hands, water droplets on the screen, and thick industrial gloves (latex, nitrile, rubber). Immune to false touches from water spray or condensation. The preferred choice for washdown zones where operators frequently handle wet product or wear heavy sanitation gloves.

Projected capacitive (P‑CAP) touch (optional): Provides multi‑touch capability (pinch/zoom), higher optical clarity and excellent responsiveness — works through thin gloves and wet conditions using advanced algorithms that reject water droplets. Ideal for applications requiring modern gesture‑based HMI interaction.

Both touch technologies are sealed behind the IP69K front panel and survive daily exposure to high‑pressure washdown, cleaning agents and steam. The front surface is also treated to resist chemical attack from disinfectants and sanitisers.

Yes. CESIPC offers full OEM/ODM services for the G‑Series stainless steel panel PC line, including:

• BIOS configuration and boot logo branding — For private labeling, brand consistency and OEM turnkey solutions.
• I/O panel customization — Alternative sealed aviation connector arrangements, additional RS232/RS485 ports, or isolated digital I/O.
• Enclosure material upgrade — SUS316 stainless steel for enhanced corrosion resistance in high‑salt, high‑chlorine environments (e.g., seafood processing, marine applications).
• Touchscreen customization — Choose resistive, P‑CAP, or high‑brightness (up to 1000 nits) for outdoor cold‑storage dock applications.
• Anti‑microbial finish options — Specialised coating for pharmaceutical and medical device cleanrooms.
• Private label packaging and custom SKU part numbering for integrators and reseller programs.

With in‑house SMT assembly, CNC machining and stainless steel fabrication, CESIPC delivers custom IP69K workstations with consistent quality and predictable lead times. Minimum order quantities vary by scope. Contact our engineering team for a detailed ODM assessment.

All G‑Series IP69K stainless steel models share the same full SUS304 enclosure, sealed IP69K + IP67 + IK07 protection, hygienic design and BlockCore™ modular compute platform. The differences are purely screen size, resolution and physical footprint:

• 10‑inch (this model) — 4:3 aspect ratio, 1024×768 XGA. Ideal for space‑constrained washdown stations: individual equipment HMIs, packaging line terminals, portioning machine controls, or cleanroom pass‑through interfaces. Weight: 4.0 kg, dimensions: 278×225.4mm. Best for installations where panel space is at a premium.
• 15.6‑inch G‑Series — 16:9 widescreen, 1920×1080 Full HD. Ideal for dedicated operator workstations requiring larger touch targets and more complex HMI screens.
• 21.5‑inch G‑Series — Large 16:9 Full HD display. Designed for central washdown‑area control rooms, multi‑operator monitoring, or applications requiring detailed process diagrams and data‑intensive SCADA displays.

Selection guide: Choose the 10‑inch size for equipment‑mounted, space‑limited, or single‑purpose washdown stations where every inch of panel real estate counts. Choose larger sizes for operator‑centric workstations, complex visualization or multi‑parameter monitoring. Because all G‑Series models share the same BlockCore™ compute ecosystem, you can standardize on one i‑Core Board SKU across all screen sizes — reducing spare parts inventory while matching the display size to each workstation’s physical and informational requirements.
