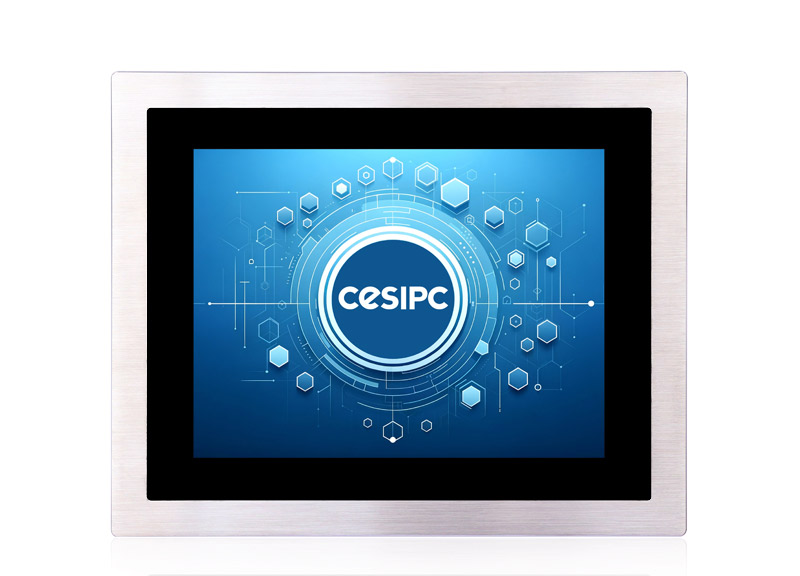

10-Inch IP67/IP69K Waterproof Industrial Panel PC UTC-S10X1G
Product Features
- Full SUS304 stainless enclosure with CNC bezel
- IP69K +IP67 + IK07 wash down & chemical resistance
- LEGO MODE™ modular I/O expansion.
- TPM 2.0 and SafeCore™ reliability for power-loss protection.
- 10” FHD P-CAP industrial display.
- Intel processors from Celeron to 12th Gen. Intel Core i3/ i5/i7.
- Dual-SSD + Mini PCle wireless options.
- Intel® i210 LAN.
- Fanless & hygienic thermal structure.
- Anti-condensation design.

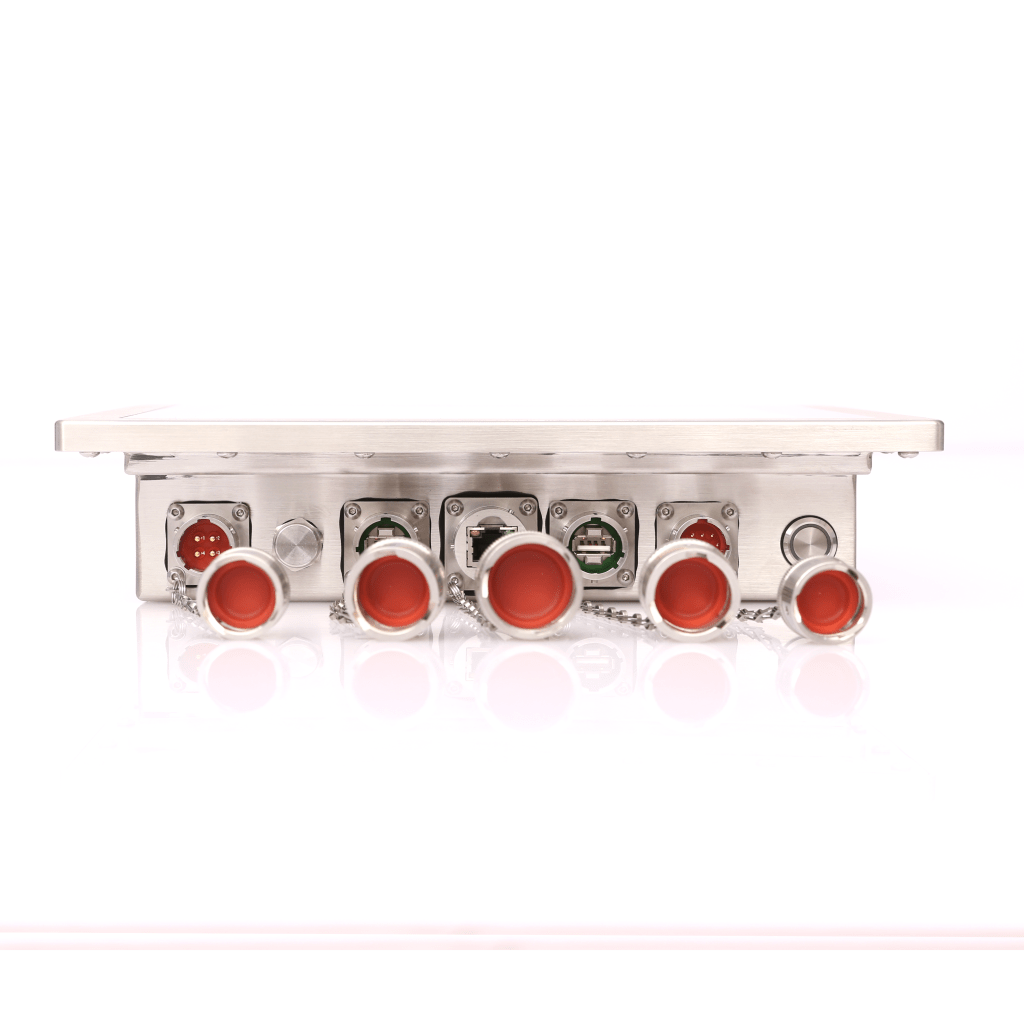

- Sealed I/O zone for durability.
- GMP/HACCP-ready hygienic design.
- Supports Windows/Ubuntu.
- Download Specification
UTC-S10X1G is a 10inch IP67/IP69K Panel PC equipped with an Intel® processor. Ideal for dairy, seafood, meat processing, and medical industries, it withstands high-pressure washdowns, resists corrosion, and operates reliably in harsh, hygienic environments.
Product Specifications
| CPU | Celeron to 10th Gen. Intel Core i3/ i5/i7 Processor |
| Cooling System | Fanless |
| Memory | Front: Rugged Aluminum Rear: Rugged Stainless Steel 304 |
| Storage | mSATA SSD |
| I/O ports | 2xUSB2.0 with Aviation Connector |
| 1xCOM with 1 Aviation Connector | |
| 1×10/100/1000Mbps Ethernet with Aviation Connector | |
| WIFI, 802.11a/g/n, 2.4/5 GHz, 300 Mbps Max Speed | |
| Input Voltage | 12V DC (Aviation Connector), 9-36V DC optional |
| Display Type: | 10inch TFT LED Panel( LED Backlight) |
| Max. Resolution: | 1024×768 |
| Luminance(cd/㎡) | 350nits |
| Backlight Lifetime | 30,000hrs (typical) |
| Touch Type | 5-wire Resistive Touch |
| Controller | USB interface |
| Durability(Touches) | 36 million |
| Control SW | 1xPower SW (Rear), AT/ATX optional |
| OS Support | Microsoft Windows 7/ Windows 10/ Windows 11/ Linux |
| Operating Temperature | -10℃～60℃(14~ 140 °F)(extend temperature optional) |
| Storage Temperature | -20℃～70℃(-4 ~ 158 °F) |
| Waterproof Protection | IP67/IP69K Whole Product Waterproof |
| Dimensions | 278(W)*225.4(D)*57.8(H)mm |
| Weight | 6KG N.W. |
| Material | Front: Rugged Aluminum, Rear: Rugged Stainless Steel 304 |
| Custom Service | Custom BIOS, System Encryption, Custom LOGO |

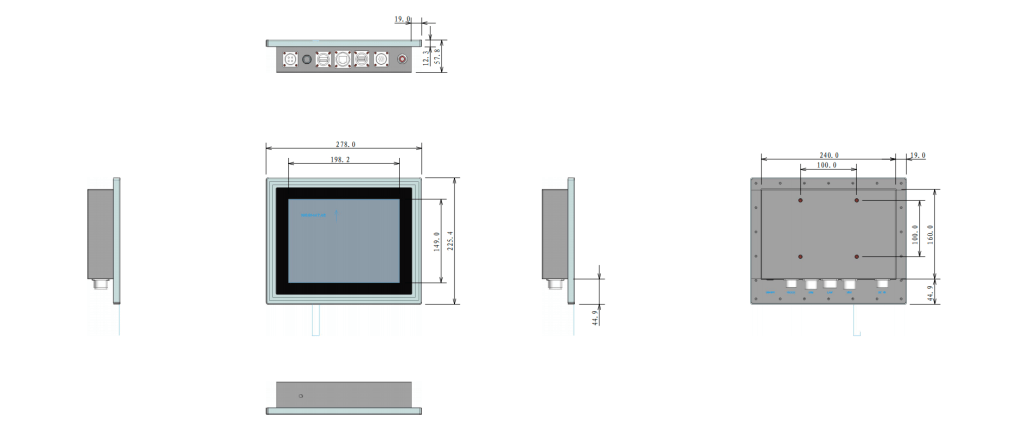

Product Dimensional Diagram
Accessories
Serial Cable: 10-pin waterproof circular connector to DB9 cable
USB: waterproof circular connector to USB Type-A cable
LAN: waterproof circular connector to LAN RJ45 cable
Power adapter: Waterproof power adapter
Antenna: SMA antenna
