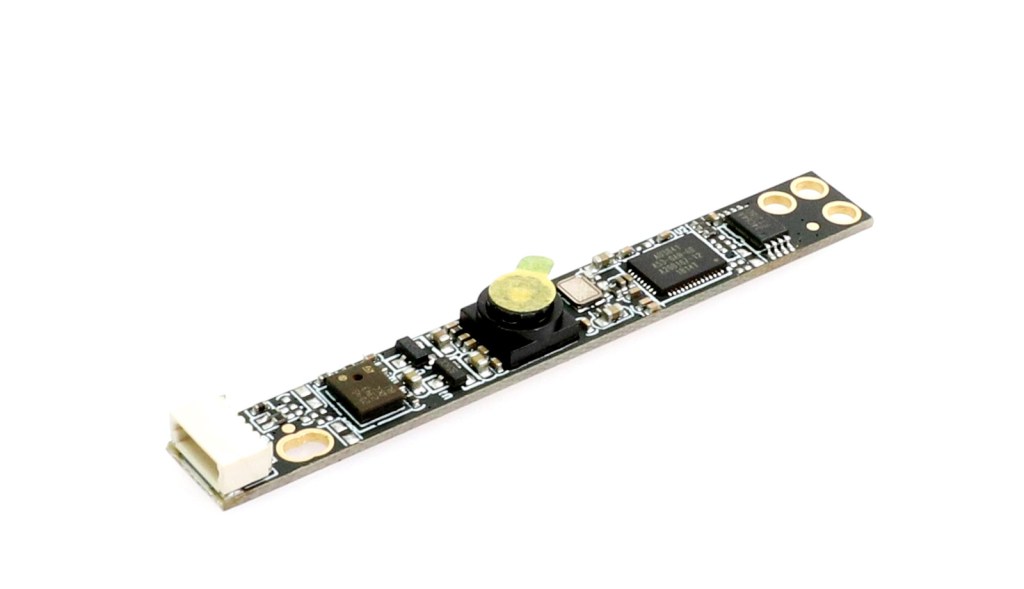

The EXB-CA01 expansion board adopts a LEGO MODE modular design and integrates a camera interface for image capture and processing applications. Compact and reliable, it supports stable communication with the mainboard and is ideal for machine vision, industrial inspection, and intelligent monitoring systems.
★ Modular Design — LEGO MODE for flexible multi-scenario use
★ Camera
★ Specification Download
| Parameter | Description |
| Applicable Structure | Compatible with L200, L300 |
| Compatible Motherboards | CES-3802，CES-1601，CES-1902 |
| Output Interface | 24-pin ribbon cable interface, pitch 0.65 mm |
| Output Format | YUV / RGB, common compressed format YUY2 |
| Supported Resolution | 2 megapixels (i.e., 720P) |
| Field of View | Standard ≈ 65°, wide-angle version up to 110° |
| Frame Rate | At VGA resolution: 15/30 fps; supports multiple resolutions, maximum output 1600×1200 |
| Power Supply | 5V DC from Motherboard Pin |
| Power Consumption | < 1W (typical) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | / |
| Mounting Method | Adhesive Mounting |
