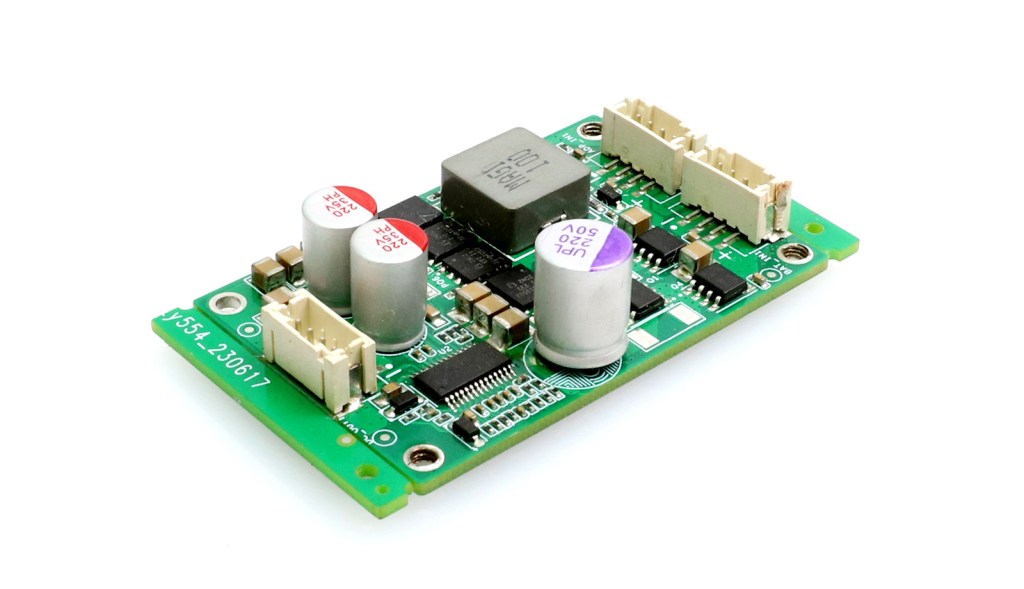

The EXB-D2242 expansion board features a modular design with redundant DC input, ensuring uninterrupted power supply and enhanced system reliability. It is built for industrial applications requiring stable operation under varying power conditions, offering high durability and seamless integration with embedded and automation systems.
★ Modular Design — BlockCore for flexible multi-scenario use
★ Redundant DC input
★ Specification Download
| Parameter | Description |
| Profile | L300 |
| Compatible Motherboard | CES-1901，CES-1601，CES-1201 |
| Power Supply | 5V DC from Motherboard Pin |
| Power Consumption | < 1W (typical) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 60 x 39.0mm |
| Mounting Method | Screw Holes |

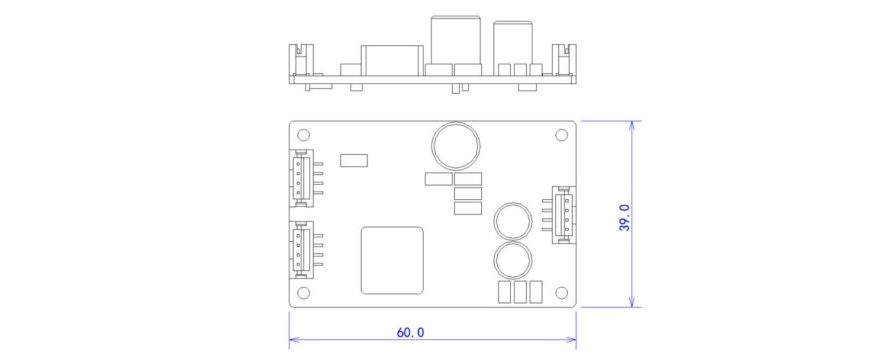

Dimensions

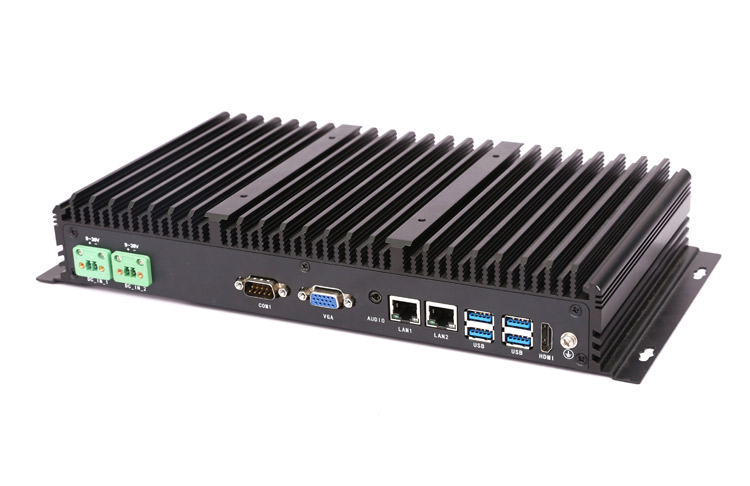

IPC with EXB-D2242
10th Gen Intel® Core™ Processor
Redundant DC
