Fanless Industrial Computer CTN-306A
Product Features
- Intel Baytrail Celeron J6412 2.0-2.6GHz CPU
- Memory up to 8GB DDR3
- Storage: 1SATA 2.5inch SSD, 1 mSATA SSD socket
- Wireless Design
- Aluminum Chassis, Fanless Design
- DC 9~36V Wide Power Input
- Download Specification
Product Introduction
CTN-306A is an industrial PC equipped with an Intel® Bay Trail J6412 processor. Meeting the demands of harsh environments, the fanless design makes the CTN-306A extra reliable for applications in the machine building industry. In addition, the dual GbE LAN, 2 x serial ports, 4 x USB ports, make device connection and integration easy.
Product Specifications
| CPU | Intel Baytrail-D Celeron J6412, 2.0~2.6GHz, 4cores, 4threads, 2M cache, 22nm,TDP 10W |
| Cooling System | Fanless |
| Memory | Single Socket, 4GB-8GB DDR3L |
| Storage | mSATA SSD Full Size + SATA 2.5 inch SSD |
| I/O ports | 2xUSB2.0+2xUSB3.0, Type A |
| 1xRS232, DB9 Type1xRS232/422/485 ( Configurable through Jumpers), DB9 Type | |
| Dual Display: HDMI(1920*1200 @60Hz)+VGA(1920*1080 @60Hz) | |
| 1x mini-PCIe port, Full Length | |
| 2x Spare connectors holes, DB9 Type | |
| 1xGPIO, Internal Input Port Set by a Resistor Soldered on the PCB | |
| Wi-Fi: 802.11a/g/n, 2×2 Antenna, 2.4/5 GHz, 300 Mbps Max Speed | |
| Network(LAN) | 2x Realtek RTL8111H 10/100/1000Mbps Ethernet |
| Input Voltage | 12V DC (3 Pin Phoenix Connector) , optional 9V-36V DC |
| Control SW | 1x Power SW, AT/ATX optional |
| Remote Switch Connector | Phoenix Connector |
| OS Support | Microsoft Windows 7/ Windows 10/ Windows 11/ Linux |
| Operating Temperature | 0℃～50℃ (extend temperature optional) |
| Storage Temperature | -20℃～60℃ (extend temperature optional) |
| Dimensions | (W*D*H): 300x160x65mm With bracket: 356×161.5x65mm |
| Weight | N.W. 3.2KG |
| Color | Black |
| Material | High Strength Aluminum Alloy |
| Certification | CE / UL / RoHS |

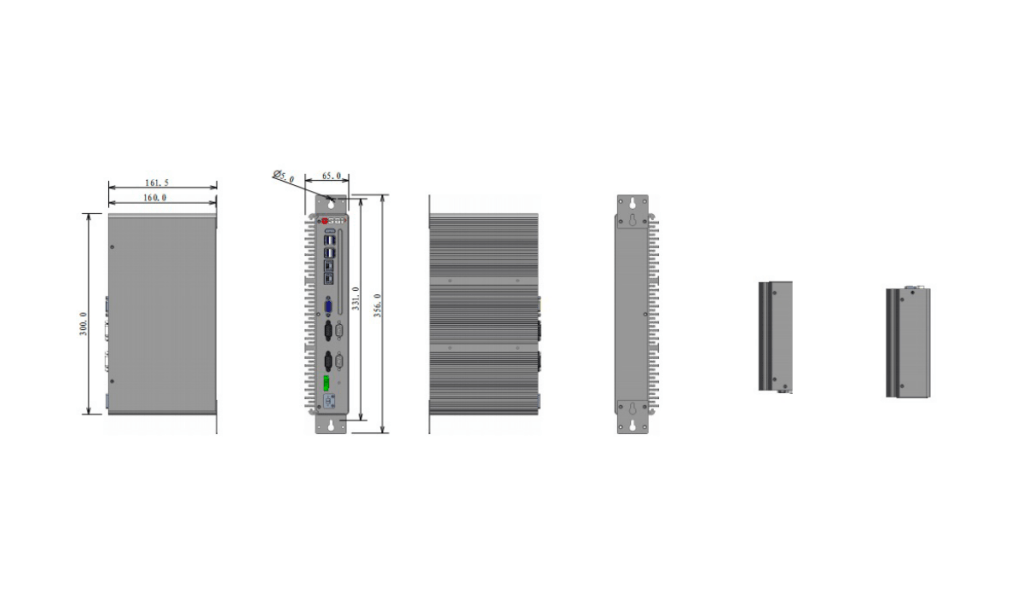

Product Dimensional Diagram
