Fanless Industrial Computer CTN-309A

Product Introduction

CTN-309A is an industrial PC equipped with an Intel® 10^th Gen. Core I3/I5/I7 processor. Meeting the demands of harsh environments, the fanless design makes the CTN-309A extra reliable for applications in the machine building industry. In addition, the three GbE LAN, 2 x serial ports, 4 x USB ports, make device connection and integration easy.

Product Specifications

CPU	Intel® i3-10110U Dual Core, 2.10-4.10 GHz 4M Cache, TDP 15W Intel® i5-10210U Quad Core, 1.60-4.20 GHz 4M Cache, TDP 15W Intel® i7-10510U Quad Core, 1.80-4.90 GHz 4M Cache, TDP 15W
Cooling System	Fanless
Memory	1x DDR4 2133Mhz SO-DIMM Sockets, up to 16GB
Storage	1xFull Size Mini PCIe mSATA SSD+1×2.5” SATA SSD

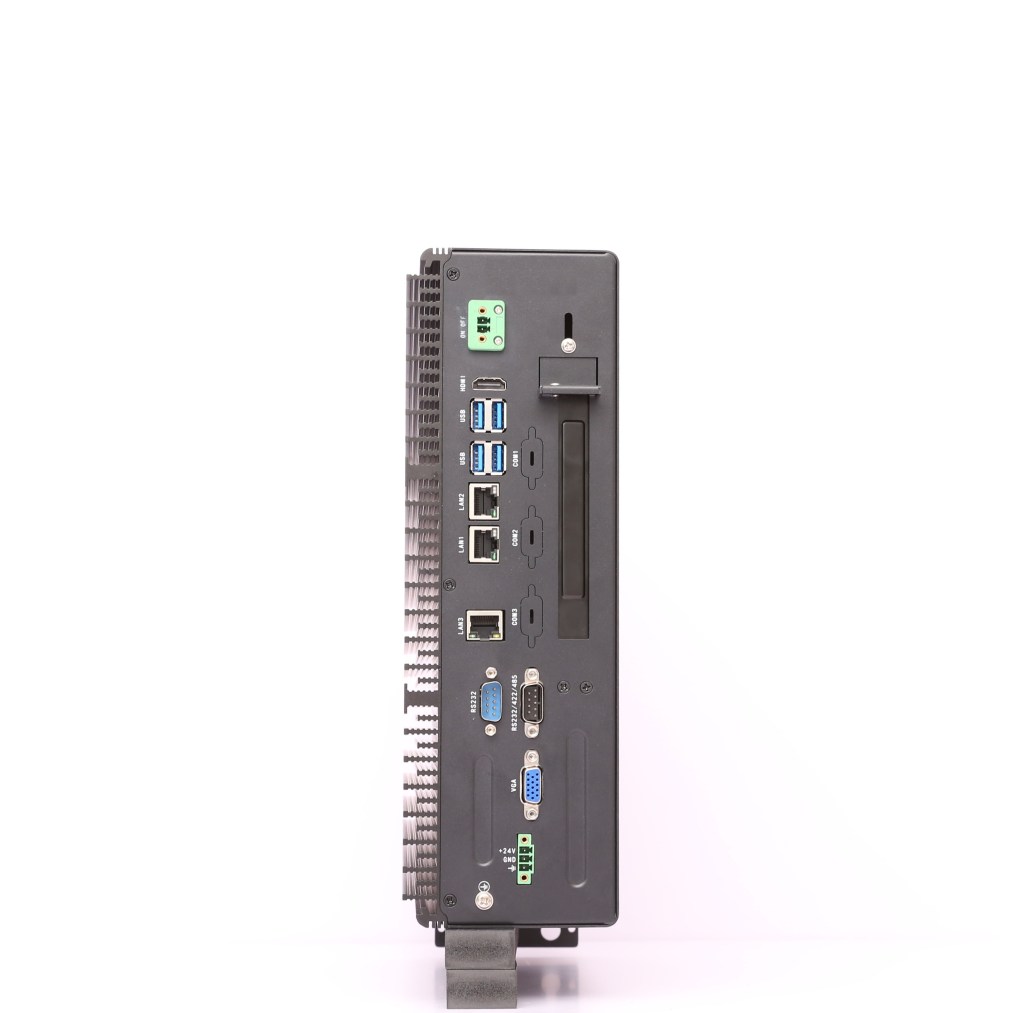

I/O ports	2xUSB3.0+2xUSB2.0 (Type-A)
	1xRS232, DB9 Type1xRS232/422/485 ( Configurable through Jumpers), DB9 Type
	Dual Display: HDMI(3840*2160 @24Hz)+VGA(1920*1080 @60Hz)
	1x mini-PCIe port, Full Length
	3x Spare connectors holes, DB9 Type
	1x PCIe Slot, 1×4 Speed
	1xGPIO, Internal Input Port Set by a Resistor Soldered on the PCB
	Wi-Fi: 802.11a/g/n, 2×2 Antenna, 2.4/5 GHz, 300 Mbps Max Speed
Network(LAN)	3x Intel i225 10/100/1000Mbps Ethernet
Input Voltage	12V DC (3 Pin Phoenix Connector) , optional 9V-36V DC
Control SW	1x Power SW, AT/ATX optional
Remote Switch Connector	Phoenix Connector
OS Support	Microsoft Windows 7/ Windows 10/ Windows 11/ Linux
Operating Temperature	0℃～50℃ (extend temperature optional)
Storage Temperature	-20℃～60℃ (extend temperature optional)
Dimensions	(W*D*H): 300x210x46mm With bracket: 356×211.5x46mm
Weight	N.W. 3.2KG
Color	Black
Material	High Strength Aluminum Alloy Front Panel
Certification	CE / UL / RoHS
Custom Service	Custom BIOS, System Encryption, Custom LOGO

Product Dimensional Diagram
