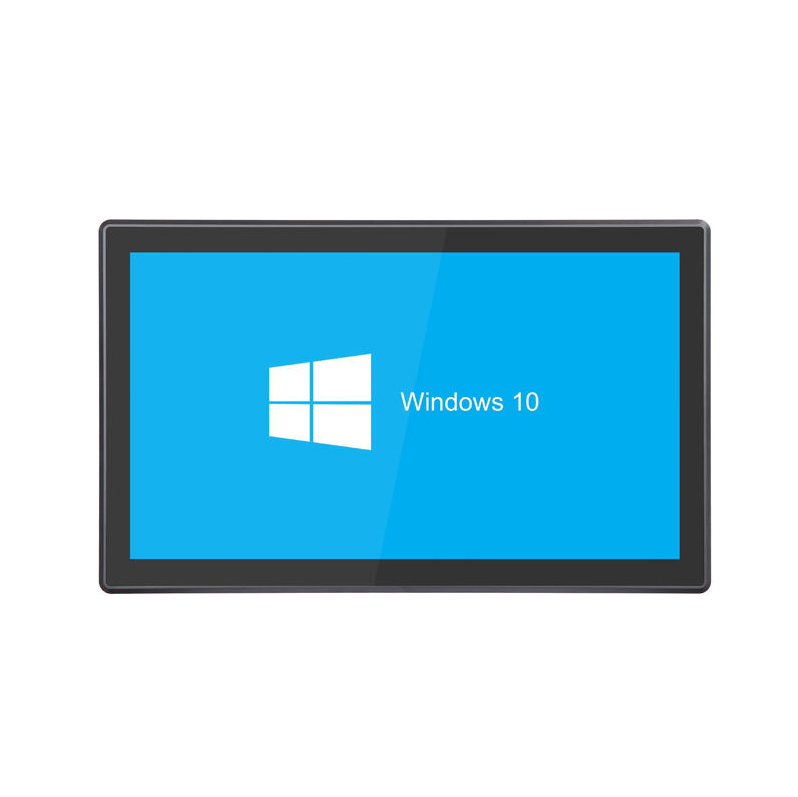

21.5-Inch Fanless GEN. 10 Industrial Panel PC With Redundant Power Supply UTC-W2192E
Product Features
- Intel® Core™ i7/i5/i3 processors, compatible from Celeron® to 12th Gen Intel® Core™
- 21.5-inch 16:9 TFT LCD, 1920 × 1080 (SXGA).
- 10-point capacitive touch, IP65 front, 6H hardness.
- Fanless
- Dual Intel® I210 Gigabit Ethernet.

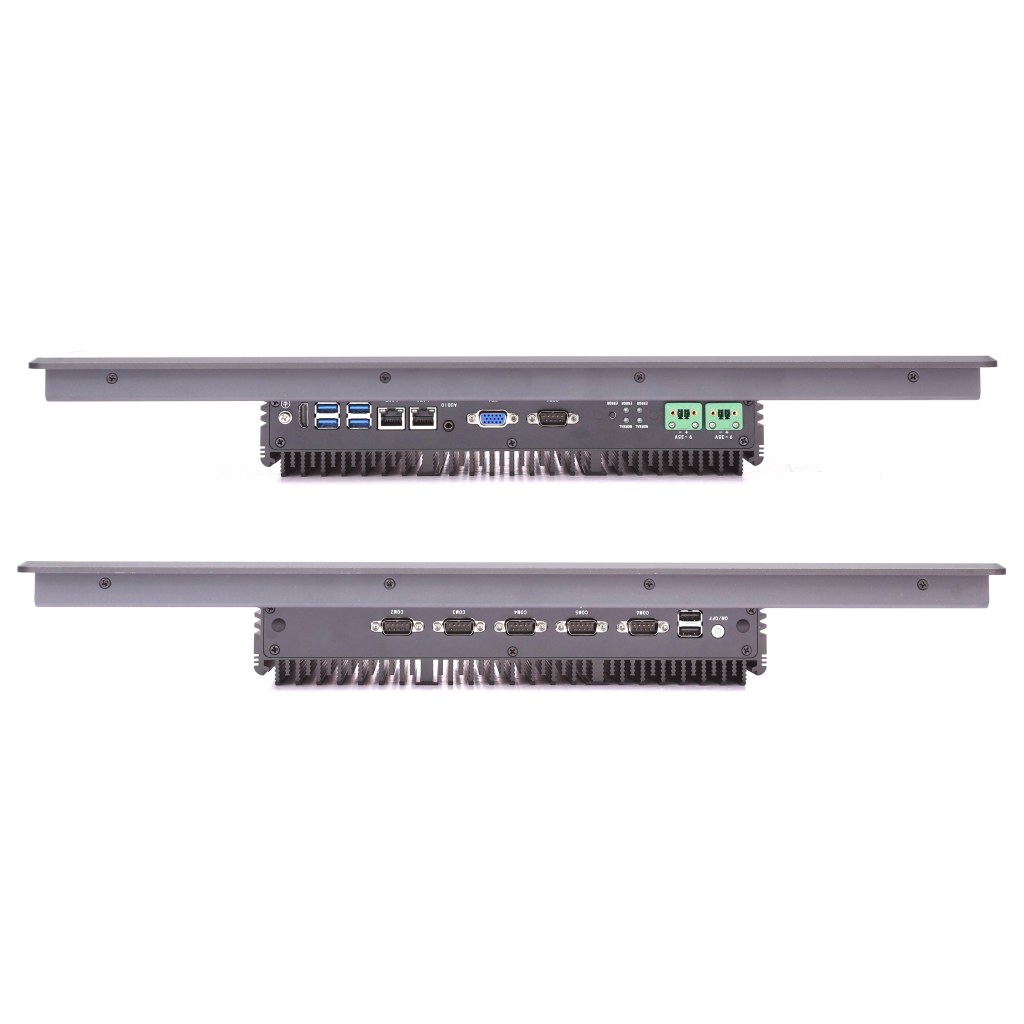

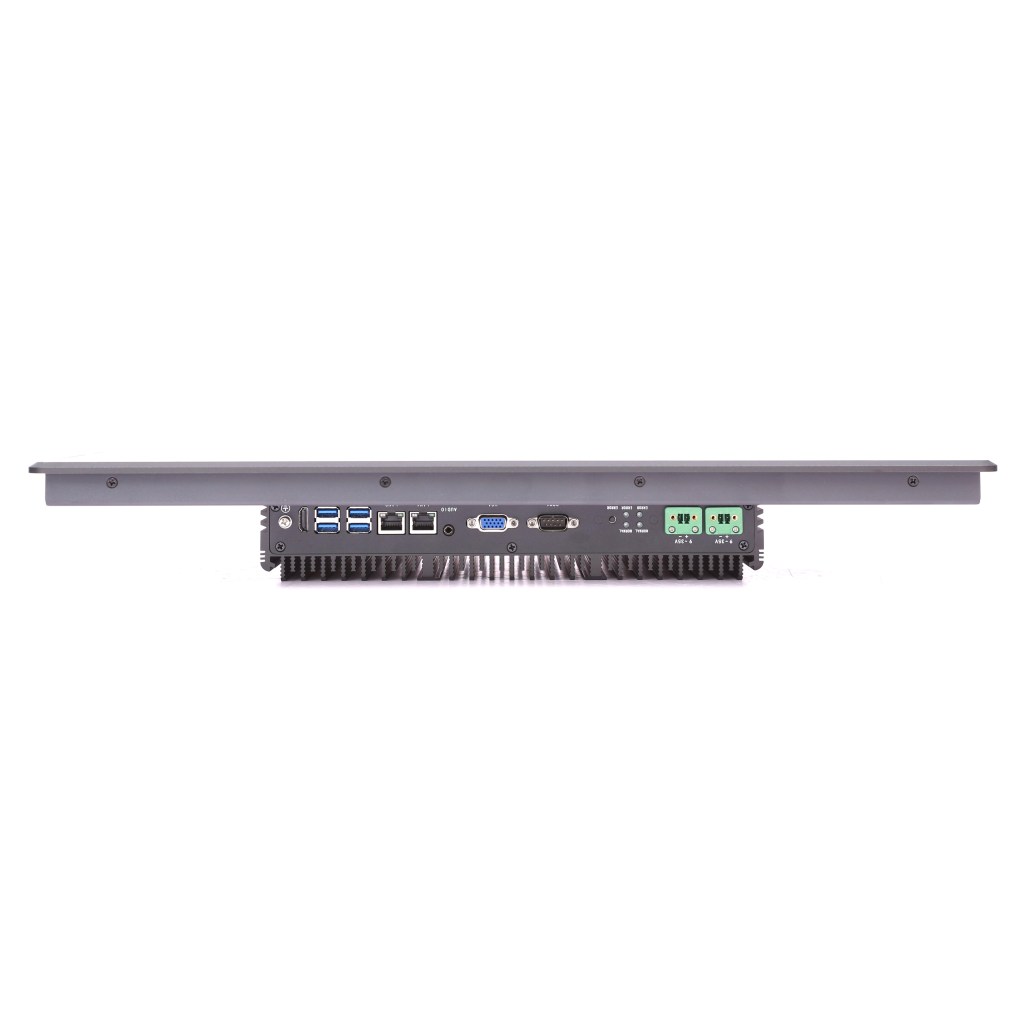

- I/O: USB 2.0 ×2, USB 3.0 ×4, Audio ×1, Mic ×1, RS-232 ×6, HDMI, VGA.
- 9–36V DC wide-range redundant power input.
- Expansion: dual M.2 2280 NVMe, M.2 2230 Wi-Fi.
- TPM 2.0 hardware security support.
- CESIPC LEGO MODE modular design.
- CESIPC SafeCore™ power-loss protection.
- Auto power-on after power recovery.
- Industrial-grade 6061 aluminum alloy enclosure.
- Download Specification
Product Introduction
UTC-W2192E is an intelligent, fanless panel PC, 21.5″ Panel PC equipped with an Intel® 10th Gen Core i3 i5 i7 processor. Meeting the demands of harsh environments, in addition, the dual GbE LAN, 6 x serial ports, 6 x USB ports, make device connection and integration easy.
Product Specifications
| CPU | Intel® i3-10110U Dual Core, 2.10-4.10 GHz 4M Cache, TDP 15W Intel® i5-10210U Quad Core, 1.60-4.20 GHz 4M Cache, TDP 15W Intel® i7-10510U Quad Core, 1.80-4.90 GHz 4M Cache, TDP 15W |
| Cooling System | Fanless |
| Memory | 1x DDR4 2133Mhz SO-DIMM Sockets, up to 16GB |
| Storage | M.2 NVME SSD + mSATA SSD |
| I/O ports | USB: 4xUSB2.0+2xUSB2.0, Type-A |

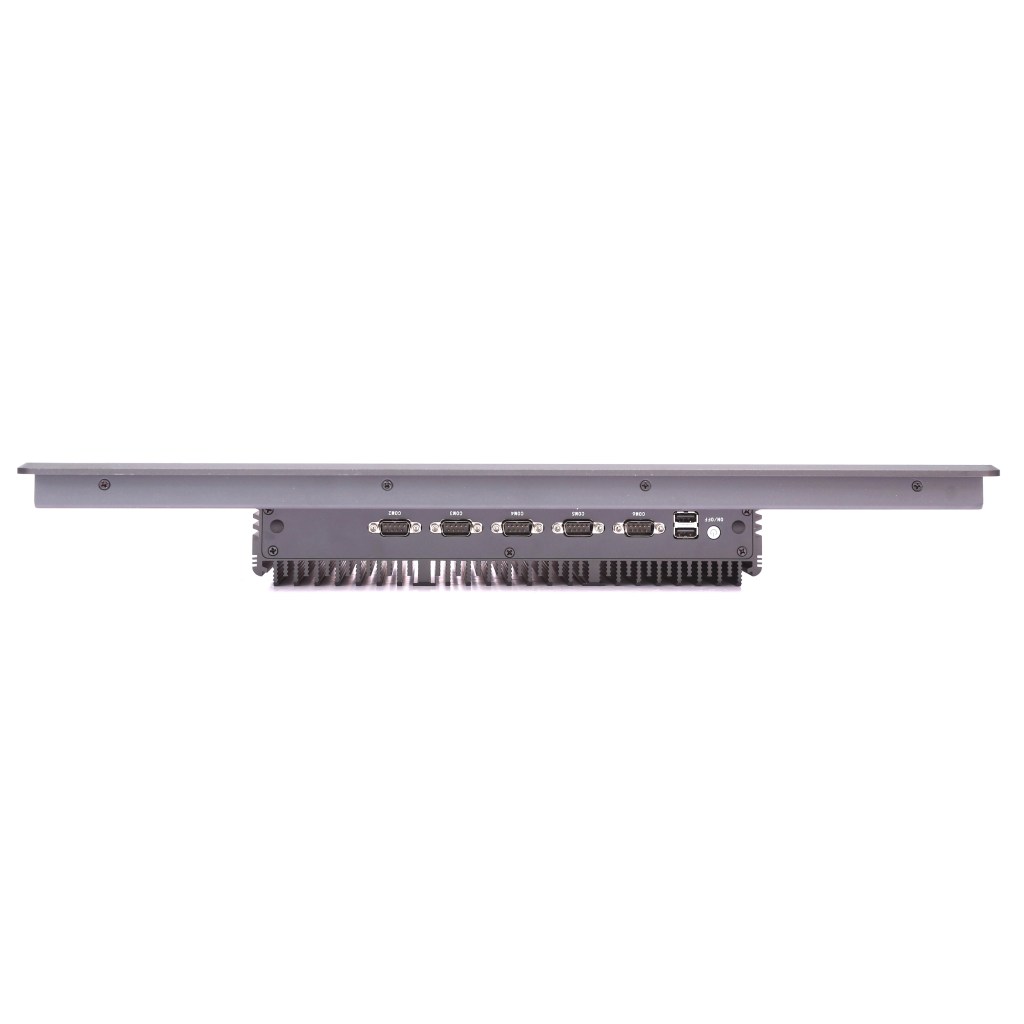

| COM: 6xRS232, DB9, 2*RS485/RS422 optional | |
| Dual Display: 1xHDMI (1920*1200 @30Hz)1*VGA (1920*1200 @30Hz) | |
| Audio: 1×Mic-in, 1x Line-out | |
| Expansion: MINI-PCIE | |
| Network(LAN) | 4x 10/100/1000Mbps Ethernet |
| Input Voltage | 12V DC (3 Pin Phoenix Connector) , optional 9V-36V DC |
| Display Type: | 21.5 inch TFT LED Panel( LED Backlight) |
| Max. Resolution: | 1920 x 1080 / 16:9 |
| Luminance(cd/㎡) | 300nits |
| Touch Type | Capacitive Touch |
| OS Support | Microsoft Windows 7/ Windows 10/Windows 11/ Linux |
| Operating Temperature | 0℃～50℃(14~ 140 °F)(extend temperature optional) |
| Storage Temperature | -10℃～60℃(-4 ~ 158 °F) |
| Front Panel Protection | IP65 compliant |
| Dimensions | (W*D*H): 530×326.6x75mm Mounting Cut out (W*D): 513x303mm |
| Weight | 7.8KG |
| Color | Black |
| Material | Aluminum + SUS |
| Certification | CE / RoHS |
| Custom Service | Custom BIOS, System Encryption, Custom LOGO |
Product Dimensional Diagram
