WPC-W2122A-G 21.5inch IP69K Panel PC
Product Features
- Full SUS304 stainless enclosure with CNC bezel
- IP69K +IP67 + IK07 wash down & chemical resistance
- LEGO MODE™ modular I/O expansion.
- TPM 2.0 and SafeCore™ reliability for power-loss protection.
- 21.5” FHD P-CAP industrial display.
- Intel® Core™ i3-1215U/i5-1235U/ i7-1255U.
- Dual-SSD + Mini PCle wireless options.
- Intel® i210 LAN.
- Fanless & hygienic thermal structure.
- Anti-condensation design.

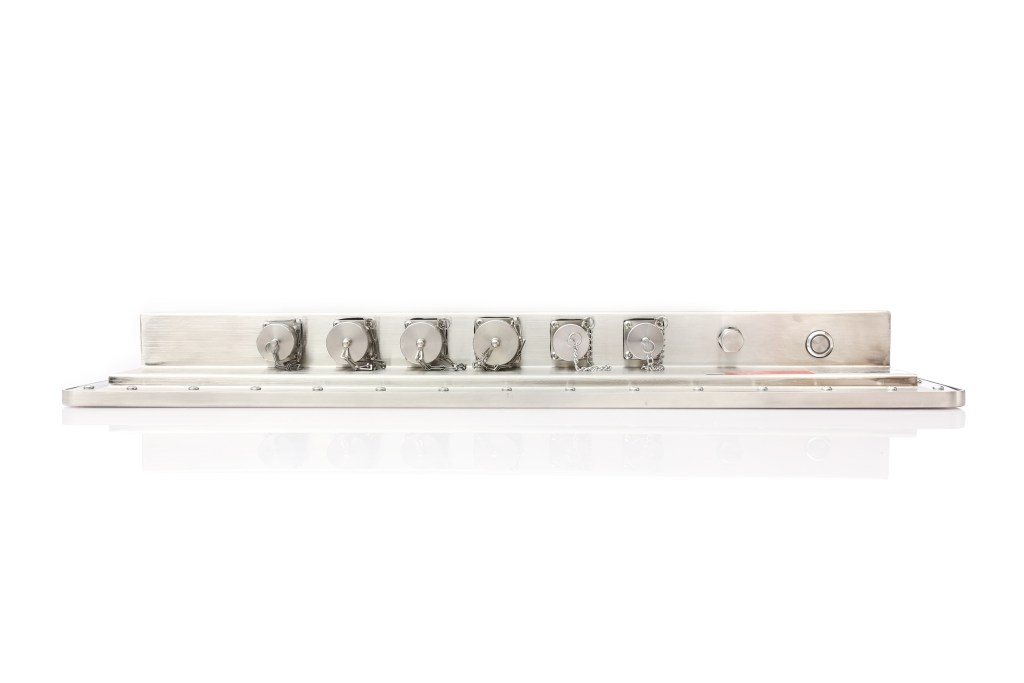

- Sealed I/O zone for durability.
- GMP/HACCP-ready hygienic design.
- Supports Windows/Ubuntu.
- Download Specification
WPC-W2122A-G is a 21.5inch IP67/IP69K Panel PC equipped with an Intel® processor. Ideal for dairy, seafood, meat processing, and medical industries, it withstands high-pressure washdowns, resists corrosion, and operates reliably in harsh, hygienic environments.
System Core
| CPU / Model | Cores | Threads | Base (GHz) | Turbo (GHz) | Cache | TDP | Graphics | Memory |
|---|---|---|---|---|---|---|---|---|
| Intel® Core™ i3-1215U | 6 (2P+4E) | 8 | 1.2 | 4.4 | 10MB | 15W | UHD (48 EUs) | DDR5 8–32GB |
| Intel® Core™ i5-1235U | 10 (2P+8E) | 12 | 1.3 | 4.4 | 12MB | 15W | Iris Xe (80 EUs) | DDR5 8–32GB |
| Intel® Core™ i7-1255U | 10 (2P+8E) | 12 | 1.2 | 4.7 | 12MB | 15W | Iris Xe (96 EUs) | DDR5 16–32GB |
I/O
| DC Input | 1 × 4-pin aviation connector (12V DC), supports 9–36V wide-range input (optional) |
| USB Ports | 2 × USB 2.0, each equipped with an aviation connector |
| Serial Ports | 2 × RS232 with 1 aviation connector (optional RS485/422) |
| Ethernet Port | 1 × 10/100/1000 Mbps Ethernet port with 1 aviation connector |
Wireless Communication
| Wi-Fi | Intel N6235 300Mbps, 802.11a/b/g/n, 2.4G / 5G |
| Wireless Network | 4G LTE Full Netcom Module |
LCD Panel
| LCD Size | 21.5inch Panel Size |
| Resolution | 1920×1080 / 16:9 |
| Brightnesss (cd/m2) | 300 |
| Contrast Ratio | 500 : 1 |
| Backlight LED Life Time | 50,000 hrs (LED Backlight) |
| Touchscreen Type | Projected Capacitive Touch |
Environmental
| Protection | Whole IP69K Level Compliant |
| Operating Temperature | -10℃～60℃(14~ 140 °F)(extend temperature optional) |
| Storage Temperature | -20℃～70℃(-4 ~ 158 °F) |
| Relative Humidity | 10%~90% , Non-condensing |
| EMC | CE, FCC (According to EN 55032 & EN 55035)EN IEC 61000-3-2 |
| Factory | ISO9001: 2015 |
| ODM | BIOS / Boot on LOGO / OEM |
| MTBF | 60,000 Hours |
Mechanical
| Dimension | 570 (W) × 366.6(D) × 56 (H) mm |
| Weight | 13KG N.W. |
| Material | Rugged Stainless Steel 304 Casing |
| Mount | VESA Mount |
OS
| Windows | Windows 10 / Windows 11 （Note: Celeron J1900 can support Windows 7） |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
Dimensions
Video

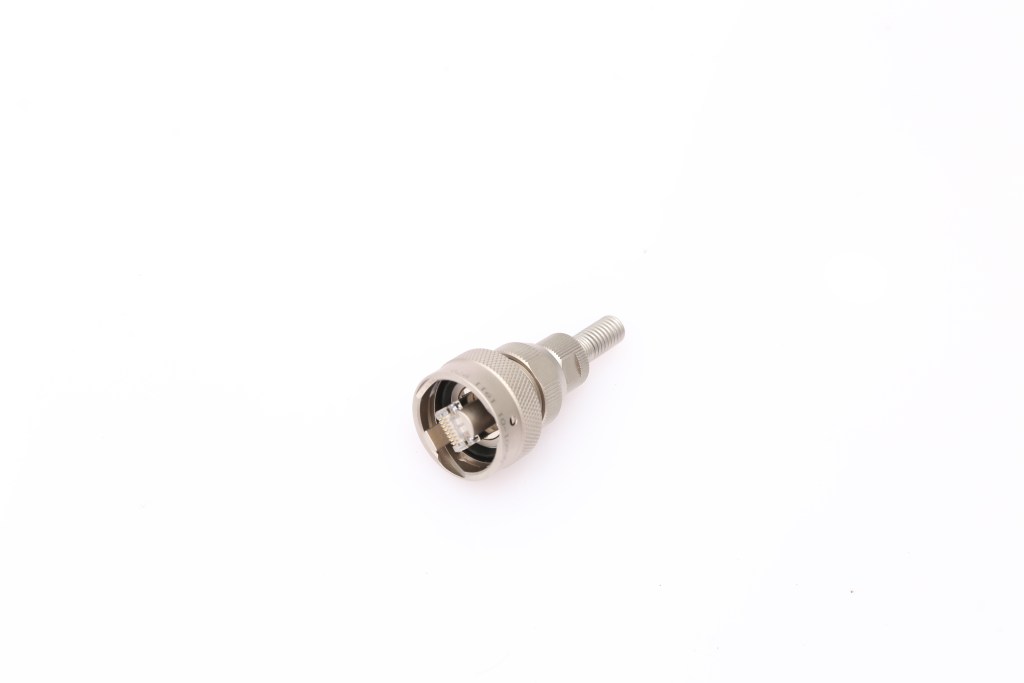

Accessories

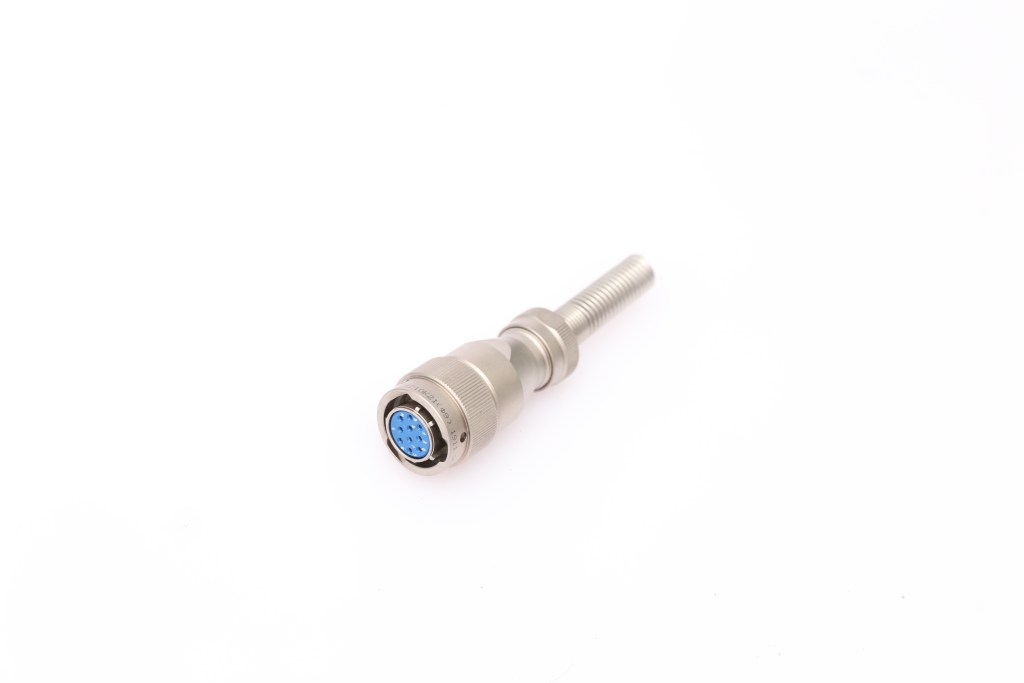

Serial Cable: 10-pin waterproof circular connector to DB9 cable

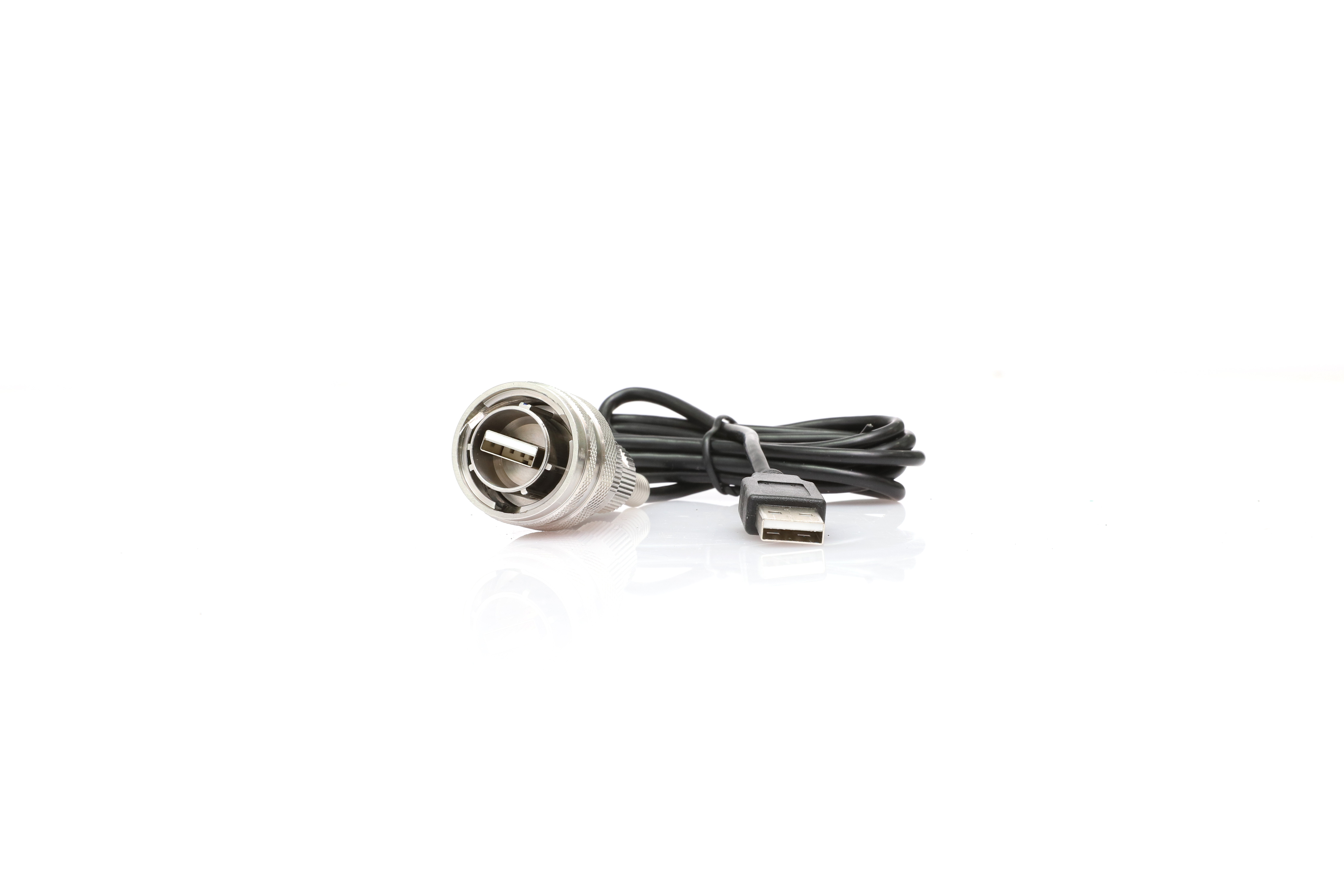

USB: waterproof circular connector to USB Type-A cable

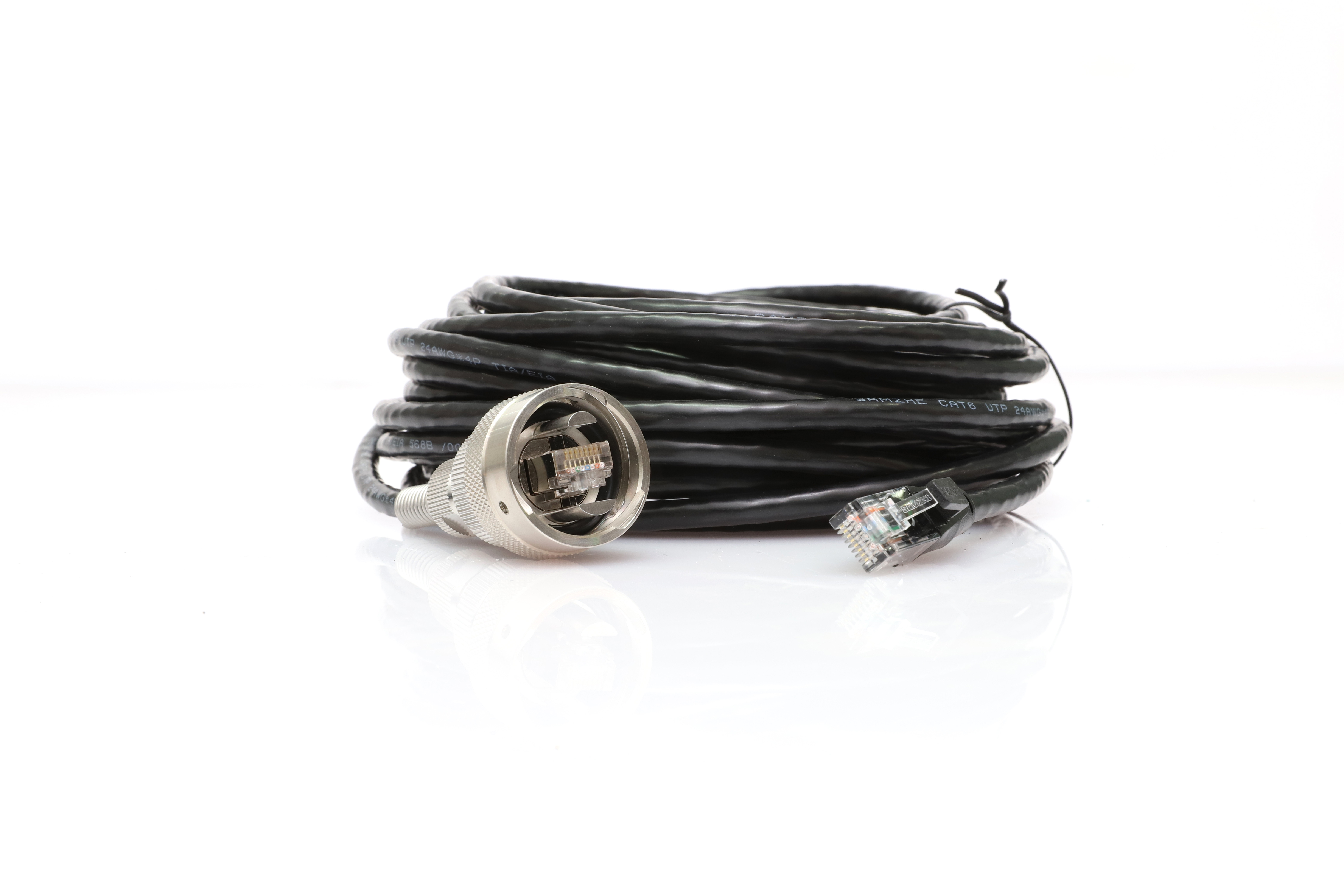

LAN: waterproof circular connector to LAN RJ45 cable

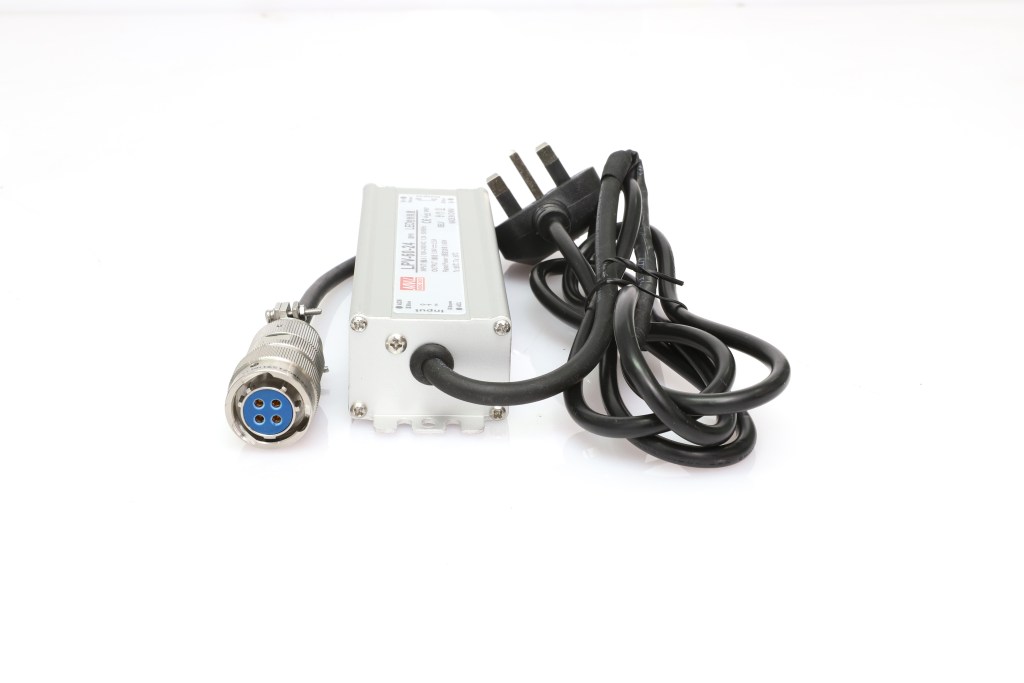

Power adapter: Waterproof power adapter
Antenna: SMA antenna
Applications
