Product Features
- Multi-Screen HD Display: 15.6-inch triple screens with adjustable brightness.
- High-Performance Host: Intel 10th Gen, 8 cores, 16 threads.
- Durable Work Surface: Made of high-strength aluminum alloy with a spill-resistant C-panel design.
- Versatile Multi-Screen Design: Supports screen switching and external screen mirroring.
- Comprehensive Communication & Audio: Built-in HD camera, 4G/5G module, speakers, audio input/output, and gooseneck microphone.
- Multiple HDMI Outputs: Supports 3 HDMI output channels.
- Long Battery Life: Equipped with a high-capacity lithium battery, providing up to 4 hours of operation.
- Convenient Control Functions: Integrated joystick, volume buttons, customizable keys, and strong protection for harsh working environments.
Product Description:

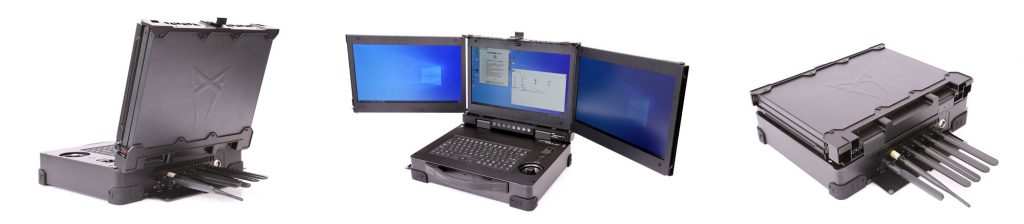

The CTN-1580K Integrated Command and Dispatch Platform is specifically designed for emergency command systems. It seamlessly integrates third-party hardware and software, making it ideal for use as a mobile server, workstation, monitoring station, and command center.
The platform is equipped with three high-quality 15.6-inch high-brightness LCD screens, supporting 1920×1080 resolution with a brightness of up to 1000 nits, ensuring clear visibility even under direct sunlight. This enhances graphical processing and data analysis while supporting multi-screen interactive applications.
With high performance, a large-capacity battery, and a portable protective trolley case, the system allows users to quickly deploy and set up in various application scenarios.
CTN-1580K Product Specifications
| Motherboard | Customized industrial motherboard by CESIPC |
| Processor | Intel Core i7-10870H, 8 cores, 16 threads, base frequency 2.2GHz, max turbo boost 5.0GHz |
| Memory | 32GB (upgradable to 128GB) |
| Graphics | Supports MXM independent graphics card |
| Display | 3 × 15.6-inch LQ TFT LCD (single-screen resolution: 1920×1080) |
| Storage | 512GB NVMe SSD + 1TB SATA SSD |
| Battery Life | 4 hours at normal temperature |
| Power Input | DC 19V |
| Keyboard | Industrial keyboard with touchpad |
| Brightness | Adjustable 400-1000cd/m² |
| Contrast Ratio | 500:1 |
| LAN | 2 × 10/100/1000Mbps RJ45 ports |
| USB Ports | 4 × USB 3.0 |
| COM Port | 1 × RS232 serial port |
| HDMI Output | 3 × HDMI |
| Audio | 1 × 3.5mm audio input/output port |
| Camera | Built-in 5MP camera on the center screen |
| Microphone | 1 × Gooseneck microphone |
| Joystick | 1 × Three-axis joystick controller |
| Customization Options | Supports 4G/5G full network connectivity, WiFi 802.11ac |
| Overall Dimensions | Approx. 395 × 295 × 90.4mm (excluding protective corners) |
| Weight | 10.6kg |
| Operating Temperature | -10~60°C |
| Storage Temperature | -20~70°C |
| Relative Humidity | 10~95% @ 40°C (non-condensing) |
| Protection Level | IP53 |
| Operating System | |
| Windows | Windows 10 |
| Linux | Linux System |
Application Fields
The CTN-1580KB rugged portable three-screen terminal is widely used in various fields, including epidemic prevention, traffic and patrol police, emergency response, armed police, civil defense, border defense, urban management, safety supervision, firefighting, power grid maintenance, railway inspection, forest fire prevention, military operations, and other large-scale security activities. It enables real-time information collection and reporting, effective incident control, rescue resource deployment, and event handling, significantly improving emergency command efficiency.
