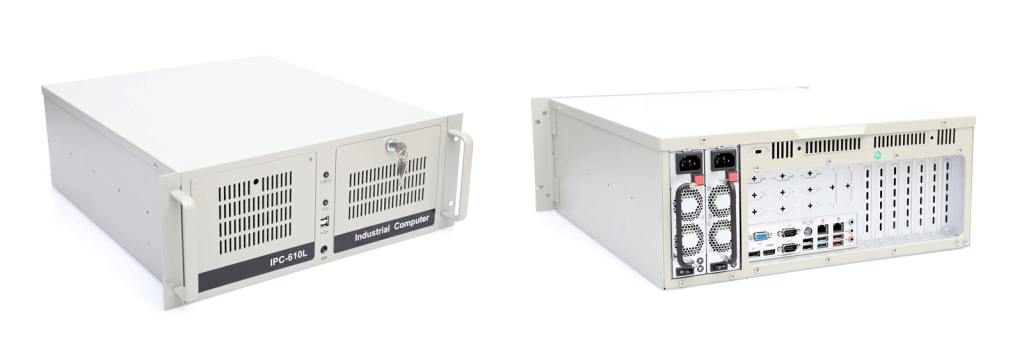

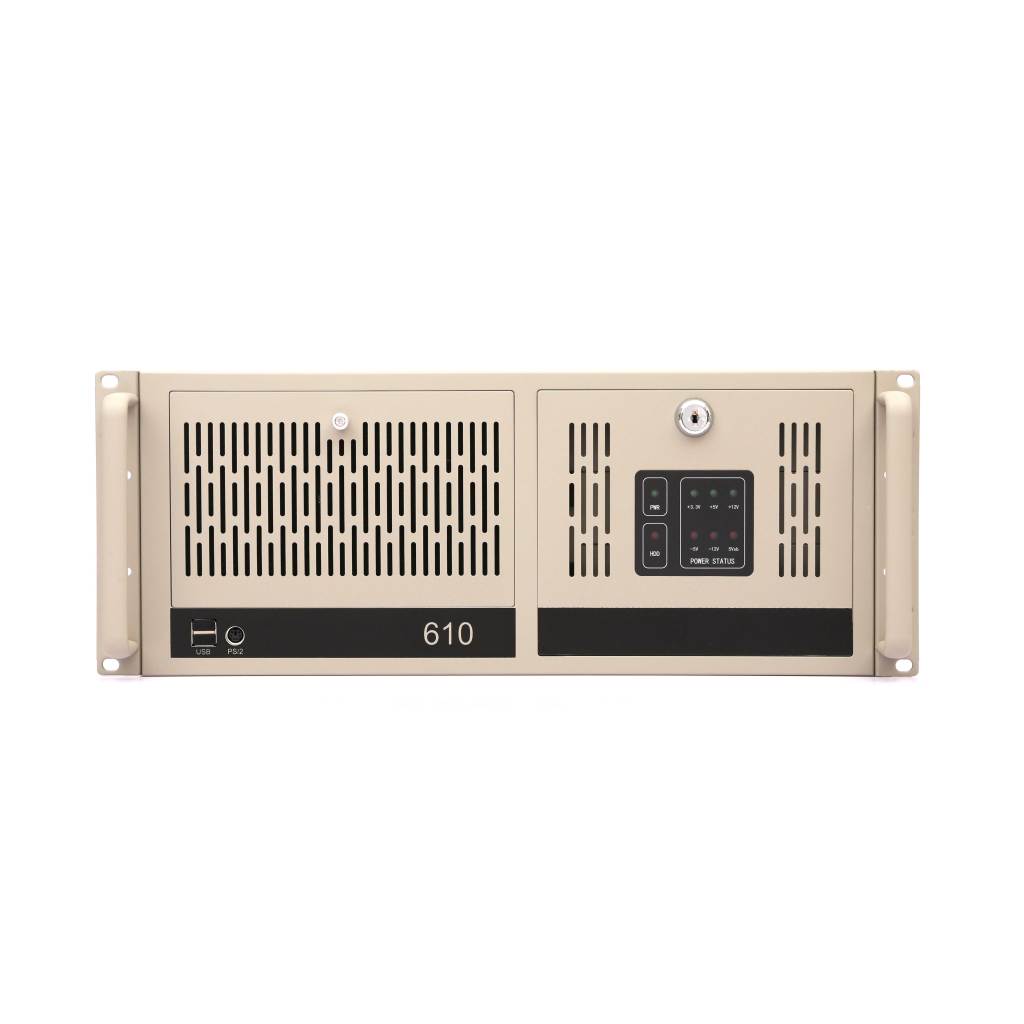

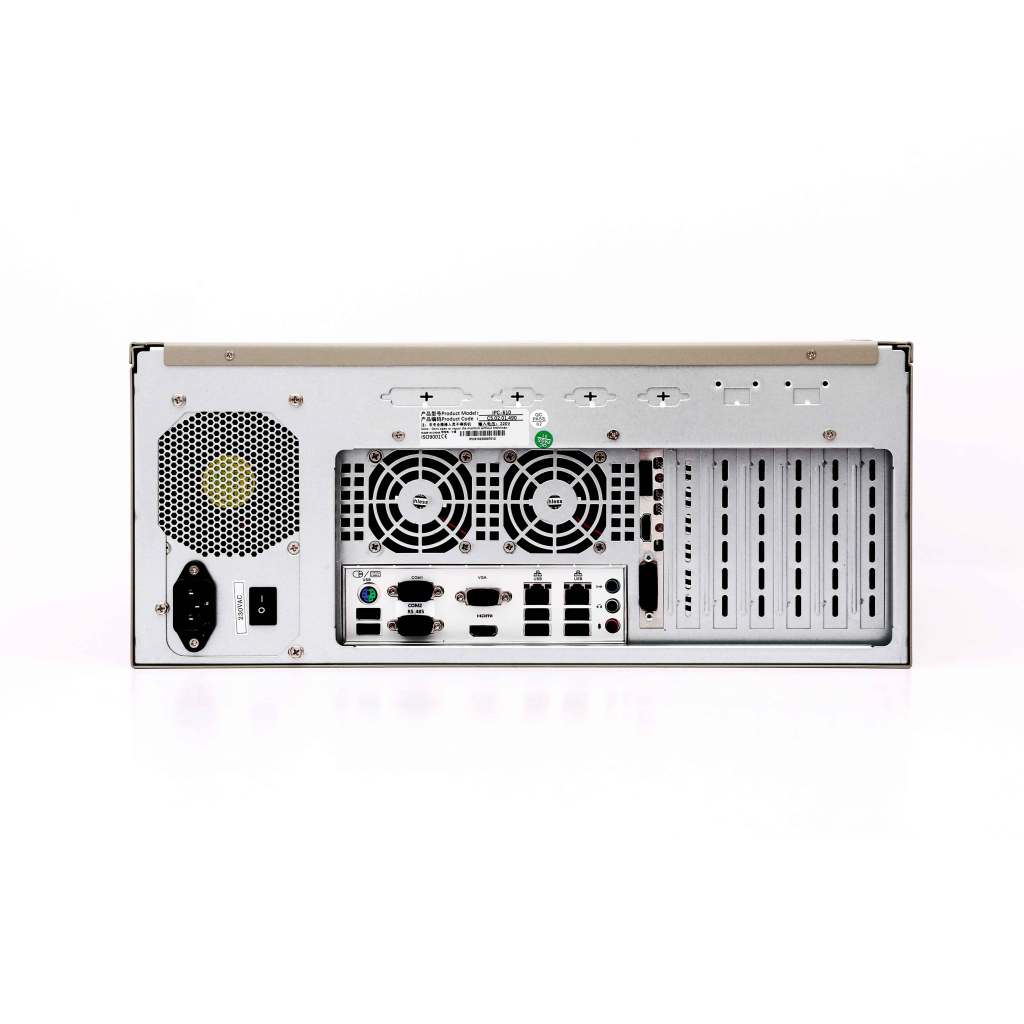

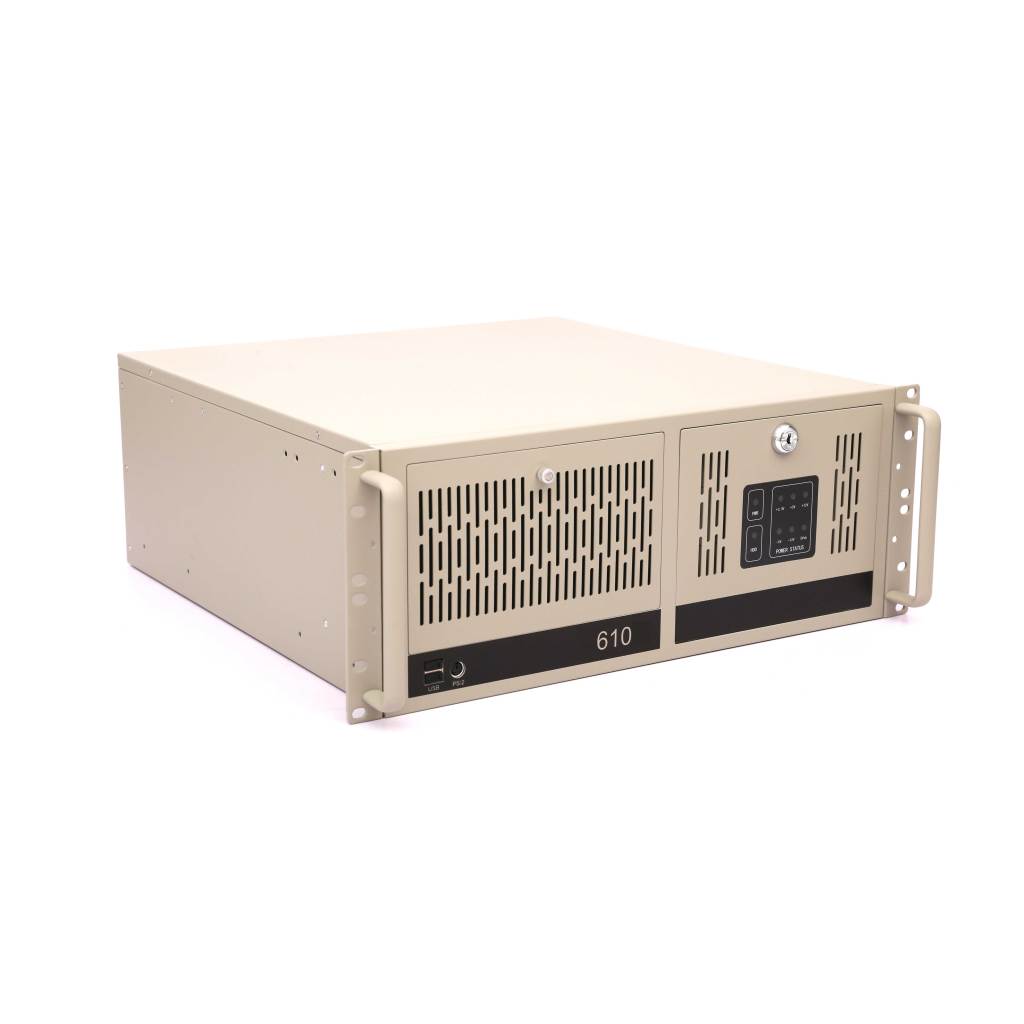

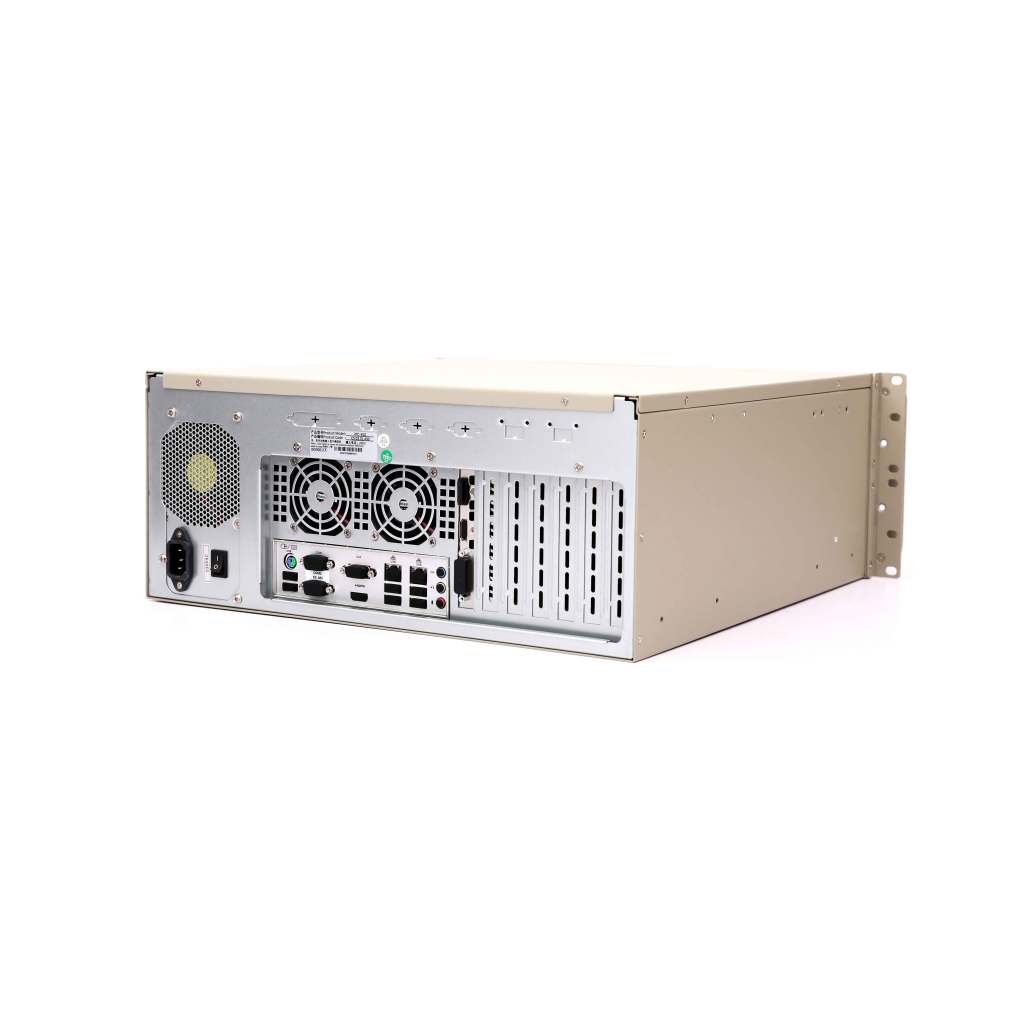

The CESIPC IPC-610 is a 4U rack-mount industrial PC designed for applications requiring multiple PCI and PCIe expansion cards. It provides high-performance Intel computing, multiple expansion slots, flexible storage, and industrial I/O, making it suitable for systems that need to integrate graphics cards, frame grabbers, data acquisition cards, motion control cards, or other application-specific hardware.
Introduction
- Intel® Core™ i7/i5/i3 processors, compatible 2 -14th Gen Intel® Core™
- PCI-e X16, PCI-e X4, PCI-e X1
- PCI
- I/O: USB 2.0 ×6, USB 3.0 ×2, Audio ×1, Mic ×1, RS-232 ×6, HDMI, VGA.
- TPM 2.0 hardware security support.
- CESIPC BlockCore™ modular design.
- CESIPC SafeCore™ power-loss protection.
- Industrial-grade 6061 aluminum alloy enclosure.
IPC-610 Introduction
General Specifications
| Category | Specification |
|---|---|
| Product | 4U Rack Mount Industrial PC |
| Processor | Intel Core 2nd–14th Gen CPU, i3/i5/i7/i9 depending on motherboard |
| Motherboard Options | CES-781B / CES-785A / CES-787A / CES-809 |
| Power Supply | Built-in 500–700W power supply |
| Operating Temperature | -10°C to 60°C (14°F to 122°F) |
| Storage Temperature | -20°C to 75°C (-4°F to 158°F) |
| Operating Humidity | 95% @ 40°C (104°F), non-condensing |
| MTBF | ≥50,000 hours |
| MTTR | ≤0.5 hours |
| Anti-Shock | 0.5g RMS, 5–500Hz, random |
| Dimensions | 483(W) × 350(D) × 178(H) mm |
| Weight | 15 kg (33.07 lb) |
| Material | High-strength aluminum alloy + galvanized steel sheet |
| Power Recovery | Automatically restarts after power is restored |
| Watchdog | Automatic system restart after a system crash |
| Low-Voltage Adaptation | 100–240V input with stable startup and operation |
| Electrostatic Protection | Hardware circuit protection against lightning and electrostatic impact above 2000V |
Motherboard & Expansion Options
| Specification | CES-781B | CES-785A | CES-787A | CES-809 |
|---|---|---|---|---|
| CPU | Intel Core 2nd–3rd Gen, i3/i5/i7 | Intel Core 4th Gen, i3/i5/i7 | Intel Core 6th–9th Gen, i3/i5/i7 | Intel Core 12th–14th Gen, i3/i5/i7/i9, Pentium |
| CPU Socket | LGA 1155 | LGA 1150 | LGA 1151 | LGA 1700 |
| Chipset | Intel B75 | Intel B85 | Intel H110 | Intel H610 |
| Memory | 4 × DIMM, DDR3 1066/1333/1600MHz, Max. 32GB | 4 × DIMM, DDR3 1066/1333/1600MHz, Max. 32GB | 4 × DIMM, DDR4 2133/2400/2666MHz, Max. 64GB | 2 × DIMM, DDR4 2133/2400/2666MHz, Max. 64GB |
| Storage | 3 × SATA III + 5 × SATA II | 4 × SATA III + 1 × mSATA | 4 × SATA III | 4 × SATA III + 1 × M.2 |
| USB | 4 × USB 3.0 + 10 × USB 2.0 | 4 × USB 3.0 + 8 × USB 2.0 | 6 × USB 3.0 + 8 × USB 2.0 | 2 × USB 3.2 + 2 × USB 3.0 + 6 × USB 2.0 |
| COM | 6 × RS232 + 2 × RS485/RS422 optional | 6 × RS232 + 2 × RS485/RS422 optional | 6 × RS232 + 2 × RS485/RS422 optional | 6 × RS232 + 2 × RS485/RS422 optional |
| Display | 1 × VGA + 1 × DVI | 2 × VGA | 1 × HDMI + 1 × VGA + 1 × DP | 1 × HDMI + 1 × VGA + 1 × DP |
| LAN | 2 × Intel I211 Gigabit Ethernet | 2 × Intel I211 Gigabit Ethernet | 2 × Intel I211 Gigabit Ethernet | 2 × Intel I211 Gigabit Ethernet |
| LPT | 1 | 1 | 1 | 1 |
| PS/2 | 1 | 1 | 1 | 1 |
| Expansion Slots | 1 × PCIe x16 + 1 × PCIe x4 + 2 × PCI | 1 × PCIe x16 + 1 × PCIe x4 + 1 × PCIe x1 | 1 × PCIe x16 + 3 × PCIe x4 + 1 × PCIe x1 + 2 × PCI | 1 × PCIe x16 + 1 × PCIe x4 + 2 × PCIe x1 + 3 × PCI |
| GPIO | 4 inputs + 4 outputs | 4 inputs + 4 outputs | 4 inputs + 4 outputs | 4 inputs + 4 outputs |
| Watchdog | — | — | — | 1–225 sec. system restart |
| Operating System | Windows 7/10, Linux CentOS/Ubuntu | Windows 7/10, Linux CentOS/Ubuntu | Windows 7/10, Linux CentOS/Ubuntu | Windows 10/11, Linux CentOS/Ubuntu |
IPC‑610 Series — 4U Rack‑mount Industrial PC FAQ
High‑performance 4U rack‑mount industrial PC with multiple PCI/PCIe expansion slots — purpose‑built for machine vision, data acquisition, motion control, and industrial automation applications requiring specialised add‑in cards.
What makes the IPC‑610 different from standard industrial PCs?+
The IPC‑610 is a 4U rack‑mount industrial PC designed specifically for applications requiring multiple PCI and PCIe expansion cards. Standard industrial PCs and panel PCs typically offer limited or no internal expansion slots, making them unsuitable for systems that need to integrate graphics cards, frame grabbers, data acquisition cards, motion control cards, or other application‑specific hardware.
Key differentiators include:
• 4U rack‑mount form factor — Standard 19‑inch rack mounting for data centres, control rooms, and equipment cabinets. Dimensions: 483(W)×350(D)×178(H)mm, weight: 15kg.
• Extensive expansion slots — Up to 1×PCIe x16 + 1×PCIe x4 + 3×PCIe x1 + 3×PCI (depending on motherboard option) — supports graphics cards, frame grabbers, motion control cards, and data acquisition hardware.
• Wide processor compatibility (2nd–14th Gen Intel® Core™) — Supports Intel Core 2nd to 14th Gen processors via interchangeable motherboards (CES‑781B / CES‑785A / CES‑787A / CES‑809), covering i3/i5/i7/i9 and Pentium.
• Industrial‑grade reliability — -10°C to 60°C operating temperature, 95% humidity @ 40°C, anti‑shock 0.5g RMS, ≥50,000 hours MTBF, ≤0.5 hours MTTR, electrostatic protection above 2000V.
• Built‑in 500–700W power supply — Sufficient power for multiple expansion cards and high‑performance processors.
• SafeCore™ power‑loss protection — Prevents OS/file corruption during sudden power loss with watchdog auto‑restart after system crash.
Standard commercial PCs lack these industrial‑grade features — particularly the multiple PCI/PCIe expansion slots, wide‑temperature range, and extended lifecycle support — making the IPC‑610 the preferred choice for mission‑critical industrial applications.
What expansion slots and motherboard options are available?+
The IPC‑610 supports four motherboard options covering Intel Core 2nd through 14th Gen processors, each with different expansion slot configurations:
CES‑781B (2nd–3rd Gen Intel Core) — LGA1155, Intel B75 chipset, DDR3 up to 32GB. Slots: 1×PCIe x16 + 1×PCIe x4 + 2×PCI.
CES‑785A (4th Gen Intel Core) — LGA1150, Intel B85 chipset, DDR3 up to 32GB. Slots: 1×PCIe x16 + 1×PCIe x4 + 1×PCIe x1.
CES‑787A (6th–9th Gen Intel Core) — LGA1151, Intel H110 chipset, DDR4 up to 64GB. Slots: 1×PCIe x16 + 3×PCIe x4 + 1×PCIe x1 + 2×PCI.
CES‑809 (12th–14th Gen Intel Core) — LGA1700, Intel H610 chipset, DDR4 up to 64GB. Slots: 1×PCIe x16 + 1×PCIe x4 + 2×PCIe x1 + 3×PCI. Includes 1–225 sec. programmable watchdog timer.
Expansion slot summary: The IPC‑610 can accommodate up to 1×PCIe x16 (for graphics cards) + 1×PCIe x4 + 3×PCIe x1 + 3×PCI (for legacy cards), depending on motherboard selection. This makes it suitable for integrating frame grabbers, motion control cards, data acquisition cards, and GPU accelerators simultaneously.
What processors and performance options are available?+
The IPC‑610 supports Intel Core 2nd through 14th Gen processors via interchangeable motherboard options, covering a broad spectrum of performance tiers:
2nd–3rd Gen Intel® Core™ (CES‑781B) — i3/i5/i7, LGA1155, DDR3 up to 32GB. Entry‑level for legacy applications and cost‑sensitive projects.
4th Gen Intel® Core™ (CES‑785A) — i3/i5/i7, LGA1150, DDR3 up to 32GB. Balanced performance for general industrial control and data acquisition.
6th–9th Gen Intel® Core™ (CES‑787A) — i3/i5/i7, LGA1151, DDR4 up to 64GB. High‑performance for machine vision, multi‑camera systems, and real‑time analytics.
12th–14th Gen Intel® Core™ (CES‑809) — i3/i5/i7/i9, Pentium, LGA1700, DDR4 up to 64GB. Flagship performance for edge AI, deep learning inference, and data‑intensive industrial applications.
Memory: 32–64GB DDR3/DDR4 depending on motherboard. Storage: 3–5 SATA ports + optional mSATA/M.2. Operating systems: Windows 7/10/11, Linux CentOS/Ubuntu.
For detailed specifications, download the datasheet.
What I/O ports and connectivity does the IPC‑610 offer?+
The IPC‑610 provides a comprehensive industrial I/O package with options varying by motherboard selection:
USB ports: Up to 6×USB 3.0 + 10×USB 2.0 (depending on motherboard) — connects vision cameras, diagnostic tools, external storage, and peripherals.
Serial ports: 6×RS232 + 2×RS485/RS422 optional — industry‑leading serial density for connecting legacy PLCs, sensors, serial controllers, and industrial meters.
Networking: 2×Intel® I211 Gigabit Ethernet (10/100/1000M) — dual network interfaces for separating control network traffic from management/SCADA traffic, or for network redundancy.
Display outputs: HDMI + VGA + DP (depending on motherboard) — multiple display options for operator + supervisor screens or multi‑monitor setups.
Additional interfaces: LPT (parallel port), PS/2 (keyboard/mouse), GPIO (4 inputs + 4 outputs) — support for legacy industrial peripherals.
Expansion: 1×M.2 (CES‑809), mSATA (CES‑785A) — additional storage and wireless module support.
What are the mechanical specifications, environmental ratings, and reliability features?+
Form factor: 4U rack‑mount — standard 19‑inch rack mounting for data centres, control rooms, and equipment cabinets.
Dimensions: 483(W) × 350(D) × 178(H) mm — 4U height for maximum expansion card compatibility.
Weight: 15 kg (33.07 lb) — robust construction for industrial environments.
Enclosure: High‑strength aluminum alloy + galvanized steel sheet — corrosion‑resistant and durable for 24/7 operation.
Power supply: Built‑in 500–700W power supply — sufficient power for multiple expansion cards and high‑performance processors. 100–240V input with stable startup and low‑voltage adaptation.
Operating temperature: -10°C to 60°C (14°F to 122°F) — suitable for unheated workshops, outdoor enclosures, and extreme industrial environments.
Storage temperature: -20°C to 75°C (-4°F to 158°F).
Humidity: 95% @ 40°C (104°F), non‑condensing.
MTBF: ≥50,000 hours — proven reliability for mission‑critical applications.
MTTR: ≤0.5 hours — fast repair and minimal downtime.
Anti‑shock: 0.5g RMS, 5–500Hz, random — withstands vibration in industrial and transportation environments.
Electrostatic protection: Hardware circuit protection against lightning and electrostatic impact above 2000V.
Power recovery: Automatically restarts after power is restored.
Watchdog timer: Programmable 1–225 sec. system restart after crash (CES‑809) — ensures automatic recovery without manual intervention.
What are typical applications for the IPC‑610 with multiple expansion slots?+
The IPC‑610 is a 4U rack‑mount industrial PC designed for applications requiring multiple PCI/PCIe expansion cards, high‑performance computing, and industrial‑grade reliability. Typical applications include:
• Machine vision & quality inspection — Deployed as a vision processing node with multiple frame grabbers (PCIe/PCI) for high‑speed camera capture. The 1×PCIe x16 slot supports high‑performance graphics cards or GPU accelerators for real‑time image processing and defect detection. 2×GbE LAN connects to additional cameras and plant networks. The wide‑temperature range supports deployment in unheated factory areas.
• Data acquisition & test systems — Deployed as a central data acquisition node with multiple data acquisition cards (PCI/PCIe) for sensor input, signal conditioning, and real‑time data logging. 6×RS232 + 2×RS485 connect to legacy sensors, flow meters, and analyzers. Multiple USB ports connect to diagnostic tools and external storage. The 500–700W power supply supports power‑hungry DAQ cards.
• Motion control & CNC systems — Deployed as a motion control host with multiple motion control cards (PCI/PCIe) for multi‑axis servo control, stepper motor control, and robotic arm coordination. 4U rack‑mount form factor fits into standard control cabinets alongside servo drives and PLCs. Watchdog timer ensures automatic recovery from system crashes in unattended operation.
• Edge AI & deep learning inference — Deployed as an edge AI inference node with GPU acceleration (PCIe x16) for real‑time neural network inference. The CES‑809 motherboard with 12th–14th Gen Core i7/i9 provides high‑performance compute for AI models. 2×GbE LAN separates inference data traffic from management traffic. The rugged -10°C to 60°C operating temperature supports deployment in industrial edge locations.
• Industrial control & SCADA servers — Deployed as a central SCADA server or control node in manufacturing plants, power substations, and water treatment facilities. Multiple expansion slots accommodate specialised industrial communication cards (Profibus, CAN, EtherCAT). 6×RS232 + 2×RS485 connect to legacy PLCs and RTUs. Dual Ethernet provides redundant network connectivity. High MTBF (≥50,000 hours) ensures long‑term reliability for 24/7 operation.
For detailed application examples, see our industrial PC for machine vision guide and rack‑mount PC for data acquisition overview.
Can CESIPC provide OEM/ODM customisation for the IPC‑610?+
Yes. CESIPC offers full OEM/ODM services for the IPC‑610 rack‑mount industrial PC series:
• Motherboard selection — Choose from CES‑781B (2nd–3rd Gen), CES‑785A (4th Gen), CES‑787A (6th–9th Gen), or CES‑809 (12th–14th Gen) to match your performance and compatibility requirements.
• BIOS configuration and boot logo branding — For private labeling, brand consistency, and OEM turnkey solutions.
• I/O panel customisation — Alternative connector arrangements, additional COM ports, or isolated digital I/O based on project requirements.
• Power supply configuration — 500–700W power supply selection based on expansion card power requirements.
• Operating system pre‑load — Windows 7/10/11 LTSC or Linux CentOS/Ubuntu with custom drivers and pre‑installed runtime environments.
• Watchdog timer configuration — Factory pre‑configuration of watchdog timeout periods (1–225 sec.) for specific application requirements.
• Private label packaging and custom SKU part numbering for integrators and reseller programs.
With in‑house SMT assembly, sheet metal fabrication, and CNC machining, CESIPC delivers custom industrial PCs with consistent quality and predictable lead times. MOQ: 1 unit sample available. Typical lead time: 2–4 weeks. Contact our engineering team for a detailed ODM assessment.
