S-Grade 15.6″ | IP69K Stainless Panel PC (Front Bezel)
Part of the S-Grade IP69K front bezel panel PC range — 10″, 15″, 15.6″, 19″ and 21.5″ sizes share the same flush stainless front.
IP69K protection applies to the front bezel only — the chassis must be built into a cabinet, machine housing or wall recess (embedded installation required).
Front side IP67/ IP69K
Features
- Widescreen display for clean production line visualisation: 15.6-inch FHD format, ideal for centralized process and status display.
- Stainless steel front bezel for frequent washdown: IP69K-rated front protection, suitable for long-term cleanroom use.
- Embedded design for production line equipment: Designed for integration into line equipment, control cabinets, and operator stations.
- Industrial-grade touch for continuous operation: Supports P-CAP or resistive touch, matching cleanroom operating practices.
- Common MES/HMI size for cleanrooms: Widely used in food and pharmaceutical clean production lines.
Introduction
The S-Grade 15.6″ IP69K stainless panel PC (front bezel) is designed for visualisation and MES operation in clean production lines. It features an embedded stainless steel front bezel that carries the IP69K protection, enabling frequent washdown and disinfection in cleanroom environments. The 15.6-inch widescreen display is well-suited for multi-information interfaces and process status visualisation, making it a commonly used embedded industrial panel size for clean production lines.
Spec.
System Core
| CPU / Model | Cores | Threads | Base (GHz) | Turbo (GHz) | Cache | TDP | Graphics | Memory / Storage |
|---|---|---|---|---|---|---|---|---|
| Intel® Celeron J1900 | 4 | 4 | 2.0 | 2.42 | 2MB | 10W | Intel HD | DDR3L 4–8GB / 1× mSATA SSD |
| Intel® Celeron J6412 | 4 | 4 | 2.0 | 2.60 | 1.5MB | 10W | Intel UHD (16 EUs) | DDR4 4–32GB / 1× mSATA SSD |
| Intel® Core™ i3-10110U | 2 | 4 | 2.1 | 4.1 | 4MB | 15W | UHD 620 | DDR4 4–32GB / 1× mSATA SSD |
| Intel® Core™ i5-10210U | 4 | 8 | 1.6 | 4.2 | 6MB | 15W | UHD 620 | DDR4 4–32GB / 1× mSATA SSD |
| Intel® Core™ i7-10510U | 4 | 8 | 1.8 | 4.9 | 8MB | 15W | UHD 620 | DDR4 4–32GB / 1× mSATA SSD |
| Intel® Core™ i3-1215U | 6 (2P+4E) | 8 | 1.2 | 4.4 | 10MB | 15W | UHD (48 EUs) | DDR5 8–32GB / 1× M.2 NVMe |
| Intel® Core™ i5-1235U | 10 (2P+8E) | 12 | 1.3 | 4.4 | 12MB | 15W | Iris Xe (80 EUs) | DDR5 8–32GB / 1× M.2 NVMe |
| Intel® Core™ i7-1255U | 10 (2P+8E) | 12 | 1.2 | 4.7 | 12MB | 15W | Iris Xe (96 EUs) | DDR5 16–32GB / 1× M.2 NVMe |

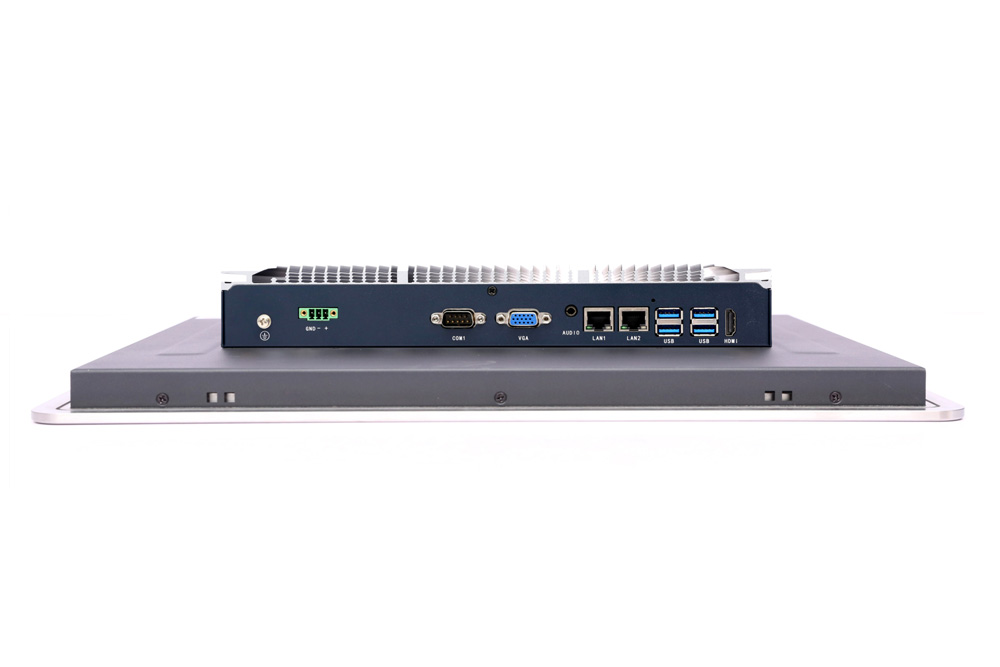

I/O
| DC Input | 1 × 3-pin Pluggable Terminal Block for 12V DC，9–36V Optional |
| USB Ports | 5 × USB2.0 / 2 × USB2.0/ 1 × USB3.0 / 4 × USB3.0 |

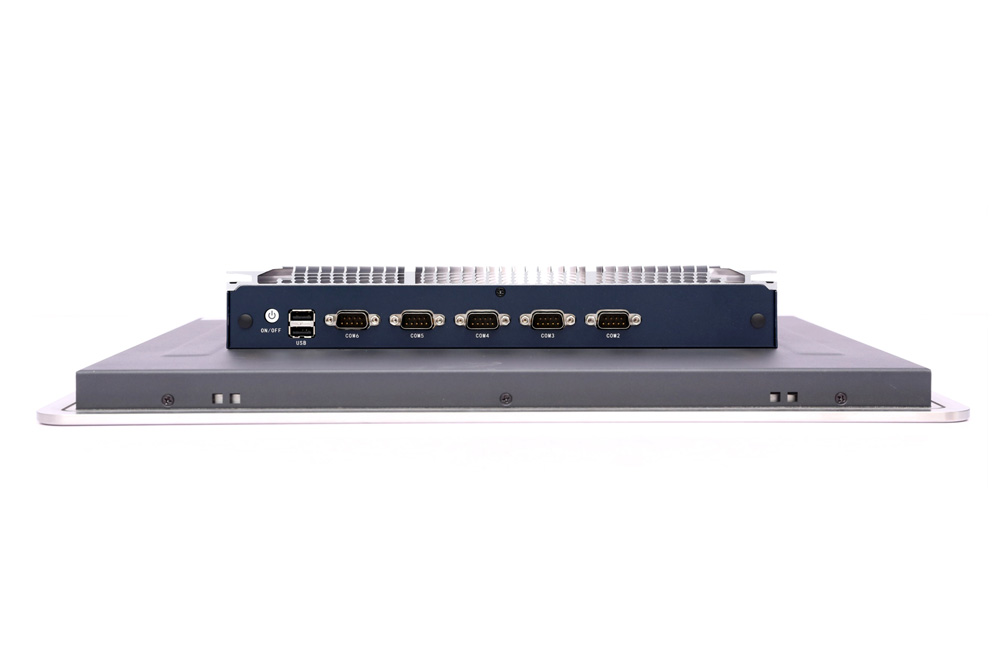

| Serial Ports | 5 × RS232 / 1 × RS485 DB9 |
| Ethernet Port | 2 × 10/100/1000 Mbps Ethernet LAN |
Wireless Communication
| Wi-Fi | Intel N6235 300Mbps, 802.11a/b/g/n, 2.4G / 5G |
| Wireless Network | 4G LTE module (optional) |
LCD Panel
| LCD Size | 15.6inch Panel Size |
| Resolution | 1920×1080/ 16:9 |
| Brightness (cd/m2) | 300 |
| Contrast Ratio | 1000 : 1 |
| Backlight LED Life Time | 50,000 hrs (LED Backlight) |
| Touchscreen Type | Resistive 5-wire/Projected Capacitive Touch (Optional) |
Environmental
| Protection | Front IP69K Level Compliant |
| Operating Temperature | -10℃～60℃(14~ 140 °F)(extend temperature optional) |
| Storage Temperature | -20℃～70℃(-4 ~ 158 °F) |
| Relative Humidity | 5% ~ 95% RH, support high-humidity environments, non-condensing |
| EMC | CE, FCC (According to EN 55032 & EN 55035)EN IEC 61000-3-2 |
| Factory | ISO9001: 2015 |
| ODM | BIOS / Boot on LOGO / OEM |
| MTBF | 60,000 Hours |
Mechanical
| Dimension | 404.2(W)×253.5(D)×75.1(H)mm |
| Weight | 5KG N.W. |
| Material | Rugged Stainless Steel 304 Casing Front |
| Material | 6063 High-Strength Aluminum Alloy Back |
| Mount | VESA Mount |
OS
| Windows | Windows 10 / Windows 11 （Note: Celeron J1900 can support Windows 7） |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
