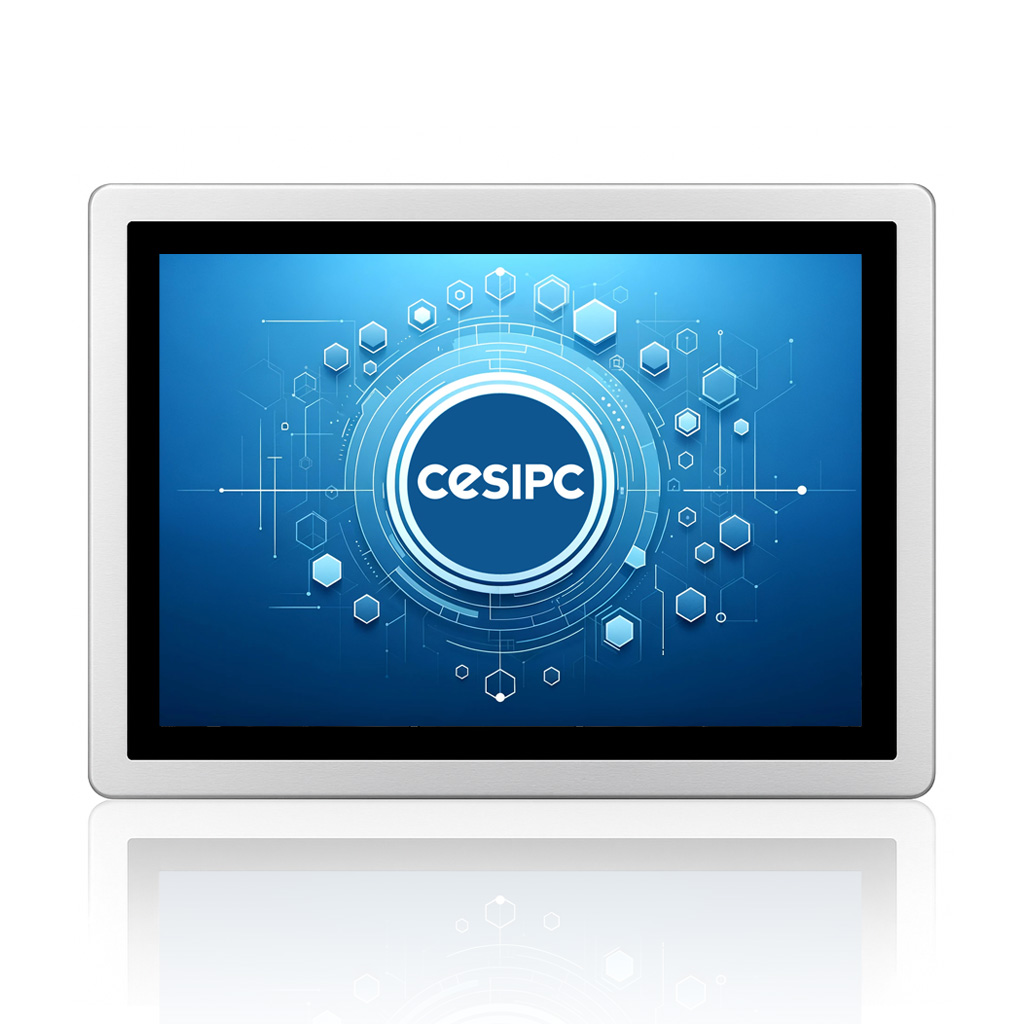

Stainless Embedded Industrial Panel PC｜Cleanroom IP69K Front-Bezel HMI
304 stainless-steel front bezel + embedded structure, ideal for food/pharmaceutical cleanrooms and sanitation zones
The Stainless Embedded Industrial Panel PC is a widely used industrial-grade HMI for food and pharmaceutical clean zones. Built with a CNC-machined 304 stainless-steel front bezel, it provides IP69K panel-level protection, withstanding multi-angle high-pressure hot-water cleaning to meet routine sanitation, disinfection, and residue-free wipe-down requirements in cleanroom environments.
With its embedded installation method, the equipment cabinet protects the rear enclosure while the stainless-steel bezel takes on all cleaning operations. This makes it suitable for packaging machines, inspection systems, labeling machines, weighing equipment, and other industrial machinery—one of the most prevalent high-hygiene panel PCs for cleanroom applications.
WPC-S1992A-S
Product Features
- Stainless-steel front bezel for embedded use in hygienic equipment.
- IP69K front—resistant to high-pressure, high-temp and chemical washdowns.
- LEGO MODE™ modular I/O for scalable machine-level expansion.
- SafeCore™ reliability for long-term stability.
- 19inch industrial P-CAP touch with clear visuals and fast.
- Intel® Core™ processors for strong 24/7 embedded performance.
- Fanless design reduces contamination and service needs.
- Industrial I/O (LAN/USB/COM) for direct machine integration.
- Optional Wi-Fi / BT / 4G / 5G connectivity.
- Hygienic, easy-clean front suited for sanitary systems.
- Supports Windows 10/11 and Ubuntu Linux.
- 9～36DC input
- Download Specification
Product Specifications
| CPU | Intel® i3-10110U Dual Core, 2.10-4.10 GHz 4M Cache, TDP 15W Intel® i5-10210U Quad Core, 1.60-4.20 GHz 4M Cache, TDP 15W Intel® i7-10510U Quad Core, 1.80-4.90 GHz 4M Cache, TDP 15W |
| Cooling System | Fanless |
| Memory | 1x DDR4 2133Mhz SO-DIMM Sockets, up to 16GB |
| Storage | M.2 NVME SSD + mSATA SSD |
| I/O ports | USB: 4xUSB3.0+2xUSB2.0, Type-A |
| COM: 6xRS232, DB9, 2*RS485/RS422 optional | |
| Dual Display: 1xHDMI (1920*1200 @30Hz)1*VGA (1920*1200 @30Hz) | |
| Audio: 1×Mic-in, 1x Line-out | |
| Expansion: MINI-PCIE | |
| Network(LAN) | 4x 10/100/1000Mbps Ethernet |
| Input Voltage | 12V DC (3 Pin Phoenix Connector) , optional 9V-36V DC |
| Display Type: | 17 inch TFT LED Panel( LED Backlight) |
| Max. Resolution: | 1280×1024 / 5:4 |
| Luminance(cd/㎡) | 300nits |
| Touch Type | Capacitive Touch |
| OS Support | Microsoft Windows 7/ Windows 10/Windows 11/ Linux |
| Operating Temperature | 0℃～50℃(14~ 140 °F)(extend temperature optional) |
| Storage Temperature | -10℃～60℃(-4 ~ 158 °F) |
| Front Panel Protection | IP67/IP69K compliant |
| Dimensions | 395.4×327.5×73.7mm cutout size: 374.6×306.7mm |
| Weight | 7.2KG |
| Color | Black |
| Material | Aluminum + SUS |
| Certification | CE / RoHS |
| Custom Service | Custom BIOS, System Encryption, Custom LOGO |

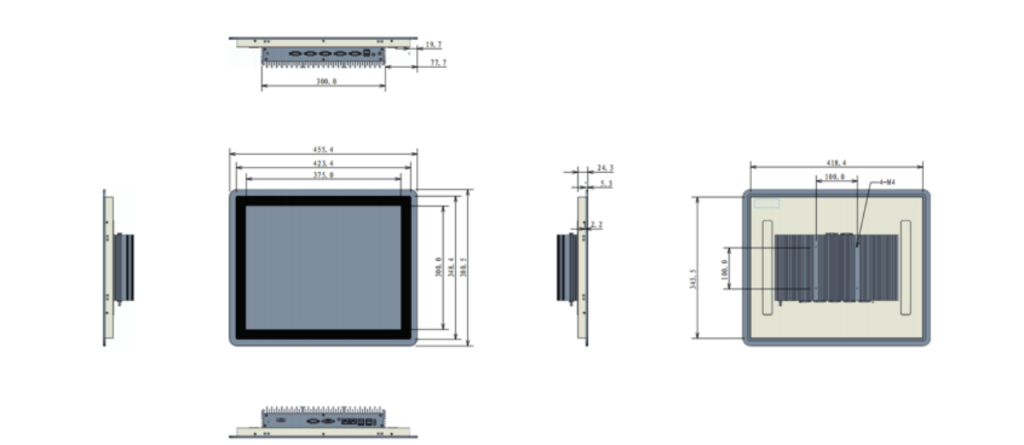

Product Dimensional Diagram
