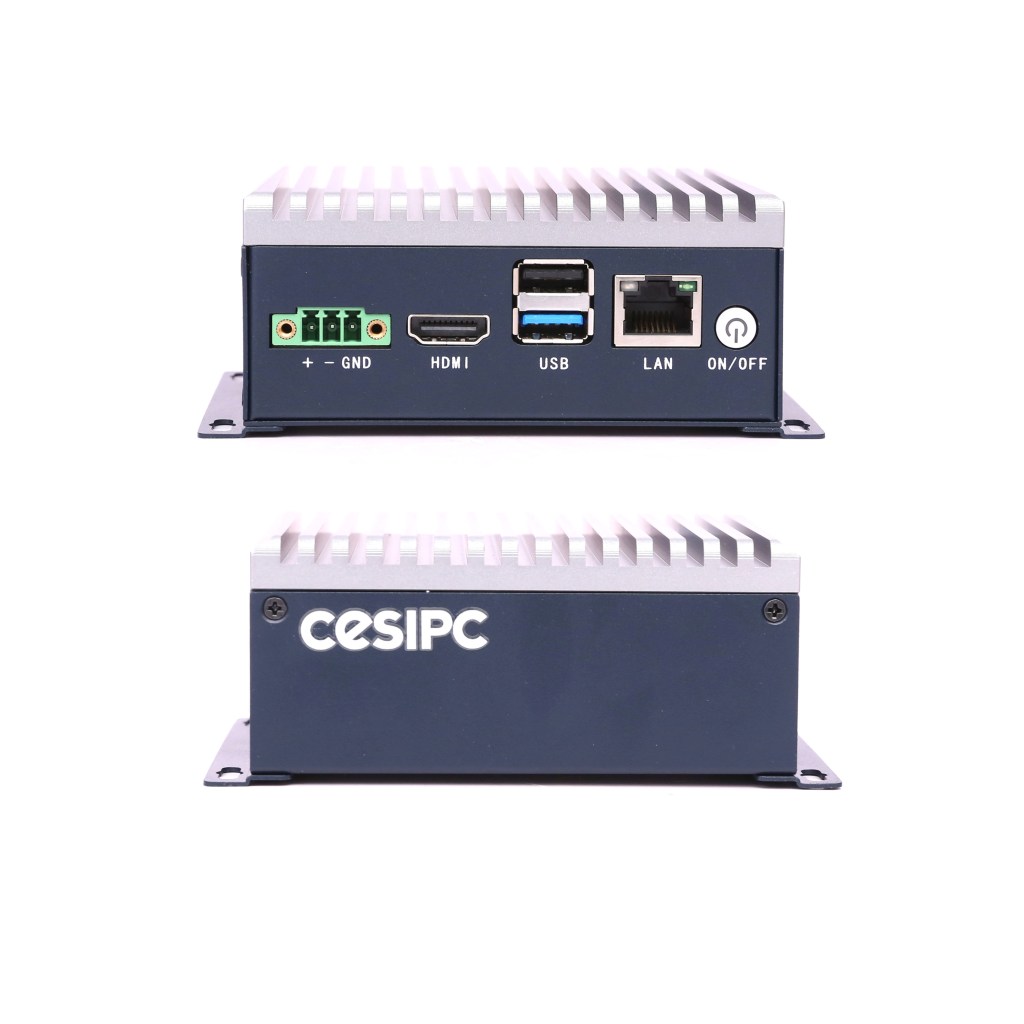

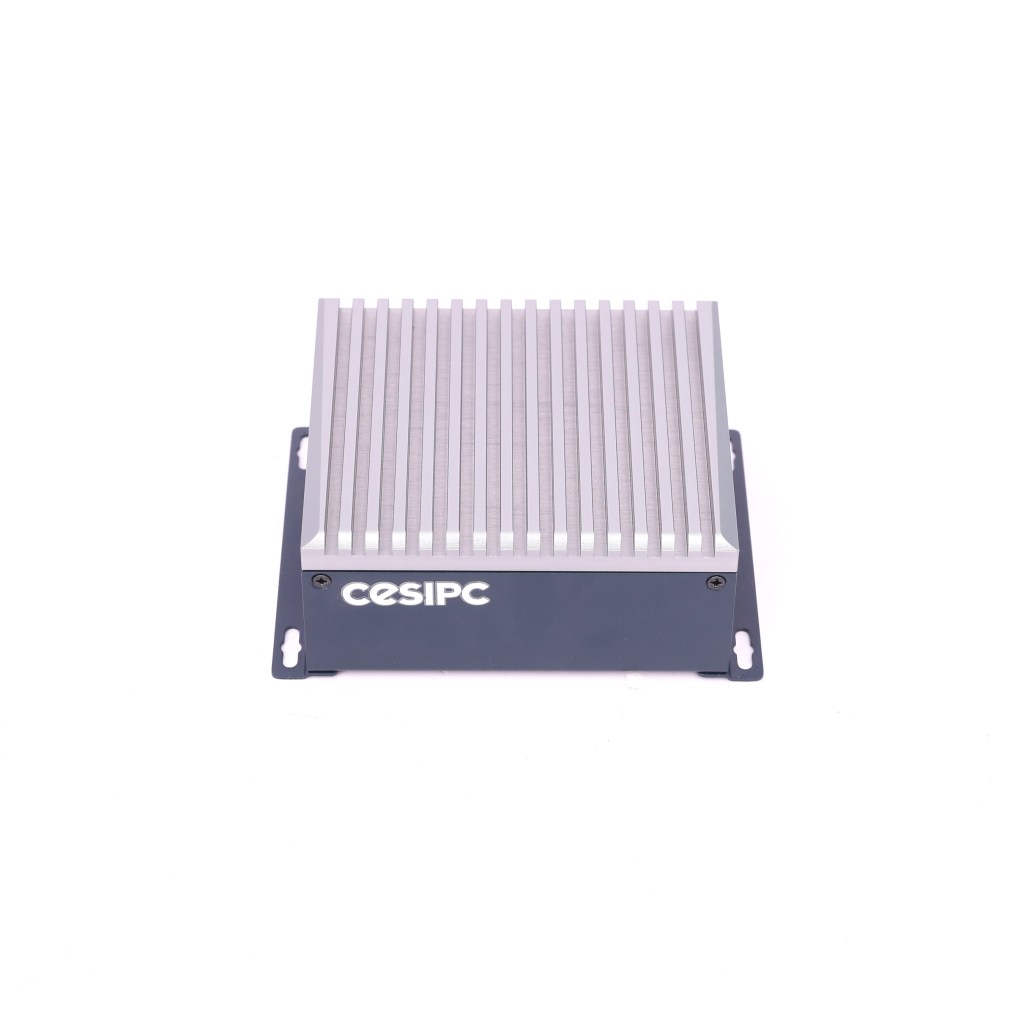

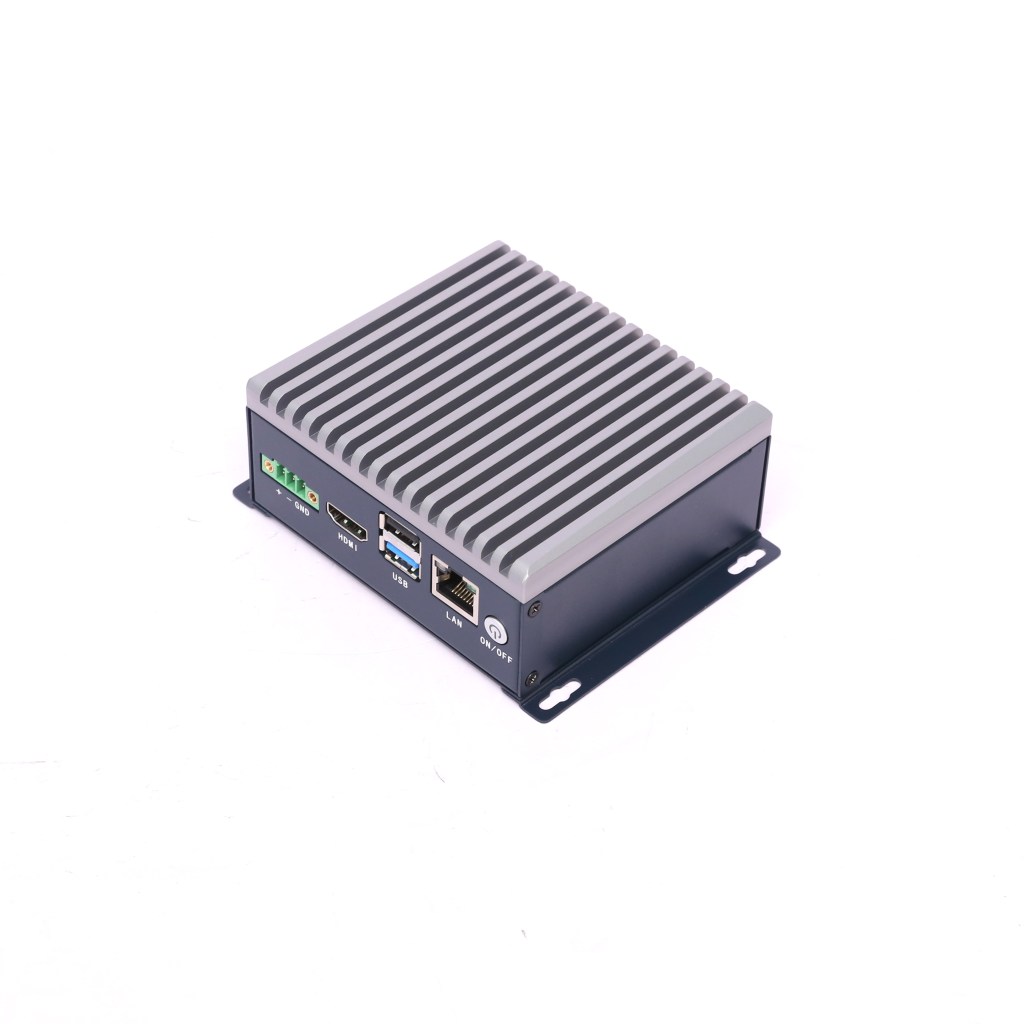

EA-N100 NVIDIA Jetson Nano industrial PC
Product Features
- NVIDIA Jetson Nano
- Quad Core ARM A57 Processor
- Storage: 4GB DDR4 + M.2 SSD
- LAN x 1 + HDMI x 1
- Wireless Design
- DC 9-36V Power Input
- Download Specification PFD
Product Introduction
EA-N100 is a compact dimension industrial computer with an ARM A57 processor, one GbE LAN, 2 x USB ports, and 1x M.2 bay. DC 9-36V power input, wide operating temperature, economic and reliable, it will be fit for IOT terminal and manufacturing application.
Product Specifications
| AI Accelerator | Nvidia Jetson Nano |
| CPU | Quad Core ARM® Cortex®-A57 MPCore Proccessor |
| Cooling System | Fanless |
| Memory | Single Socket, 4GB DDR4 |
| Storage | M.2 SSD Full Size |
| I/O ports | 1xUSB2.0+1xUSB3.0, Type-A |
| 1xDC Power Input ( 3 Pin Phoenix Connector ) | |
| Display: 1xHDMI (1920*1200 @30Hz) | |
| Audio: 1xMic-in, 1x Line-out | |
| Network(LAN) | 1x 100/1000Mbps Ethernet |
| Input Voltage | 9-36V DC |
| OS Support | Linux ( NVIDIA Jetpack 4.6) |
| Operating Temperature | 0℃～50℃ (extend temperature optional) |
| Storage Temperature | -10℃～60℃ (extend temperature optional) |
| Dimensions | (W*D*H): 99.5*90*42.9mmWith Bracket: 116.9*158*44.9mm |
| Weight(G.W.) | N.W. 0.45KG |
| Color | Industrial Gray |
| Material | High Strength Aluminum Alloy |
| Certification | CE / RoHS |

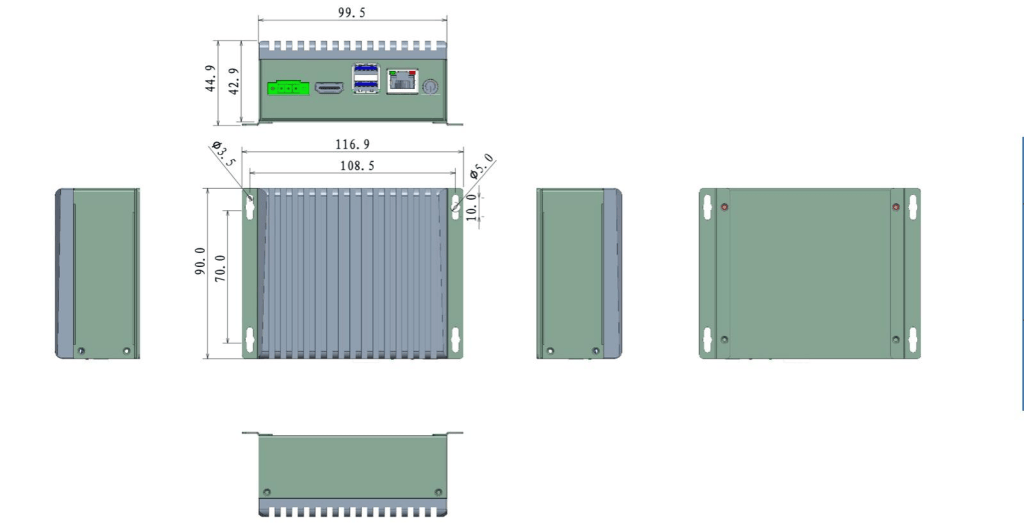

EA-N100 NVIDIA Jetson Nano Industrial PC Dimensional Diagram
