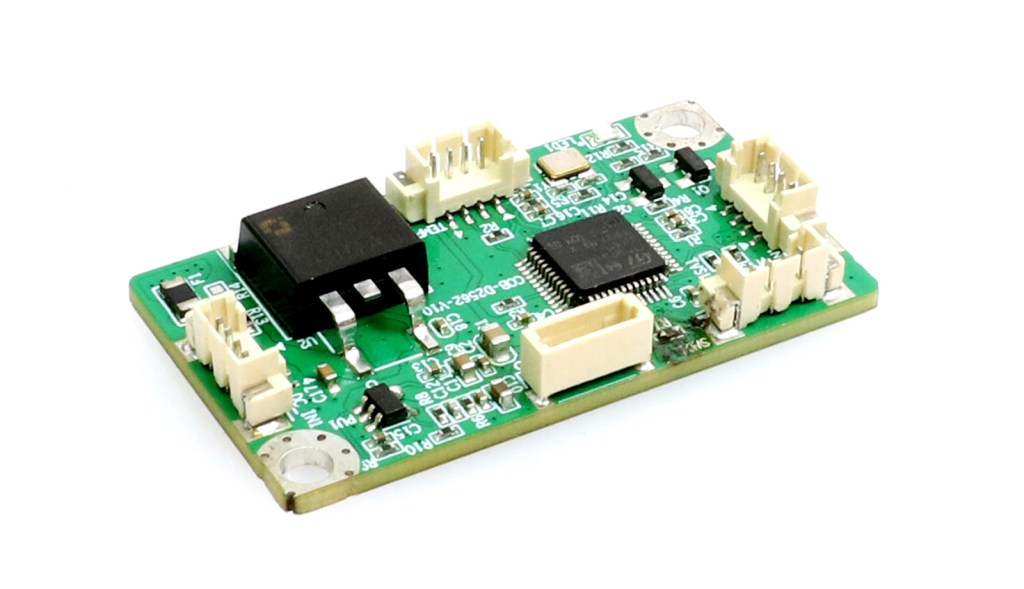

The COB-D2562 i-Connect Board adopts an intelligent fan control module designed with BlockCore modular architecture. It features a built-in temperature sensor and supports multiple external temperature probes for smart thermal management. The module enables precise fan speed control through PWM mode, offering low power consumption and industrial-grade reliability. Compatible with the CES-1201 motherboard and suitable for L200 and L300 profile installations, the COB-D2562 is ideal for efficient and reliable thermal control in industrial environments.
★ Modular Design — BlockCore for flexible multi-scenario use
★ Intelligent Fan Control
★ Specification Download
| Parameter | Description |
| Function | Temperature-based automatic fan speed adjustment |
| Applicable Structure | Compatible with L200, L300, and custom models |
| Compatible Motherboards | CES-1201 |
| Reserved function | / |
| Power Supply | 5V DC from Motherboard Pin |
| Power Consumption | < 1W (typical) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 45 x 25mm |
| Mounting Method | Adhesive Mounting |
| Profile | L200，L300 |

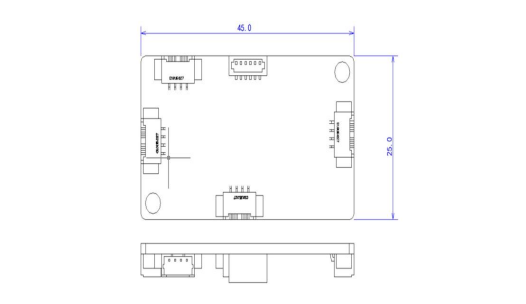

Dimensions
