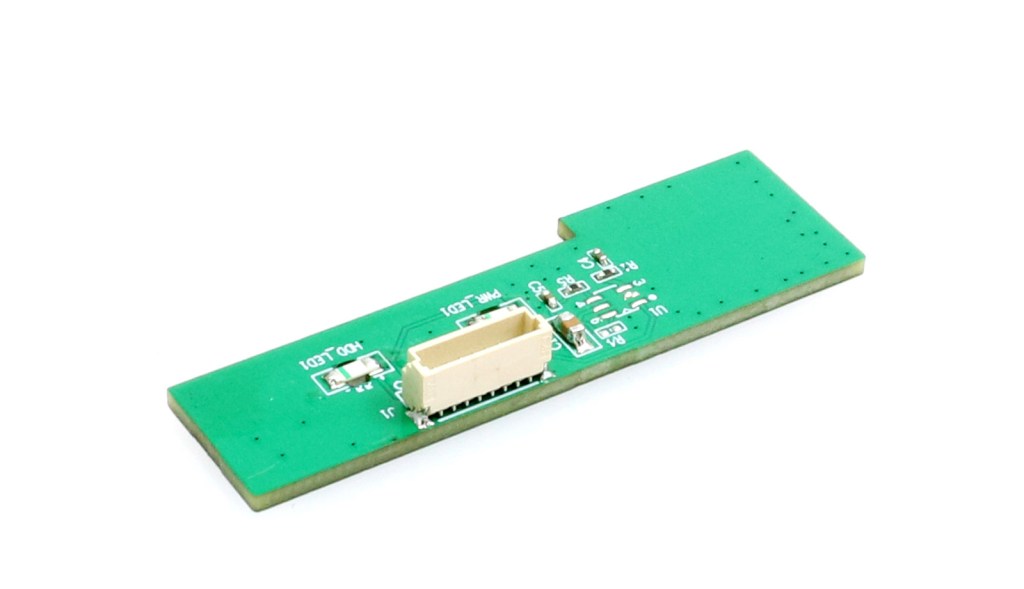

The COB-D2574 i-Connect Board with BlockCore modular architecture. It integrates touch buttons, a power indicator, and an HDD indicator, providing a flexible and intuitive human-machine interaction experience. The touch button can function as a power on/off switch or a customizable control key, while the indicators display real-time power and hard drive status. It is well-suited for embedded systems and industrial control equipment.
★ Modular Design — BlockCore for flexible multi-scenario use
★ Touch button + power & HDD indicator
★ Specification Download
| Parameter | Description |
| Function | The board comes with touch and indicator lights. |
| Applicable Structure | / |
| Compatible Motherboards | CES-1902 |
| Reserved function | / |
| Power Supply | 5V DC from Motherboard Pin |
| Power Consumption | < 1W (typical) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 15x 50mm |
| Mounting Method | Adhesive Mounting |

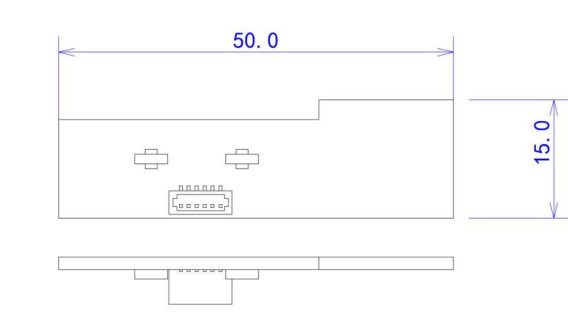

Dimensions
