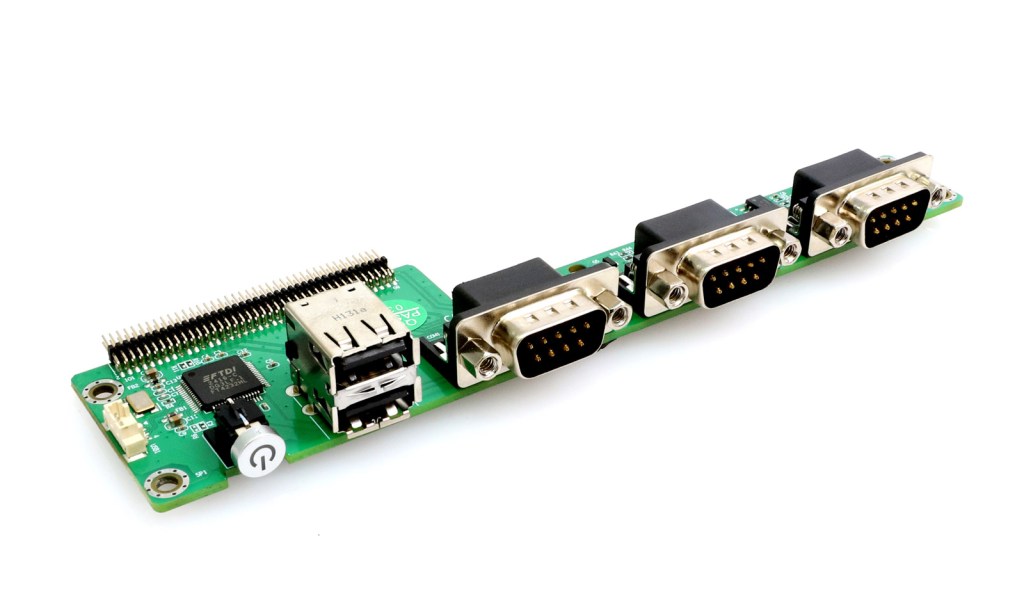

The COB-D2555 i-Connect Board adopts a modular design with 2 USB interfaces and 3 COM ports, supporting RS-232/422/485 communication modes for flexible industrial connectivity. Compact, reliable, and easy to integrate, it is well-suited for industrial automation, control systems, and embedded applications.
★ Modular Design — BlockCore for flexible multi-scenario use
★ 2xUSB，3xCOM RS232/422/485
★ Specification Download
| Parameter | Description |
| Ports | COM Ports: 5×COM COM1: RS-232 COM2: RS-485 / RS-232 (selectable) COM3: USB to RS-422, USB Ports: 2×USB 2.0 |
| Applicable Structure | L200 |
| Compatible Motherboards | CES-1602, CES-1902, CES-1201,CES-1701 |
| Reserved function | / |
| Power Supply | 5V DC from Motherboard Pin |
| Power Consumption | < 1W (typical) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 166 x 34mm |
| Mounting Method | Screw Holes |
| Compatible EXB | EXB-D2351 |
Dimensions
