What is an industrial Panel PC? A rugged all-in-one computer integrating a touchscreen display, industrial motherboard, and I/O into a single enclosure, mounted on or near a machine as its human-machine interface (HMI). In this application, a CESIPC 15-inch Panel PC is installed directly on a fastener production machine.
Application: Fastener Manufacturing ｜ Device: 15-Inch Industrial Panel PC ｜ Role: Machine HMI & Industrial Computer
The Deployment

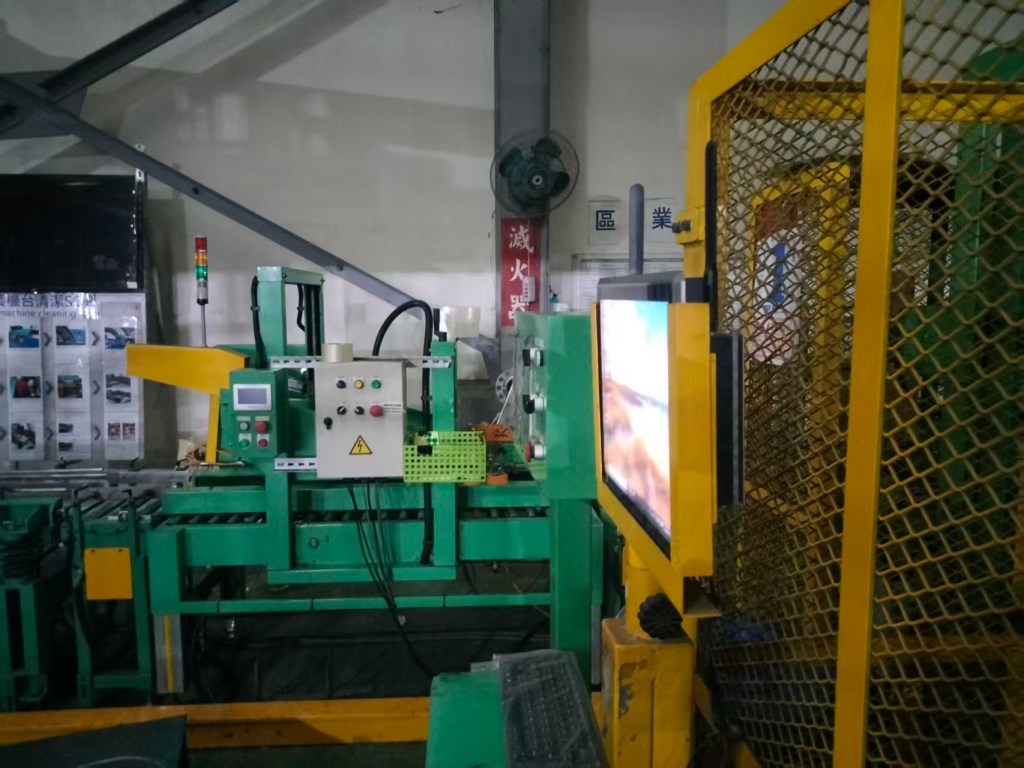

The customer photo shows a CESIPC 15-inch Panel PC mounted directly on fastener production equipment.
Instead of using a separate computer and external monitor, the Panel PC integrates the display and computing platform into one industrial enclosure. This gives operators a machine-side touchscreen for machine operation, parameter setting, alarms, and production monitoring.

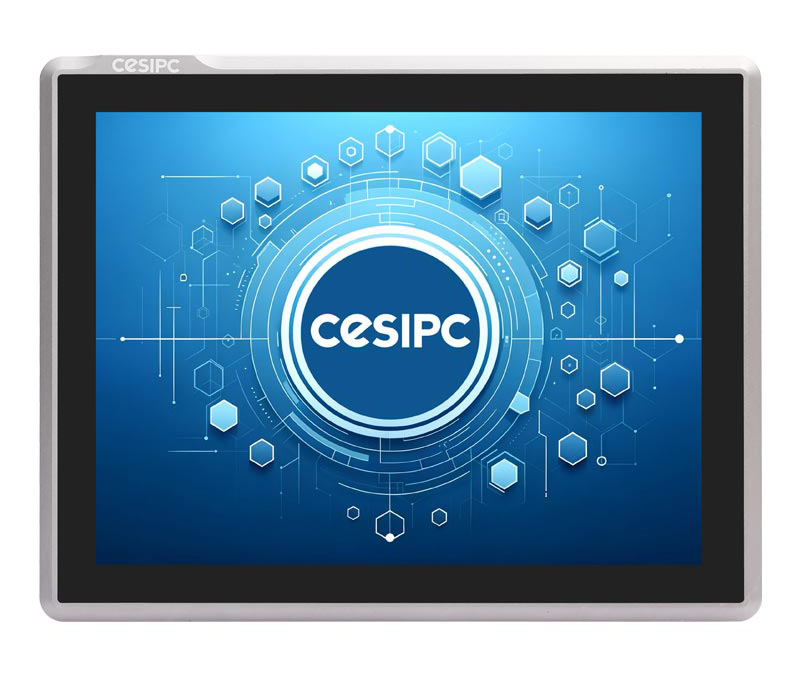

CESIPC 15-Inch Panel PC — Specification Snapshot
| Feature | Configuration |
|---|---|
| Display | 15″ TFT LCD |
| Touch | Resistive or projected capacitive touch |
| Front Protection | IP65 front panel |
| CPU / RAM / Storage | i5-1235U/ 16GB RAM/ 512GB SSD |
| I/O | LAN / USB / COM and other options |
| Mounting | Embedded / panel-mount / VESA |
| Cooling | Fanless options available |
| Operation | 7×24 industrial operation |
What Does the Panel PC Do on the Machine?
As the machine HMI, the Panel PC provides operators with a central interface for:
- Machine status and operating information
- Start/stop controls and parameter setting
- Alarm and fault display
- Production counts and process data
- Communication with PLCs, sensors, and controllers
With the appropriate software and communication interfaces, the Panel PC can also be used for production data collection, visualization, and MES integration.
It therefore functions as part of the machine’s control and data-communication system—not simply as an industrial monitor.
Why Use an Industrial Panel PC?
Fastener manufacturing equipment may operate continuously in environments with dust, vibration, temperature variation, and limited installation space.
An industrial Panel PC offers several advantages over a conventional PC and monitor:
| Factor | Regular PC + Monitor | Industrial Panel PC |
|---|---|---|
| Integration | Separate units | All-in-one |
| Front protection | Typically limited | Industrial front-panel protection |
| Cooling | Fan-based | Fanless options |
| Mounting | Stand or bracket | Embedded / panel / VESA |
| Operation | Office-oriented | 7×24 industrial use |
The configuration should be matched to the actual application, including the required CPU performance, memory, storage, I/O, mounting method, and environmental conditions.
Why Choose a 15-Inch Display?
A 15-inch display provides a practical balance between screen visibility and installation space.
It offers enough screen area to display machine parameters, alarms, status information, and control interfaces clearly while remaining compact enough for machine-side installation.
For many manufacturing HMIs, this makes 15 inches a practical alternative to both smaller operator panels and larger industrial displays.
Typical Applications
A 15-inch industrial Panel PC can be used for:
- Fastener production machine HMI
- Cold heading and thread rolling equipment
- Assembly and inspection stations
- Production monitoring and MES visualization
- Machine parameter management
- Industrial automation workstations
Frequently Asked Questions
What is an industrial Panel PC?
An industrial Panel PC is an all-in-one computer that integrates a display, computing platform, touchscreen, and industrial I/O into a single enclosure for machine HMI and industrial automation applications.
Why use a Panel PC instead of a separate computer and monitor?
A Panel PC combines the computer and display into one unit, helping reduce installation space, simplify cabling, and create a cleaner machine-side HMI.
Is a 15-inch Panel PC suitable for machine HMI?
Yes. A 15-inch screen provides a useful balance between visibility and installation space for interfaces containing machine parameters, alarms, status information, and controls.
Can the Panel PC be customized?
Yes. Depending on project requirements, CESIPC can customize the processor, memory, storage, touchscreen, I/O interfaces, mounting method, and other hardware configurations.
Can I get a sample for testing?
Yes. Standard configurations can be provided for evaluation. Customers can share their application, mounting dimensions, operating environment, and required interfaces for configuration recommendations.
Get a 15-Inch Panel PC Recommendation: Share your application, mounting dimensions, screen size, CPU requirements, operating environment, and required I/O. CESIPC can recommend a suitable configuration and provide a quotation.
