The WPC-S1061A-G is a 10-inch IP69K fully waterproof industrial Panel PC built for food processing, pharmaceutical cleanroom, and chemical manufacturing environments where operators work with gloves or in the presence of water droplets. Its 5-wire resistive touchscreen responds to any pressure input — gloved fingers, stylus, or tools — without requiring bare-skin contact, making it the preferred touch interface for wet-area HMI terminals on meat processing lines, dairy facilities, and washdown environments. The CNC-machined 304 stainless steel enclosure is rated to IP69K and IP67, withstanding high-pressure hot-water jets at 80°C and 100 bar from all directions. Powered by Intel® Celeron J1900 with a 10W TDP fanless design and a rated MTBF of 60,000 hours, the WPC-S1061A-G delivers reliable 24/7 operation with minimal thermal output — ideal for compact control cabinets and temperature-sensitive hygienic environments.

System Core

CPU / Model	Cores	Threads	Base (GHz)	Turbo (GHz)	Cache	TDP	Graphics	Memory / Storage
Intel® Celeron J1900	4	4	2.0	2.42	2MB	10W	Intel HD	DDR3L 4–8GB / 1× mSATA SSD

I/O

DC Input	1 × 4-pin aviation connector (12V DC), supports 9–36V wide-range input (optional)
USB Ports	2 × USB 2.0 with 2 x Type-A aviation connector
Serial Ports	2 × RS232 (optional RS485/422) with 1 x 10-pin aviation connector
Ethernet Port	1 × 10/100/1000 Mbps ethernet ports with 1 x RJ45 aviation connector

Wireless Communication

Wi-Fi	Intel N6235 300Mbps, 802.11a/b/g/n, 2.4G / 5G
Wireless Network	4G LTE Full Netcom Module

LCD Panel

LCD Size	10inch Panel Size
Resolution	1920×1080 / 16:9
Brightnesss (cd/m2)	300
Contrast Ratio	500 : 1
Backlight LED Life Time	50,000 hrs (LED Backlight)
Touchscreen Type	Resistive 5-wire

Environmental

Protection	Whole IP69K Level Compliant
Operating Temperature	-10℃～60℃(14~ 140 °F)(extend temperature optional)
Storage Temperature	-20℃～70℃(-4 ~ 158 °F)
Relative Humidity	10%~90% , Non-condensing
EMC	CE, FCC (According to EN 55032 & EN 55035)EN IEC 61000-3-2
Factory	ISO9001: 2015
ODM	BIOS / Boot on LOGO / OEM
MTBF	60,000 Hours

Mechanical

Dimension	278(W)*225.4(D)*57.8(H)mm
Weight	4KG N.W.
Material	Rugged Stainless Steel 304 Casing
Mount	VESA Mount

OS

Windows	Windows 10 / Windows 11 （Note: Celeron J1900 can support Windows 7）
Linux	Ubuntu 16.04 / 18.04 / 20.04 / 22.04

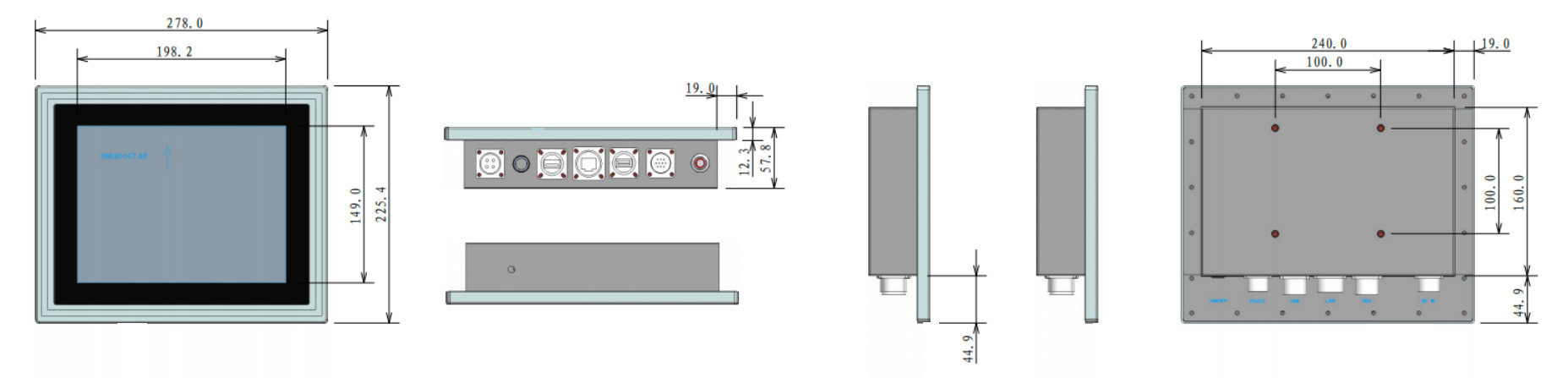

Dimensions

Pictures

Accessories

Applications

FAQ

Frequently Asked Questions

Q: What is the WPC-S1061A-G used for?
A: The WPC-S1061A-G is a 10-inch IP69K waterproof industrial Panel PC used for HMI terminals on meat processing lines, dairy production facilities, seafood processing plants, pharmaceutical cleanrooms, and chemical manufacturing environments. Its 5-wire resistive touchscreen and whole-body IP69K stainless steel construction make it suitable for zones with daily high-pressure washdowns, chemical disinfection, and environments where operators wear latex, nitrile, or rubber gloves.

Q: Why choose resistive touch over capacitive touch for food processing?
A: Resistive touchscreens respond to any physical pressure — including gloved fingers, water droplets on the screen, stylus input, and tools — without requiring bare skin contact or a conductive surface. In food processing environments, operators routinely wear thick rubber or nitrile gloves, and screens are frequently wet from washdown operations or condensation. Capacitive touch (used in the WPC-S1022A-G) requires a conductive contact and can be unreliable when the screen is wet or when thick gloves are worn. Choose the WPC-S1061A-G (resistive) for reliable gloved operation and wet-area environments. Choose the WPC-S1022A-G (capacitive) for applications with thinner gloves or when multi-touch gesture support is needed.

Q: What does IP69K mean for the WPC-S1061A-G?
A: IP69K is the highest waterproof and dustproof rating for industrial equipment under IEC 60529. The WPC-S1061A-G passes tests with water jets at 80°C and 100 bar pressure applied from all angles at close range — matching the conditions of high-pressure steam cleaning routines used in food and pharmaceutical facilities. The unit is also rated IP67, meaning it withstands temporary submersion up to 1 metre for 30 minutes.

Q: What is the MTBF of the WPC-S1061A-G?
A: The WPC-S1061A-G has a rated Mean Time Between Failures (MTBF) of 60,000 hours — approximately 6.8 years of continuous 24/7 operation. This reliability is achieved through the fanless thermal design, sealed aviation-connector I/O ports that prevent moisture ingress, and the use of industrial-grade components rated for extended operational lifespans in harsh environments.

Q: What processor does the WPC-S1061A-G use, and is it sufficient for HMI applications?
A: The WPC-S1061A-G uses the Intel® Celeron J1900 processor (4 cores, 2.0–2.42GHz, 10W TDP) with 4–8GB DDR3L memory. This configuration is well-suited for standard HMI applications running SCADA software, process monitoring dashboards, data logging, barcode reading, and PLC communication interfaces. The low 10W TDP also means minimal heat output, which is advantageous in compact, hygienic enclosures where additional thermal management would compromise the sealed design. For applications requiring more intensive processing — such as multi-application workloads, machine vision, or real-time data analytics — the WPC-S1022A-G (Intel 12th Gen Core) is recommended instead.

Q: Can the WPC-S1061A-G be wall-mounted or installed on a swing arm?
A: Yes. The WPC-S1061A-G supports VESA mounting, panel mount, and arm mount configurations. Optional stainless steel mounting brackets are available as accessories to maintain full IP69K protection at the mounting interface. For hygienic environments requiring tool-free cleaning access, swing arm installations using CESIPC’s stainless steel cantilever arm base are also available.
