15-Inch Fanless J1900 Industrial Panel PC UTC-S1562A
Product Features
- Aluminum die-casting chassis, fanless design
- Wireless Design
- 15 inch LED TFT LCD, capacitive touch
- Intel Celeron J1900 2.0-2.42G CPU
- 6*COM, 2*LAN, 5*USB2.0, 1*USB3.0
- AT & ATX Model
- Front Panel IP65 Level
- Download Specification PFD
Product Introduction
UTC-S1562A is an intelligent, fanless panel PC, 15″ Panel PC equipped with an Intel® Bay Trail processor. Meeting the demands of harsh environments, in addition, the dual GbE LAN, 6 x serial ports, 6 x USB ports, make device connection and integration easy.
Product Specifications
| CPU | Intel Baytrail-D Celeron J1900, 2.0~2.42GHz, 4cores, 4threads, 2M cache, 22nm,TDP 10W |
| Cooling System | Fanless |
| Memory | Single Socket, 4GB-8GB DDR3L |
| Storage | mSATA SSD Full Size+SATS 2.5″SSD |

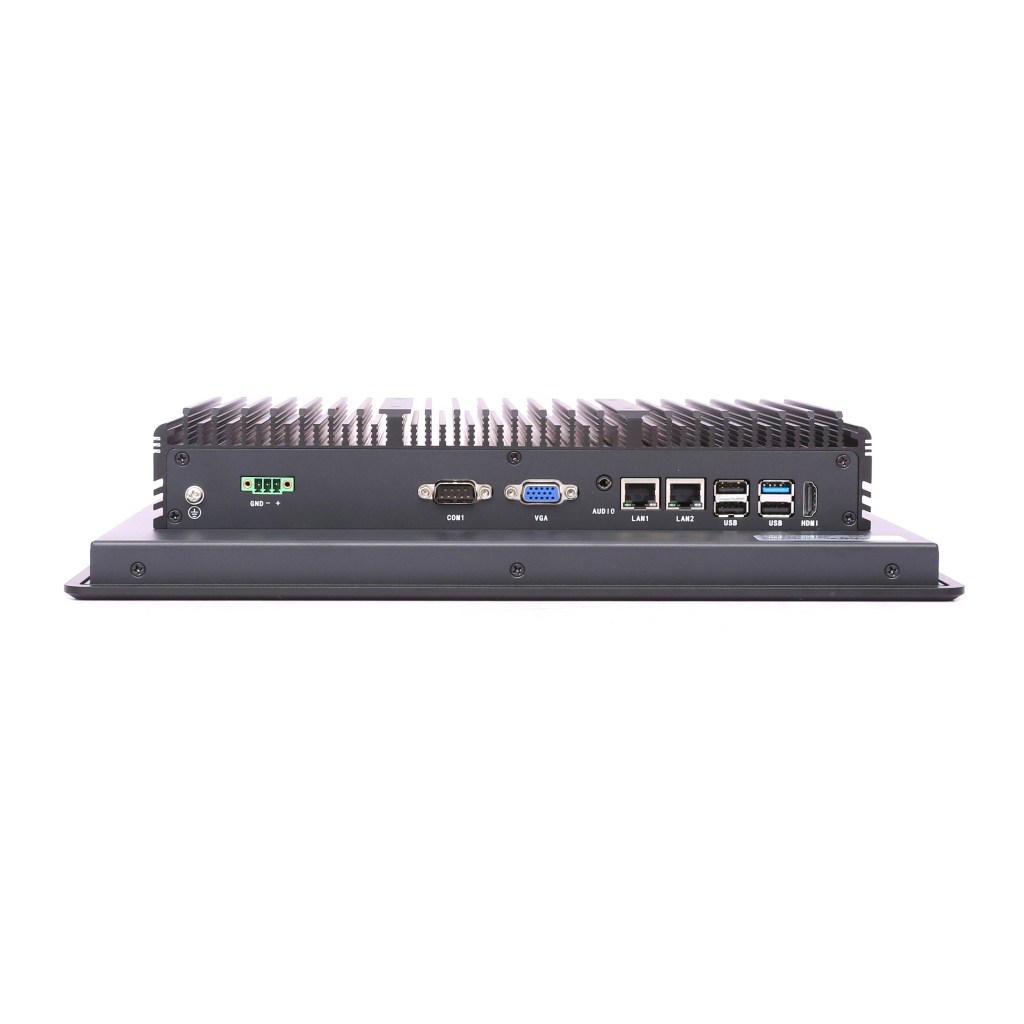

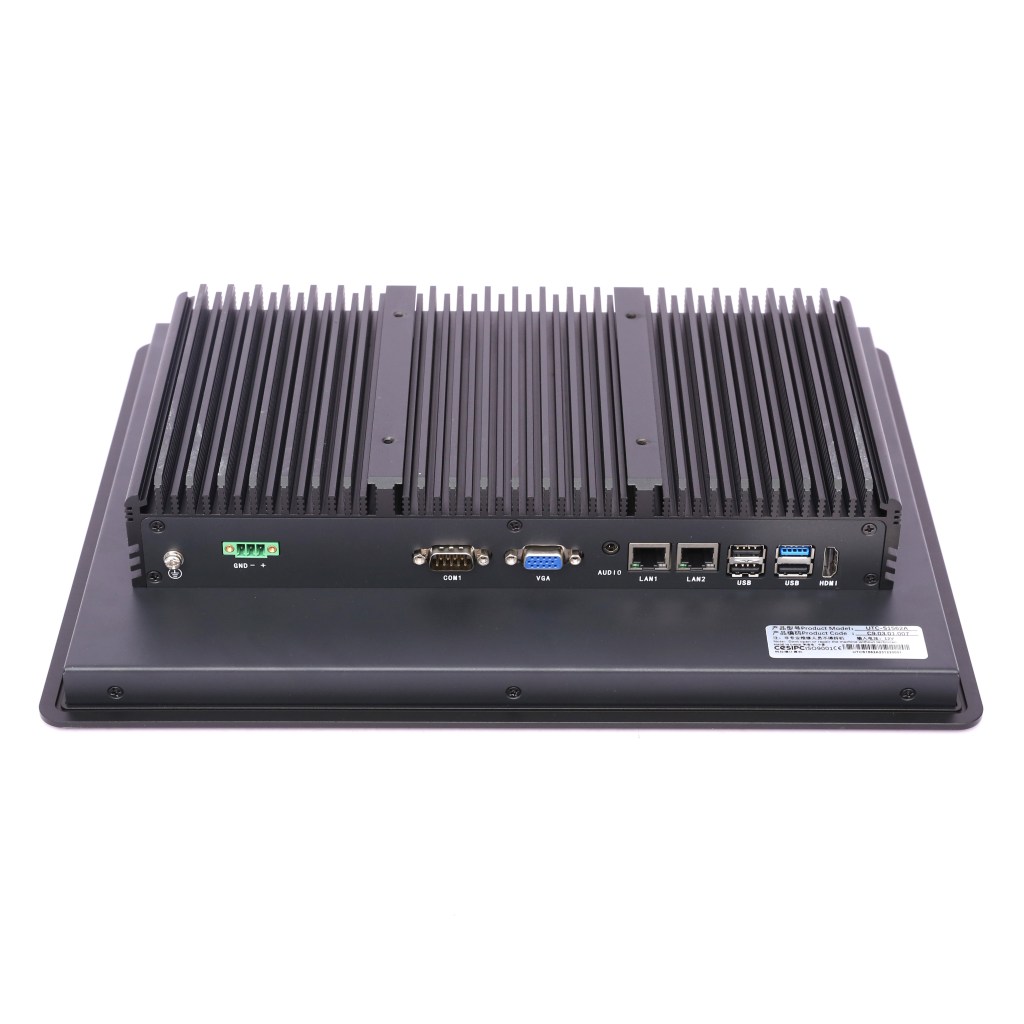

| I/O ports | 1xUSB3.0+5xUSB2.0, Type-A |
| COM: 6xRS232, DB9, 2*RS485/RS422 optional | |
| Dual Display: 1xHDMI (1920*1200 @30Hz)1xVGA (1920*1200 @30Hz) | |
| Audio: 1×Mic-in, 1x Line-out | |
| Expansion: MINI-PCIE | |
| Network(LAN) | 2x 10/100/1000Mbps Ethernet |
| Input Voltage | 12V DC (3 Pin Phoenix Connector) , optional 9V-36V DC |
| Control SW/LED | Power Button, AT & ATX Model |
| Display Type: | 15 inch TFT LED Panel( LED Backlight) |
| Max. Resolution: | 1024×768 / 4:3 |
| Luminance(cd/㎡) | 300nits |
| Touch Type | Capacitive / Resistive Touch |
| OS Support | Microsoft Windows 7/ Windows 10/Windows 11/ Linux |
| Operating Temperature | 0℃～50℃(14~ 140 °F)(extend temperature optional) |
| Storage Temperature | -10℃～60℃(-4 ~ 158 °F) |
| Front Panel Protection | IP65 compliant |
| Dimensions | (W*D*H): 358.3×282.2×72.8mm Mounting Cut out (W*D): 337.5*261.4mm |
| Weight | 5 KG (N.W.) |
| Color | Black |
| Material | Aluminum |
| Certification | CE / RoHS |
| Custom Service | Custom BIOS, System Encryption, Custom LOGO |

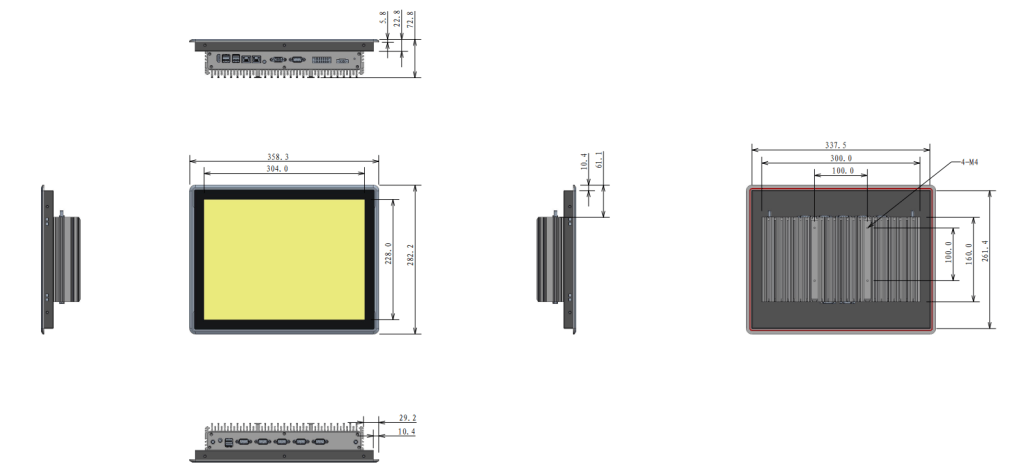

Product Dimensional Diagram
UTC-S1562A Video Introduction
For More Details, Please Feel Free To Contact Us.
