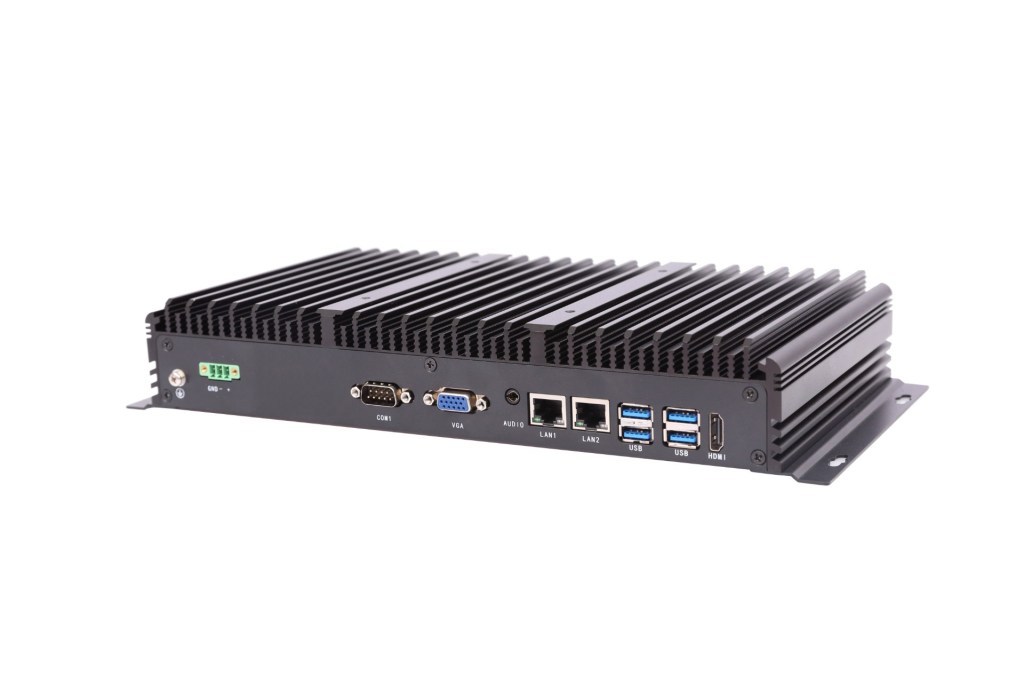

UPC-30XA Industrial PC

The UPC series industrial PC showcases a fanless embedded design powered by CESIPC’s proprietary BlockCore technology. It offers versatile configuration options, equipped with Intel® Celeron or advanced 10th/12th Gen Core™ i3/i5/i7 processors, delivering superior performance. Engineered for reliability, the UPC series ensures high functionality and meets rigorous protection standards, making it an optimal solution for mission-critical industrial applications.

Industrial PCs are widely used as control terminals across industries, including manufacturing, food & beverage, chemical processing, pharmaceuticals, energy, transportation, logistics, automation, and smart infrastructure, enabling reliable monitoring, control, and data visualization in demanding industrial applications.

► Introduction

Intel® Core™ i7/i5/i3 processors, compatible from Celeron® to 12th Gen Intel® Core
Fanless
Dual Intel® I210 Gigabit Ethernet.

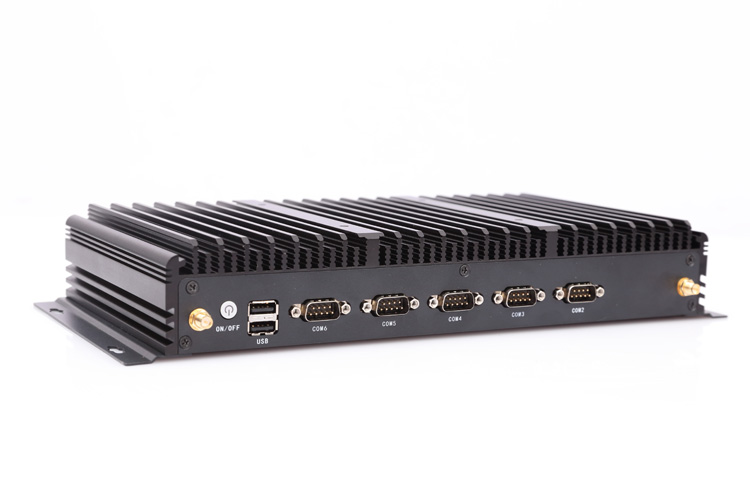

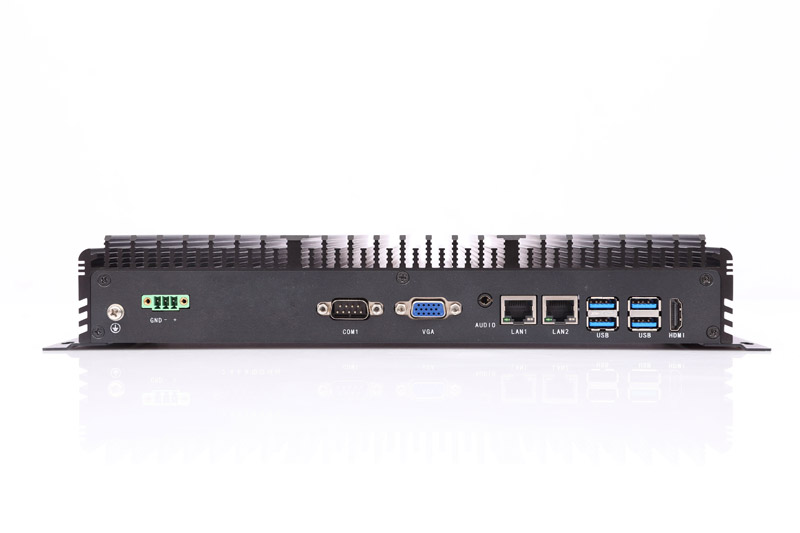

I/O: USB 2.0 ×2, USB 3.0 ×4, Audio ×1, Mic ×1, RS-232 ×6, HDMI, VGA.
9–36V DC wide-range power input.
Expansion: Dual-drive M.2 NVMe and Mini PCIe SSD
TPM 2.0 hardware security support.
CESIPC BlockCore modular design.
CESIPC SafeCore™ power-loss protection.
Auto power-on after power recovery.
Industrial-grade 6061 aluminum alloy enclosure.

★ Specification Download

► System Core

CPU	Celeron J1900	Celeron J6412	I3-10110U	I5-10210U	I7-10510U	i3-1215U	i5-1235U	i7-1250U
Cores	4	4	2	4	4	2-6	2-10	2-10
Threads	4	4	4	8	8	4-8	4-12	4-12
Frequency	2.0-2.4	2.0-2.8	2.1-4.1	1.9-4.2	1.8-4.9	1.2-4.4	1.3-4.4	1.0-4.7
Cache	2MB	4MB	4MB	6MB	8MB	10MB	12MB	12MB
TDP	10W	10W	15W	15W	15W	15W	15W	15W
Graphics	HD	UHD 600	UHD	UHD 620	UHD 620	UHD 730	Iris Xe	Iris Xe
Memory	4-8GB DDR3L	4-8GB DDR4	4-32GB DDR4			4-32GB DDR5
Storage	1 x mSATA	1 x mSATA SSD + 1 x M.2 SSD

► I/O Ports

CPU	Celeron J1900	Celeron J6412	I3-10110U	I5-10210U	I7-10510U	i3-1215U	i5-1235U	i7-1250U
USB 2.0	5	2	2	2	2	2	2	2
USB 3.0	1	4	4	4	4	4	4	4
RS232	4	4	4	4	4	4	4	4
RS485	2	2	2	2	2	2	2	2
VGA	1	1	1	1	1	1	1	1
HDMI	1	1	1	1	1	1	1	1
Ethernet	2 x Intel I210	2 x Intel I210	2 x Intel I210	2 x Intel I210	2 x Intel I210	2 x Intel I210	2 x Intel I210	2 x Intel I210
Audio	3.5mm TRRS	3.5mm TRRS	3.5mm TRRS	3.5mm TRRS	3.5mm TRRS	3.5mm TRRS	3.5mm TRRS	3.5mm TRRS

► System Core

DC Input	1 × 3-pin Pluggable Terminal Block for 12V DC9-36V DC Optional
Booting	AT / ATX

►Wireless Communication

Wi-Fi	Intel N6235 300Mbps, 802.11a/b/g/n 2.4G / 5G
Wireless Network	4G LTE Full Netcom Module (optional)

► Environmental

Operating Temperature	0~50℃ (-40~70℃ Optional)
Storage Temperature	-10~60℃
Humidity	10%~90% , Non-condensing

► OS

Windows	Windows 10 / Windows 11
Linux	Ubuntu 12.04 / 14.04 / 16.04 / 20.04

►Mechanical

Dimension	300 (W) × 160 (D) × 50 (H) mm
With Bracket	337 (W) x 160 (D) x 53.2 (H) mm
Weight	3.2 KG N.W.
Material	6063 High-Strength Aluminum Alloy
Mount	Bracket Mount / VESA Mount
