Product Features:
- Powerful Performance: Equipped with an i7-10870H processor, 16GB RAM, SSD storage, and an independent MXM 1070M graphics card.
- Multi-Screen Switching: Features three 15.6-inch TFT-LCD displays, with the ability to switch the internal screen to three HDMI output interfaces with one click.
- Comprehensive Connectivity: Includes 2 POE network ports, 2 WAN ports, 2 USB 3.0 ports, and 4 cluster gateway interfaces.
- Multiple Communication Methods: Supports 4G/5G full network communication and WiFi connectivity, with customizable function keys.
- Long Battery Life: Provides 4 hours of continuous operation at normal temperatures, with support for an optional 10,000mAh backup lithium battery.
- Versatile Design: Combines the portability of rugged laptops and portable workstations.
- Adjustable Brightness: 700-1000 nits brightness can be adjusted according to user needs.
- Customizable Function Keys: Allows users to configure function keys based on specific requirements.
Product Description:

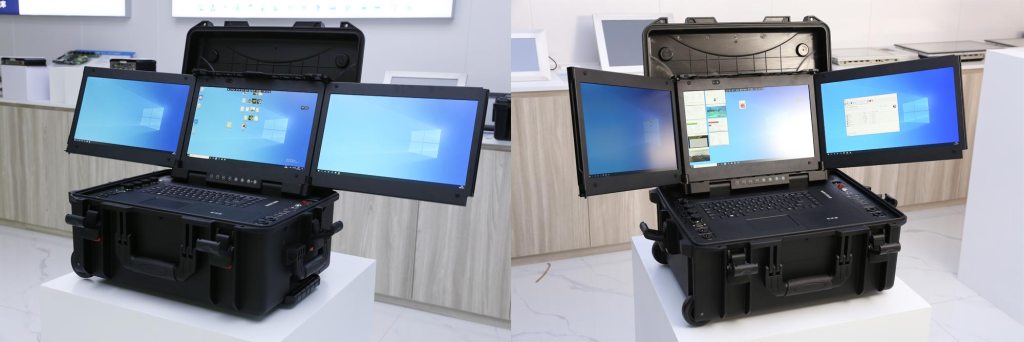

The CESIPC CTN-1580KD is a high-performance integrated device featuring three 15.6-inch TFT-LCD displays. Powered by a 10th Gen Intel® Core™ i7-10870H processor, it comes with 16GB RAM, a 512GB SSD, and an MXM 1070M dedicated GPU.
The system includes three HDMI ports with one-touch screen switching, two POE network ports, two WAN ports, two USB 3.0 ports, an audio interface, and four cluster gateway interfaces. It supports 4G/5G full-network communication and WiFi connectivity, ensuring seamless operation in various environments.
Compatible with Windows 10 and Linux operating systems, the CTN-1580KD offers exceptional battery life, making it an ideal choice for demanding field applications.
Product Specifications:
| Category | Specification |
|---|---|
| Motherboard | Customized industrial motherboard by CESIPC |
| Processor | Intel Core i7-10870H, 8 cores, 16 threads, base clock 2.2GHz, max turbo 5.0GHz |
| Memory | 32GB, expandable up to 128GB |
| Graphics Card | Configurable MXM independent graphics card |
| Display | 3 x 15.6-inch LQ TFT LCD (single screen resolution 1920*1080) |
| Storage | 512GB SSD NVMe + 1TB SSD SATA |
| Battery Life | Up to 4 hours at room temperature |
| Power Input | DC 19V |
| Keyboard | Industrial keyboard with touchpad |
| Brightness | Adjustable from 400 to 1000 cd/m² |
| Contrast Ratio | 500:1 |
| LAN | 2 x 10/100/1000Mbps RJ45 ports |
| USB Ports | 4 x USB 3.0 ports |
| Serial Port | 1 x RS-232 serial port |
| HDMI Outputs | 3 x HDMI outputs |
| Audio | 1 x 3.5mm audio input/output jack |
| Camera | Built-in 500W HD camera |
| Microphone | 1 x gooseneck microphone |
| Customization Options | Supports 4G full network communication, WiFi 802.11ac, middle screen with built-in 500W camera |
| Dimensions | Approx. 395 x 295 x 90.4mm (excluding protective corners) |
| Weight | 8.866kg |
| Operating Temperature | -10°C to 70°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 10~95% @ 40°C (non-condensing) |
| Protection Level | IP53-rated enclosure |
| Operating System | Windows 10, Linux System |
Application Fields
The CTN-1580KB rugged portable three-screen terminal is widely used in various fields, including epidemic prevention, traffic and patrol police, emergency response, armed police, civil defense, border defense, urban management, safety supervision, firefighting, power grid maintenance, railway inspection, forest fire prevention, military operations, and other large-scale security activities. It enables real-time information collection and reporting, effective incident control, rescue resource deployment, and event handling, significantly improving emergency command efficiency.
