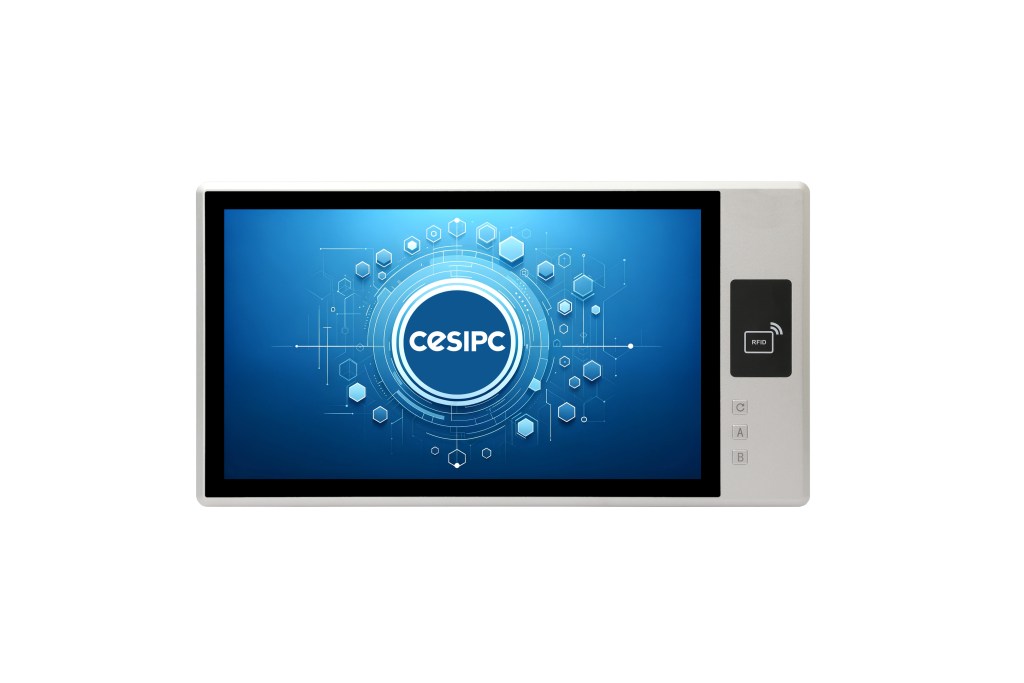

What is an RFID Panel PC?
An RFID Panel PC is an industrial computer integrated with an RFID reader, allowing operators to complete identity authentication, work order verification, and MES data collection directly through one industrial touchscreen terminal. It improves production traceability, reduces manual input errors, and simplifies smart factory workflows.
✅ 1. All-in-One Functional Design
- Built-in RFID Reader
- Supports 13.56MHz (HF) or 125kHz (LF) RFID cards
- Compatible with ISO/IEC 14443A/B, ISO15693 standards
- Ideal for user authentication, access control, and contactless login
- Front-Mounted Physical Buttons
- Customizable function keys for start, stop, confirmation, etc.
- Glove-friendly and highly reliable under tough industrial conditions
- Enhances operation safety and efficiency on the production floor
✅ 2. Industrial-Grade Reliability
- Rugged Housing
- Aluminum alloy or stainless steel front bezel (optional IP65/IP67-rated)
- Dustproof, waterproof, and resistant to oil and corrosion
- Perfect for harsh environments like food, pharmaceutical, or chemical industries
- Wide Temperature & Voltage Support
- Operating temperature: -20°C to +60°C (extreme models down to -40°C)
- Wide DC input range: 9~36V, suitable for various industrial power sources
- Fanless Cooling System
- Passive heat dissipation for silent operation and long-term stability
✅ 3. Rich I/O & Expansion Options
- Multiple COM ports (RS232/RS485), USB, LAN, HDMI/VGA, GPIO
- Optional expansion: Wi-Fi, 4G/5G, Bluetooth, CAN Bus
- CPU options from Intel Celeron J6412 to Core i5/i7 to meet different performance needs
✅ 4. Application Scenarios
Where is RFID Panel PC used?
| Industry | Application |
|---|---|
| Smart Manufacturing | Operator login, process confirmation, secure machine access |
| Food & Pharma | RFID for staff authentication + keypad for quick operations |
| Warehouse & Logistics | Identity verification and inventory handling control |
| Access Control | Real-time personnel tracking and equipment-level permission management |
| Water Treatment & Energy | Parameter adjustment with key-lock verification for safety |
FAQ
What is an RFID Panel PC used for?
An RFID Panel PC is mainly used for operator authentication, production tracking, MES login, and workstation access control in smart factories. It combines an industrial touchscreen computer and RFID reader into one device.
Why choose an RFID integrated Panel PC instead of an external RFID reader?
An integrated RFID Panel PC reduces wiring complexity, installation space, and hardware failure points by combining computing, HMI display, and RFID identification into one industrial device.
Can RFID Panel PCs be used in MES systems?
Yes. RFID Panel PCs are commonly used in MES environments for employee login, work order verification, production data collection, and process authorization.
Why Manufacturers Need RFID Panel PCs for Smart Factory?
Without RFID Panel PC:
❌ Separate RFID reader
❌ External cables
❌ Additional mounting space
❌ More maintenance points
With RFID Panel PC:
✅ One integrated terminal
✅ Faster operator login
✅ Better production traceability
✅ Reduced wiring complexity
Why Choose CESIPC RFID Panel PC?
17 Years Industrial Computer Experience
CESIPC specializes in industrial computers, panel PCs, embedded PCs and rugged computing solutions since 2009.
In-house Manufacturing
Add:
- SMT production
- Assembly line
- Burn-in testing
- Functional testing
Industrial Reliability
Add:
- 24/7 operation
- Fanless design
- Industrial components
- Long lifecycle support
Talk to a CESIPC Engineer
Our application engineers are ready to help you select the right configuration, discuss ODM requirements, or provide a tailored quotation for your project.
Typical response within 24 hours · Multilingual support · CE / FCC / BIS compliant
