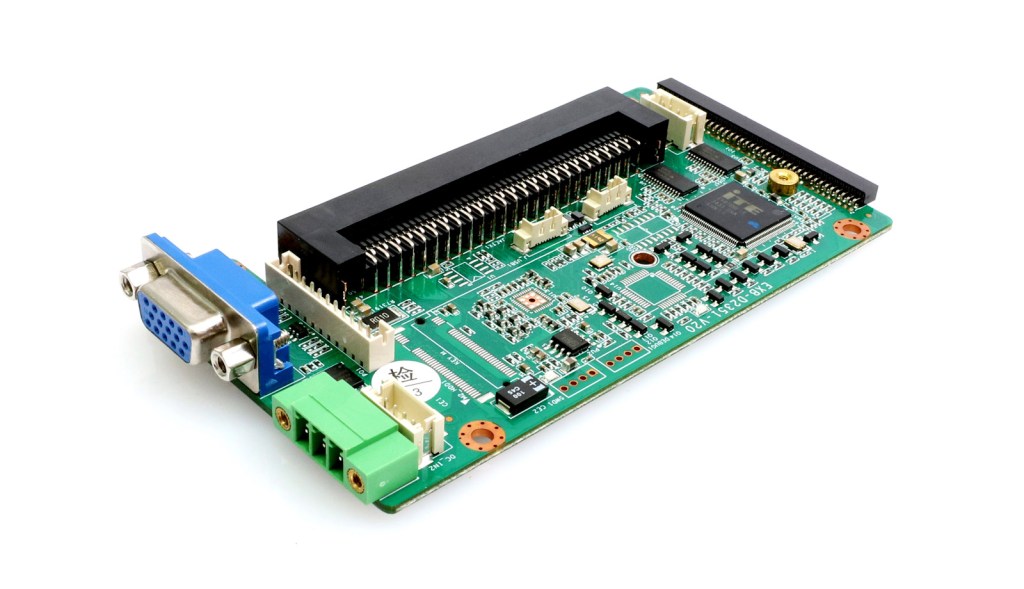

The EXB-D2351 i-Function Board is a high-performance smart controller that supports NVME high-speed SSDs, delivering fast and reliable storage solutions. Its wide voltage input range (9–36V) ensures stable operation across various power environments. The board features two onboard USB wafer interfaces and supports serial and GPIO expansion, allowing easy connection to external devices. With a robust design rated for operation between -10°C and +60°C, it is ideal for use in industrial automation, smart hardware, and other demanding applications.
★ Modular Design — LEGO MODE for flexible multi-scenario use
★ 1xVGA
★ Expansion Serial Ports, GPIO (IO: 8786）
★ Specification Download
| Parameter | Description |
| Input Interface | 1 VGA,1 Power Interface |
| Profile | L200 |
| Reserved functions | 2xUSB |
| Expansion | Serial Ports, GPIO (IO: 8786） |
| COB Matching | COB-D2212, COB-D21C6 |
| Power Supply | 5V DC from Motherboard Pin |
| Power Consumption | < 1W (typical) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 117 x 63mm |
| Mounting Method | Screw Holes |
| Compatible Motherboards | CES-1602, CES-1902, CES-1201, CES-1701 |

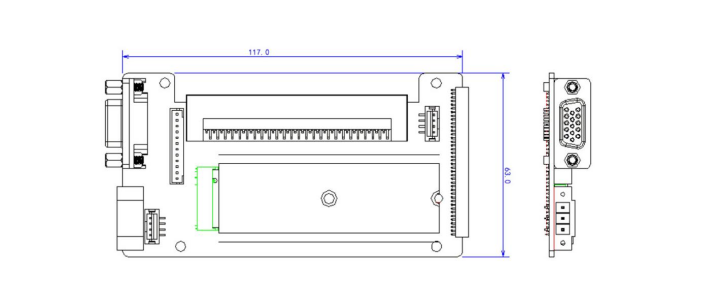

EXB-D2351 Dimensions
