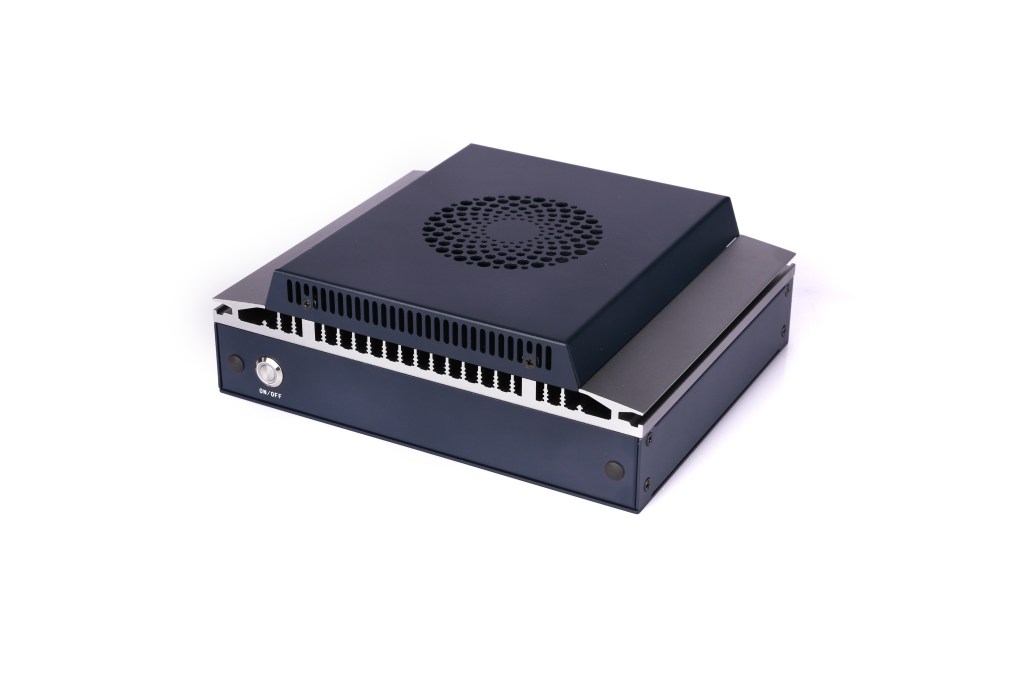

The EPC-102B LEGO industrial PC powered by CESIPC’s proprietary BlockCore technology. It supports Intel® 12th Gen Core™ i3/i5/i7 processors and offers 4xLAN ports. Built for reliability, it supports an intelligent thermal control system and hot-swappable fan replacement, ensuring stable performance and easy maintenance. With robust protection and high functionality, the EPC-102B is ideal for mission-critical industrial applications.
Introduction
- Intel® Core™ i7/i5/i3 processors, compatible from Celeron® to 12th Gen Intel® Core
- Fanless
- Four Intel® I210 Gigabit Ethernet.
- I/O: USB 2.0 ×2, USB 3.0 ×4, Audio ×1, Mic ×1, RS-232 ×3, HDMI, VGA.
- 9–36V DC wide-range power input.
- Expansion: dual M.2 2280 NVMe, M.2 2230 Wi-Fi.
- Intelligent Thermal Control System
- TPM 2.0 hardware security support.
- CESIPC BlockCore modular design.
- CESIPC SafeCore™ power-loss protection.
- Auto power-on after power recovery.
- Industrial-grade 6061 aluminum alloy enclosure.
► Specifications
System Core
| CPU | Intel® Core™ 12th Processor i3-1215U 1.2~4.4GHz Intel® Core™ 12th Processor i5-1235U 1.3~4.4GHz Intel® Core™ 12th Processor i7-1255U 1.7~4.7GHz |
| Memory | 8~32GB DDR5 |
| Storage | 1 x mSATA SSD |
| Cooling | Smart fan design with intelligent thermal control system |
| OS | Windows 10/11/ Linux Ubuntu |
I/O Ports
| USB3.0 | 4×USB3.0 |
| Display | 1×HDMI Display |
| Audio | 1×Audio |
| Ethernet | 4×10M/100M/1000M Intel I210 LAN |
Wireless Communication
| Wireless Network | 4G Full Network Compatibility (Optional) |
| Wi-Fi | Wi-Fi/ Bluetooth |
Power Supply
| DC Input | 1×3-pin Pluggable Terminal Block for 12V DC, 9-36V optional |
| Booting | AT / ATX |
Environmental
| Operating Temperature | 0~50℃ (-40~70℃Optional) |
| Storage Temperature | -10~60℃ |
| Humidity | 10%~90% , non-condensing |
Mechanical
| Dimension | 229.0 (W) × 160.0 (D) × 64.5 (H) mm |
| Weight | 1.68 KG |
| Material | High-Strength Aluminum Alloy |
| Mounting | Wall-mount/VESA Mount |
Certifications & Services
| Certs | CE / FCC / BIS, according to EN 55032 & EN 55035 |
| ODM | BIOS / Boot on LOGO / OEM |

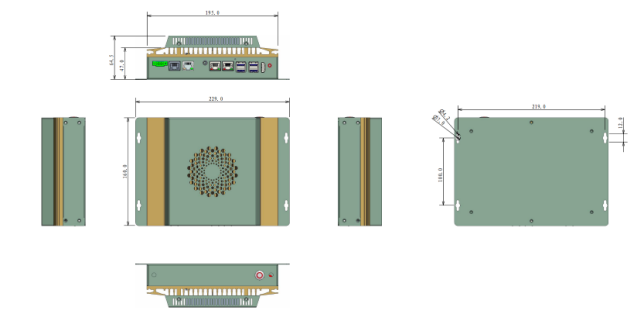

►Product images & sizes
►Product Selection
| NO. | Model | Product Part Number | Describe Infomation | Standard Memory | Standard Storage |
| 1 | EPC-102B | C10.01.04.001 | Intel® Core™ i3-1215U Processor | 8GB | mSATA SSD 256GB |
| 2 | EPC-102B | C10.01.04.002 | Intel® Core™ i5-1235U Processor | 8GB | mSATA SSD 256GB |
| 3 | EPC-102B | C10.01.04.004 | Intel® Core™ i7-1255U Processor | 8GB | mSATA SSD 256GB |
