In remote regions such as Guizhou, monitoring the safety of large bridges presents unique challenges. Complex geographical conditions and underdeveloped network infrastructure make traditional wired data transmission impractical for real-time monitoring. Additionally, continuous data collection, transmission, and analysis of multiple factors—including structural health, load, and environmental conditions—are crucial to ensuring long-term bridge safety. To address these needs, CESIPC introduces the UPC-206F Fanless Industrial PC, an efficient and reliable solution for real-time bridge monitoring in remote locations.
Seamless Adaptation to Bridge Monitoring Needs

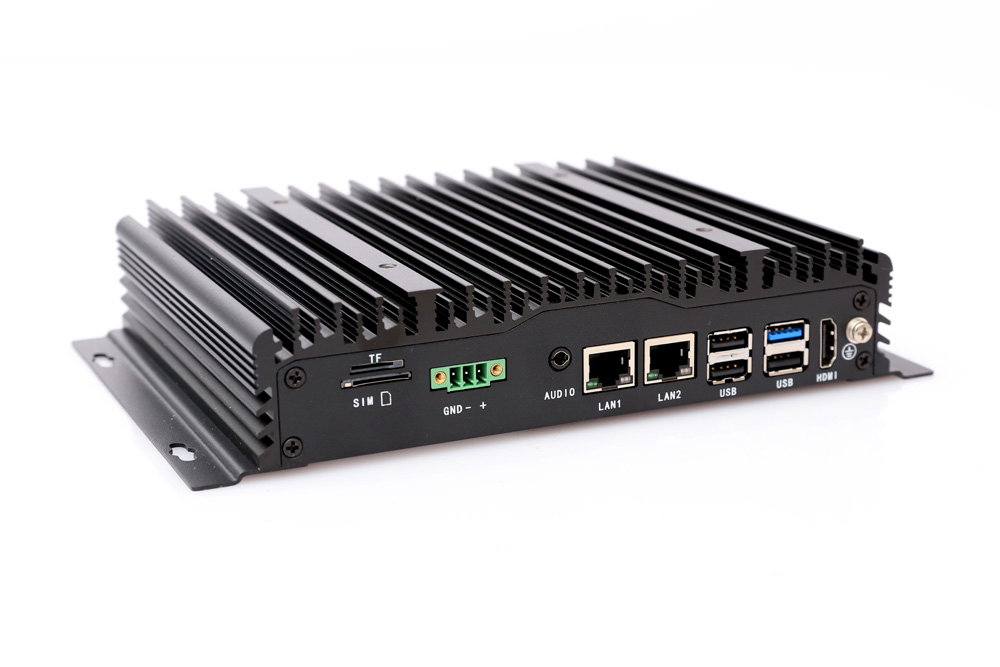

Designed for data acquisition and transmission in harsh environments, the UPC-206F embedded industrial PC is perfectly suited for large bridge monitoring systems in remote areas. Key features include:
Versatile Connectivity for Multiple Devices
- Equipped with 4 USB ports, 4 COM ports, and 2 LAN ports, the UPC-206F embedded fanless industrial pc supports simultaneous connections with multiple cameras, sensors, and other monitoring devices. Whether it’s video surveillance, strain gauges, accelerometers, or dynamic weighing systems, this embedded PC meets diverse requirements with ease.
- 4G LTE connectivity eliminates dependence on wired networks. Users can simply insert a SIM card into the external slot, enabling wireless communication, which significantly simplifies network deployment in remote areas.
High Performance & Exceptional Stability
- Fanless design minimizes mechanical failure rates and ensures long-term stability in harsh environments.
- Wide temperature range (-40°C to 70°C) allows the UPC-206F to function reliably in extreme climates, from scorching summers to freezing winters.
- 9-36V wide voltage input ensures uninterrupted power supply, even in areas with unstable power grids or varying voltage outputs.
Intelligent Management for Reduced Maintenance Costs
- Auto power-on feature guarantees automatic reboot after power restoration, eliminating the need for manual intervention—an ideal function for unmanned remote locations.
- Remote monitoring & management enables real-time device status tracking via a cloud platform, allowing for immediate response to system anomalies.
Core Contributions to Bridge Monitoring
As the data acquisition and transmission hub within bridge monitoring systems, the UPC-206F fanless IPC seamlessly integrates various monitoring devices to ensure comprehensive safety assessments.
Structural Health Monitoring
- Strain gauges & accelerometers: Connected via COM ports to collect real-time stress distribution and dynamic response data.
- Displacement & deflection sensors: Supports integration with laser displacement sensors and GNSS systemsfor precise bridge deformation tracking.
- Crack & corrosion sensors: Detect real-time crack width and steel reinforcement corrosion rates.
Load & Environmental Monitoring
- Dynamic weighing systems: Connected via LAN ports to record axle weight, vehicle speed, and traffic volume.
- Wind speed & temperature sensors: Provide real-time environmental data for bridge aerodynamics analysis.
- Water level & flow sensors: Wireless transmission of river water level and flow rate to cloud-based platforms.
Video Surveillance System
- High-definition cameras (≥2MP, 30FPS) via LAN ports enable real-time monitoring of bridge components, ensuring proactive risk management.
- Night vision support ensures reliable performance in low-light and extreme weather conditions.
Case Study: Canyon Bridge in Guizhou
A major canyon bridge in Guizhou has successfully integrated the UPC-206F industrial PC, enhancing real-time monitoring capabilities:
- Smart Cable System: Integrated sensors continuously monitor the health of main cables, ensuring long-term safety.
- 3D Scanning & Wind Field Analysis: Laser and Doppler LiDAR generate millimeter-level 3D bridge models, optimizing aerodynamic stability.
- Data Upload & Analytics: Using the 4G LTE module, monitoring data is transmitted to cloud-based AI systems, providing automated risk detection and predictive maintenance.
CESIPC’s Innovation & Commitment
At CESIPC, we are dedicated to providing efficient and reliable industrial solutions. The UPC-206F Fanless Industrial PC is designed to meet the unique challenges of remote bridge monitoring, offering key advantages:
- Effortless Deployment: Wireless connectivity simplifies network installation in remote areas.
- Uncompromised Stability: Wide temperature and voltage support ensure reliable operation in extreme conditions.
- Cost-Effective Maintenance: Intelligent remote management minimizes manual maintenance costs, boosting efficiency.
As a leader in bridge safety monitoring, CESIPC continues to innovate and provide smarter, more reliable solutions to support long-term infrastructure safety and protect lives and assets.
